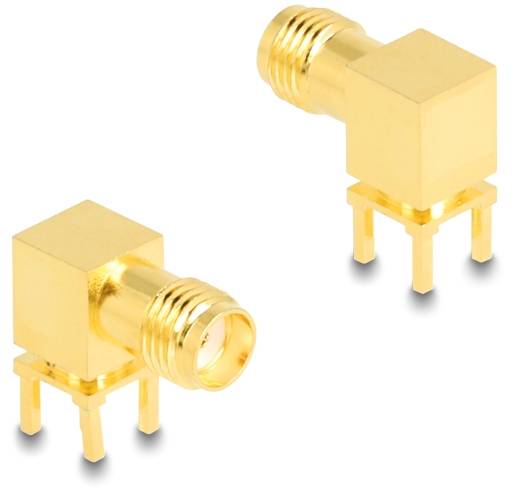

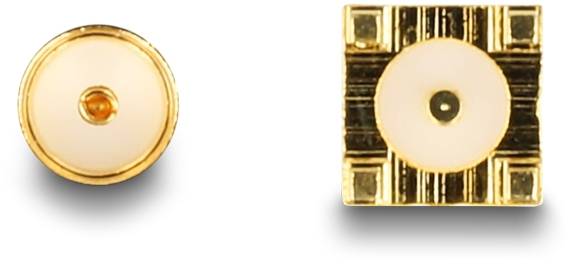

Delock 90198 90198 SMA adapter SMA socket - SMA socket 1 pc(s)
EAN:
Part number:
Item no:
Product type
SMA adapter
Type A
SMA socket
Type B
SMA socket
Connector type
Adapter
Impedance
50 Ω
Datasheet (PDF)
Highlights & Details
Adapter SMA Bush 90° PCB HBI59-1
- SMA socket - SMA socket
Technical specifications
- Connection 1: SMA
- Product type
SMA adapter
- Type A
SMA socket
- Type B
SMA socket
- Connector type
Adapter
- Impedance
50 Ω
- Content
1 pc(s)
- Max. frequency
6 GHz
- Case material
Brass gold plated
- Manufacturer part #
90198
- Factory colour
Gold
- Type
90198
- Cable design
Round
- Version
Cable
- Depth
27 mm
- Height
12 mm
- Width
24 mm
- Cable use
C13/C14 appliances
- Weight
0.004
- UKCA
yes
- Operating temperature (T-T)
-55 - 155 °C
- Impedance
50 Ohm
- Quantity per pack
1 Stück(e)
Documents & Downloads
Datasheet
Datasheet 3383401 Delock 90198 90198 SMA adapter SMA socket - SMA socket 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3383401 Delock 90198 90198 SMA adapter SMA socket - SMA socket 1 pc(s)
Description
This adapter by Delock is suitable for soldering on circuit boards. The gold coating prevents corrosion and provides an optimum connection.
This text is machine translated.
This text is machine translated.
Features
- Connection 1 x 90° SMA socket
- Housing material: HBI59-1 gold-plated brass
- Impedance: 50 ohm
- Frequency range DC - 6 GHz
- Thread type: 1/4″ - 36 US - 2A
- Thread length: 5 mm
- Operating temperature: -55 °C - 155 °C
- Solder mounting 5 solder points
- Dim. (LxWxH): Approx. 27 x 24 x 12 mm
