Highlights & Details

3G-SDI switch 4 in to 1 out

Video port type BNC
Black
1 pieces(s)

Technical specifications

Product type: SDI switch

Supported monitors: 3

Interfaces (input): RS232

Interfaces (output): RS232

Factory colour: Black

Width: 82 mm

Height: 25 mm

Depth: 162 mm

Weight: 777 g

Cable design: Round

Version: Cable

Cable use: C13/C14 appliances

Material: Metal

Power consumption (ON): 3 W

UKCA: yes

Quantity per pack: 1 Stück(e)

DC-in jack: yes

RS-232 ports: 1

Dimensions (WxDxH): 82 x 162 x 25 mm

HDMI in: 4

Number of HDMI outputs: 1

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3380564 Delock 93251 SDI switch

Description

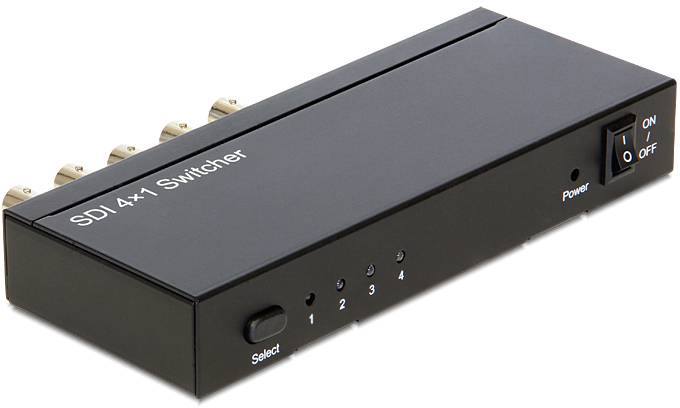

This Delock SDI switch can operate up to four SDI input sources on an SDI output device, such as an HD-SDI monitor. You can switch from one source to another by pressing the button on the device.

This text is machine translated.

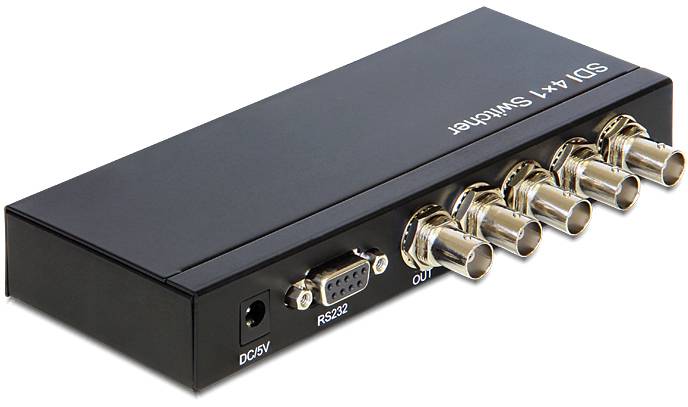

Features

Connections:
Input:
4 x BNC connector (3G-SDI)
1 x 5 V DC power socket
Output:
1 x BNC connector (3G-SDI)
Supported resolutions:
SD 480i, 525i and 625i
HD 720p 24, 25, 30, 50 and 60 Hz
HD 1080i 50, 60 Hz
HD 1080p 24, 25, 30, 50 and 60 Hz
The configuration and control of the device is possible via RS232 interface
Heavy duty metal casing
Power consumption: max. 3 W
Dim. (LxWxH): Approx. 162 x 82 x 25 mm
