Delock AV Converter 63332 [ - ]
EAN:
Part number:
Item no:
Highlights & Details
Delock HDMI HD audio extractor 4K 60 Hz to HDMI with earc
- Case material: Aluminium silver
- HDMI-in:1
- 5 V
Technical specifications
- Product type
AV Converter
- Connection type
HDMI

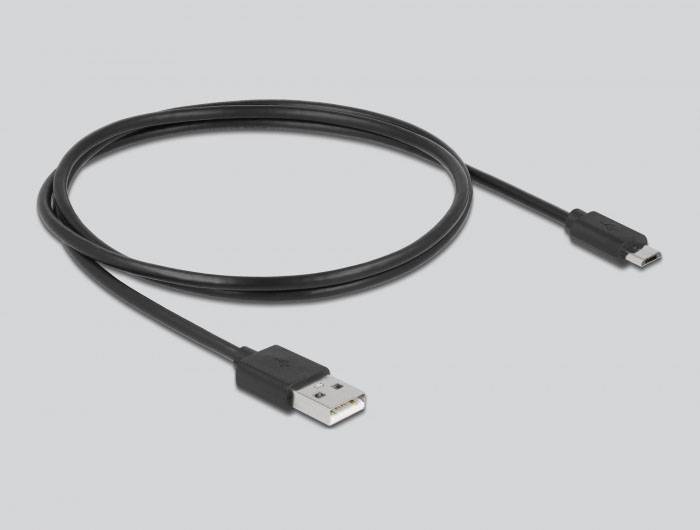

USB Micro-B
- No. of A connectors
1 x
- Type A
HDMI socket
- No. of B connections
1 x
- Type B
HDMI socket
USB-B socket
- Factory colour
Silver
- Version
Converter
- Cable use
AV
- Weight
0.155
- Width
65 mm
- Height
27 mm
- Dim
(W x H x D) 65 x 27 x 70 mm
- Cable design
Round
- Depth
70 mm
- Display resolution
3840 x 2160 Pixel
- Connections
HDMI-A plug
- Charging capacity (max.)
7.5 W
- Charging capacity (min.)
2.5 W
- Power consumption (ON)
2 W
- UKCA
yes
- Quantity
1
- Operating voltage
5 V
- HDMI in
1
- Number of HDMI outputs
2
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3384142 Delock AV Converter 63332 [ - ]
Description

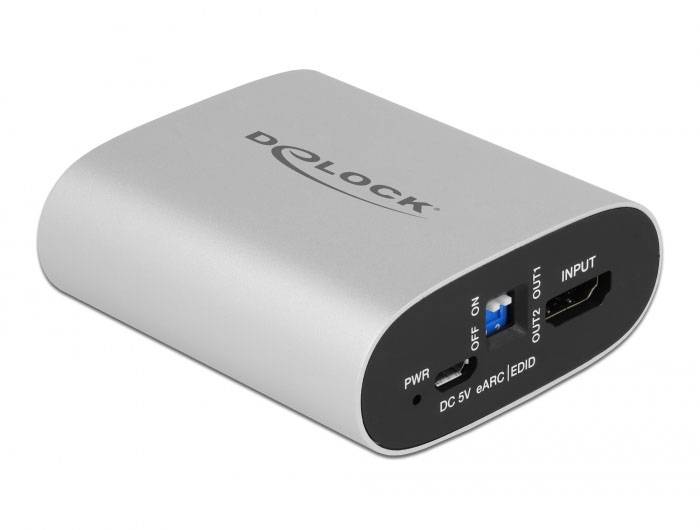

With this adapter by Delock the audio signal can be decoupled from a HDMI transmission. While the image signal is displayed on a TV or monitor, the audio signal can be output via the second HDMI connection to a surround receiver. Thus, an existing AV receiver or a sound bar can still be used, even if no suitable ultra HD connection is available.
HDMI HD audio output
In contrast to conventional digital S/PDIF audio outputs, all modern surround formats can be transferred to the receiver via the HDMI audio output.
Audio return channel (ARC)
Alternatively, the earc function on the extractor can be activated. The audio signal of the connected TV set is output at the HDMI AUDIO connection of the device.
This text is machine translated.
HDMI HD audio output
In contrast to conventional digital S/PDIF audio outputs, all modern surround formats can be transferred to the receiver via the HDMI audio output.
Audio return channel (ARC)
Alternatively, the earc function on the extractor can be activated. The audio signal of the connected TV set is output at the HDMI AUDIO connection of the device.
This text is machine translated.
