Delock Delock HDMI 3 - 1 Switch bidirectional - Video-/Audio-Splitter HDMI switch 2560 x 1440 p
EAN:
Part number:
Item no:
Technical specifications
- Product type
HDMI switch
- Supported monitors
3
- Resolution (max.)
2560 x 1440 p
- Factory colour
Black
- Weight
155 g
- Cable length
60 cm
- UKCA
yes
- Manual
yes
- HDCP
yes
- Plug and Play
yes
- HDMI in
3
- Number of HDMI outputs
1
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3380562 Delock Delock HDMI 3 - 1 Switch bidirectional - Video-/Audio-Splitter HDMI switch 2560 x 1440 p
Description

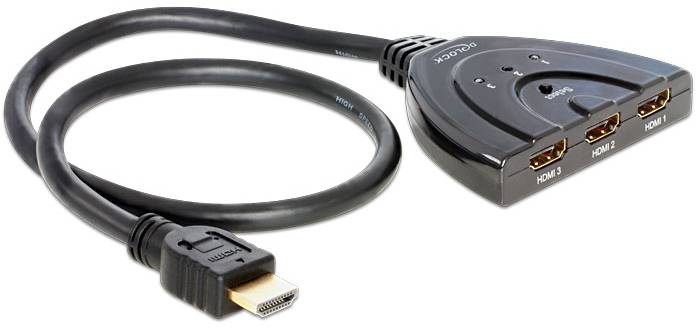

This HDMI converter from Delock is a manual bi-directional switch for connecting different devices with HDMI connection, which offers two different possible applications.

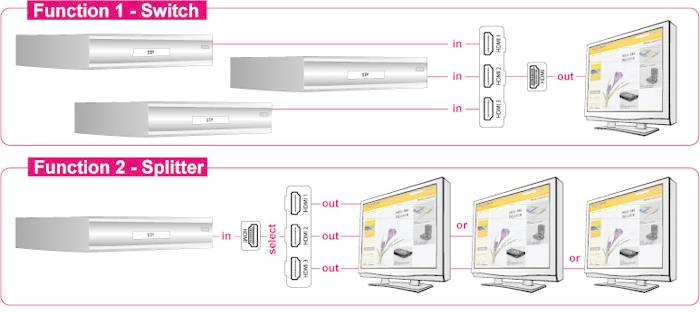

1. It can connect up to 3 devices to one monitor, TV or projector. The device which is displayed on the screen can be selected with the push of a button.
2. An HDMI device can be connected to up to 3 screens. The screen on which the signal is displayed can be selected by pressing a button. It is not possible to output simultaneously on multiple monitors.
This text is machine translated.
1. It can connect up to 3 devices to one monitor, TV or projector. The device which is displayed on the screen can be selected with the push of a button.
2. An HDMI device can be connected to up to 3 screens. The screen on which the signal is displayed can be selected by pressing a button. It is not possible to output simultaneously on multiple monitors.
This text is machine translated.
Features
- Connections:
- Function 1
- Input 3 x HDMI type A socket
- Output 1 x HDMI-A connector
- Function 2
- Input 1 x HDMI type A connector
- Output 3 x HDMI type A socket
- High Speed HDMI specification
- Resolution up to 2560 x 1440 @ 60 Hz/3840 x 2160 @ 30 Hz
- (Depending on the system and the connected hardware)
- HDMI port switching via switch
- LED displays for active HDMI connection
- Supports VGA, SVGA, XGA, UXGA mode
- Do not Require external current supply
- HDCP forwarding
- Cable length incl. connections: Approx. 60 cm
System requirements
- A free HDMI socket
