Delock Delock - Videoverteiler/-Switch - 8K, bidirektional DisplayPort switch
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
DisplayPort switch 2 to 1 bi-directional 8K
- Video port type:DisplayPort
- 7680 x 4320 pixels
- Black
- 1 pieces(s)
Technical specifications
- Product type
DisplayPort switch
- Supported monitors
2
- Factory colour
Black
- Width
55 mm
- Height
15 mm
- Depth
55 mm
- Weight
111 g
- Cable design
Round
- Version
Cable
- Display resolution
7680 x 4320 Pixel
- No. of DisplayPort
2 x
- Cable use
C13/C14 appliances
- Material
Plastic
- UKCA
yes
- Quantity per pack
1 Stück(e)
- Manual
yes
Documents & Downloads
Datasheet
Datasheet 3383109 Delock Delock - Videoverteiler/-Switch - 8K, bidirektional DisplayPort switch
User & Safety Instructions
User & Safety Instructions 3383109 Delock Delock - Videoverteiler/-Switch - 8K, bidirektional DisplayPort switch
Description

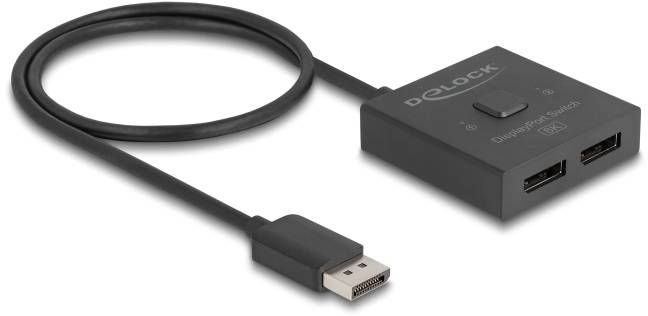

This DisplayPort switch from Delock is a manual bi-directional switch for connecting different devices with DisplayPort connection, which offers two different application options.
Function 1
It can connect up to 2 devices to one monitor, TV or projector. The device which is displayed on the screen can be selected with the push of a button.
Function 2
A DisplayPort device can be connected to up to 2 screens. The screen on which the signal is displayed can be selected by pressing a button. It is not possible to output simultaneously on multiple monitors.
This text is machine translated.
Function 1
It can connect up to 2 devices to one monitor, TV or projector. The device which is displayed on the screen can be selected with the push of a button.
Function 2
A DisplayPort device can be connected to up to 2 screens. The screen on which the signal is displayed can be selected by pressing a button. It is not possible to output simultaneously on multiple monitors.
This text is machine translated.
Features
- Connections:
- Function 1
- Input:
- 2 x DisplayPort socket
- Output:
- 1 x DisplayPort connector
- Function 2
- Input:
- 1 x DisplayPort connector
- Output:
- 2 x DisplayPort socket
- 1 x USB Type-C™ connector (optional for power supply)
- 1 x Shift key with LED indicators for 1 or 2
- DisplayPort 1.4 specification
- Supports HDR
- Resolution up to:
- 7680 x 4320 @ 30 Hz
- 3840 x 2160 @ 144 Hz
- (Depending on the system and the connected hardware)
- Plastic housing
- Colour, black
- Dim. (LxWxH): Approx. 55 x 55 x 15 mm
- Cable length without connections: Approx. 50 cm
System requirements
- A free DisplayPort socket
Display port cable
