Name: Delock HDMI Cable HDMI-A plug 5 m Black 84966 triple shielding, gold plated connectors, 4K UHD, twisted HDMI cable
Brand: Delock
SKU: 3379026

All things technology
Delivery within Europe
Right to Cancel applies
Specialist retailer since 1923

A black HDMI cable, coiled, with two connectors at each end, suitable for connecting audio and video devices.

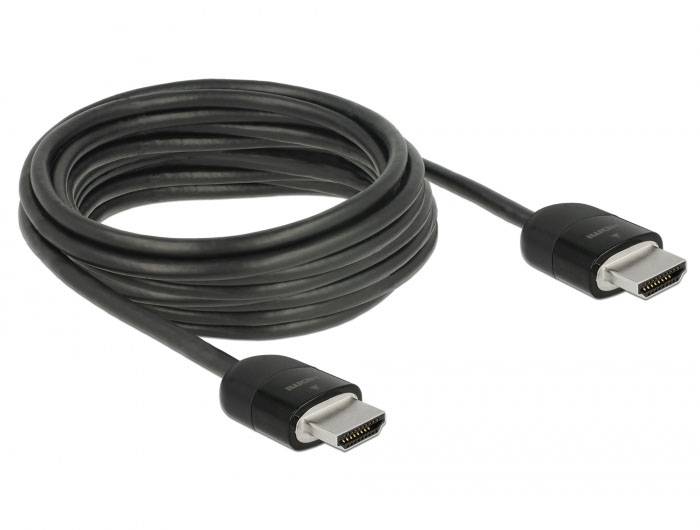

A long black HDMI cable with connectors at both ends, suitable for transmitting video and audio signals.

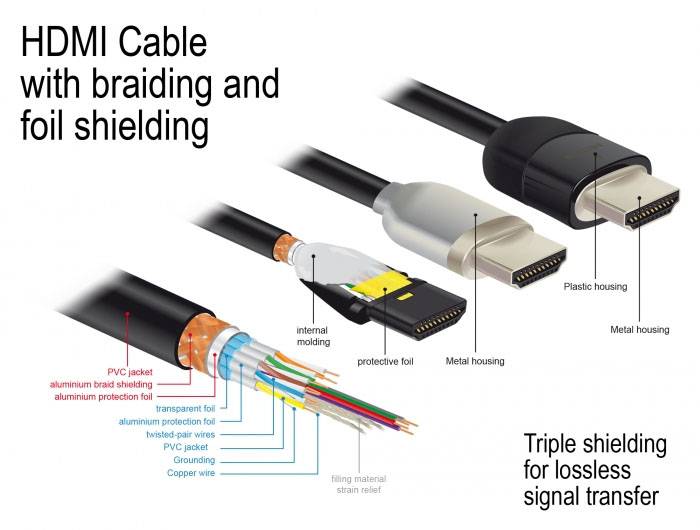

'HDMI cable with braiding and foil shielding, triple shielding for lossless signal transmission.' Shows cable construction with protective materials.

Figure of a cable shows layers: PVC sheath, aluminium braid, protective film, transparent film, twisted wires, earthing.

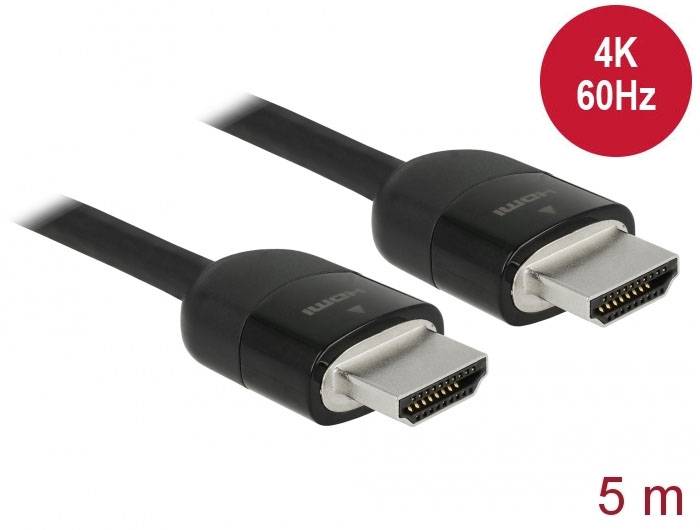

Two black HDMI cables, each 5 metres long, suitable for 4K resolution and 60Hz.

1/5

Product type

HDMI cable

Connection type

HDMI

Version

Cable

Connection type

HDMI-A to HDMI-A

Connections

HDMI-A plug

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Connection 1: HDMI type A (standard)
Connection 2: HDMI type A (standard)
Connection1 Form factor: Straight
Connection2 Form factor: Straight
Data transfer rate 18 Gbps

Product type: HDMI cable

Connection type: HDMI

Version: Cable

Connection type: HDMI-A to HDMI-A

Connections: HDMI-A plug

Connector version: straight

Cable version: HDMI Premium High Speed + Ethernet

Resolutions (max.): UHD 4K @ 60 Hz

Video resolution: 3840 x 2160 Pixel

Max. frequency: 60 Hz

Cable length: 5 m

Factory colour: Black

Cable features: triple shielding
gold plated connectors
4K UHD
twisted

Signal flow: Unidirectional (A→B)

Cable use: TV/monitor

Cable design: Round

: Copper

: 30 AWG

Frame rate: 120 Hz

Weight: 0.348

UKCA: yes

HDMI Ethernet channel: yes

Quantity per pack: 1 Stück(e)

Cable diameter: 5.7 mm

Audio Return Channel (ARC): yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3379026 Delock HDMI Cable HDMI-A plug 5 m Black 84966 triple shielding, gold plated connectors, 4K UHD, twisted HDMI cable

Description

This certified premium HDMI cable from Delock serves as connection between devices with HDMI interface, such as TV sets, Blu-ray players, screens or projectors. By supporting a maximum bandwidth of 18 Gbps, content can be played back with a resolution of up to 4K Ultra HD (3840 x 2160 @ 60 Hz).

Perfect shielding guarantees loss-free signal transmission
The cable is characterized by the additional metallic casing of the plug and the gold-plated contacts. In addition, it guarantees an interference-free audio and video signal transmission through its three-fold shielding as well as the especially tight sheath braid.

This text is machine translated.

Features

Connections:
1 x HDMI-A plug >
1 x HDMI-A plug
Certified Premium HDMI Cable
High Speed HDMI with Ethernet (HEC) specification
Wire cross-section 30 AWG
Cable diameter: Approx. 5.7 mm
Cable line: Twisted
Copper wire
Triple shielded cable
Gold-plated contacts
Transmission of audio and video signals
Data transfer rate of up to 18 GB/s.
Resolution up to 3840 x 2160 @ 60 Hz
(Depending on the system and the connected hardware)
3D support: Up to 1920 x 1080 @ 60 Hz; 3840 x 2160 @ 30 Hz
(Depending on the system and the connected hardware)
Supports the 21:9 cinema picture format
Supports 1080p HFR (High Frame Rate) 3D
Up to 120 Hz picture repetition rate
Supports the transmission of 2 video channels simultaneously to a screen
For two viewers
Supports color sampling in the format 4:2:0 (original format of Blu-ray, DVD and TV)
Includes audio return channel (ARC)
Up to 32 audio channels for speakers
Up to 1536 kHz audio scanning rate
Supports the transmission of up to 4 audio channels simultaneously
Supports dynamic adjustment of lip synchronicity
Picture/sound delays
Supports CEC 2.0 control commands
Supports Dolby® TrueHD and DTS-HD Master Audio™
Supports HDR
For more lively and natural colors
Colour, black
Length including connections: Approx. 5 m.
