Name: Delock Mini DisplayPort / HDMI Adapter cable Mini DisplayPort plug, HDMI-A socket 0.20 m White 62614 gold plated connect
Brand: Delock
SKU: 1880966

All things technology
Delivery within Europe
Right to Cancel applies
Specialist retailer since 1923

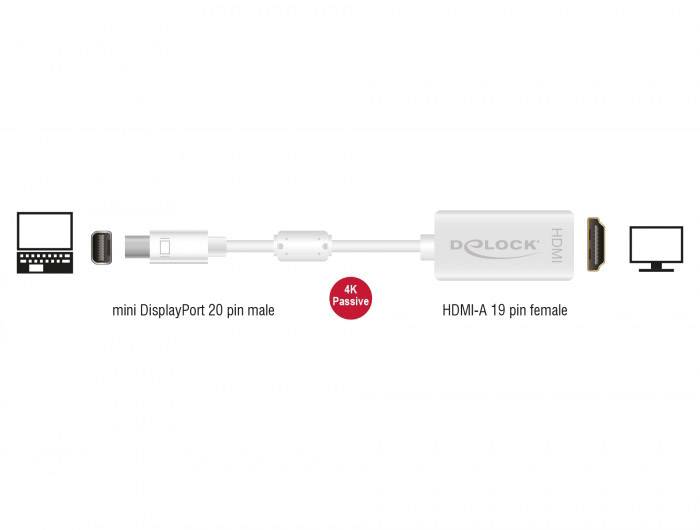

White adaptor cable from Mini DisplayPort to HDMI with '4K Passive' inscription. Primarily used for image or video transmission.

Adapter from mini DisplayPort 20-pin plug to HDMI-A 19-pin socket, passive, 4K-capable. Connects laptops to displays.

1/2

Product type

DisplayPort cable

Connection type

Mini DisplayPort

HDMI

Version

Adapter cable

Connection type

Mini DisplayPort to HDMI-A

Connections

Mini DisplayPort plug

HDMI-A socket

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Mini DisplayPort adapter 1.2 plug - HDMI socket 4K passive white

Mini Display Port 20-pin plug - HDMI-A 19 pin jack
Chipset: Parade PS no 8402 A
DisplayPort 1.2 and high-speed HDMI specification
Passive Converter (level shifter), only for graphics cards with DP + + output suitable
Resolution up to 3840 x 2160 @ 30 Hz (depending on the system and the connected hardware)
Supports 3D display (1080p @ 120 Hz)
Connections: gold-plated
1x ferrite core
OS-independent, no driver installation required

Technical specifications

Product type: DisplayPort cable

Connection type: Mini DisplayPort
HDMI

Version: Adapter cable

Connection type: Mini DisplayPort to HDMI-A

Connections: Mini DisplayPort plug
HDMI-A socket

Connector version: straight

Cable version: HDMI High Speed

Video resolution: 3840 x 2160 Pixel

Cable length: 0.20 m

Factory colour: White

Cable features: gold plated connectors

Signal flow: Unidirectional (A→B)

Cable use: TV/monitor

Cable design: Round

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 1880966 Delock Mini DisplayPort / HDMI Adapter cable Mini DisplayPort plug, HDMI-A socket 0.20 m White 62614 gold plated connect

User & Safety Instructions

User & Safety Instructions 1880966 Delock Mini DisplayPort / HDMI Adapter cable Mini DisplayPort plug, HDMI-A socket 0.20 m White 62614 gold plated connect

Description

With this adapter by Delock can be an HDMI monitor via a free mini DisplayPort interface on a system can be connected. The adapter supports a resolution up to 4K Ultra HD at 30 Hz and is backward compatible with full-HD 1080p.

This text is machine translated.
