Delock Mini DisplayPort / HDMI Cable Mini DisplayPort plug, HDMI-A plug 0.5 m Black 83993 gold plated connectors, triple
Product type
DisplayPort cable
Connection type
Mini DisplayPort
HDMI
Version
Cable
Connection type
Mini DisplayPort to HDMI-A
Connections
Mini DisplayPort plug
HDMI-A plug
EAN:
Part number:
Item no:
Technical specifications
- Connection 1: Mini DisplayPort
- Data transfer rate 10.2 Gbps
- Product type
DisplayPort cable
- Connection type
Mini DisplayPort
HDMI
- Version
Cable
- Connection type
Mini DisplayPort to HDMI-A
- Connections
Mini DisplayPort plug
HDMI-A plug
- DisplayPort version
DisplayPort 1.1
- Connector version
straight
- Cable version
HDMI High Speed
- Resolutions (max.)
Full HD 1080p @ 60 Hz
- Video resolution
1920 x 1200 Pixel
- Max. frequency
60 Hz
- Cable length
0.5 m
- Factory colour
Black
- Cable features
gold plated connectors
triple shielding
- Signal flow
Unidirectional (A→B)
- Cable use
TV/monitor
- Cable design
Round
Copper
32 AWG
- Display resolution
1920 x 1200 Pixel
- UKCA
yes
- Number of shielding layers
3
- Cable diameter
5.5 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3378846 Delock Mini DisplayPort / HDMI Cable Mini DisplayPort plug, HDMI-A plug 0.5 m Black 83993 gold plated connectors, triple
Description

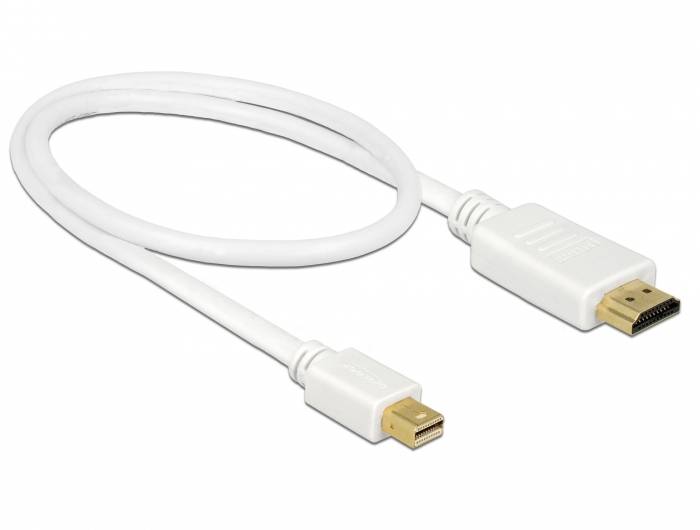

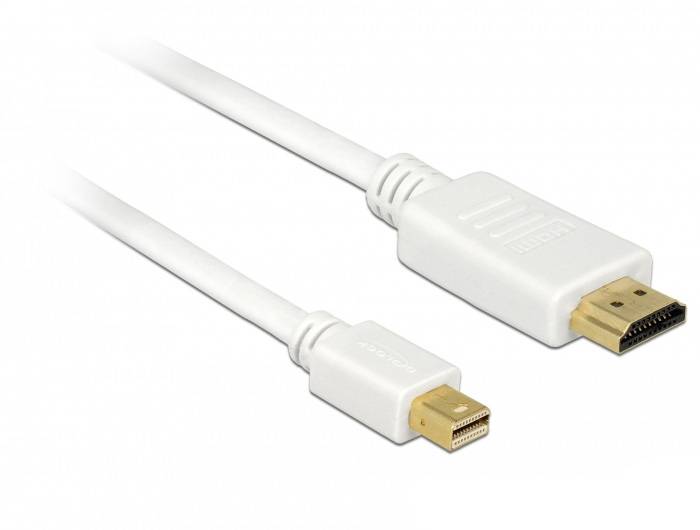

This cable by Delock is used to connect a monitor with HDMI connection to a PC or a notebook with a mini DisplayPort interface.
This text is machine translated.
This text is machine translated.
Features
- Connections:
- 1 x mini DisplayPort 20-pin plug >
- 1 x high speed HDMI-A 19-pin plug
- Parade PS8121E chipset
- DisplayPort 1.1a and High Speed HDMI specification
- Passive cable (level shifter), only suitable for graphics cards with DP++ output
- Signal direction: Mini DisplayPort input > HDMI output
- Wire cross-section 32 AWG
- Cable diameter: Approx. 5.5 mm
- Cable line: Twisted
- Copper wire
- Contacts with gold plating
- Triple shielded cable
- Transmission of audio and video signals
- Data transfer rate of up to 10.2 GB/s.
- Resolution up to 1920 x 1200 @ 60 Hz (depending on the system and the connected one
- Hardware)
- Colour: white
- Length including connections: Approx. 0.5 m.
