Delock Networks Adapter Cable [1x 10-pin power strip - 1x Screw terminals] Green
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product type
Networks Adapter
Cable
- No. of A connectors
1 x
- Type A
10-pin power strip
- No. of B connections
1 x
- Type B
Screw terminals
- Factory colour
Green
- Cable use
Networks
- Version
Adapter
- Cable design
Round
- Depth
42.5 mm
- Height
52.9 mm
- Width
32.5 mm
- Material
Plastic
- Weight
0.10
- UKCA
yes
- Cable section (AWG)
24 - 12
- Operating temperature (T-T)
-40 - 105 °C
- Rated voltage
320 V
Documents & Downloads
Datasheet
Datasheet 3381894 Delock Networks Adapter Cable [1x 10-pin power strip - 1x Screw terminals] Green
User & Safety Instructions
User & Safety Instructions 3381894 Delock Networks Adapter Cable [1x 10-pin power strip - 1x Screw terminals] Green
Description

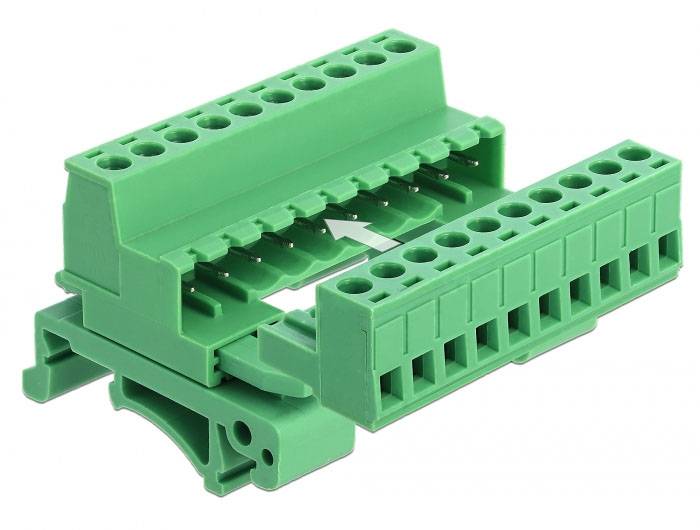

This terminal block set by Delock is suitable for mounting on a DIN rail. This allows, for example, data or power cables to be connected via the terminal block.

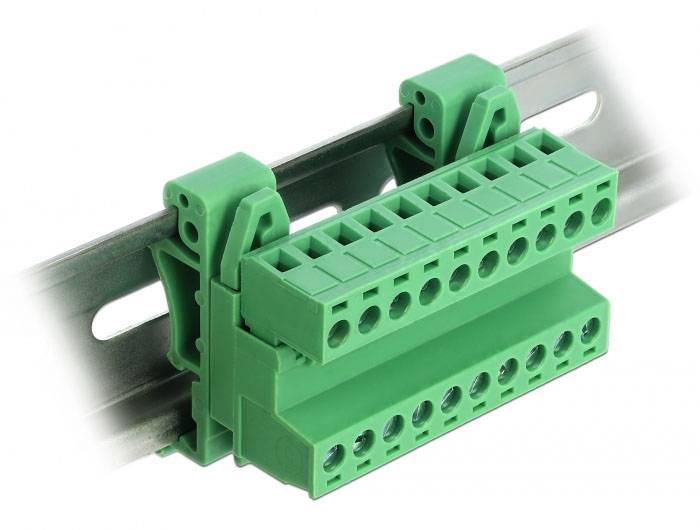

DIN rail mounting
This terminal block set can be attached to a 35 mm wide DIN rail.
Terminal block set for DIN rail
This text is machine translated.
DIN rail mounting
This terminal block set can be attached to a 35 mm wide DIN rail.
Terminal block set for DIN rail
This text is machine translated.
Features
- Connections:
- Terminal block:
- 1 x 10 pin connector
- 1 x 10-pin screw terminal
- Connection terminal:
- 1 x 10 pin socket
- 1 x 10-pin screw terminal
- Contact spacing: 5.08 mm
- Ambient temperature: -40 °C to 105 °C
- Can be used for a wire cross-section range from 24 to 12 AWG
- Power resistance AC 2500 V / 1 min.
- Nominal voltage according to UL: 300 V, EN: 320 V
- Nominal current according to UL: 10 A, EN: 15 A.
- DIN rail mounting 35 mm
- Material: plastic
- Colour: green
- Dim. (LxWxH): Approx. 42.50 x 32.45 x 52.85 mm
Hints
Please check the adapter pin layout. Depending on use, required pin layouts may differ.
