Delock RJ45 Networks Adapter Cable Transparent
EAN:
Part number:
Item no:
Highlights & Details

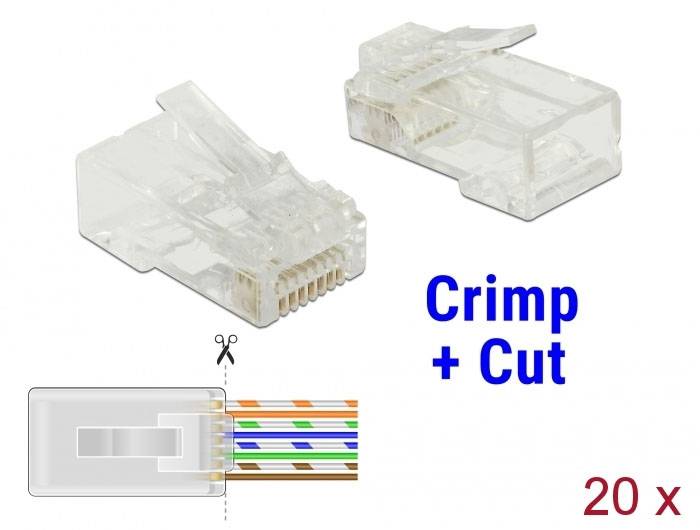

RJ45 crimp+cut plug CAT.6 UTP 20 pieces
- RJ-45
- Transparent
- Polycarbonate
- CAT6 U/UTP (UTP)
- 20 pieces(s)
Technical specifications
- Product type
Networks Adapter
Cable
- Connection type
RJ45
- No. of A connectors
1 x
- Type A
RJ45 plug
- Factory colour
Transparent
- Cable use
Networks
- Version
Adapter
- Cable design
Round
- Depth
22.2 mm
- Height
11.7 mm
- Width
14 mm
- Material
Polycarbonate (PC)
- Shielding
none
- Weight
0.029
- UKCA
yes
- Quantity per pack
20 Stück(e)
- Connector shielding
no
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3381532 Delock RJ45 Networks Adapter Cable Transparent
Description
With this RJ45 plug from Delock and the suitable Crimp+Cut tool a network cable can be connected quickly and easily with a RJ45 plug.

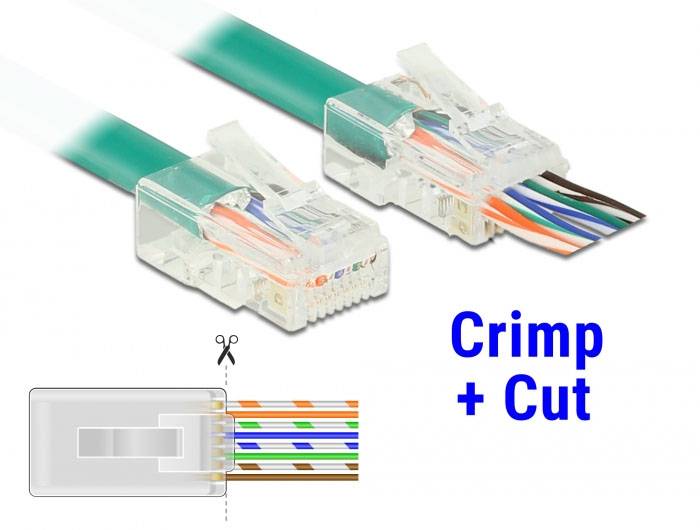

The RJ45 Crimp+Cut plug allows the lead wires to be led out forwards, speeding up installation and controlling the assignment. At the same time the power is improved because the wire pair remains twisted close to the contact. During crimping, all leads are contacted simultaneously and the excess cable ends are cut off.
This text is machine translated.
The RJ45 Crimp+Cut plug allows the lead wires to be led out forwards, speeding up installation and controlling the assignment. At the same time the power is improved because the wire pair remains twisted close to the contact. During crimping, all leads are contacted simultaneously and the excess cable ends are cut off.
This text is machine translated.
Features
- 1 x RJ45 connector
- Unshielded (UTP)
- Cat.6 specification
- Assignment according to TIA-568A/B
- 3-point contact
- Gold coated contacts: 1.27 UM / 50 u″
- For solid and bunched conductors up to 0.511 mm (24 - 26 AWG)
- For cable diameters from 5.0 - 6.5 mm
- Polycarbonate housing material
- Colour: Transparent
- Dim. (LxWxH): Approx. 22.2 x 14.0 x 11.7 mm
Hints
Please check the adapter pin layout. Depending on use, required pin layouts may differ.
System requirements
- Delock 86450 RJ45 crimp+cut tool set
