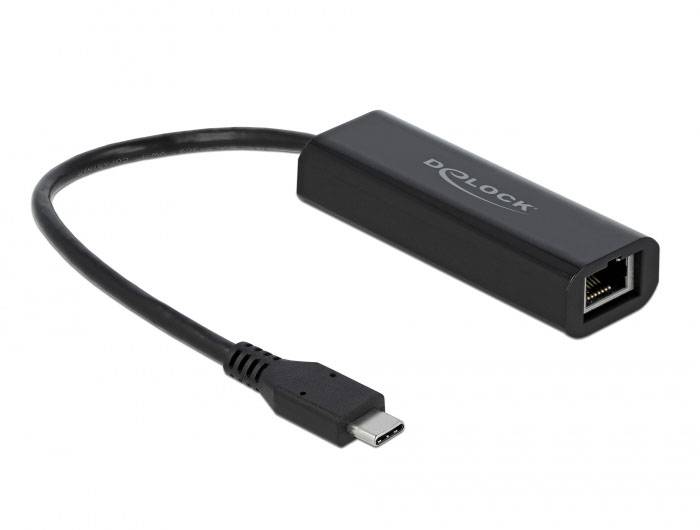

Delock USB 2.0 Adapter [1x USB-C® plug - 1x RJ45 socket] 66298 0.15 m
EAN:
Part number:
Item no:
Highlights & Details
Delock adapter USB Type-C™ plug for 2.5 Gigabit LAN
- Cable connected
- USB type-C Ethernet
- 5000 Mbit/s
Technical specifications
- Host interface: USB Type-C.
- Interface: Ethernet
- Data transfer rate 5 Gbps
- Product type
USB 2.0 Adapter
- Connection type
USB-C®
RJ45
- No. of A connectors
1 x
- Type A
USB-C® plug
- No. of B connections
1 x
- Type B
RJ45 socket
- Cable length
0.15 m
- Factory colour
Black
- Connector version
straight
- Cable use
USB 2.0
- Version
Adapter
- Range of use
USB adapters
- Cable design
Round
- Transfer rate (max.)
5 GBit/s
- Depth
75 mm
- Height
11 mm
- Width
25 mm
- 10/100/1000 Mbps ports
1 x
- UKCA
yes
- Maximum data transfer rate
5000 Mbit/s
- Internal
no
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3378992 Delock USB 2.0 Adapter [1x USB-C® plug - 1x RJ45 socket] 66298 0.15 m
Description
The adapter of Delock extends a PC or a laptop with a network interface via the USB type A connection.
NBASE-T for higher speeds
Modern services and new technologies require higher bandwidths. The NBASE-T technology supports speeds of 1 Gbps and 2.5 Gbps with traditional network cables. The best possible transmission rate is set automatically.
This text is machine translated.
NBASE-T for higher speeds
Modern services and new technologies require higher bandwidths. The NBASE-T technology supports speeds of 1 Gbps and 2.5 Gbps with traditional network cables. The best possible transmission rate is set automatically.
This text is machine translated.
Features
- Connections:
- 1 x USB 5 Gbps USB Type-C™ connector
- 1 x 2.5 Gigabit LAN RJ45 socket
- Chip set: Realtek RTL8156
- SuperSpeed USB - 5 Gbps specification
- Data transfer rates:
- Fast Ethernet up to 100 Mbps (half/full duplex)
- Gigabit Ethernet up to 1000 Mbps (half/full duplex)
- NBASE-T with up to 2.5 Gbps (half/full duplex)
- Compatible with:
- IEEE 802.3u 100Base-TX
- IEEE 802.3ab 1000BASE-T
- IEEE 802.3BZ: 2.5BASE-T
- Supports Auto MDI-X (automatic detection of standard or crossover network cables)
- Supports IEEE 802.1Q virtual LAN (VLAN)
- Support of full duplex with IEEE 802.3x flow control and half duplex operation with back pressure flow control
- Supports 9k Jumbo frames
- LED display for connection and activity
- USB bus Power
- Colour, black
- Dim. (LxWxH): Approx. 75 x 27 x 16 mm
- Cable length without connections: Approx. 15 cm
System requirements
- Linux Kernel 4.2 or later
Mac OS X 10.14 or higher
Windows 7/7-64/8.1/8.1-64/10/10-64/11
