Delock USB 2.0 Adapter [1x USB-C® plug - 1x RJ45 socket, USB-C® socket (Power Delivery)] 64116 0 mm
EAN:
Part number:
Item no:
Highlights & Details
Delock USB Type-C™ adapter to Gigabit LAN with Power delivery connection gray
- Cable connected
- USB type-C 3.2 Gen 2 (3.1 Gen 2) Ethernet
- Gigabit Ethernet 5000 Mbit/s
- Component for: PC/Thin Client/Tablet/Server/Workstation
Technical specifications
- Host interface: USB Type-C.
- Interface: Ethernet
- Support for other operating systems: Yes
- Product type
USB 2.0 Adapter
- Connection type
USB-C®
RJ45
- No. of A connectors
1 x
- Type A
USB-C® plug
- No. of B connections
1 x
- Type B
RJ45 socket
USB-C® socket (Power Delivery)
- Cable length
0 mm
- Factory colour
Black
Grey
- Connector version
straight
- Cable use
USB 2.0
- Version
Adapter
- Range of use
USB adapters
- Cable design
Round
- Depth
56 mm
- Height
23.5 mm
- Width
23.5 mm
- Connections
RJ45 connector
- 10/100/1000 Mbps ports
1 x
- UKCA
yes
- Maximum data transfer rate
5000 Mbit/s
- USB ports quantity
1
- Ethernet LAN
yes
- Internal
no
- USB powered
yes
- Manual
yes
- Full duplex
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3379105 Delock USB 2.0 Adapter [1x USB-C® plug - 1x RJ45 socket, USB-C® socket (Power Delivery)] 64116 0 mm
Description

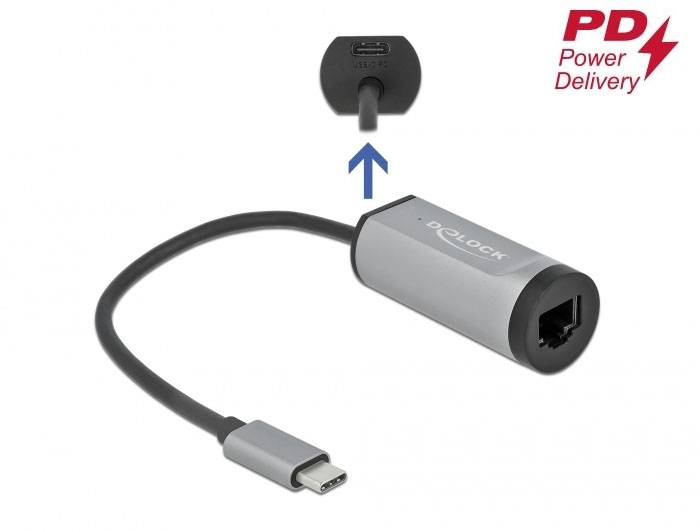

The Delock adapter adds a network interface to a PC or notebook through the USB Type-C™ connector. In addition, the adapter can be operated via a Thunderbolt™ 3 interface.
USB Power delivery (USB PD 3.0) support up to 60 watt

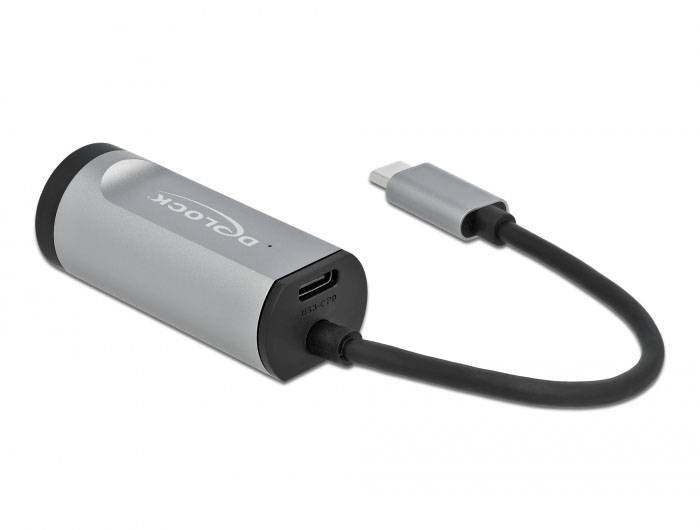

The adapter has a USB Type-C™ Power delivery port, which can be used to connect the power supply of the laptop or tablet to charge it.
Small stable helper
Due to its small size and sturdy housing this Delock adapter is especially suitable for traveling. It can easily be packed in the case together with a notebook or tablet and used if required.
This text is machine translated.
USB Power delivery (USB PD 3.0) support up to 60 watt
The adapter has a USB Type-C™ Power delivery port, which can be used to connect the power supply of the laptop or tablet to charge it.
Small stable helper
Due to its small size and sturdy housing this Delock adapter is especially suitable for traveling. It can easily be packed in the case together with a notebook or tablet and used if required.
This text is machine translated.
Features
- Connections:
- 1 x SuperSpeed USB (USB 3.2 1st Gen 1) USB Type-C™ connector >
- 1 x Gigabit LAN RJ45 socket
- 1 x USB Type-C™ PD socket (power supply)
- ASIX AX88179 chipset
- SuperSpeed USB - 5 Gbps specification
- Data transfer rates:
- Ethernet up to 10 Mbps (half/full duplex)
- Fast Ethernet up to 100 Mbps (half/full duplex)
- Gigabit Ethernet up to 1000 Mbps (half/full duplex)
- Compatible with:
- IEEE 802.3 10BASE-T
- IEEE 802.3u 100Base-TX
- IEEE 802.3ab 1000BASE-T
- Supports auto MDI-X (automatic detection of standard or crossover
- Network cable)
- Supports Wake On LAN (WOL)
- Supports IEEE 802.3az (energy-efficient Ethernet)
- Supports IEEE 802.1Q virtual LAN (VLAN)
- Support of full duplex with IEEE 802.3x flow control and half duplex operation
- With back-pressure flow control
- Supports 4k Jumbo frames
- Power output for host: Max. 100 W.
- Housing material: aluminium, plastic
- LED display for Power and activity
- USB bus Power
- Colour: grey
- Cable length incl. connections: Approx. 15.5 cm
- Dim. (LxWxH): Approx. 56 x 23.5 x 23.5 mm
System requirements
- Android 10.0 or higher
Chrome OS
Linux Kernel 5.4 or later
Mac OS X 10.15.6 or higher
Windows 8.1/8.1-64/10/10-64/11
Notebook or tablet with a free USB Type C™ or Thunderbolt™ 3 port
