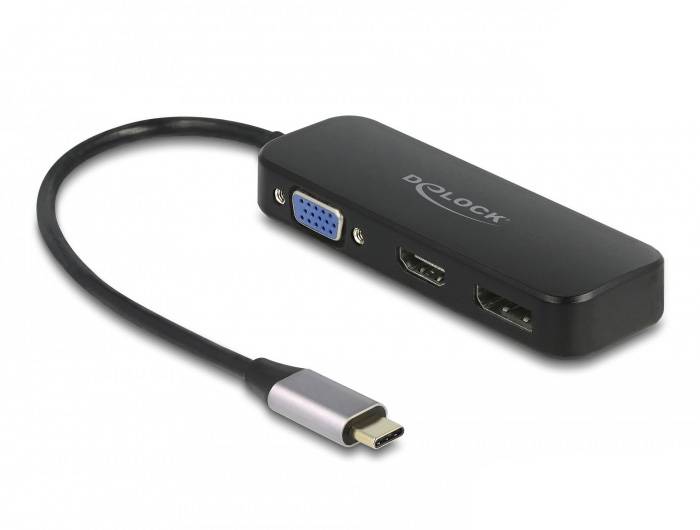

Delock USB-C® Adapter [1x USB-C® plug - 1x VGA socket, HDMI socket, DisplayPort socket] 64156 0.2 m
EAN:
Part number:
Item no:
Technical specifications
- Product type
USB-C® Adapter
- Connection type
USB-C®
VGA
HDMI
DisplayPort
- No. of A connectors
1 x
- Type A
USB-C® plug
- No. of B connections
1 x
- Type B
VGA socket
HDMI socket
DisplayPort socket
- Cable length
0.2 m
- Factory colour
Black
- Connector version
straight
- Cable use
USB-C®
- Version
Adapter
- Range of use
USB adapters
- Cable design
Round
- Video transmission possible
Yes
- Depth
150 mm
- Height
50 mm
- Width
100 mm
- Frame rate
60 Hz
- No. of DisplayPort
1 x
- No. of HDMI ports
1 x
- No. of VGA ports
1 x
- Connections
RJ45 connector
- HDR support
Yes
- Cable specs
Thunderbolt™ 3
- Weight
90 g
- UKCA
yes
- Ethernet LAN
no
- Quantity per pack
1 Stück(e)
- Card reader integrated
no
- HDCP
yes
- Maximum analog resolution
1920 x 1080 p
- Maximum digital resolution
3840 x 2160 p
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3384217 Delock USB-C® Adapter [1x USB-C® plug - 1x VGA socket, HDMI socket, DisplayPort socket] 64156 0.2 m
Description
This adapter from Delock is suitable for connecting a VGA, HDMI or DisplayPort monitor, projector or TV to a computer, notebook, tablet or smartphone with a USB-C™ interface and DisplayPort Alternate Mode support. The adapter can also be operated on a Thunderbolt™ 3 interface.
Dual video output
It is possible to operate two monitors simultaneously,HDMI + VGA, whereby a maximum resolution of 1920 x 1080 @ 60 Hz per monitor is possible. In this process, the two monitors show the same image (mirrored).
This text is machine translated.
Dual video output
It is possible to operate two monitors simultaneously,HDMI + VGA, whereby a maximum resolution of 1920 x 1080 @ 60 Hz per monitor is possible. In this process, the two monitors show the same image (mirrored).
This text is machine translated.
Features
- Connections:
- 1 x USB Type-C™ connector >
- 1 x VGA sockets
- 1 x HDMI-A socket
- 1 x DisplayPort socket
- Maximum resolution (depending on system and connected hardware):
- VGA 1920 x 1080 @ 60 Hz
- HDMI 3840 x 2160 @ 60 Hz
- DisplayPort 3840 x 2160 @ 60 Hz
- VGA + HDMI: 1920 x 1080 @ 60 Hz + 1920 x 1080 @ 60 Hz
- Supports HDCP 1.4
- Supports HDR
- Cable length without connections: Approx. 20 cm
System requirements
- Android 11.0 or higher
Chrome OS 90.0 or higher
IPad Pro (3) Next generation) or higher
Linux Kernel 5.8 or later
Mac OS X 11.2.3 or higher
Windows 8.1/8.1-64/10/10-64
Device with a free USB Type-C™ port and DisplayPort Alternate Mode or with a free Thunderbolt™ 3 port
