Delock USB-C® docking station 63252
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

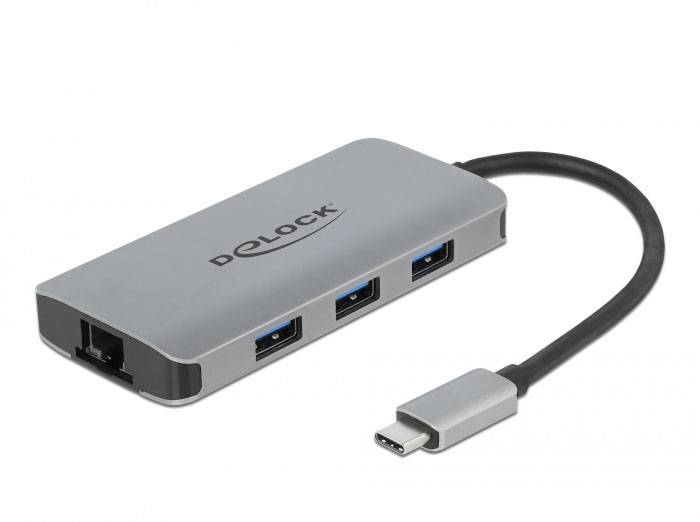

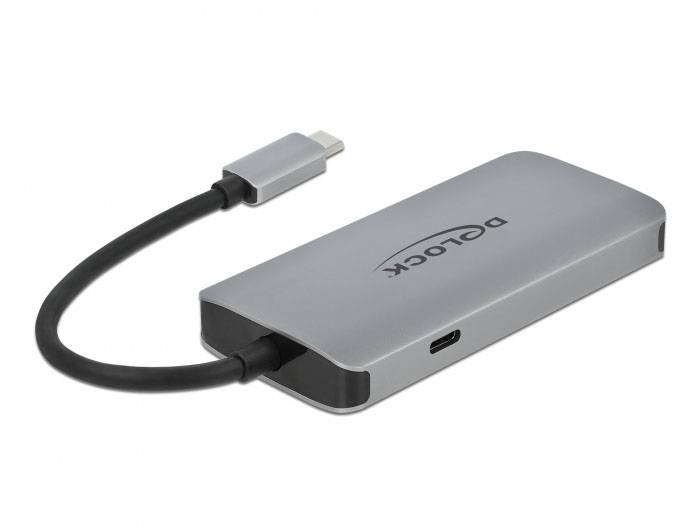

Delock 63252 USB-C® docking station
- Connection A (or inputs): USB-C®
- Connecton B (or outputs): USB-A, RJ45, USB-C® socket (Power Delivery)
- No. of supported monitors:
- Maximum resolution:
- Key features:
Technical specifications
- Host interface USB 3.2 1st Gen 1 (3.1 Gen 1) Type-C
- Data transfer rate 5 Gbps
- Product type
USB-C® docking station
- Type A
USB-C®
- Type B
USB-A
RJ45
USB-C® socket (Power Delivery)
- Suitable for
Universal
- Cable length
15 cm
- Factory colour
Grey
- Width
45 mm
- Height
13 mm
- Depth
95 mm
- Weight
0
- Dim
(W x H x D) 45 x 13 x 95 mm
- Cable design
Round
- Version
Cable
- No. of USB type A 3.1 / 3.2 1st Gen
3 x
- Cable use
C13/C14 appliances
- Interfaces (output)
USB A (USB 3.0)
USB A (USB 3.0)
USB C® (USB 3.2 1st gen)
Gigabit LAN (1 Gbps)
- Connection type
USB 3.2 Gen 1 (USB 3.0)
- 10/100/1000 Mbps ports
1 x
- No. of outputs
2 x
1 x
1 x
1 x
- UKCA
yes
- Ethernet LAN
yes
- Quantity per pack
1 Stück(e)
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1
- Microphone in
no
- Jumbo frames support
yes
- Card reader integrated
no
- Full duplex
yes
Documents & Downloads
Datasheet
Datasheet 3381608 Delock USB-C® docking station 63252
User & Safety Instructions
User & Safety Instructions 3381608 Delock USB-C® docking station 63252
Description
The USB hub from Delock is the mobile companion for notebooks or tablets with a USB Type-C™ connection. You can connect up to three USB Type-A devices and one USB-C™ device to the hub.
Integrated 10/100/1000 Mbps LAN connection
In addition, the hub with integrated RJ45 Gigabit LAN connection extends a PC or a notebook by a network interface via the USB Type-C™ connection.
USB Power delivery (USB PD 3.0) support up to 100 watt
The hub has a USB Type-C™ Power delivery port, which can be used to connect the power supply of the laptop or tablet to charge it.
Small stable helper
Owing to its small dimensions and its stable casing this Delock hub is especially suitable while traveling. It can easily be packed in the case together with a notebook or tablet and used if required.
This text is machine translated.
Integrated 10/100/1000 Mbps LAN connection
In addition, the hub with integrated RJ45 Gigabit LAN connection extends a PC or a notebook by a network interface via the USB Type-C™ connection.
USB Power delivery (USB PD 3.0) support up to 100 watt
The hub has a USB Type-C™ Power delivery port, which can be used to connect the power supply of the laptop or tablet to charge it.
Small stable helper
Owing to its small dimensions and its stable casing this Delock hub is especially suitable while traveling. It can easily be packed in the case together with a notebook or tablet and used if required.
This text is machine translated.
Features
- Connections:
- 1 x SuperSpeed USB (USB 3.2 1st Gen 1) USB Type-C™ connector
- 2 x SuperSpeed USB (USB 3.2 1st Gen 1) Type A socket
- 1 x SuperSpeed USB (USB 3.2 1st Gen 1) Type A socket - battery charging specification
- BC1.2
- 1 x SuperSpeed USB (USB 3.2 Gen 1) USB type C™ Power delivery socket
- 1 x Gigabit LAN RJ45 socket
- VIA VL102, VL817, Realtek RTL8153 chipset
- Data transfer rates:
- USB 3.2 Gen 1 up to 5 Gbps
- Ethernet up to 10 Mbps (half/full duplex)
- Fast Ethernet up to 100 Mbps (half/full duplex)
- Gigabit Ethernet up to 1000 Mbps (half/full duplex)
- Compatible with:
- IEEE 802.3 10BASE-T
- IEEE 802.3u 100Base-TX
- IEEE 802.3ab 1000BASE-T
- Supports auto MDI-X (automatic detection of standard or crossover
- Network cable)
- Supports IEEE 802.3az (energy-efficient Ethernet)
- Supports IEEE 802.1Q virtual LAN (VLAN)
- Support of full duplex with IEEE 802.3x flow control and half duplex operation
- With back-pressure flow control
- Supports 4k Jumbo frames
- Cable length without connections: Approx. 15 cm
- Dim. (LxWxH): Approx. 95 x 45 x 13 mm
- Plug & Play
System requirements
- Android 9.1 or higher
Chrome OS 78.0 or higher
IPad Pro (2018)
Linux Kernel 4.9 or later
Mac OS X 10.15.2 or higher
Windows 8.1/8.1-64/10/10-64
Notebook or tablet with a free USB Type C™ or Thunderbolt™ 3 port
