DEVI 109507 109507 Grey
EAN:
Part number:
Item no:
Technical specifications
- Width 800 mm
- Height: 950 mm
- Depth: 225 mm
- Material: Steel
- Surface design: Other
- Colour: grey
- Connectable: No.
- With mounting plate: No.
- Mounting plate depth-adjustable: No.
- Number of doors: 3
- Number of locks: 1
- Suitable for outdoor installation: No.
- EMC type: No.
- With inspection door: Yes
- With ventilation door: No.
- With rear door: No.
- Impact strength: IK08
- Protection class (IP) IP54
- Product type
Controller
IP54
- Factory colour
Grey
- Dim
(W x H x D) 800.00 x 950.00 x 225.00 mm
- Height
950.00 mm
- Depth
225.00 mm
- Width
800.00 mm
- Material (details)
Steel
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3136703 DEVI 109507 109507 Grey
Description

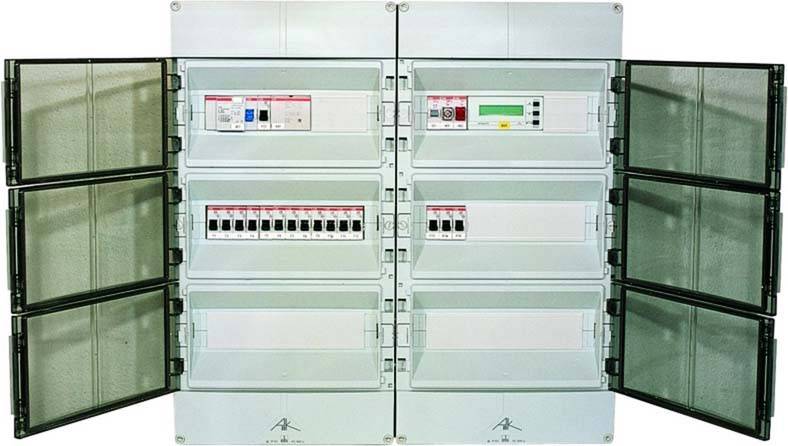

Distribution for open space heating with up to 8 heating circuits, power 37-48 KW, AP-steel plate housing, protection class IP54 equipped with all input fuses, FI- protection switch modes switch for continuous, manual and automatic mode, empty space for ice and snow detectors Devireg 850, control and power contactors, heating circuit fuses as well as terminals for supply and outlet lines and fault reporting. VDE moderately wired. Connection voltage 230 V/400 V
