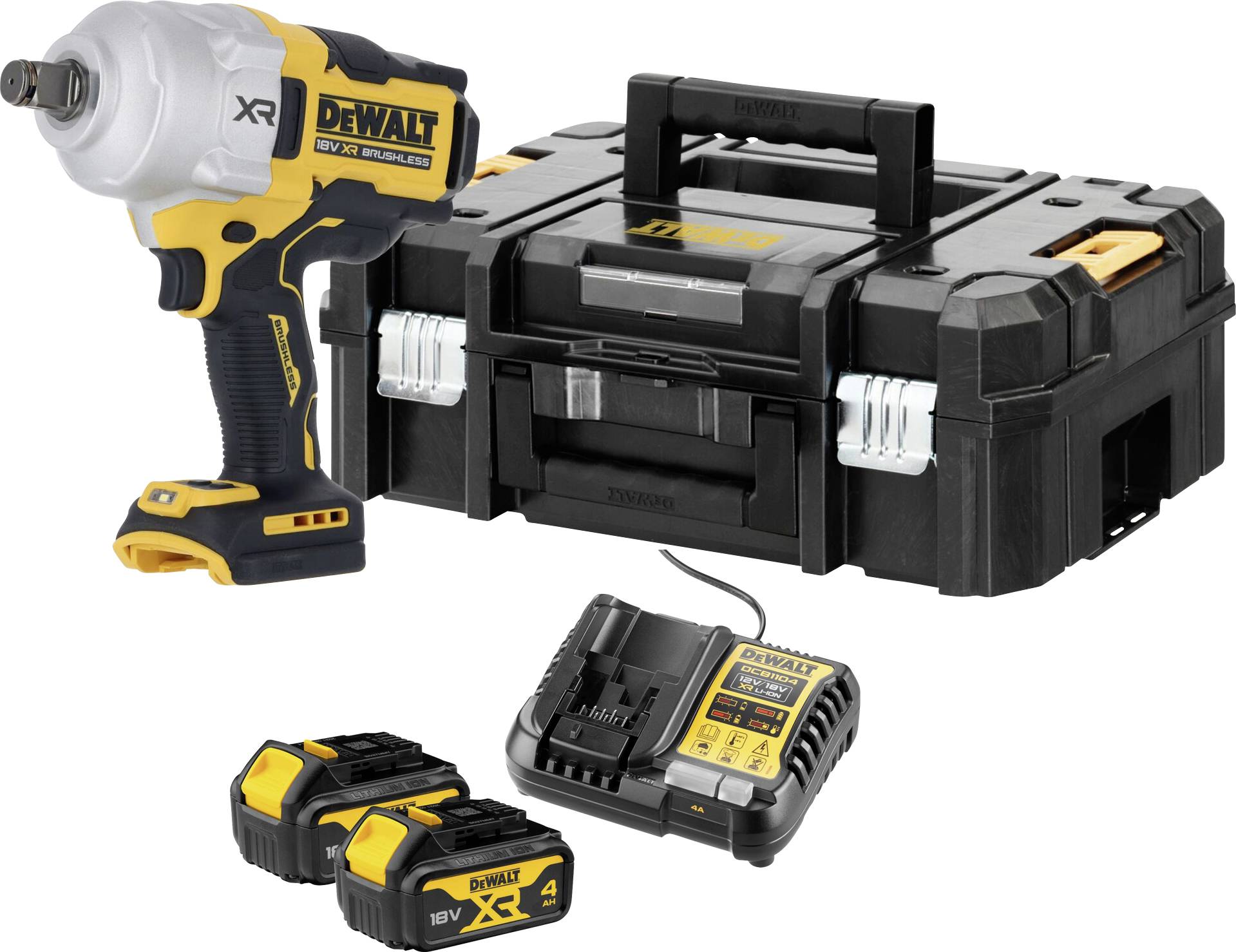

Set comprising of Dewalt battery-operated impact screwdriver DCF77 964NT-XJ and battery kit DCB1104M2-QW
18 V/ battery
Technical specifications
All 18 Volt XR or XR flex volt batteries of all Ah classes
Idling speed 0 - 440 / 575 / 1,200 min-1
Blow count 0 - 2,015 min-1
Maximum torque 677 / 1,138 / 1,925 Nm
Maximum loosening torque: 2,576 Nm
3/4" male square with snap or HOG ring
Weight (without battery): 3.7 kg
Sound pressure level (LPA) 100 db(A)
Sound power level (LWA): 108 db(A)
K-value (acoustic pressure): 3 dB(A)
Vibrations (in case of impact screws) 16.0 m/s2
K-value (vibrations): 1.7 m/s2
Product type
Cordless impact driver
Voltage
18 V
Idle speed (details)
0 - 1200 rpm U/min
Blow count
0 - 2015 rpm /min
Tool holder
3/8" (10 mm) male square
Power supply (LOV)
rechargeable
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3763569 DEWALT DCF964NT-XJ+DCB1104M2-QW Cordless impact driver 18 V
Description
Cordless hammer screwdriver 3/4",18V Basic. Powerful 4-stage cordless impact wrench with Hohem tightening torque of up to 1,925 Nm or loosening torque of up to 2,576 Nm. Brushless motor technology ensures longer running time per charge, and longer service life. Rotation and hammer speed as well as torque by fine-dose accelerator switch in 3 steps electronically controllable and with it maximum control in all applications. Additional electronic Power stage regulates down the speed for 4 seconds while maintaining the torque. After the end of the timer, the speed is increased and the Power mode is activated. All 4 steps, quickly and safely, can be adjusted electronically via a switch. Optimal use in extremely heavy screw worksEasy long-term use through safety electronics (permanent checking of battery temperature, current drain and discharge protection). High-quality and robust aluminum impact housing enables optimum heat exchange and thus increases the life of the device. Sturdy 3/4" male square holder with spring or HOG ring for quick change and secure fit of application tools. Despite extremely high torque high performance engine and robust impact mechanism compact dimensions of only 223mm, low weight and thus problem-free handling, also in continuous operation.
This text is machine translated.
Features
2x 18 Volt / 4 Ah starter set incl. system quick charger DCB 1104
Cordless hammer screwdriver 3/4",18V Basic. Powerful 4-stage cordless impact wrench with Hohem tightening torque of up to 1,925 Nm or loosening torque of up to 2,576 Nm. Brushless motor technology ensures longer running time per charge, and longer service life. Rotation and hammer speed as well as torque by fine-dose accelerator switch in 3 steps electronically controllable and with it maximum control in all applications. Additional electronic Power stage regulates down the speed for 4 seconds while maintaining the torque. After the end of the timer, the speed is increased and the Power mode is activated. All 4 steps, quickly and safely, can be adjusted electronically via a switch. Optimal use in extremely heavy screw worksEasy long-term use through safety electronics (permanent checking of battery temperature, current drain and discharge protection). High-quality and robust aluminum impact housing enables optimum heat exchange and thus increases the life of the device. Sturdy 3/4" male square holder with spring or HOG ring for quick change and secure fit of application tools. Despite extremely high torque high performance engine and robust impact mechanism compact dimensions of only 223mm, low weight and thus problem-free handling, also in continuous operation.
This text is machine translated.
Features
2x 18 Volt / 4 Ah starter set incl. system quick charger DCB 1104
