DEWALT Router DCW620NT-XJ+DCB1104M2-QW

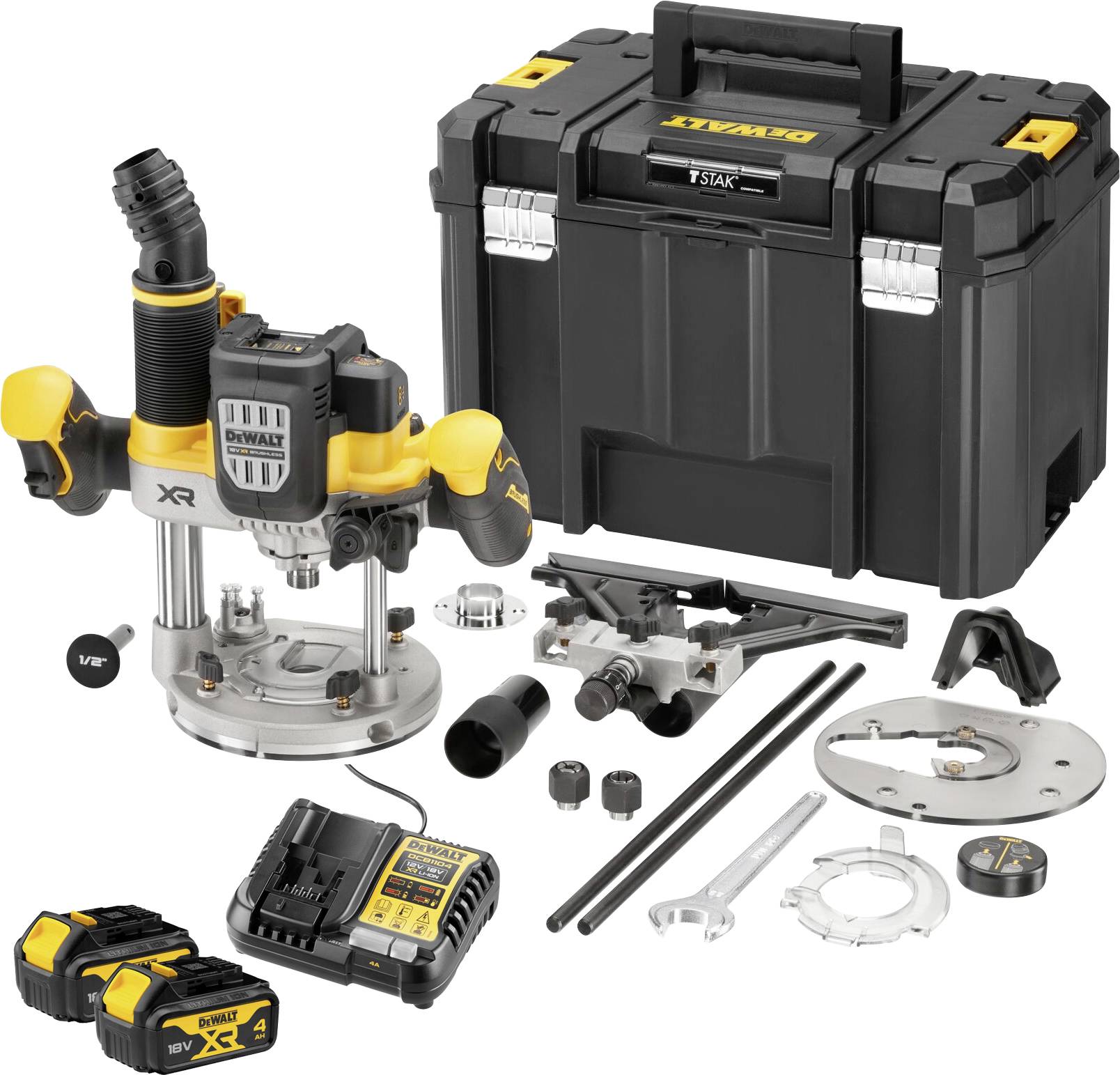

DeWalt cordless router kit with carrying case, batteries, charger, bits, wrenches, and accessory parts laid out on a white background.
Milling machine with accessories in front of a black tool case.
'Router with robust transport case, suitable for precise woodworking and easy transportation.'
A yellow and black hand router with variable speed, suitable for woodworking.
Yellow and black router, model with two handles and viewing window for precise routing. Brand logo on the front.
Router with a black and yellow housing. The machine stands upright and has handles on both sides.
Yellow and black router with two handles and a powerful motor. Tool for precise wood routing and machining.
'Router with yellow and black design, hand-operated, suitable for woodworking. Brand name visible on device.'
A DeWalt battery charger with two 18V XR 4.0AH batteries, showcasing compatibility with cordless power tools.
1/9
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns

Highlights & Details

Set comprising of Dewalt battery router DCW620NT-XJ and battery kit DCB1104M2-QW

  • Lift height: 70 mm

Technical specifications

  • Battery technology: All 18 volt and 54 volt Flexvolt XR-batteries of each Ah-class
  • Collet size 8/12 mm
  • Milling basket lift 70 mm
  • Tool holder 8 / 12 mm
  • Weight (when using a 5Ah battery): 4.24 kg
  • Sound pressure level (LPA) 73.8 db(A)
  • Sound power level (LWA): 84.8 db(A)
  • K-value (acoustic pressure): 2.5 dB(A)
  • Vibrations 4.4 m/s2
  • K-value (vibrations): 1.1 m/s2
Product type

Router

Lifting height

70 mm

Cutter head diameter

63 mm

Battery voltage

18 V

Idle speed

11000 - 23000 U/min

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3763574 DEWALT Router DCW620NT-XJ+DCB1104M2-QW

Description

Features

  • Cordless Router, 18 V (Basic.)
  • Ergonomic handles with 2-finger switch and locking device for continuous operation
  • Soft start prevents the machine from running during start-up
  • Perform & Protect: Anti-rotation system stops the machine during a kickback
  • Overload warning: LED with optical signal in case of overload
  • Locking for depth adjustment as well as depth-fine adjustment
  • Three-stage turning depth stop for serial milling work
  • Parallel stop with fine tuning
  • 2 Powerful, bright white LED-lamps with optimally aligned light cone
  • Spindle lock for easy and fast milling cutter change
  • Effective dust extraction via Air Lock compatible suction adapter
  • Attachable underground-suction nozzles for edge milling work
  • As standard in T-STAK box VI and as a basic type (without batteries and charger), it is perfectly suited for already existing 18 volt XR or Flexvolt batteries, or for the Dewalt "Akku plus" system
  • 2x 18 Volt / 4 Ah starter set incl. system quick charger DCB 1104
  • Product strengths: DCB 182: 18 Volt / 4.0 Ah Li-Ion XR battery
  • Robust and powerful Li-Ion slide batteries with 18 Volt / 4.0 Ah
  • No Memory-Effect and no Self stent loading
  • Effective protection against overload, overheating and deep discharge through special electronics in the battery device
  • Very low weight and ultra-compact dimensions
  • Optimally suitable for use in hard construction sites - thanks to robust housing and impact-resistant soldered battery cells
  • Charging status display with 3 LEDs (at the touch of a button)
  • Suitable for all 18 Volt XR battery-operated from Dewalt
  • DCB 1104: System quick charger
  • Charges all Dewalt XR slide batteries (1.3 - 5.0 Ah) from 10.8 to 18 volts as well as XR Flex volt batteries
  • Dewalt 2-stage charging process prevents the batteries from overheating and allows a high number of charge cycles at maximum storage capacity
  • LED display informs about the battery and charging status
  • Also suitable for wall mounting
  • Due to its very compact dimensions it is optimally suitable for installation

Scope of delivery

  • 8 & 12 mm collet
  • Parallel guide
  • 30mm guide sleeve
  • 2 sliding plates
  • Underfloor suction nozzles
  • 2x Dust protection-cover
  • Open ring spanner
  • T STAK-BOX VI
  • 2x battery DCB182, rapid charger DCB1104

Accessories

(*All information is plus legal VAT)

The necessary accessories are required to use the article as described.
