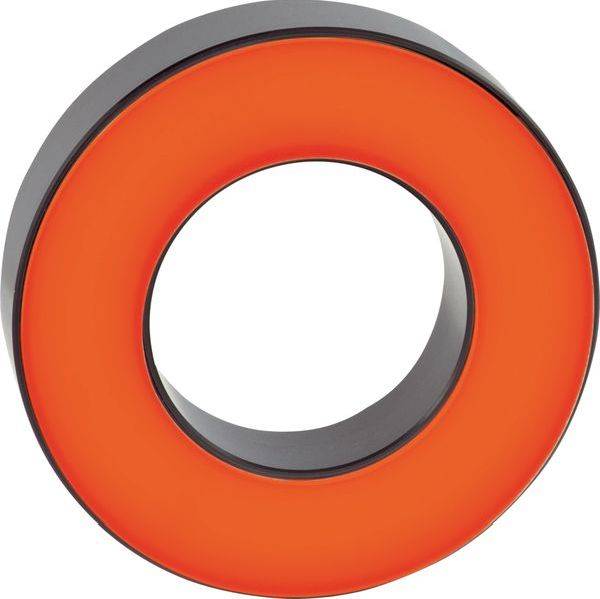

di-soric 206385 LED ring lighting
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Light color: Red
- Product type
LED ring lighting
- Protection class
III
IP67
n.rel.
III
DC
LED not exchangeable
IP67
TRUE
11.5 W
Red
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3816037 di-soric 206385 LED ring lighting
User & Safety Instructions
User & Safety Instructions 3816037 di-soric 206385 LED ring lighting
Description
Ring lighting Transmission light source: LED Light color: Red Radiation angle FWHM: 30° Operating voltage: 18 . 35 V DC (Supply Class 2) Idle current (max.): 470 mA (24 V DC) Housing material: Aluminium (anodized) Size: Ø 70 mm, 130 mm Ambient temperature Operation: 0 . +40 °C Protection class: IP 67 Risk group (DIN EN 62471): Free group Protection class: III, operation at protective extra low voltage Connection: Plug, M12, 3-pin
