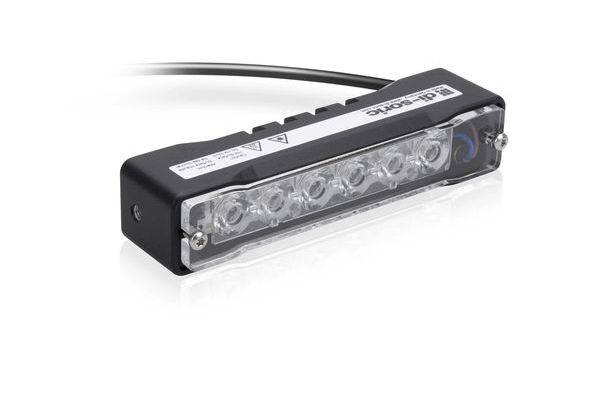

di-soric 213568 LED reflected lighting
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Light color: Red
- Product type
LED reflected lighting
- Protection class
III
IP40
- Dim
(L x W) 65 mm x 18 mm
n.rel.
- Width
18 mm
- Length
65 mm
III
18 mm
DC
65 mm
23.1 mm
LED not exchangeable
IP40
FALSE
3.1 W
Red
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3816704 di-soric 213568 LED reflected lighting
User & Safety Instructions
User & Safety Instructions 3816704 di-soric 213568 LED reflected lighting
Description
Reflected light illumination Transmission light source: LED Light color: Infrared, 850 nm Operating voltage: 24 V DC (Supply Class 2) Internal power consumption: 130 mA (24 V DC) Housing material: Aluminium, black (anodized) Ambient temperature Operation: 0 . +40 °C Protection class: IP 40 Risk group (DIN EN 62471): Free group Protection class: III, operation at protective extra low voltage Connection: Pigtail, 0.3 m, M12, 3-pin
