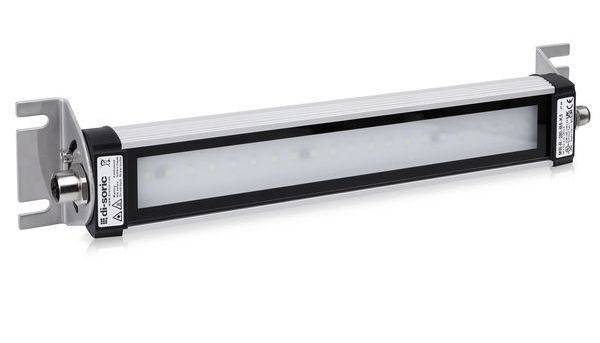

di-soric 214630 LED machine lighting
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Colour temperature: Other
- Product type
LED machine lighting
- Protection class
III
IP67
n.rel.
- Length
240 mm
III
DC
240 mm
LED not exchangeable
IP67
5.7 W
Other
106 lm/W
F
Documents & Downloads
Datasheet
Datasheet 3816703 di-soric 214630 LED machine lighting
User & Safety Instructions
User & Safety Instructions 3816703 di-soric 214630 LED machine lighting
Description
Machine lighting, semi-circular transmission light source: LED Light color: White Angle of radiation FWHM: 102° Operating voltage: 24 V DC (± 10%) Internal current consumption: 240 mA (24 V DC) Housing material: Aluminium, natural (anodized) Component: Diffuser, safety glass hardened, diffuse Protection class: IP 67 Risk group (DIN EN 62471): Free group Protection class: III, operation on safety low voltage Connection: Connector, M12, 5-pin
