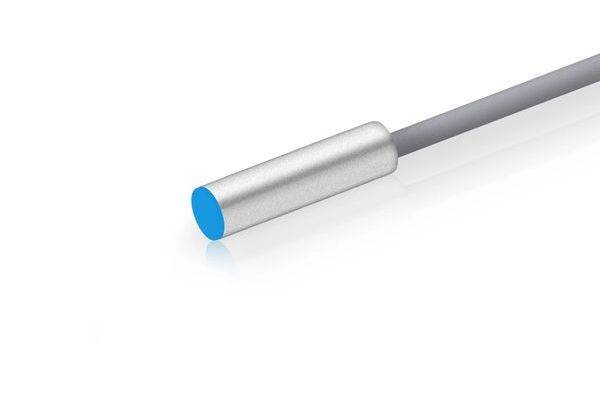

di-soric Proximity sensor Inductive 207606 207606 6.5 mm shielded (Ø x L) 6.5 mm x 45 mm
Product type
Proximity sensor
Contact type
1 maker
Switching distance (max.)
3 mm
Model
Inductive
Connector
Cable
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Proximity sensor
- Type
207606
- Contact type
1 maker
- Switching distance (max.)
3 mm
- Enclosure material
Brass
- Model
Inductive
- Installation type
shielded
- Size
6.5 mm
- Connector
Cable
- Cable length
2 m
- Min. temperature
-25 °C
- Max. temperature
70 °C
- Length
45 mm
- (Ø)
6.5 mm
- Dim
(Ø x L) 6.5 mm x 45 mm
- Content
1 pc(s)
- Supply voltage
10-30 V
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3816209 di-soric Proximity sensor Inductive 207606 207606 6.5 mm shielded (Ø x L) 6.5 mm x 45 mm
User & Safety Instructions
User & Safety Instructions 3816209 di-soric Proximity sensor Inductive 207606 207606 6.5 mm shielded (Ø x L) 6.5 mm x 45 mm
Description
Inductive proximity sensor Operation principle: Inductive installation: Flush switching distance: 3 mm Operating voltage: 10 . 30 V DC switching output: Pnp, 200 mA, NO Evaluation: Digital Design: Cylinder Special features: Extremely high switching distance Housing material: Brass size: Ø 6.5 mm Housing length: 45 mm Ambient temperature Operation: -25 . +70 °C Protection class IP 67 Connection: Cable, PVC, 2 m
