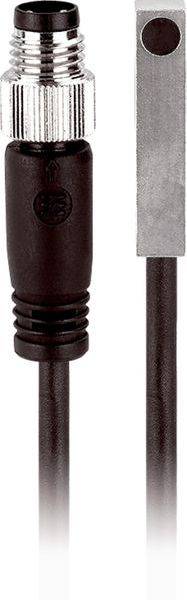

di-soric Proximity sensor Inductive 208008 208008 5 x 5 mm shielded (L x W) 25 mm x 5 mm
Product type
Proximity sensor
Contact type
1 breaker
Switching distance (max.)
0.8 mm
Model
Inductive
Length
25 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Proximity sensor
- Type
208008
- Contact type
1 breaker
- Switching distance (max.)
0.8 mm
- Enclosure material
Brass
- Model
Inductive
- Installation type
shielded
- Size
5 x 5 mm
- Cable length
0.2 m
- Min. temperature
-25 °C
- Max. temperature
70 °C
- Length
25 mm
- Width
5 mm
- Depth
5 mm
- Dim
(L x W) 25 mm x 5 mm
- Content
1 pc(s)
- Supply voltage
10-30 V
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3816221 di-soric Proximity sensor Inductive 208008 208008 5 x 5 mm shielded (L x W) 25 mm x 5 mm
User & Safety Instructions
User & Safety Instructions 3816221 di-soric Proximity sensor Inductive 208008 208008 5 x 5 mm shielded (L x W) 25 mm x 5 mm
Description
Inductive proximity sensor Operation principle: Inductive installation: Flush switching distance: 0.8 mm Operating voltage: 10 . 30 V DC switching output: Pnp, 200 mA, NC Evaluation: Digital design: Quader Housing material: Brass Size: 5 x 5 mm Housing length: 25 mm Ambient temperature Operation: -25 . +70 °C Protection type: IP 67 Connection: Pigtail, PUR, 0.2 m, M8, 3-pin, A-coded
