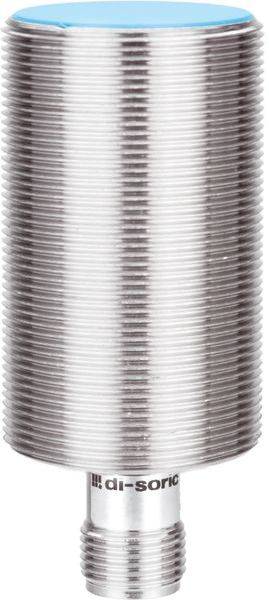

di-soric Proximity sensor Inductive 209381 209381 M30 shielded (Ø x L) 30 mm x 76 mm
Product type
Proximity sensor
Switching distance (max.)
15 mm
Model
Inductive
Length
76 mm
(Ø)
30 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Proximity sensor
- Type
209381
- Switching distance (max.)
15 mm
- Enclosure material
Brass
- Model
Inductive
- Installation type
shielded
- Size
M30
- Min. temperature
-25 °C
- Max. temperature
70 °C
- Length
76 mm
- (Ø)
30 mm
- Dim
(Ø x L) 30 mm x 76 mm
- Content
1 pc(s)
- Supply voltage
10-30 V
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3817194 di-soric Proximity sensor Inductive 209381 209381 M30 shielded (Ø x L) 30 mm x 76 mm
User & Safety Instructions
User & Safety Instructions 3817194 di-soric Proximity sensor Inductive 209381 209381 M30 shielded (Ø x L) 30 mm x 76 mm
Description
Inductive proximity sensor Operation principle: Inductive installation: Flush switching distance: 15 mm Operating voltage: 10 . 30 V DC switching output: Pnp, 400 mA, NO Evaluation: Digital Design: Thread Special features: Increased switching distance Housing material: Brass size: M30 x 1.5 Housing length: 76 mm Ambient temperature Operation: -25 . +70 °C Protection type: IP 67 Connection: Plug, M12, 3-pin, A-coded
