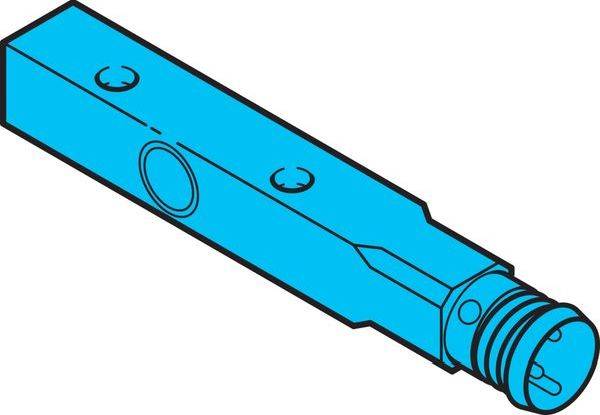

di-soric Proximity sensor Inductive 209794 209794 8 x 8 mm shielded
Product type
Proximity sensor
Switching distance (max.)
1.5 mm
Model
Inductive
Length
50 mm
Type
209794
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Proximity sensor
- Type
209794
- Switching distance (max.)
1.5 mm
- Enclosure material
Aluminium
- Model
Inductive
- Installation type
shielded
- Size
8 x 8 mm
- Min. temperature
-25 °C
- Max. temperature
+70 °C
- Length
50 mm
- Content
1 pc(s)
- Supply voltage
10-35 V
DC
Metal
FALSE
2000 Hz
1.5 mm
Connector M8
PNP
10-35 V
10-35 V
Cuboid
Concise
10-35 V
Other
8 mm
8 mm
50 mm
Documents & Downloads
Datasheet
Datasheet 3817290 di-soric Proximity sensor Inductive 209794 209794 8 x 8 mm shielded
User & Safety Instructions
User & Safety Instructions 3817290 di-soric Proximity sensor Inductive 209794 209794 8 x 8 mm shielded
Description
Inductive proximity sensor Operation principle: Inductive installation: Flush switching distance: 1.5 mm Operating voltage: 10 . 35 V DC switching output: Pnp, 200 mA, NO Evaluation: Digital Design: Quader Housing material: Aluminium Size: 8 x 8 mm Housing length: 50 mm Ambient temperature Operation: -25 . +70 °C Protection type: IP 67 Connection: Plug, M8, 3-pin, A-coded
