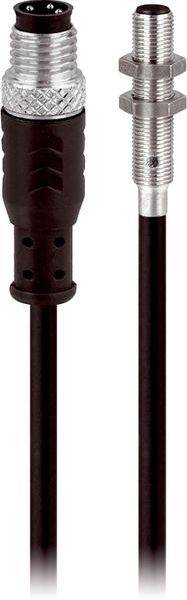

di-soric Proximity sensor Inductive 210452 210452 M5 shielded (Ø x L) 5 mm x 24.9 mm
Product type
Proximity sensor
Switching distance (max.)
0.8 mm
Model
Inductive
Length
24.9 mm
(Ø)
5 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Proximity sensor
- Type
210452
- Switching distance (max.)
0.8 mm
- Enclosure material
Stainless steel
- Model
Inductive
- Installation type
shielded
- Size
M5
- Cable length
0.6 m
- Min. temperature
-25 °C
- Max. temperature
70 °C
- Length
24.9 mm
- (Ø)
5 mm
- Dim
(Ø x L) 5 mm x 24.9 mm
- Content
1 pc(s)
- Supply voltage
10-30 V
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3817496 di-soric Proximity sensor Inductive 210452 210452 M5 shielded (Ø x L) 5 mm x 24.9 mm
User & Safety Instructions
User & Safety Instructions 3817496 di-soric Proximity sensor Inductive 210452 210452 M5 shielded (Ø x L) 5 mm x 24.9 mm
Description
Inductive proximity sensor Operation principle: Inductive installation: Flush switching distance: 0.8 mm Operating voltage: 10 . 30 V DC switching output: Pnp, 100 mA, NO Evaluation: Digital Design: Thread Housing material: Stainless steel, AISI303 Size: M5 x 0.5 Housing length: 24.9 mm Ambient temperature Operation: -25 . +70 °C Protection type: IP 67 Connection: Pigtail, PUR, 0.6 m, M8, 3-pin, A-coded
