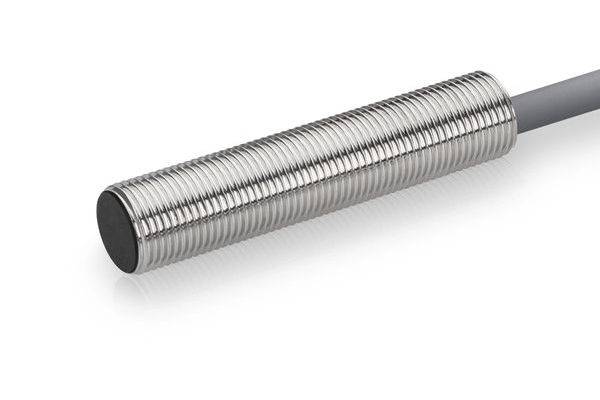

di-soric Proximity sensor Inductive 213161 213161 M8 shielded (Ø x L) 8 mm x 45 mm
Product type
Proximity sensor
Switching distance (max.)
2 mm
Model
Inductive
Connector
Cable
Length
45 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Proximity sensor
- Type
213161
- Switching distance (max.)
2 mm
- Enclosure material
Stainless steel V4A
- Model
Inductive
- Installation type
shielded
- Size
M8
- Connector
Cable
- Cable length
2 m
- Min. temperature
-25 °C
- Max. temperature
+70 °C
- Length
45 mm
- (Ø)
8 mm
- Dim
(Ø x L) 8 mm x 45 mm
- Content
1 pc(s)
- Supply voltage
10-30 V
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3817463 di-soric Proximity sensor Inductive 213161 213161 M8 shielded (Ø x L) 8 mm x 45 mm
User & Safety Instructions
User & Safety Instructions 3817463 di-soric Proximity sensor Inductive 213161 213161 M8 shielded (Ø x L) 8 mm x 45 mm
User & Safety Instructions 3817463 di-soric Proximity sensor Inductive 213161 213161 M8 shielded (Ø x L) 8 mm x 45 mm
Description
Inductive proximity sensor Operation principle: Inductive installation: Flush switching distance: 2 mm Operating voltage: 10 . 30 V DC switching output: Pnp, 200 mA, NO Evaluation: Digital design: Thread Special features: Two times switching distance Housing material: Stainless steel, V4A Size: M8 x 1 Housing length: 45 mm Ambient temperature Operation: -25 . +70 °C Protection class IP 67 Connection: Cable, PVC, 2 m
