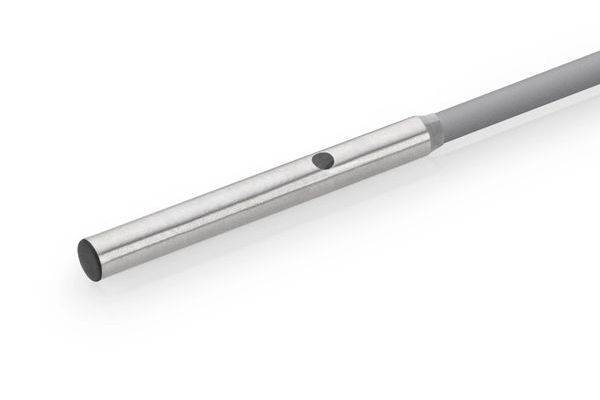

di-soric Proximity sensor Inductive 213219 213219 4 mm shielded PNP (Ø x L) 4 mm x 26 mm
Product type
Proximity sensor
Contact type
1 breaker
Switching distance (max.)
0.8 mm
Outputs
PNP
Model
Inductive
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Proximity sensor
- Type
213219
- Contact type
1 breaker
- Switching distance (max.)
0.8 mm
- Outputs
PNP
- Enclosure material
Stainless steel V4A
- Model
Inductive
- Material properties
A4
- Installation type
shielded
- Size
4 mm
- Connector
Cable
- Cable length
2 m
- Min. temperature
-25 °C
- Max. temperature
70 °C
- Length
26 mm
- (Ø)
4 mm
- Dim
(Ø x L) 4 mm x 26 mm
- Content
1 pc(s)
- Supply voltage
10-30 V
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3817458 di-soric Proximity sensor Inductive 213219 213219 4 mm shielded PNP (Ø x L) 4 mm x 26 mm
User & Safety Instructions
User & Safety Instructions 3817458 di-soric Proximity sensor Inductive 213219 213219 4 mm shielded PNP (Ø x L) 4 mm x 26 mm
User & Safety Instructions 3817458 di-soric Proximity sensor Inductive 213219 213219 4 mm shielded PNP (Ø x L) 4 mm x 26 mm
Description
Inductive proximity sensor Operation principle: Inductive installation: Flush switching distance: 0.8 mm Operating voltage: 10 . 30 V DC switching output: Pnp, 200 mA, NC Evaluation: Digital design: Cylinder Special features: Two-fold switching distance Housing material: Stainless steel, V4A Size: Ø 4 mm Housing length: 26 mm Ambient temperature Operation: -25 . +70 °C Protection class IP 67 Connection: Cable, PVC, 2 m
