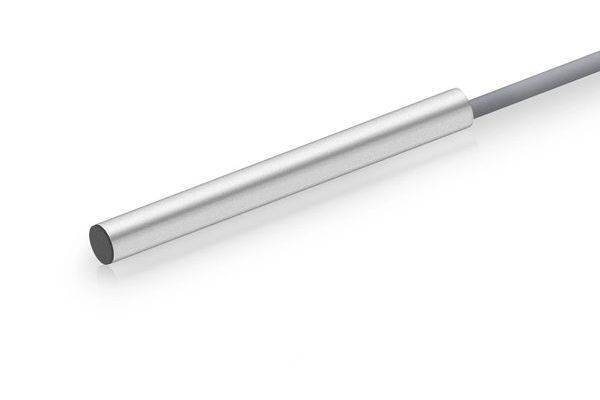

di-soric Proximity sensor Inductive 213226 213226 6.5 mm shielded (Ø x L) 6.5 mm x 45 mm
Product type
Proximity sensor
Switching distance (max.)
1 mm
Model
Inductive
Connector
Cable
Length
45 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Proximity sensor
- Type
213226
- Switching distance (max.)
1 mm
- Enclosure material
Stainless steel V4A
- Model
Inductive
- Material properties
A4
- Installation type
shielded
- Size
6.5 mm
- Connector
Cable
- Cable length
2 m
- Min. temperature
-25 °C
- Max. temperature
+70 °C
- Length
45 mm
- (Ø)
6.5 mm
- Dim
(Ø x L) 6.5 mm x 45 mm
- Content
1 pc(s)
- Supply voltage
10-30 V
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3817495 di-soric Proximity sensor Inductive 213226 213226 6.5 mm shielded (Ø x L) 6.5 mm x 45 mm
User & Safety Instructions
User & Safety Instructions 3817495 di-soric Proximity sensor Inductive 213226 213226 6.5 mm shielded (Ø x L) 6.5 mm x 45 mm
User & Safety Instructions 3817495 di-soric Proximity sensor Inductive 213226 213226 6.5 mm shielded (Ø x L) 6.5 mm x 45 mm
Description
Inductive proximity sensor Operation principle: Inductive installation: Flush switching distance: 1 mm Operating voltage: 10 . 30 V DC switching output: Npn, 200 mA, NC Evaluation: Digital design: Cylinder Special features: Simple switching distance Housing material: Stainless steel, V4A Size: Ø 6.5 mm Housing length: 45 mm Ambient temperature Operation: -25 . +70 °C Protection class IP 67 Connection: Cable, PVC, 2 m
