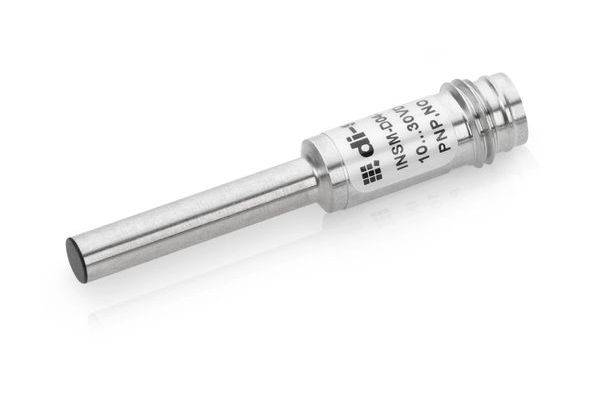

di-soric Proximity sensor Inductive 213228 213228 4 mm shielded (Ø x L) 4 mm x 43.3 mm
Product type
Proximity sensor
Contact type
1 breaker
Switching distance (max.)
0.8 mm
Model
Inductive
Length
43.3 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Proximity sensor
- Type
213228
- Contact type
1 breaker
- Switching distance (max.)
0.8 mm
- Enclosure material
Stainless steel V4A
- Model
Inductive
- Material properties
A4
- Installation type
shielded
- Size
4 mm
- Min. temperature
-25 °C
- Max. temperature
+70 °C
- Length
43.3 mm
- (Ø)
4 mm
- Dim
(Ø x L) 4 mm x 43.3 mm
- Content
1 pc(s)
- Supply voltage
10-30 V
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3817508 di-soric Proximity sensor Inductive 213228 213228 4 mm shielded (Ø x L) 4 mm x 43.3 mm
User & Safety Instructions
User & Safety Instructions 3817508 di-soric Proximity sensor Inductive 213228 213228 4 mm shielded (Ø x L) 4 mm x 43.3 mm
User & Safety Instructions 3817508 di-soric Proximity sensor Inductive 213228 213228 4 mm shielded (Ø x L) 4 mm x 43.3 mm
Description
Inductive proximity sensor Operation principle: Inductive installation: Flush switching distance: 0.8 mm Operating voltage: 10 . 30 V DC switching output: Npn, 200 mA, NC Evaluation: Digital design: Cylinder Special features: Two-fold switching distance Housing material: Stainless steel, V4A Size: Ø 4 mm Housing length: 43.3 mm Ambient temperature Operation: -25 . +70 °C Protection type: IP 67 Connection: Plug, M8, 3-pin, A-coded
