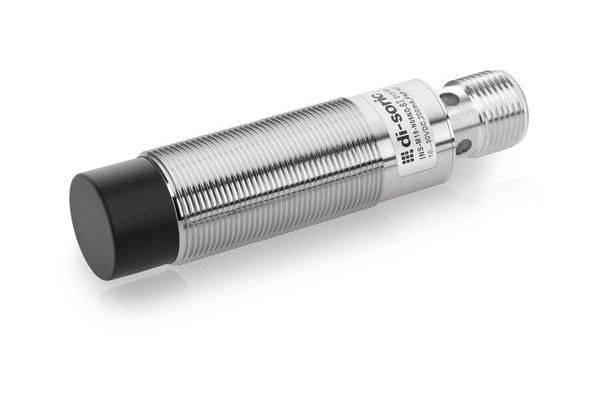

di-soric Proximity sensor Inductive 213275 213275 M18 x 1 non-shielded (Ø x L) 18 mm x 79 mm
Product type
Proximity sensor
Contact type
1 breaker
Switching distance (max.)
8 mm
Model
Inductive
Length
79 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Proximity sensor
- Type
213275
- Contact type
1 breaker
- Switching distance (max.)
8 mm
- Enclosure material
Brass
- Model
Inductive
- Installation type
non-shielded
- Size
M18 x 1
- Min. temperature
-25 °C
- Max. temperature
70 °C
- Length
79 mm
- (Ø)
18 mm
- Dim
(Ø x L) 18 mm x 79 mm
- Content
1 pc(s)
- Supply voltage
10-30 V
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3817451 di-soric Proximity sensor Inductive 213275 213275 M18 x 1 non-shielded (Ø x L) 18 mm x 79 mm
User & Safety Instructions
User & Safety Instructions 3817451 di-soric Proximity sensor Inductive 213275 213275 M18 x 1 non-shielded (Ø x L) 18 mm x 79 mm
User & Safety Instructions 3817451 di-soric Proximity sensor Inductive 213275 213275 M18 x 1 non-shielded (Ø x L) 18 mm x 79 mm
Description
Inductive proximity sensor Operating principle: Inductive installation: Non-flush Switching distance: 8 mm Operating voltage: 10 . 30 V DC switching output: Pnp, 200 mA, NC Evaluation: Digital design: Thread Special features: Easy switching distance Housing material: Brass size: M18 x 1 Housing length: 79 mm Ambient temperature Operation: -25 . +70 °C Protection type: IP 67 Connection: Plug, M12, 3-pin, A-coded
