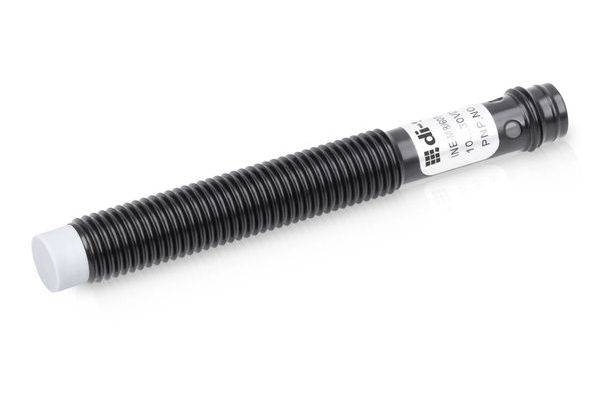

di-soric Proximity sensor Inductive 214795 214795 M8 non-shielded
Product type
Proximity sensor
Switching distance (max.)
2 mm
Model
Inductive
Length
60 mm
Type
214795
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Proximity sensor
- Type
214795
- Switching distance (max.)
2 mm
- Enclosure material
Brass
- Model
Inductive
- Installation type
non-shielded
- Size
M8
- Min. temperature
-25 °C
- Max. temperature
+70 °C
- Length
60 mm
- Content
1 pc(s)
- Supply voltage
10-30 V
DC
Metal
FALSE
Other
2 mm
Connector M8
PNP
10-30 V
10-30 V
Cylinder, screw-thread
Not flat
10-30 V
Other
8 mm
60 mm
Documents & Downloads
Datasheet
Datasheet 3817749 di-soric Proximity sensor Inductive 214795 214795 M8 non-shielded
User & Safety Instructions
User & Safety Instructions 3817749 di-soric Proximity sensor Inductive 214795 214795 M8 non-shielded
User & Safety Instructions 3817749 di-soric Proximity sensor Inductive 214795 214795 M8 non-shielded
Description
Inductive proximity sensor Operating principle: Inductive installation: Non-flush Switching distance: 2 mm Operating voltage: 10 . 30 V DC switching output: Pnp, 200 mA, NO Evaluation: Digital Design: Thread Housing material: Brass size: M8 x 1 Housing length: 60 mm Ambient temperature Operation: -25 . +70 °C Protection type IP 67 Connection: Plug, M8, 3-pin
