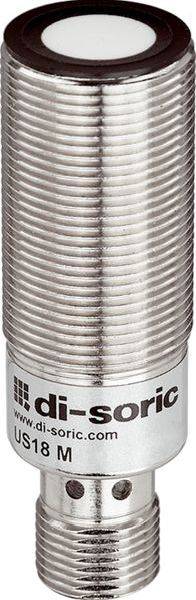

di-soric Pushbutton Ultrasound 213065 213065 Analogue
Product type
Pushbutton
Switching distance (max.)
1500 mm
Outputs
Analogue
Model
Ultrasound
Type
213065
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Material of the cable jacket: Other
- Product type
Pushbutton
- Type
213065
- Switching distance (max.)
1500 mm
- Outputs
Analogue
- Enclosure material
Brass (Ni-plated)
- Model
Ultrasound
- Material properties
nickel plated
- Min. temperature
-25 °C
- Max. temperature
+70 °C
IP67
- Content
1 pc(s)
- Idle current
40 mA
- Supply voltage
18-30 V
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3817527 di-soric Pushbutton Ultrasound 213065 213065 Analogue
User & Safety Instructions
User & Safety Instructions 3817527 di-soric Pushbutton Ultrasound 213065 213065 Analogue
Description
Ultrasonic sensor Functional principle: Ultrasonic sensor, ultrasonic barrier Nominal switching distance (Sn): 1500 mm Mounting distance (Sensor to sensor): 700 mm Operating voltage: 18 . 30 V DC switching output: 150 mA, NO/NC analog output Voltage: 0 . 10 V analog output Current: 4 . 20 mA (0 ... 20 mA IO-Link) Interface: IO-Link (V1.1, COM2 (38.4 kBd), Smart sensor profile) Voltage drop (max.): 2 V Housing material: Brass (nickel-plated) Ambient temperature Operation: -25 . +70 °C Protection type IP 67 Connection: Plug, M12, 4-pin
