Digitus DA-90421 TV ceiling mount 114,3 cm (45") - 177,8 cm (70") Retractable, Tiltable, Swivelling Built-in level
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details

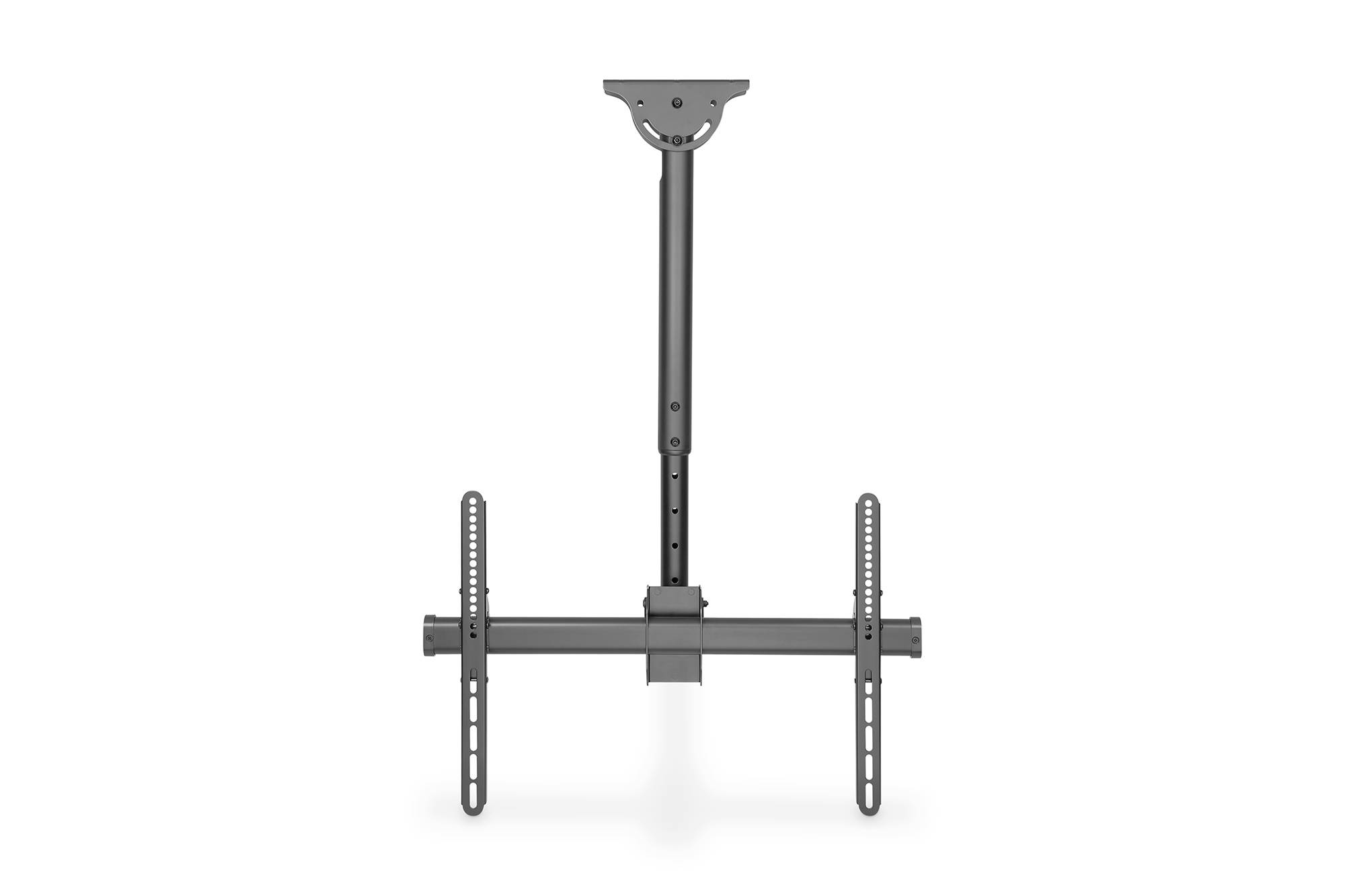

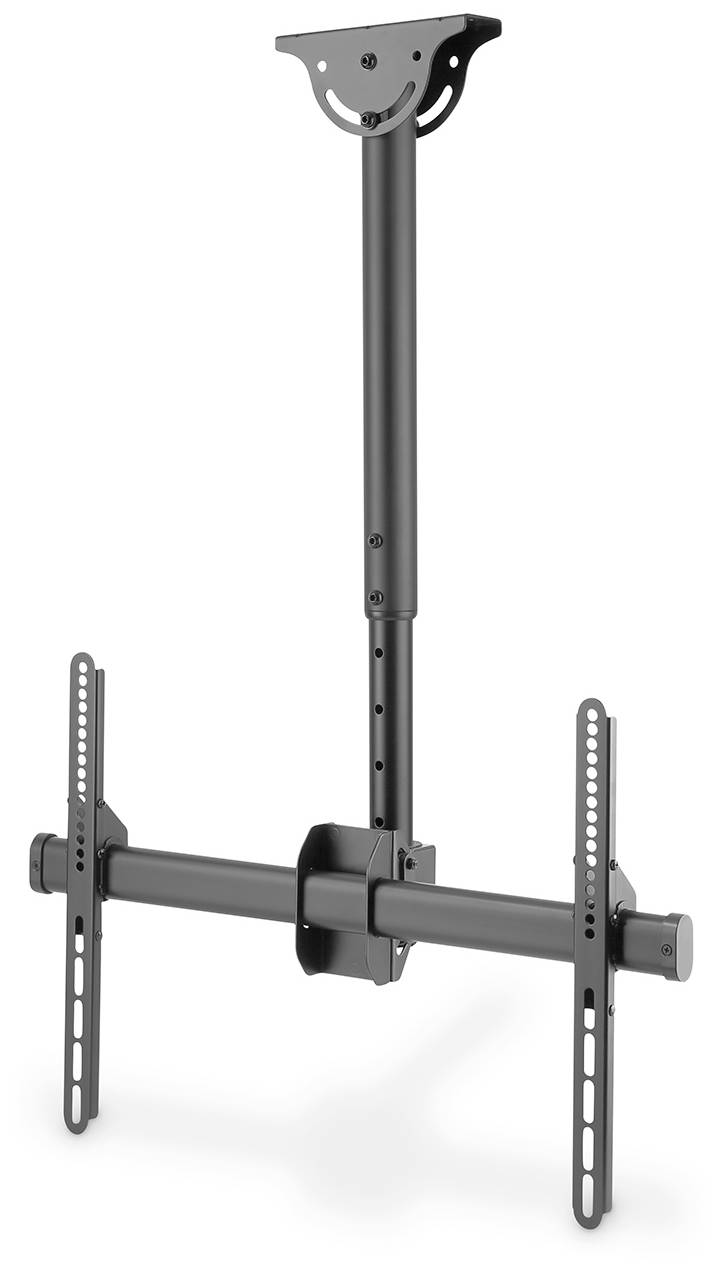

Digitus DA-90421 TV ceiling mount
- Holder type: Retractable, Tiltable, Swivelling
- Supports VESA standards up to
- Suitable for displays sized (range): 114,3 cm (45") - 177,8 cm (70")
- Load capacity (max.) 50 kg
Technical specifications
- Suitable for TVs/monitors from 37" to 70"
- Maximum load capacity 50 kg max.
- Quick-release function - simple attachment and removal of displays
- VESA fixture dimensions 200x200, 300x300, 400x200, 400x400, 600x400
- Swivel 360° (+180° to -180°)
- Tilts -25° to 0° (for ideal viewing angle)
- Rotates +3° to -3° (for fine adjustment)

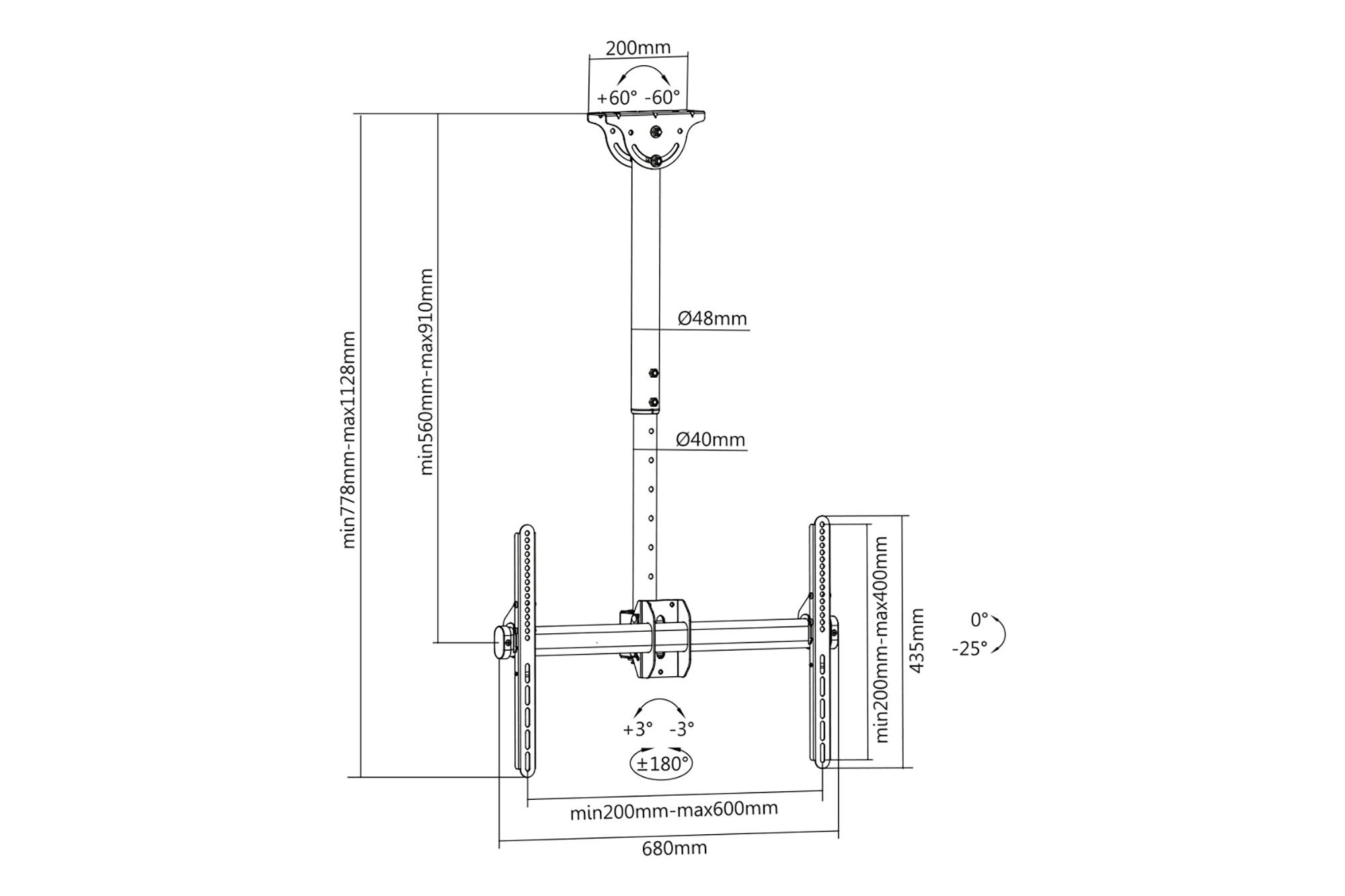

- Variable height adjustment: 56 - 91 cm (center point of VESA mount up to mounting base)
- Mounting base suitable for roof angles: +60° to -60° tilt adjustable
- Cable management: Inside the pipe construction
- Material: Steel
- Dimensions 68 x D 43.5 x H 113 cm
- Weight: 5.5 kg
- Colour, black
- Product type
TV ceiling mount
- Suitable for
114,3 cm (45")
116,8 cm (46")
119,4 cm (47")
121,9 cm (48")
124,5 cm (49")
127,0 cm (50")
129,5 cm (51")
132,1 cm (52")
134,6 cm (53")
137,2 cm (54")
Show more
- Suitable for
114,3 cm (45") - 177,8 cm (70")
- Holder type
Retractable
Tiltable
Swivelling
- Features
Built-in level
- Max. load capacity
50 kg
No
200 x 200 mm
300 x 200 mm
300 x 300 mm
400 x 200 mm
400 x 300 mm
400 x 400 mm
600 x 400 mm
- Rotation
360°
- Tilt range (bottom)
-25°
- Tilt range (top)
0°
- Swivel range (left)
3°
- Swivel range (right)
3°
- Min. distance to floor/ceiling
77.8 cm
- Max. distance to floor/ceiling
112.8 cm
- Width
1130 mm
- Height
680 mm
- Depth
435 mm
- Factory colour
Black
- Material (details)
Steel
- Weight
5500 g
- Dim
(W x H x D) 1130 x 680 x 435 mm
- Supported monitors
1
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2997742 Digitus DA-90421 TV ceiling mount 114,3 cm (45") - 177,8 cm (70") Retractable, Tiltable, Swivelling Built-in level
User & Safety Instructions
User & Safety Instructions 2997742 Digitus DA-90421 TV ceiling mount 114,3 cm (45") - 177,8 cm (70") Retractable, Tiltable, Swivelling Built-in level
Description
The fully movable universal ceiling mounting bracket from Digitus® leaves nothing to be desired. Suitable for flat and curved displays of 37 to 70" screen sizes and a weight of 50 kg. It can be adjusted optimally to different ceiling heights using the telescopic height adjustment. In addition, the bracket can be adapted to roof slants having a tilt of up to 60° and can be swiveled by 360°. The adjustable tilt that can be adjusted from 0 to -25° to the height of the ceiling and the desired viewing angle provides the optimum viewing angle. The installation is simplified by the VESA holder with Quick Release by hanging the display together with the mounted VESA holder in the corresponding fittings. The cable routing occurs neatly within the telescopic structure. The integrated spirit level helps in fine adjustment. The ceiling bracket can be used for VESA measures 200x200 to 600x400.
This text is machine translated.
This text is machine translated.
Features
- Variable telescopic height adjustment (35 cm)
- Adjustable mounting base - also suitable for roof slopes up to 60° inclination

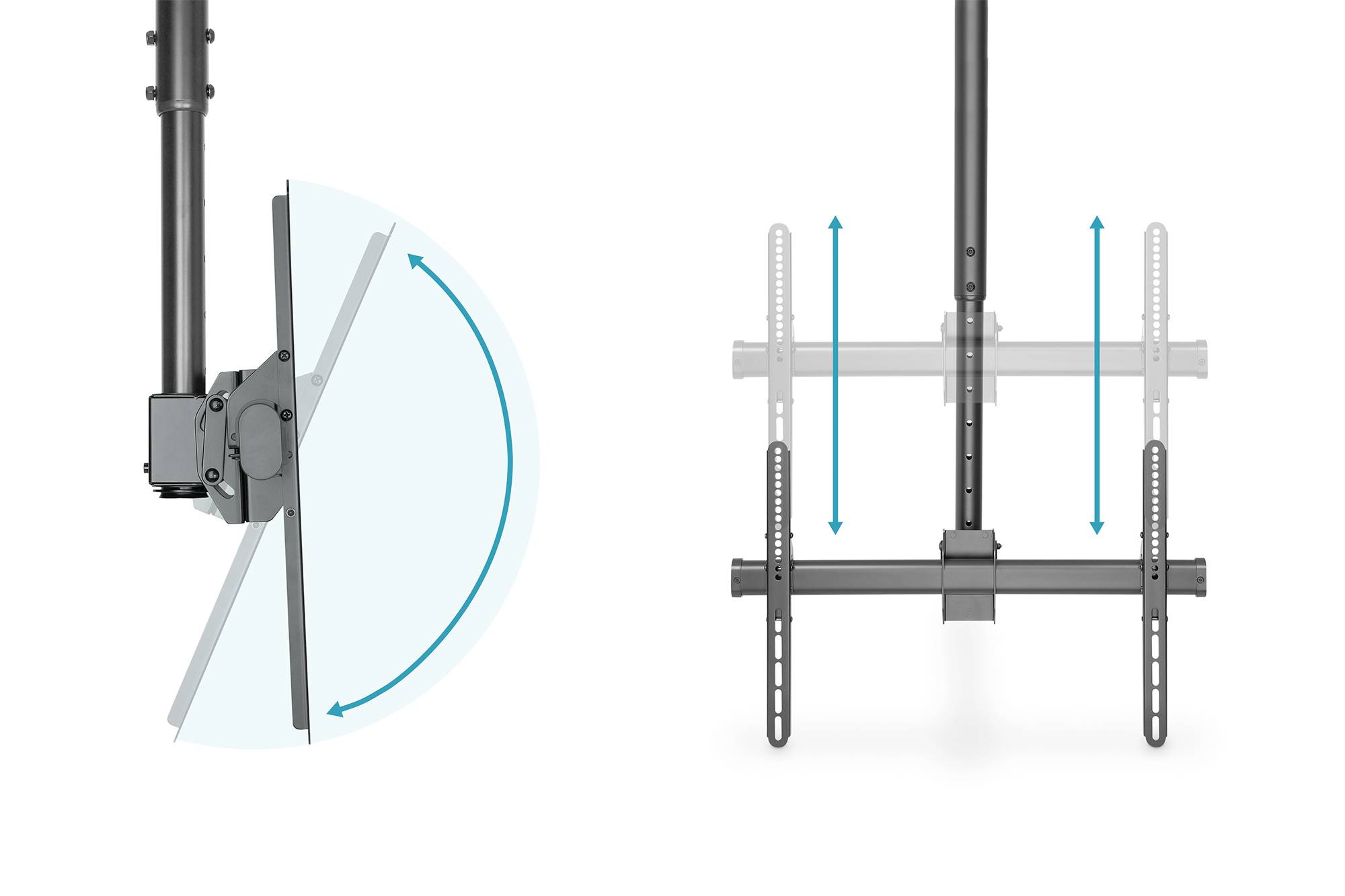

- Freely selectable inclination from 0° to -25° for optimal viewing angle
- Cable management: Inside the pipe construction
- Quick-release monitor holder (suspension device) - for easy installation
- Built-in spirit level for perfect alignment

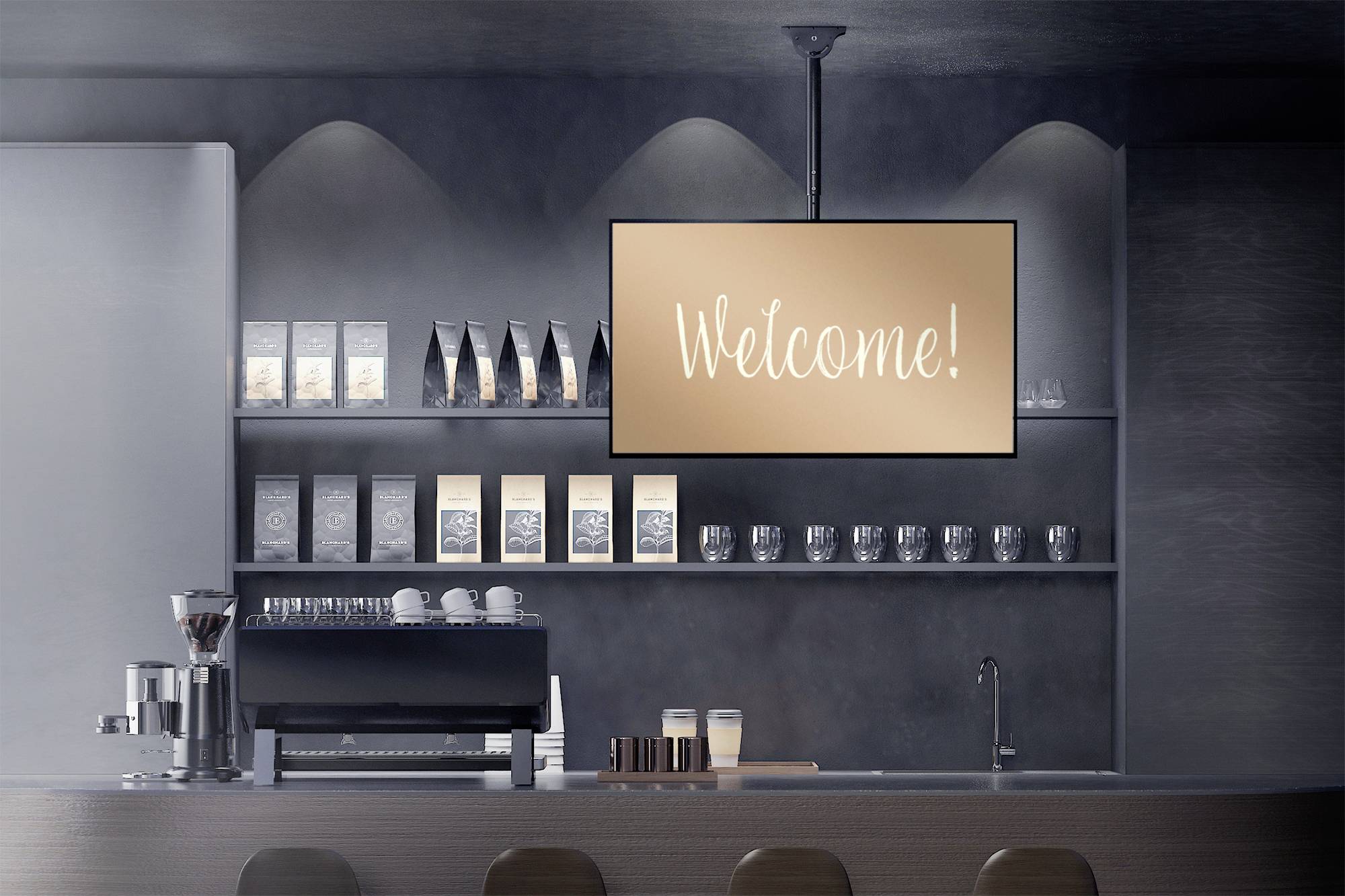

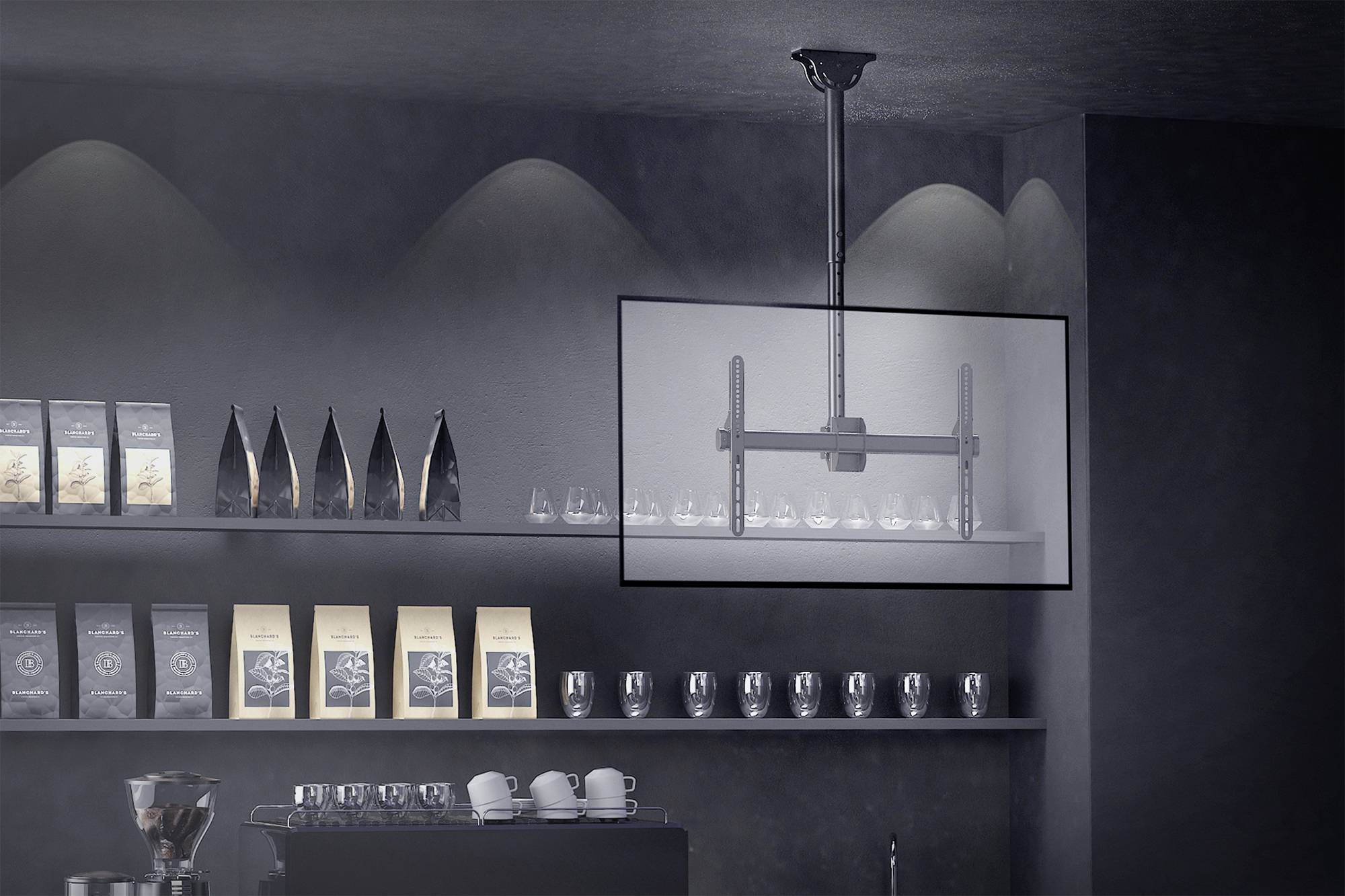

- Ideal for offices, meeting rooms, gastronomy, schools or hotels
Scope of delivery
- 1 x Universal TV ceiling bracket with telescopic height adjustment
- 1 x mounting accessories
- 1 x QIG
