Digitus DA-90446 TV wall mount 114,3 cm (45") - 177,8 cm (70") Retractable, Tiltable, Tiltable, Swivelling Variable dist

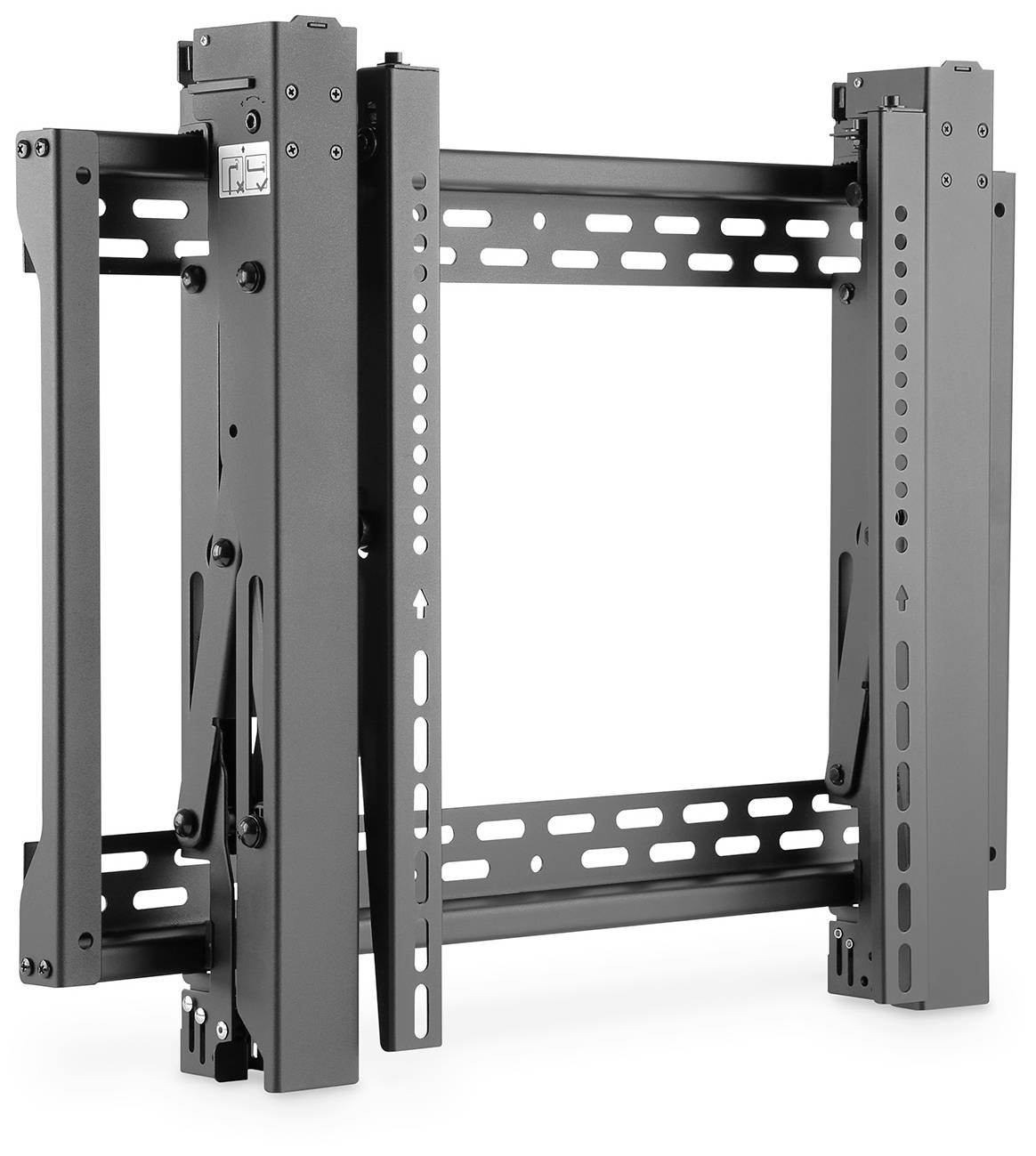

Metal mounting bracket for monitors or televisions, with extendable and pivoting arm, for flexible mounting options.

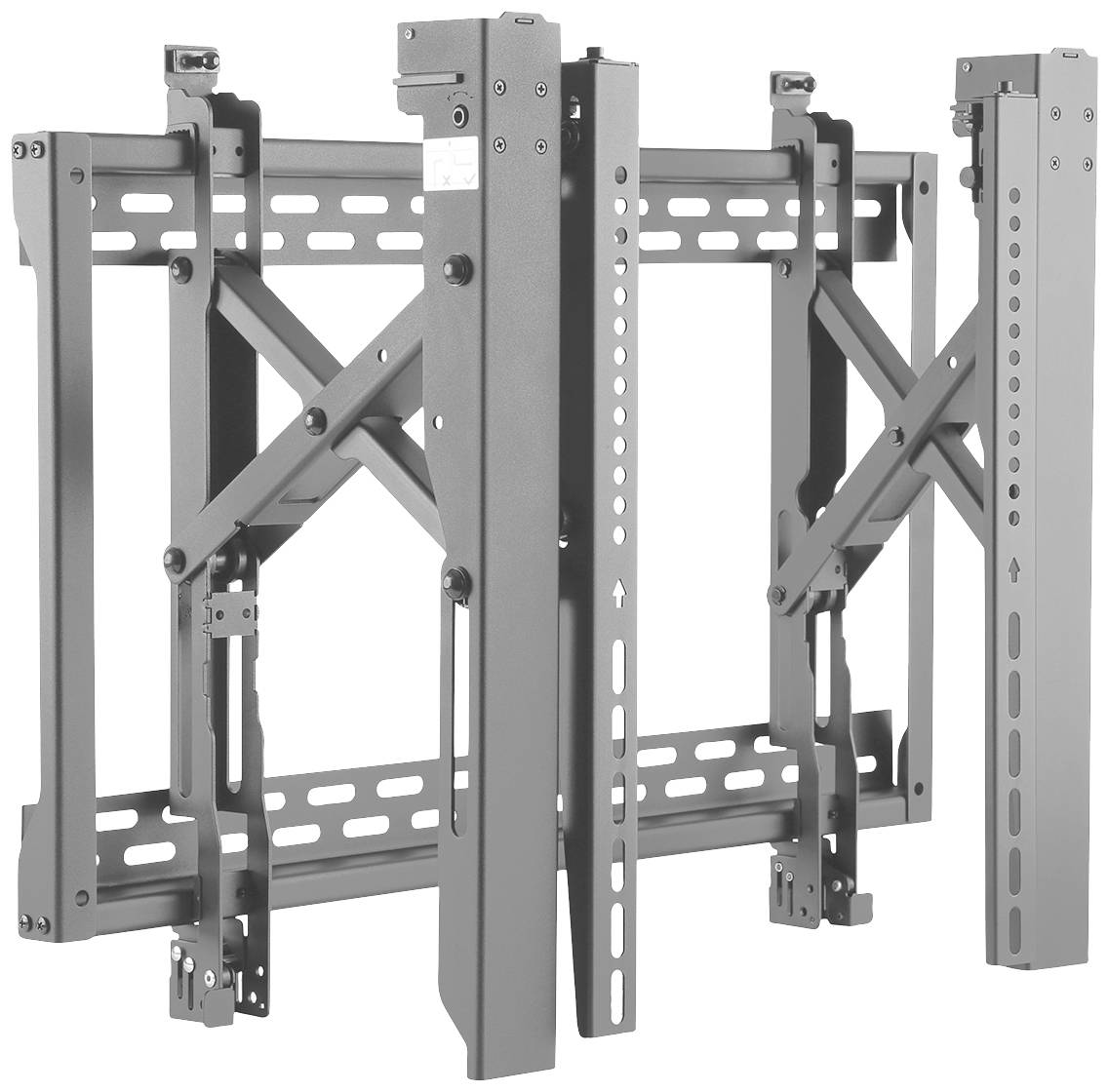

A robust, adjustable metal wall mount for large screens, with cross-braces for stabilisation and multiple mounting points.
Mechanism for table height adjustment with levers and screws, mounted on metal frame.

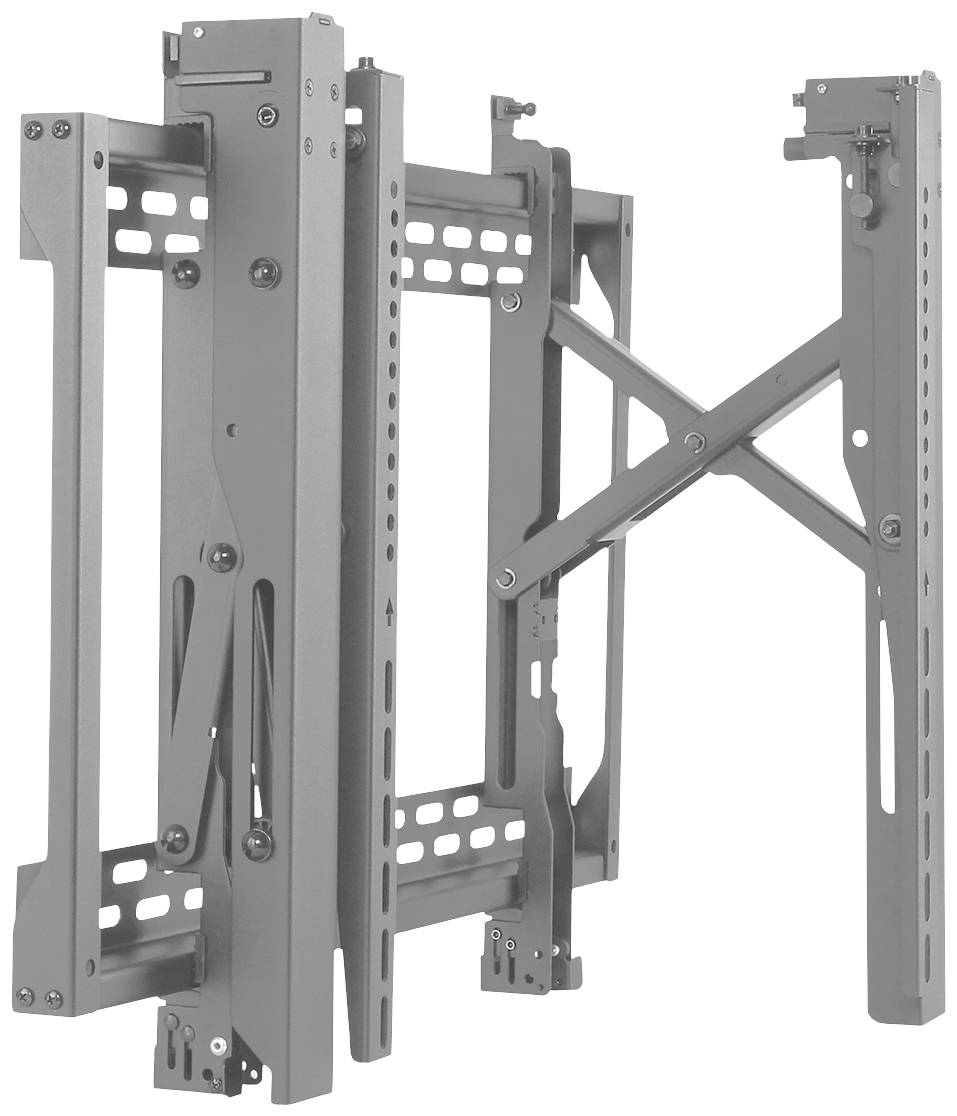

Wall mount for a flat-screen television with a folding arm. Suitable for flexible adjustment of the screen position.

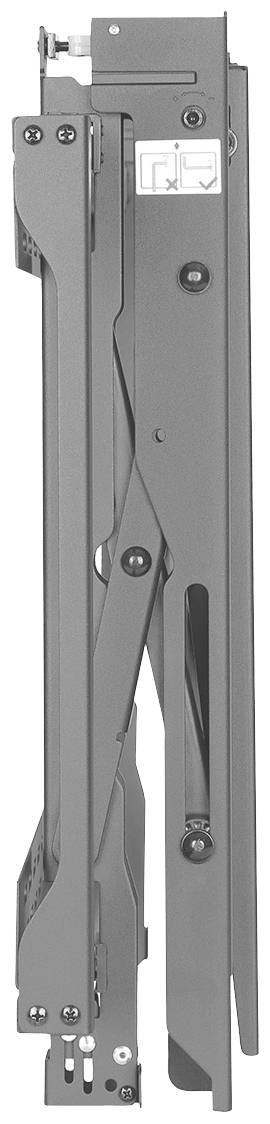

Grey, folding metal frame with screws and joints, on a white background.

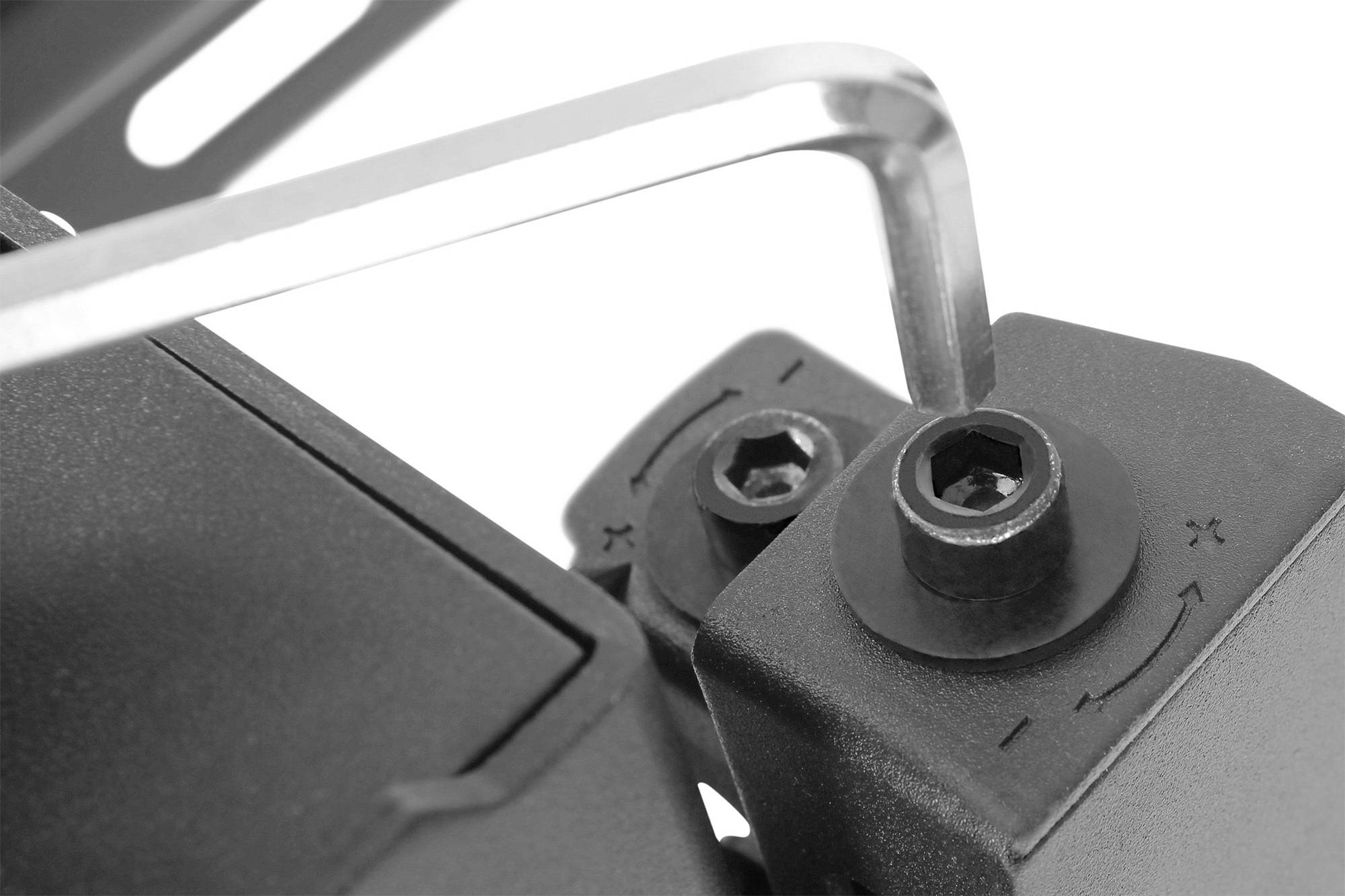

Close-up of an Allen key tightening a screw in a mechanical device, against a white background.

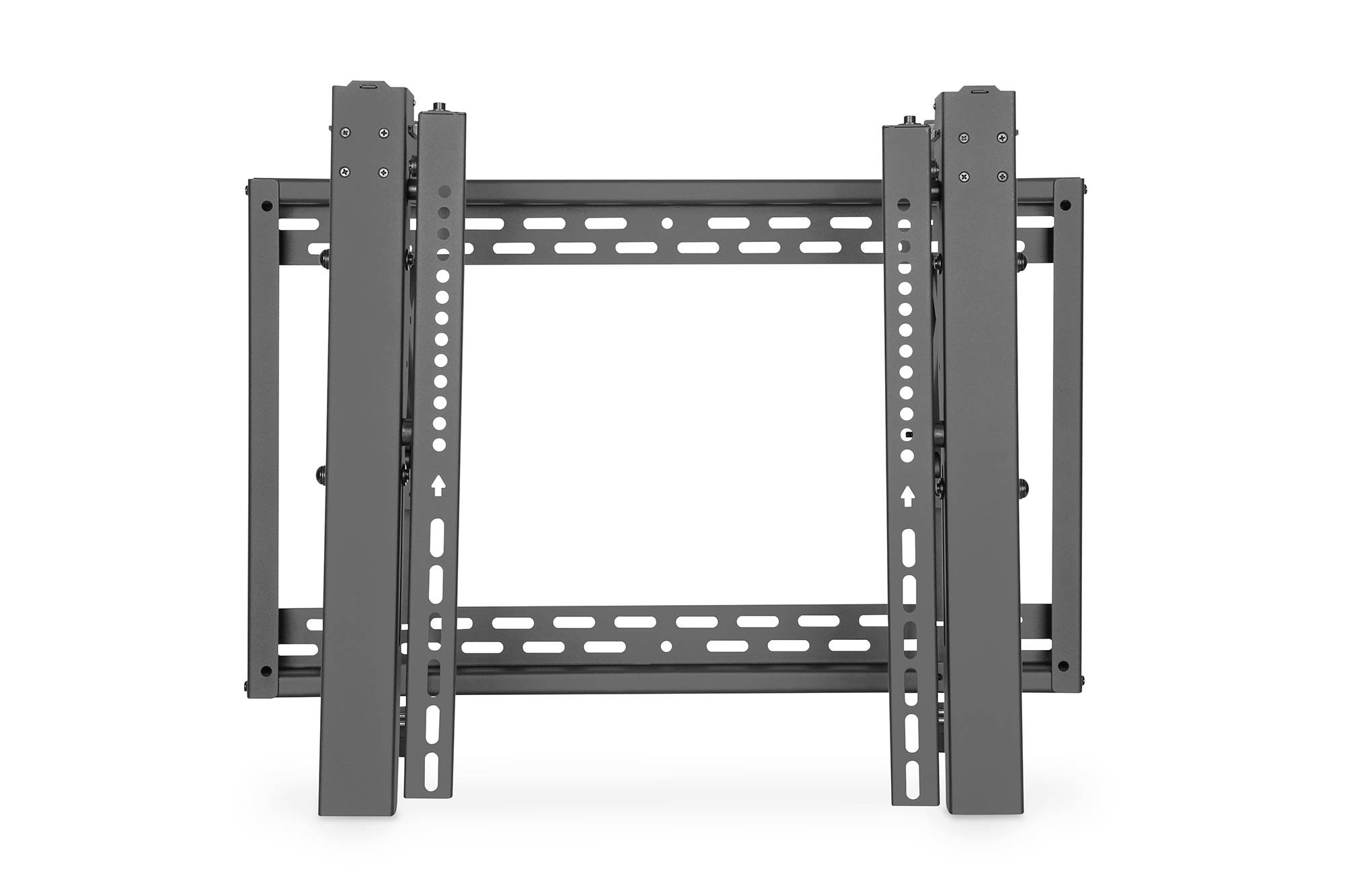

A grey, rectangular metal TV wall mounting bracket with multiple fixing holes and two vertical rails.

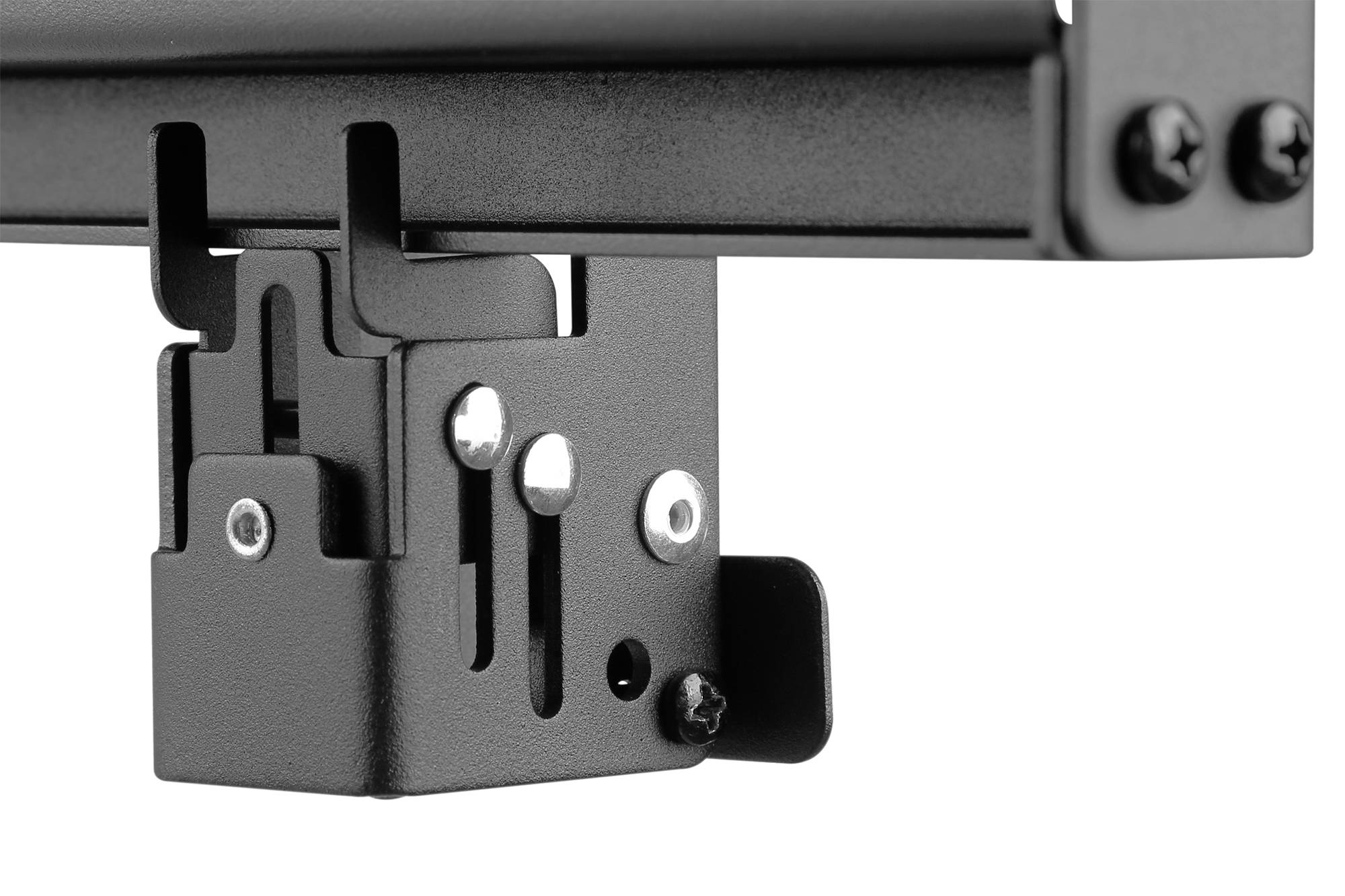

A black metal mounting bracket with screws and slots, for securing to a surface.
Office chair mechanism in grey metal structure, side view with visible levers and screws, for height adjustment and backrest.

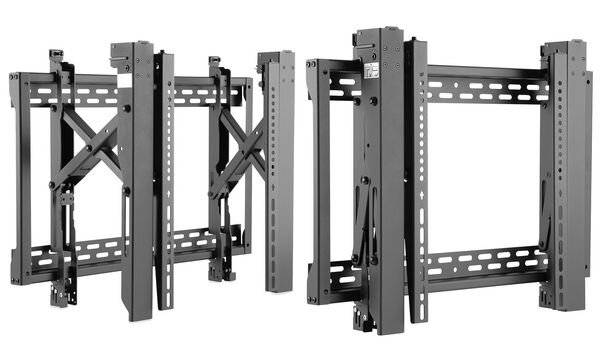

Digitus DA-90446 TV wall mount 114,3 cm (45") - 177,8 cm (70") Retractable, Tiltable, Tiltable, Swivelling Variable dist-9
'Digitus Pop-Out Video Wall Mount': Wall mount for 45"-70" screens, supports up to 70 kg, with protruding mechanism.

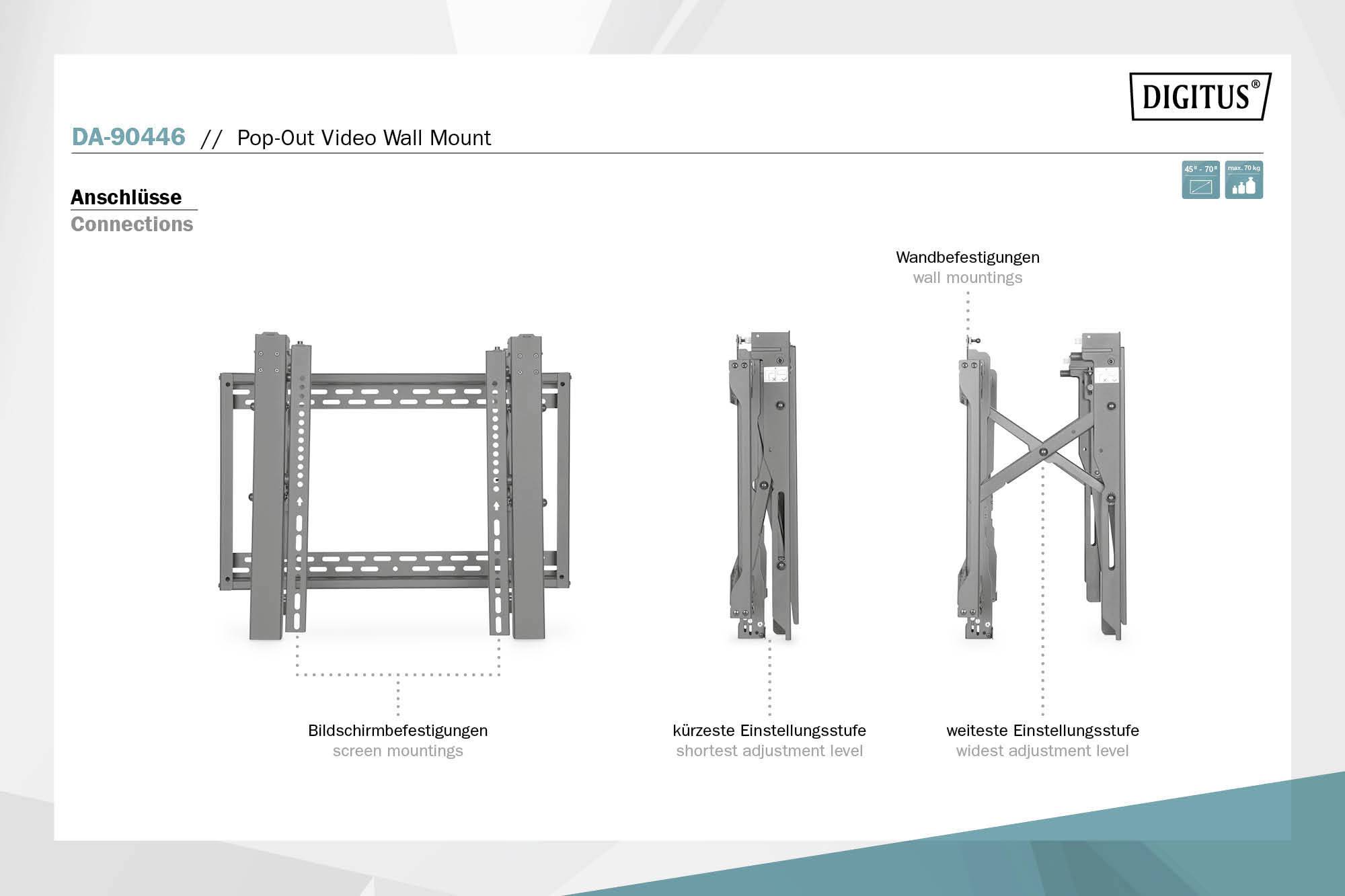

'Digitus DA-90446 Pop-Out Video Wall Mount' shows three views of the mounting mechanism: screen attachments, shortest and furthest adjustment levels.

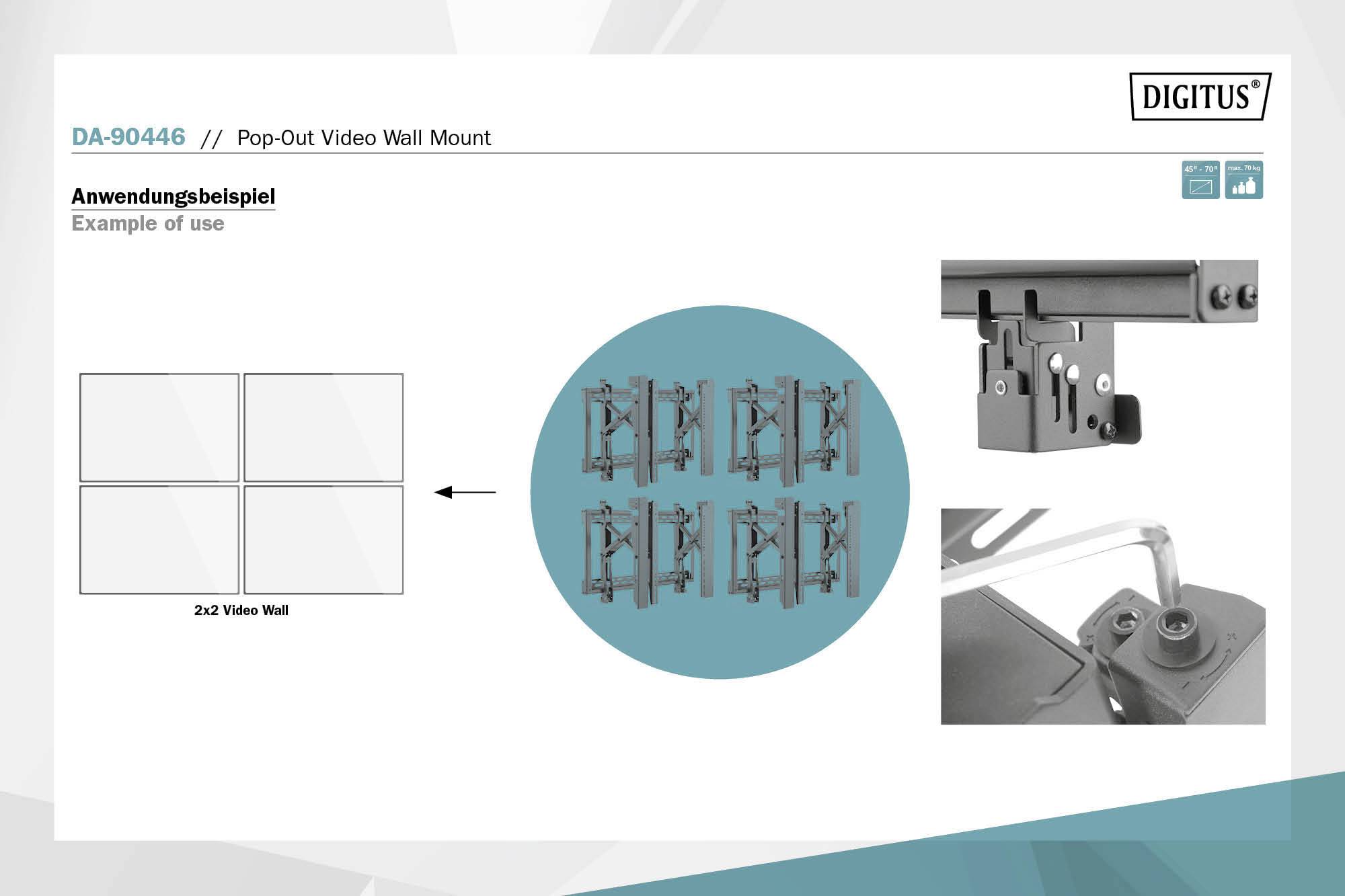

'Digitus' Pop-Out Video Wall Mount DA-90446. Application: 2x2 Video Wall Example with Detailed View of Mounting Components.
1/13
Datasheet (PDF)
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns

Highlights & Details

Digitus DA-90446 TV wall mount

  • Holder type: Retractable, Tiltable, Tiltable, Swivelling
  • Supports VESA standards up to
  • Suitable for displays sized (range): 114,3 cm (45") - 177,8 cm (70")
  • Load capacity (max.) 70 kg

Technical specifications

  • Pop-out function - quick access for installation and maintenance
  • Supported screen sizes 45" - 70"
  • Maximum load capacity 70 kg
  • Fine adjustment: Depth 20 mm / height 25 mm
  • Tilt range +4° to -2°
  • Screen level +3° to -3°
  • VESA compatibility: 200x200x200x200x200x200x200x200x200x200x200x200x200.300x300,400x300.400x400.600x400
  • Precise display alignment: Height/depth adjustment
  • Quick lock: Locks/unlocks the display
  • Pop-Out Lock System: Ensures security by preventing accidental jumping out
  • Anti-theft security hole: Additional security against unintentional removal (additional padlock required)
  • Mounting type: Wall mounting
  • Material: Steel
  • Colour, black
  • Surface: Powder coating
  • Dimensions (folded): W 67 x H 52.4 x D 9.5 cm
  • Weighs 10.55 kg
  • Mounting type: Wall mounting
  • Weight per monitor (max.): 70 kg
  • Number of monitors: 1
Product type

TV wall mount

Suitable for

114,3 cm (45")

116,8 cm (46")

119,4 cm (47")

121,9 cm (48")

124,5 cm (49")

127,0 cm (50")

129,5 cm (51")

132,1 cm (52")

134,6 cm (53")

137,2 cm (54")

139,7 cm (55")

142,2 cm (56")

144,8 cm (57")

147,3 cm (58")

149,9 cm (59")

152,4 cm (60")

154,9 cm (61")

157,5 cm (62")

160,0 cm (63")

162,6 cm (64")

165,1 cm (65")

167,6 cm (66")

170,2 cm (67")

172,7 cm (68")

175,3 cm (69")

177,8 cm (70")

Show more
Suitable for

114,3 cm (45") - 177,8 cm (70")

Holder type

Retractable

Tiltable

Tiltable

Swivelling

Features

Variable distance from wall

Max. load capacity

70 kg

No

200 x 200 mm

300 x 200 mm

300 x 300 mm

400 x 200 mm

400 x 300 mm

400 x 400 mm

600 x 400 mm

Tilt range (bottom)

+4°

Tilt range (top)

-2°

Width

670 mm

Height

524 mm

Depth

95 mm

Factory colour

Black

Material (details)

Steel

Weight

10550 g

Dim

(W x H x D) 670 x 524 x 95 mm

Screen size diagonal (inches)

1.0 inch

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 2997738 Digitus DA-90446 TV wall mount 114,3 cm (45") - 177,8 cm (70") Retractable, Tiltable, Tiltable, Swivelling Variable dist

User & Safety Instructions

User & Safety Instructions 2997738 Digitus DA-90446 TV wall mount 114,3 cm (45") - 177,8 cm (70") Retractable, Tiltable, Tiltable, Swivelling Variable dist

Description

DA-90446 offers a professional video wall solution and is simultaneously universally compatible with a maximum load capacity of 70kg/154lbs and max. VESA 600x400 hole pattern. Multidimensional micro-adjustment enables precise alignment of the video wall configuration including depth, height and tilt. This video wall bracket has a quick release mechanism for easy installation and maintenance. The quick-release system keeps the screens in place via locking and unlocking system. It is the perfect solution for public and commercial displays with theft-proof design (padlock required).

This text is machine translated.

Features

  • Fine adjustment: Depth 20 mm / height 25 mm
  • Tilt range +4° to -2° / Screen level +3° to -3°
  • VESA compatibility 200x200, 300x200, 300x300, 400x200, 400x300, 400x400, 600x400
  • Precise display alignment: Height/depth adjustment
  • Quick lock: Locks/unlocks the display
  • Pop-Out Lock System: Ensures security by preventing accidental jumping out
  • Anti-theft security hole: Additional security against unintentional removal (additional padlock required)

Scope of delivery

  • 1x Pop-Out Video Wall monitor holder
  • 1x installation material
  • 1x user manual
