Digitus DN-170093 DN-170093 19" UPS
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details

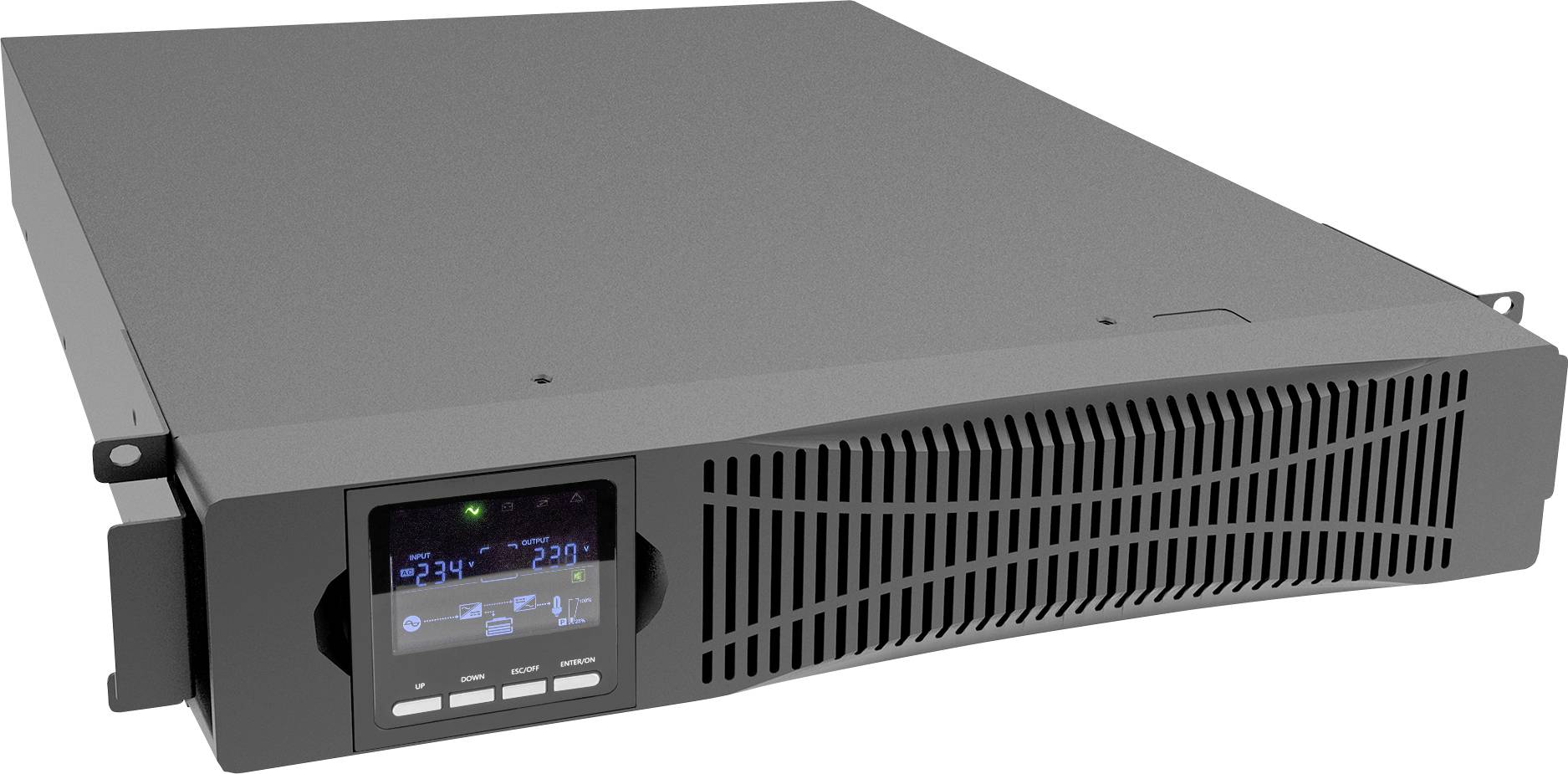

Digitus online UPS system, 1000 VA/ 1000 W
- High power factor (1.0), a higher effective power enables more connected loads, this saves space and reduces costs.
- High efficiency in online mode, higher efficiency means optimized energy management and reduced heat dissipation, saving energy and improving reliability.
- User-friendly LCD screen provides visibility into UPS status for easy installation, configuration and operation.
Technical specifications
- Product type
19" UPS
- Nominal power
1000 W
- Nominal power
1000 VA
- No. of outputs
8 x
- Output
IEC C13 socket
- Output voltage (max.)
240 V AC
- Output voltage (min.)
208 V AC
- Dim
(W x H x D) 86.5 x 325 x 440 mm
- Rechargeable battery capacity (details)
9 Ah
- of which battery-buffered
8
- Weight
11300 g
- Width
86.5 mm
- Height
325 mm
- Depth
440 mm
- Type
DN-170093
- Features
2U
LCD
Switching module
Serial port
- Bridging time, max load
2.3 min
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2903255 Digitus DN-170093 DN-170093 19" UPS
User & Safety Instructions
User & Safety Instructions 2903255 Digitus DN-170093 DN-170093 19" UPS
User & Safety Instructions 2903255 Digitus DN-170093 DN-170093 19" UPS
User & Safety Instructions 2903255 Digitus DN-170093 DN-170093 19" UPS
Information
Information 2903255 Digitus DN-170093 DN-170093 19" UPS
Information 2903255 Digitus DN-170093 DN-170093 19" UPS
Description
The Digitus® Online UPS is a dual-converter UPS solution that offers first-class power failure protection and continuous power generation in a compact and flexible system. The single-phase UPS works with high energy-efficiency and is suitable for Ideal for protecting critical infrastructures in both centralized as well as in edge network applications. Scalable runtime options with matching external battery cabinets provide additional flexibility when a longer uninterrupted power supply is required. The user-friendly LCD-display as well as the network management capability, including configuration, make this system easy to install and maintain. With market-leading efficiency and uniform power factor, the UPS meets your critical application requirements.
This text is machine translated.
This text is machine translated.
Features

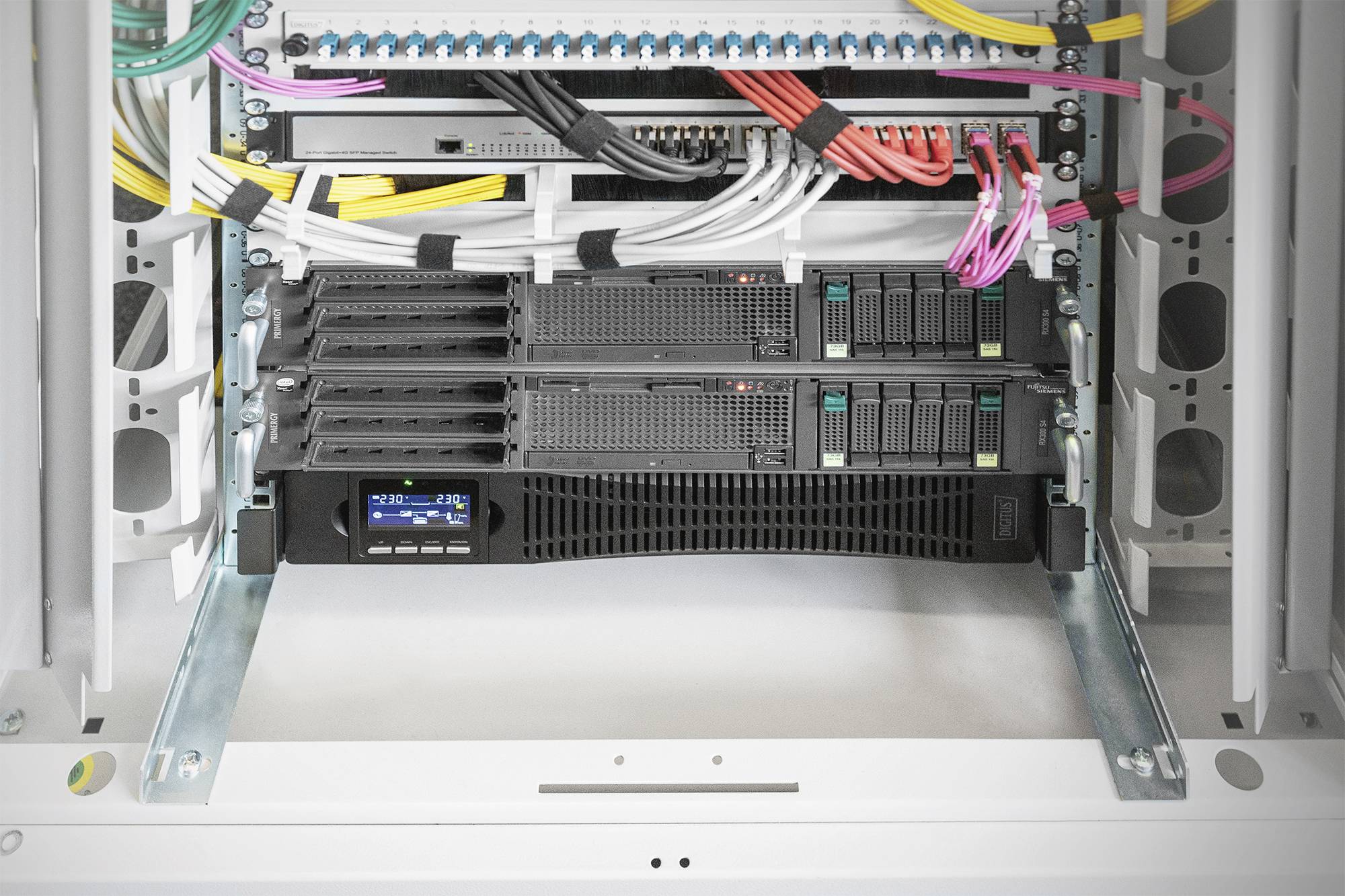

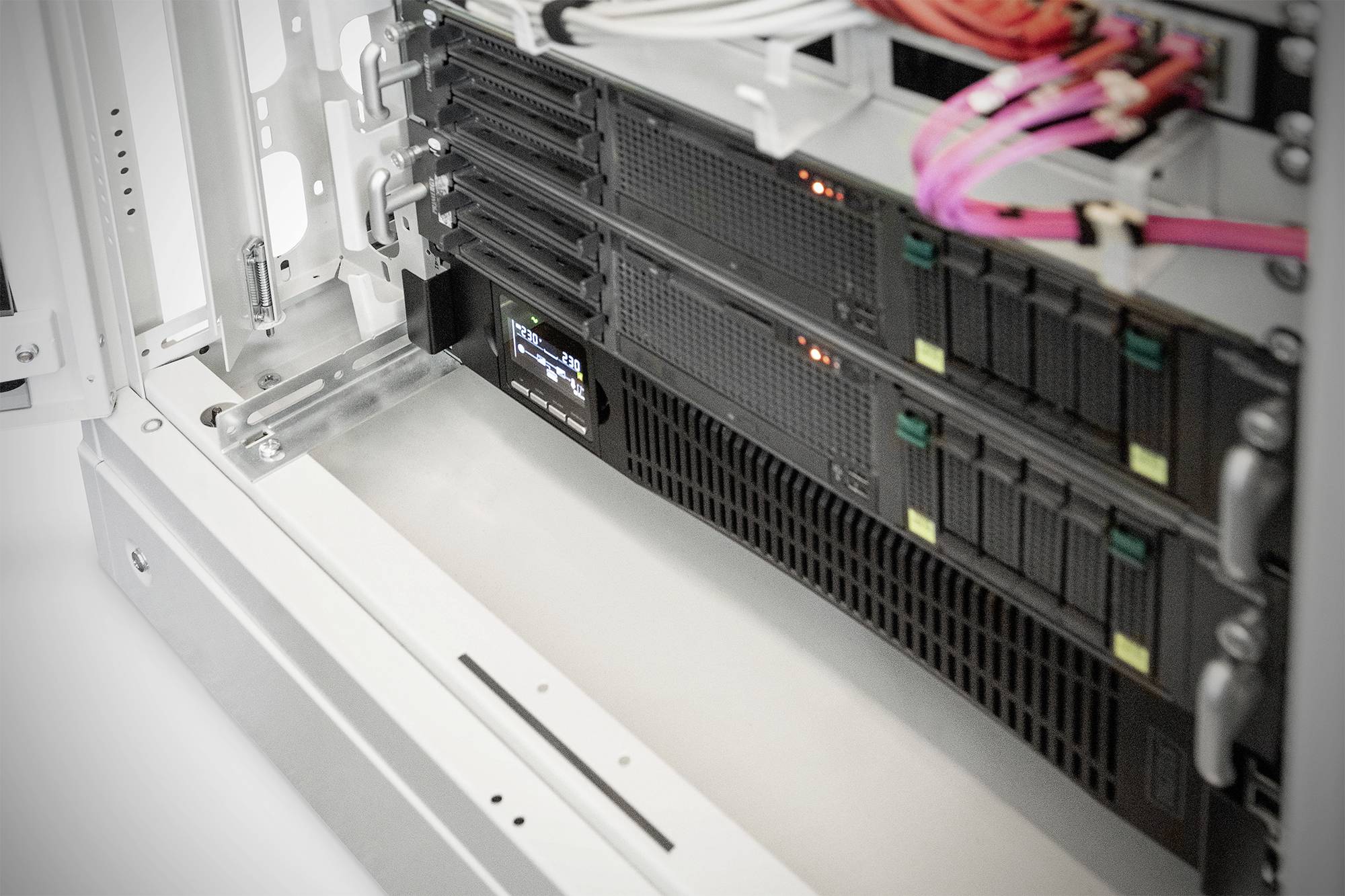

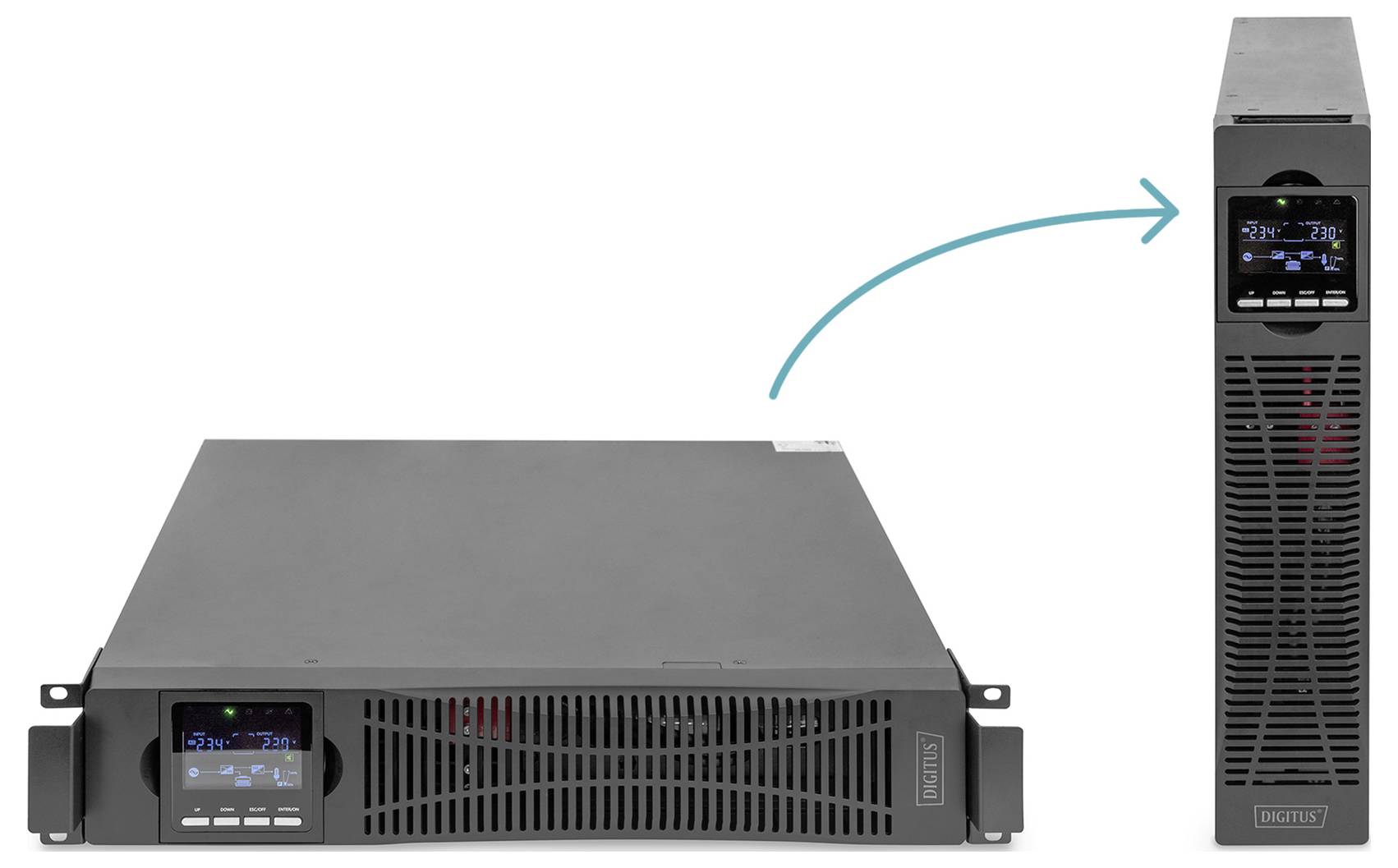

- Compact rack/tower design optimizes rack space and allows flexible installation.
- Minimum device downtime with hot-swappable user-replaceable battery modules that can be replaced during operation.
- External battery modules enable an extension of the runtime.

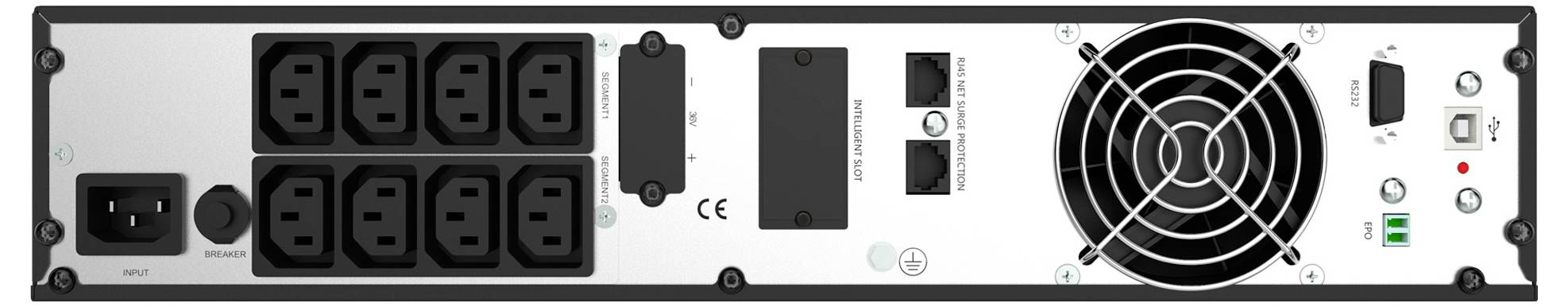

- High number of outputs (8 x C13) for optimal power distribution to consumers.

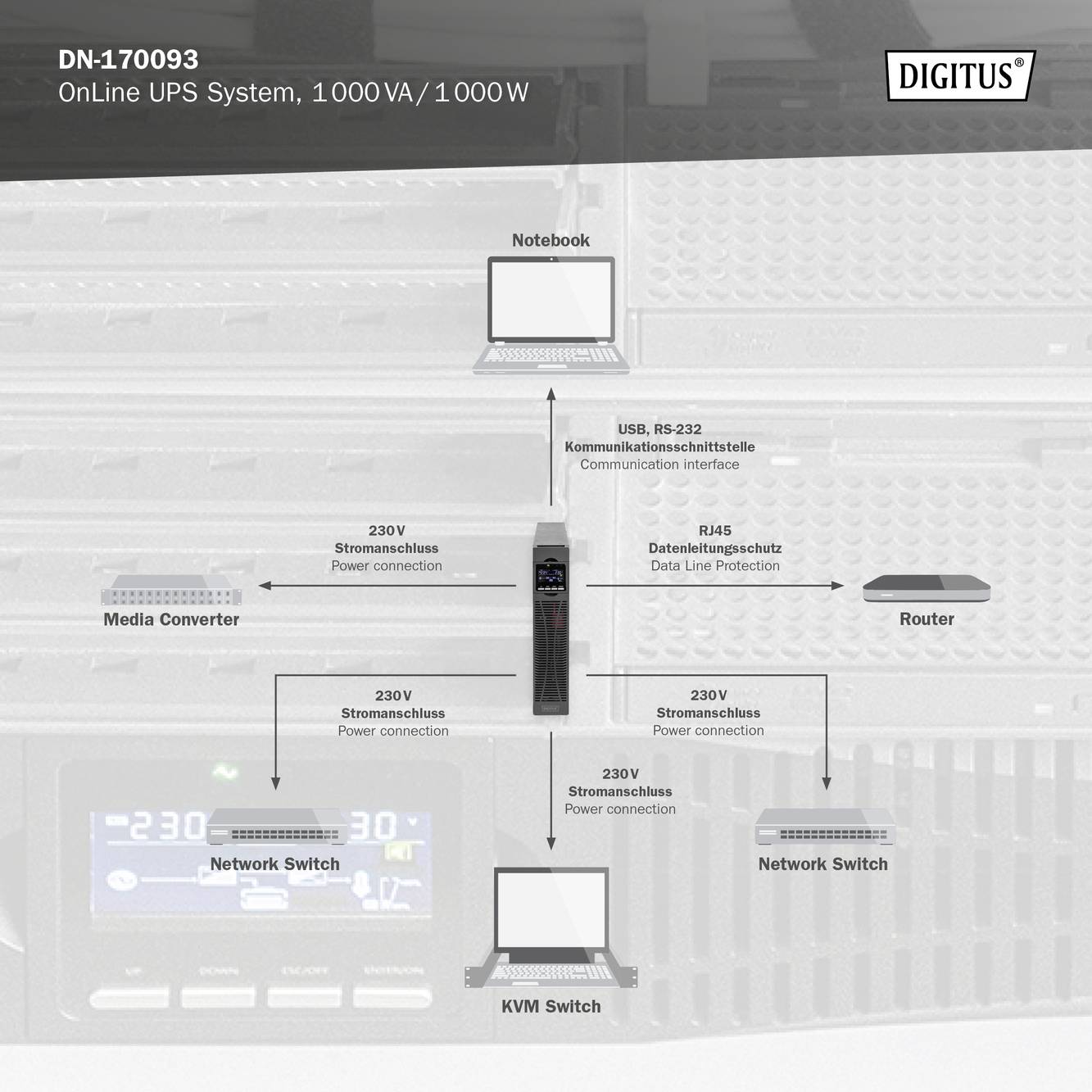

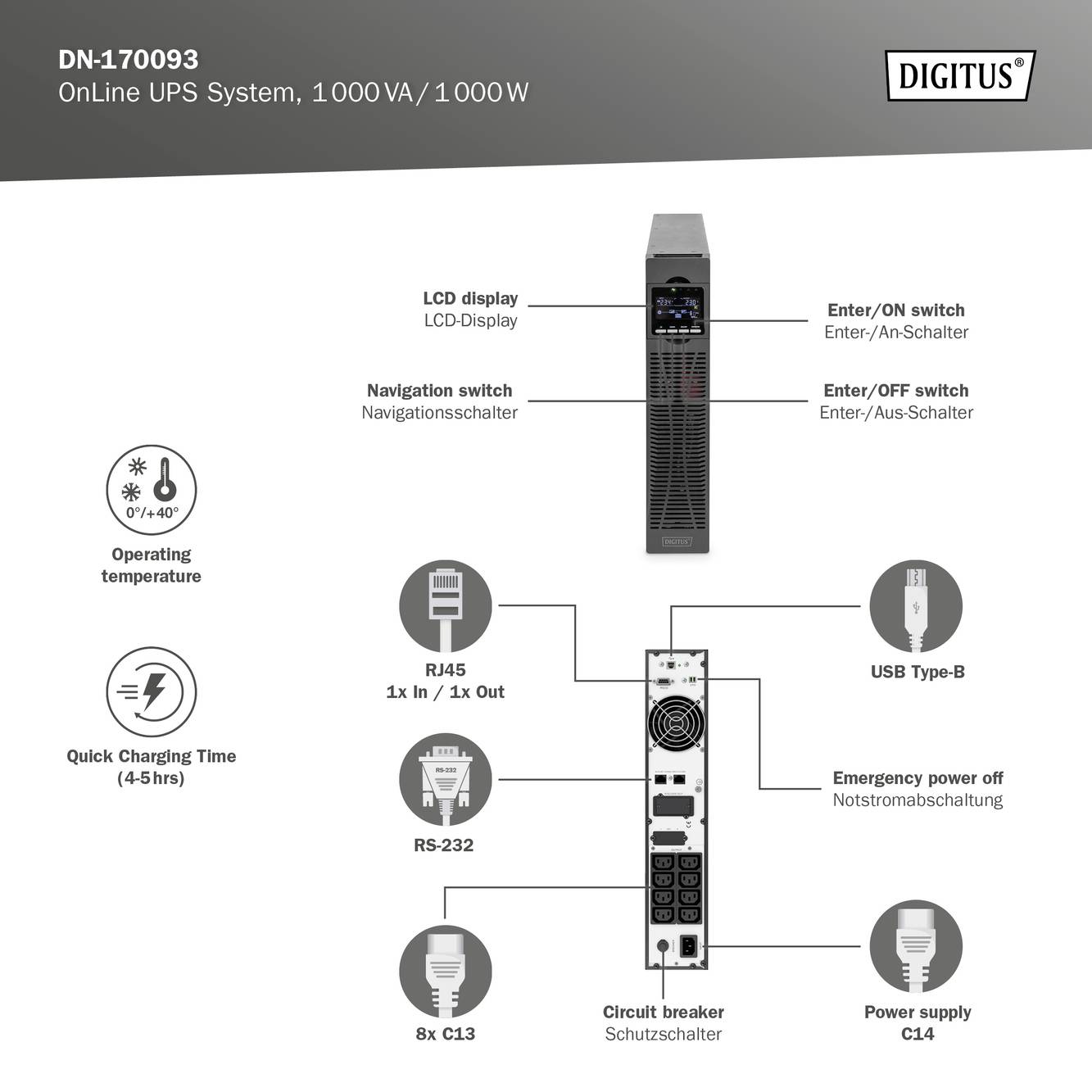

- Various communication interfaces (RS232/USB, parallel port, SNMP slot) enable remote monitoring of the system.
- Automatic self-test of the battery and fan speed control increase the life of the components.
- The REPO function (remote emergency Power off) switches the UPS off in case of an emergency. If an emergency occurs, the REPO switch switches off the rectifier and inverter and immediately stops the power supply to the load. The UPS stops charging.

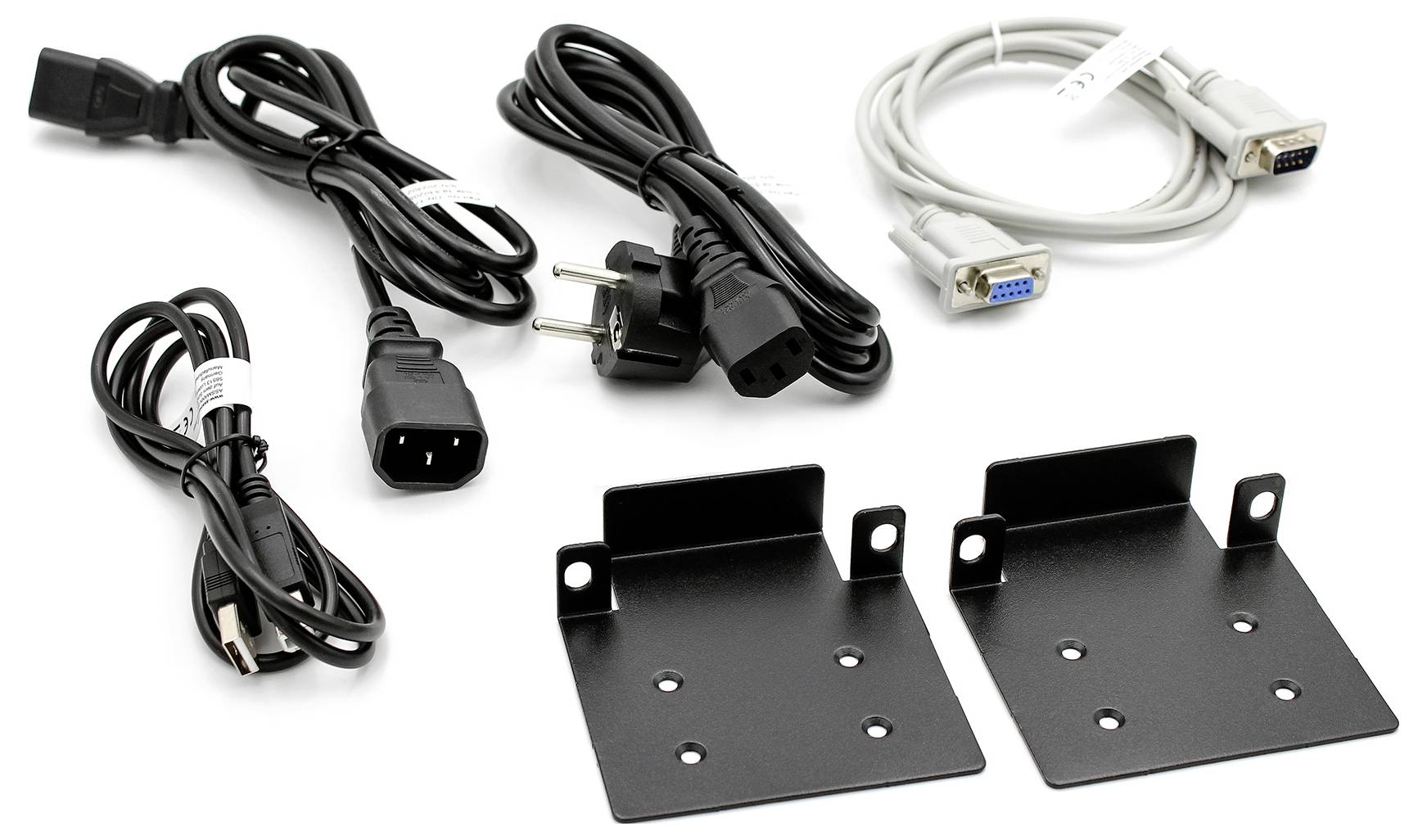

Scope of delivery
- 1 x online UPS system, 1000 VA/ 1000 W
- 1 x UPS user manual
- 1 x USB connection cable, 1.2 m
- 1 x power cable 1.8 m
- 1 x RS232 cable
- UPS software license
- 19" installation bracket

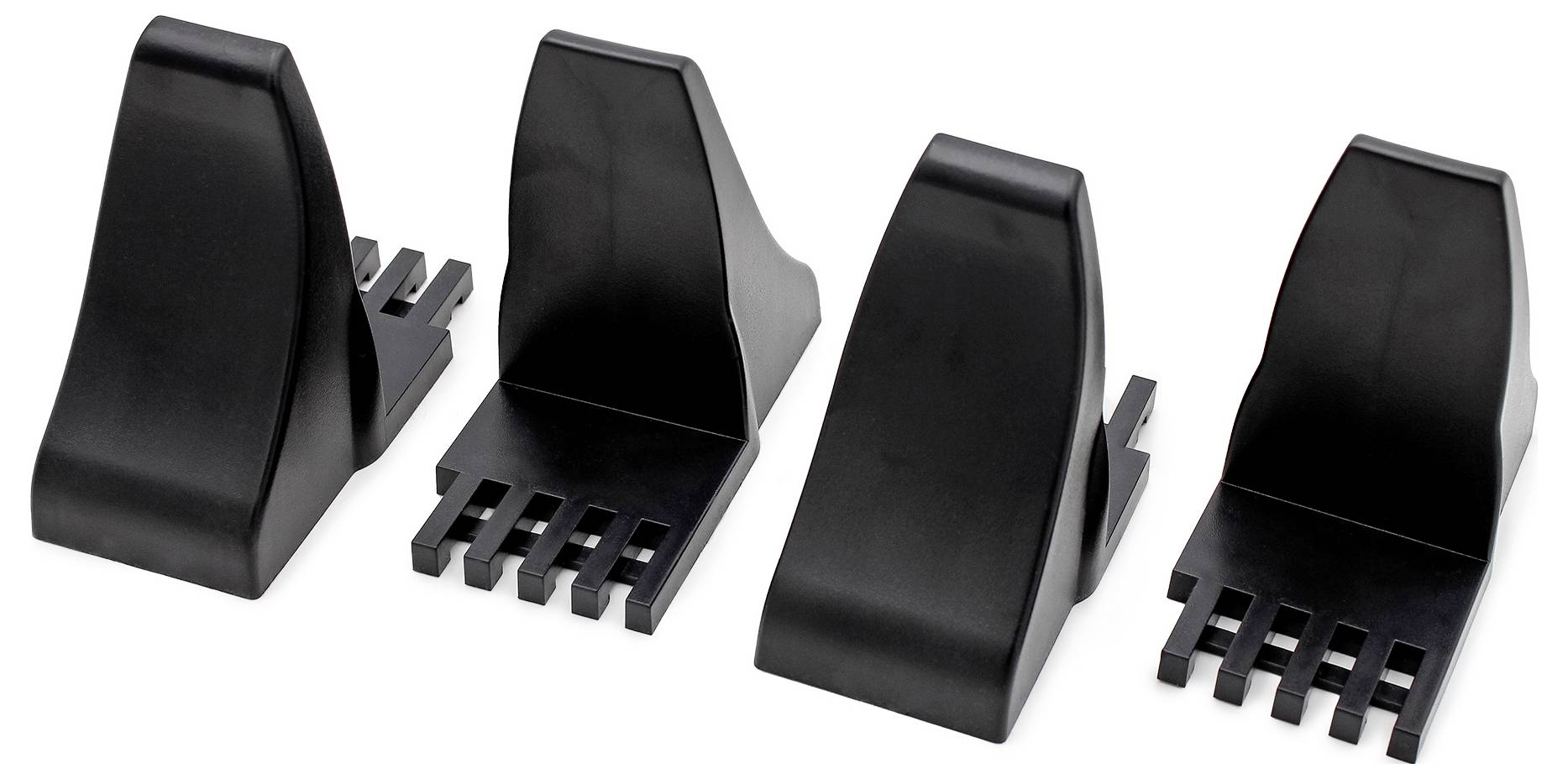

- Stands for tower setup
