Digitus DN-170096 19" UPS 3000 VA
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details

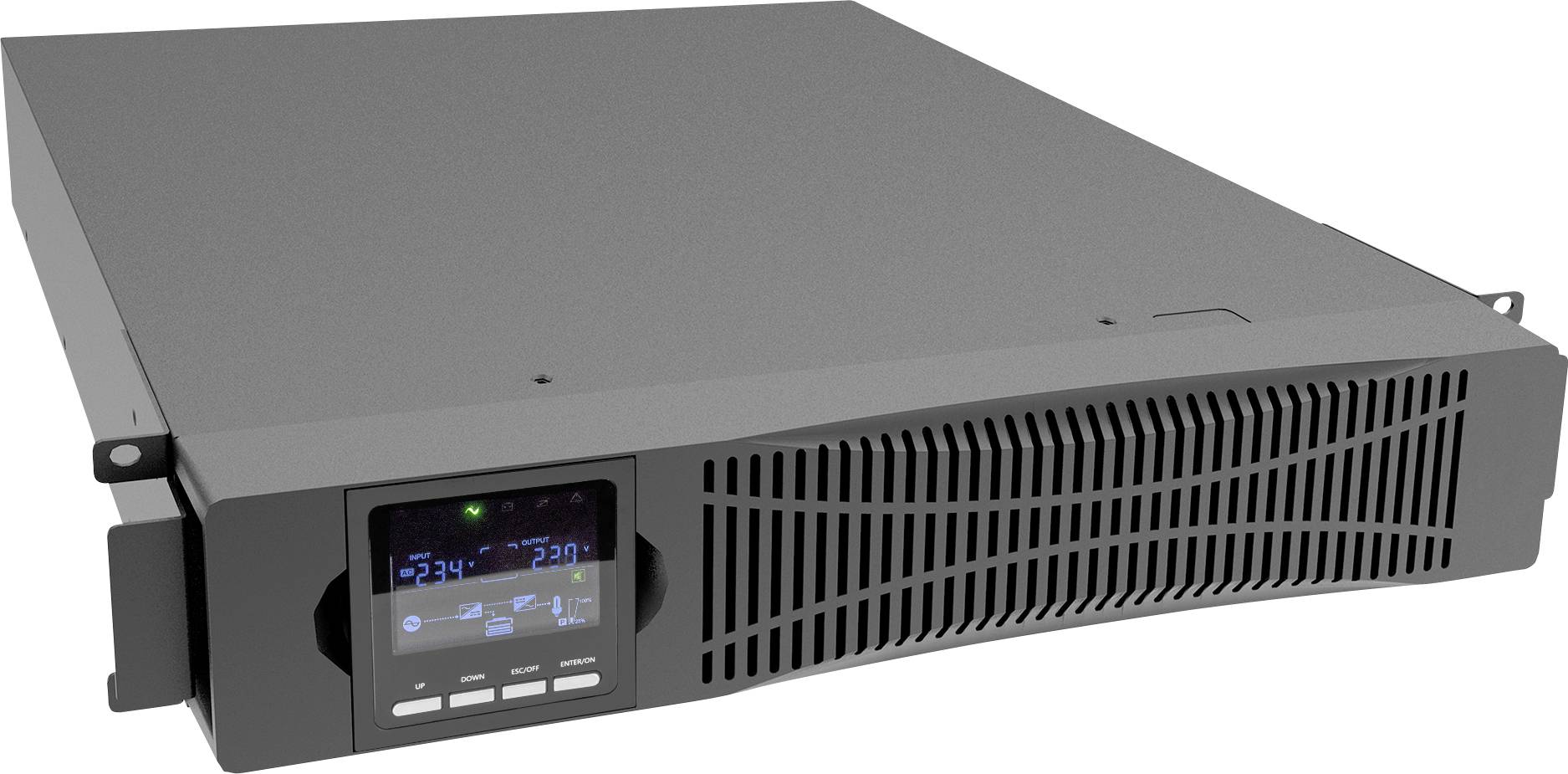

Digitus 2HE online UPS system, 3000 VA / 3000 W, 8 x C13 & 1 x C19 connections
- User-friendly LCD screen provides visibility into UPS status for easy installation, configuration and operation.High power factor (1.0), a higher effective power enables more connected loads, this saves space and reduces costs.External battery modules allow an extension of the runtime.THE REMOTE Emergency power off (REPO) function switches the UPS off in case of an emergency. In the event of an emergency, THE REPO switch turns off the rectifier and inverter and immediately stops the power supply to the load. The UPS stops charging
Technical specifications
- Relative humidity : 20 - 90% non-condensingLocal communication ports: USB, RS-232 (serial), SNMP card (optional), relay card (optional)Battery capacity 6 x 12V x 9.0 AhNetwork connection: Optional SNMP/Webcard (part number DN-170100) allows remote monitoring of the UPS.Product dimensions WxDxH (mm) : 440 (19") x 600 x 86.5 mm (2HE)SAFETY STANDARDS : IEC/EN62040-1,IEC/EN60950-1AC-AC (online VFI) Efficiency : 93%, ECO mode Efficiency: 98%.Online double converter system (VFI-SS-111)Charging: 4 hours to 90% capacity after complete dischargeMaximum operating temperature : 0 - 40 °C.External battery modules available (part number: DN-xxxxx), up to 4 ECB can be connectedSystem rated power 3000 VA / 3000 W, power factor 1.0Storage temperature : -25 - 55 °C.Battery: Valve-protected, non-leaking lead-acid batteryFull-load runtime : 3 min; half-load runtime: 9 min.Input: Socket IEC60320 C20, 208/220/230/240 VacOperating altitude : Less than 1500 m.Output : 8 x IEC60320 C13, max. 10A per socket; 1 x IEC60320 C19, max. 16A per socketEMC STANDARDS: IEC/EN62040-2,IEC61000-4-2,IEC61000-4-3,IEC61000-4-4, IEC61000-4-5,IEC61000-4-6,IEC61000-4-8
- Product type
19" UPS
- Nominal power
3000 VA
- Bridging time normal load
9 min
- Bridging time, max load
3 min
- No. of outputs
9 x
- Plug type

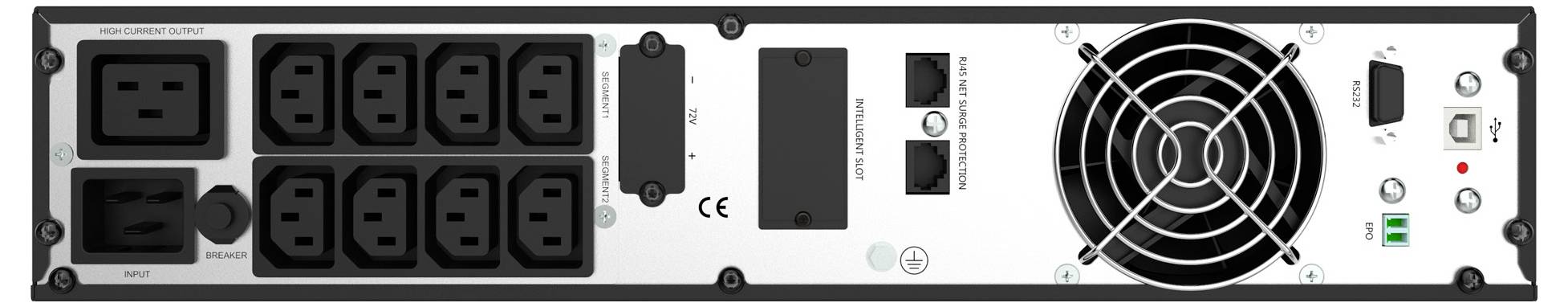

8 x IEC60320 C13, max. 10A per socket; 1 x IEC60320 C19, max. 16A per socket
- of which battery-buffered
9
- Output
IEC C13 socket
IEC C19 socket
- Surge protection for
Networks (RJ45)
Mains outlets
- Features
2U
Alarm
LCD
Network port
Serial port
USB port
Passive filter
- Dim
(W x H x D) 440 x 86.5 x 600 mm
- Weight
26 kg
- Width
440 mm
- Height
86.5 mm
- Depth
600 mm
- Type
DN-170096
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2589678 Digitus DN-170096 19" UPS 3000 VA
Datasheet 2589678 Digitus DN-170096 19" UPS 3000 VA
User & Safety Instructions
User & Safety Instructions 2589678 Digitus DN-170096 19" UPS 3000 VA
User & Safety Instructions 2589678 Digitus DN-170096 19" UPS 3000 VA
User & Safety Instructions 2589678 Digitus DN-170096 19" UPS 3000 VA
Information
Information 2589678 Digitus DN-170096 19" UPS 3000 VA
Information 2589678 Digitus DN-170096 19" UPS 3000 VA
Description
The DIGITUS® Online UPS is a dual-converter UPS solution that provides superior power Digitus protection and continuous power generation in a compact and flexible system. The single-phase UPS is energy efficient and ideal for protecting critical infrastructures in both centralized and edge network applications. Scalable runtime options with matching external battery cabinets provide additional flexibility when a longer uninterruptible power supply is required. The user-friendly LCD display as well as the network management capability, including configuration, make this system easy to install and maintain. With market-leading efficiency and a unified power factor, the UPS meets your critical application requirements.
This text is machine translated.
This text is machine translated.
Features

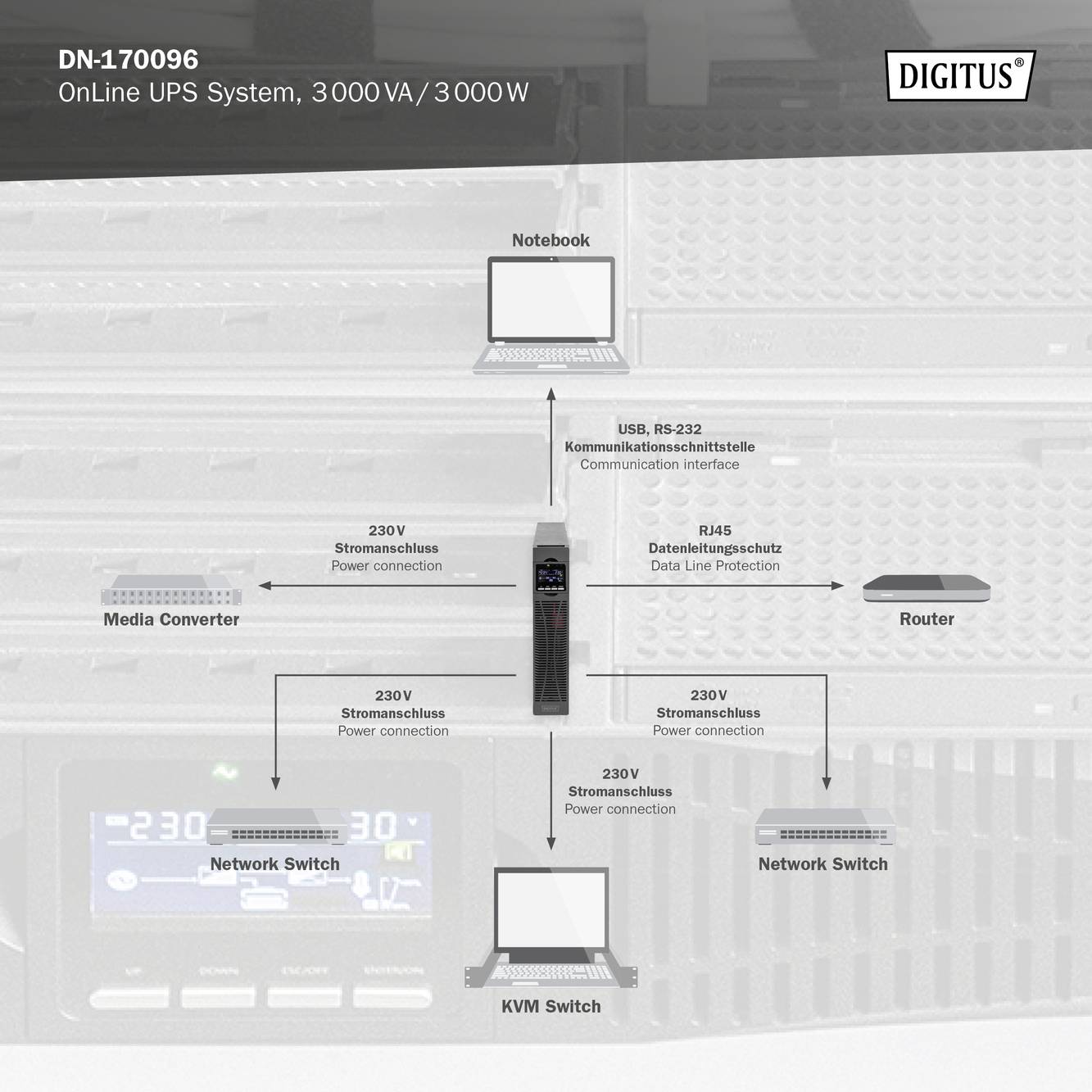

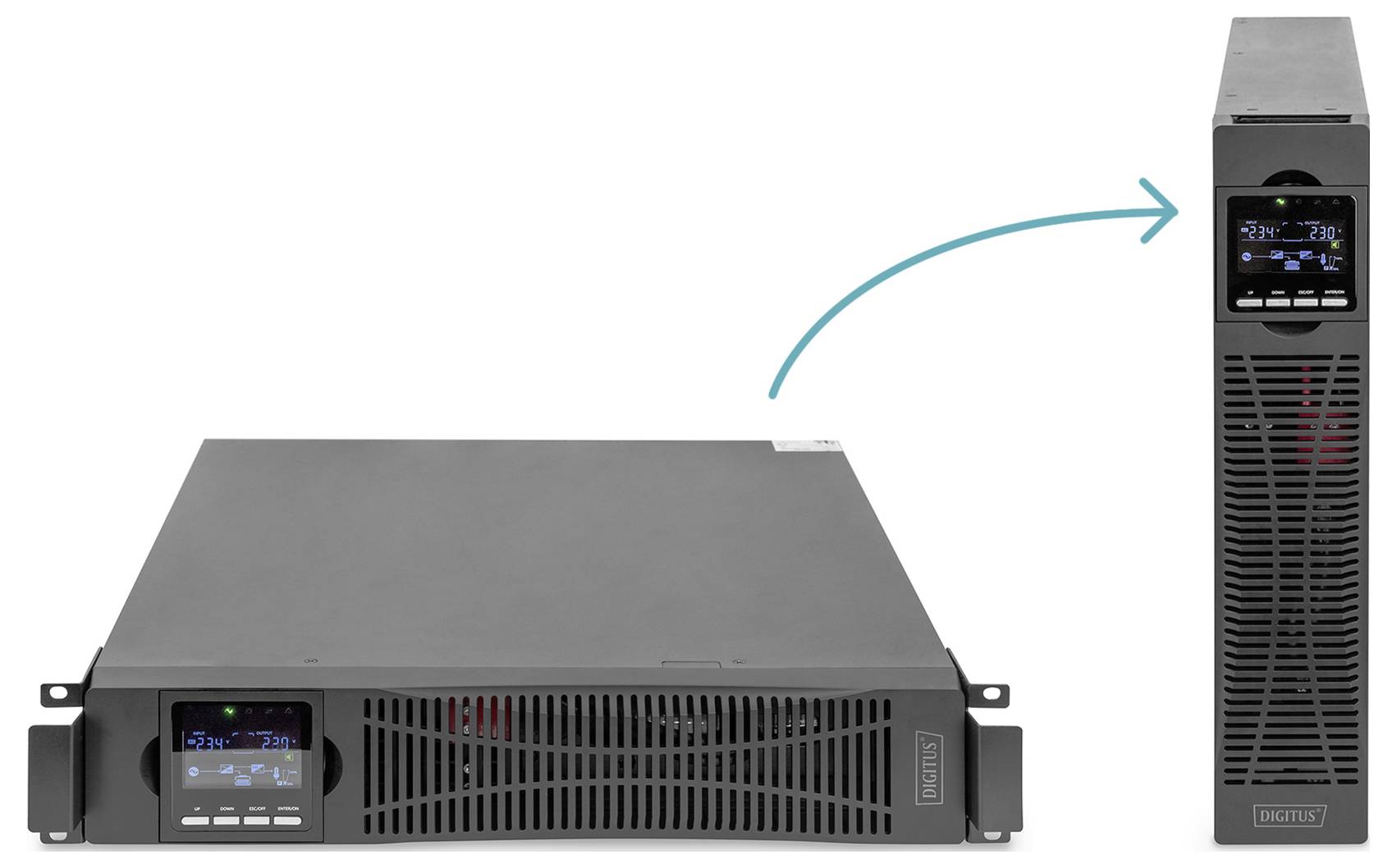

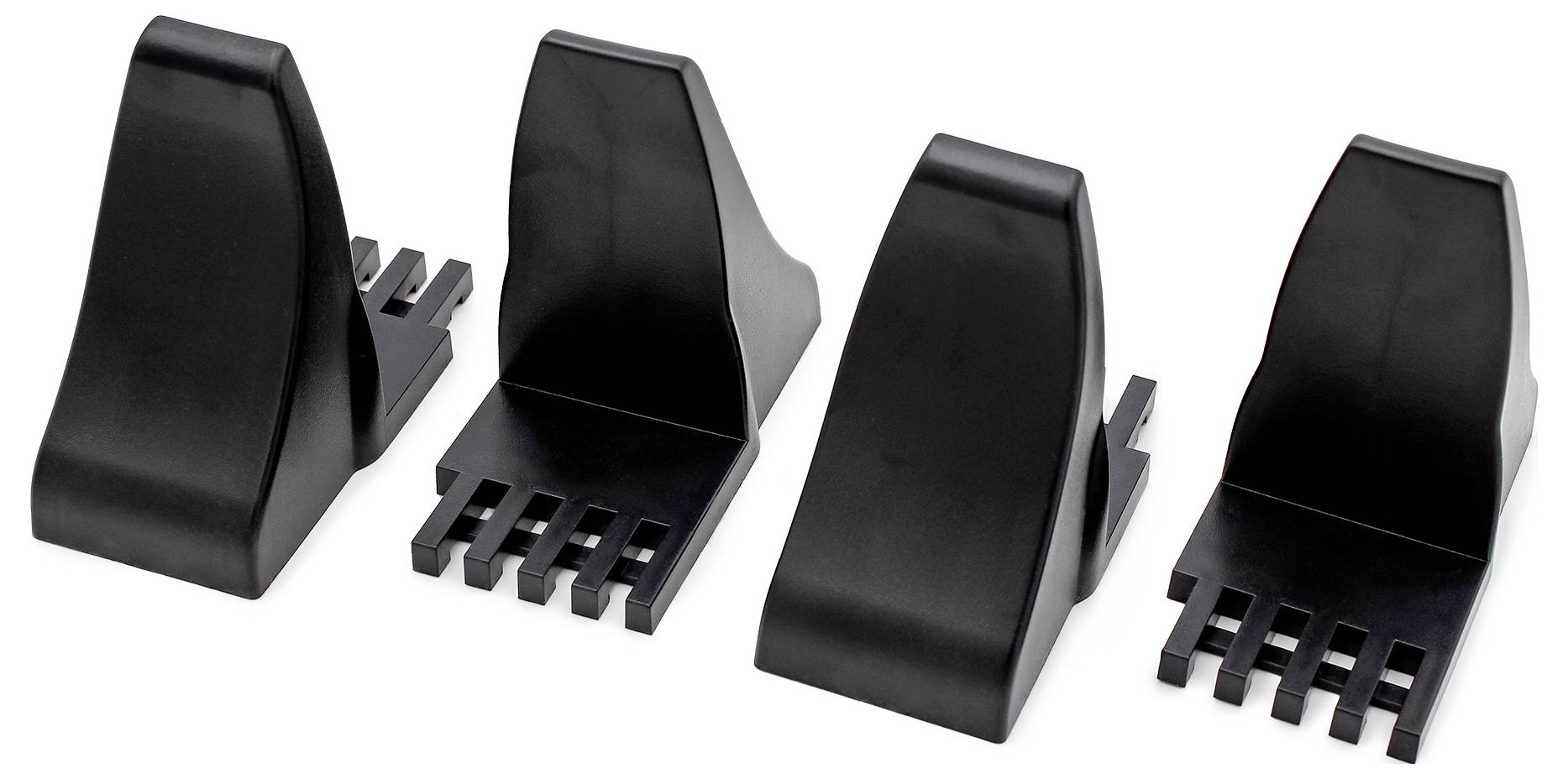

- Automatic battery self-test and fan speed control increase the life of the components.High efficiency in online mode, higher efficiency means optimized energy management and lower heat dissipation, resulting in energy savings and improved reliability.Compact rack/tower design optimizes rack space and allows flexible installation.High number of outputs (8 x C13 & 1 x C19) for an optimum current distribution to the consumers.Minimal device downtime with hot-swappable, user-replaceable battery modules that can be replaced during operation.Various communication interfaces (RS232/USB, parallel port, SNMP slot) enable remote monitoring of the system

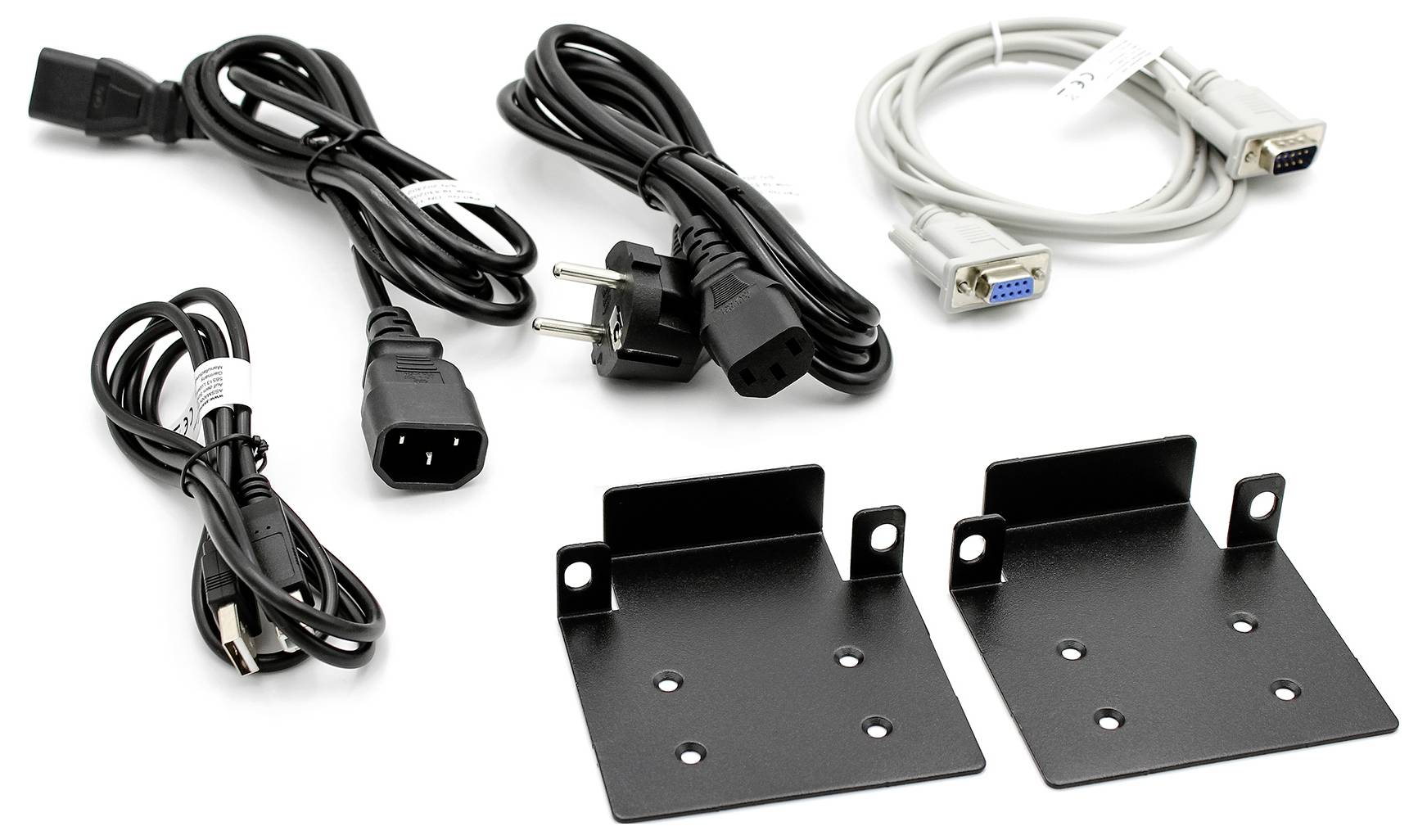

Scope of delivery
- USB cable
- Ups User Guide
- IEC 60320 Sheet I (16A) plug
- Input power cable 1.80 m (Schuko plug CEE 7/7 - IEC 60320 C19)
- Output power cable 1.50 m (IEC60320 C13 - Sheet E)
- Ups Quick Start Guide
Hints
For 19" mounting, slide rails (DN-170109/DN-19 GS-NW/DN-19 GS-SRV) or L-rails are required. The HE above or below is then not fully usable.
