Name: Digitus DN-948030-2 FTTH junction box set White 1 pc(s)
Brand: Digitus
SKU: 3791059

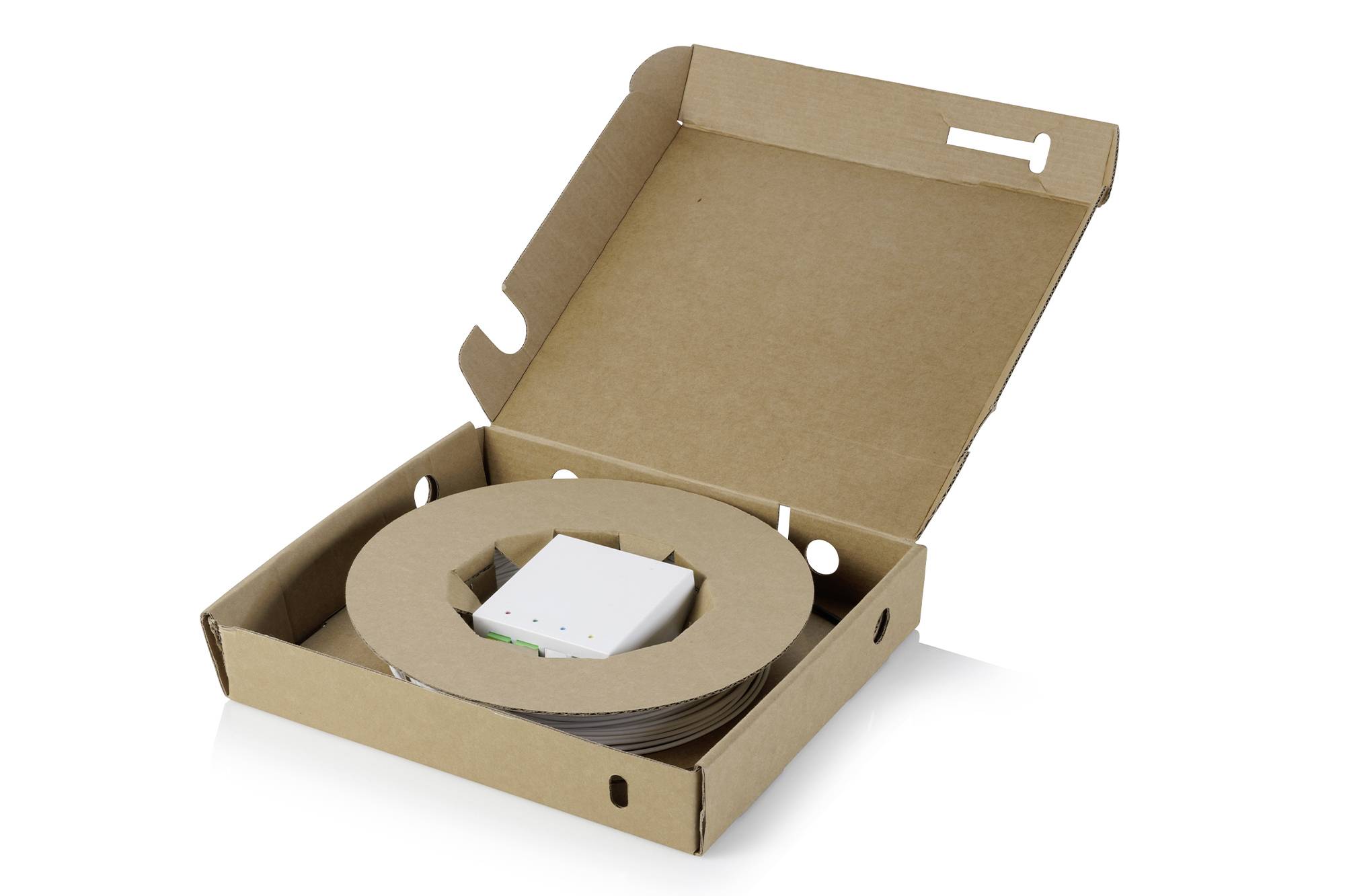

Open cardboard shipping box containing a coiled brown paper strap and a small white device insert on a white background.

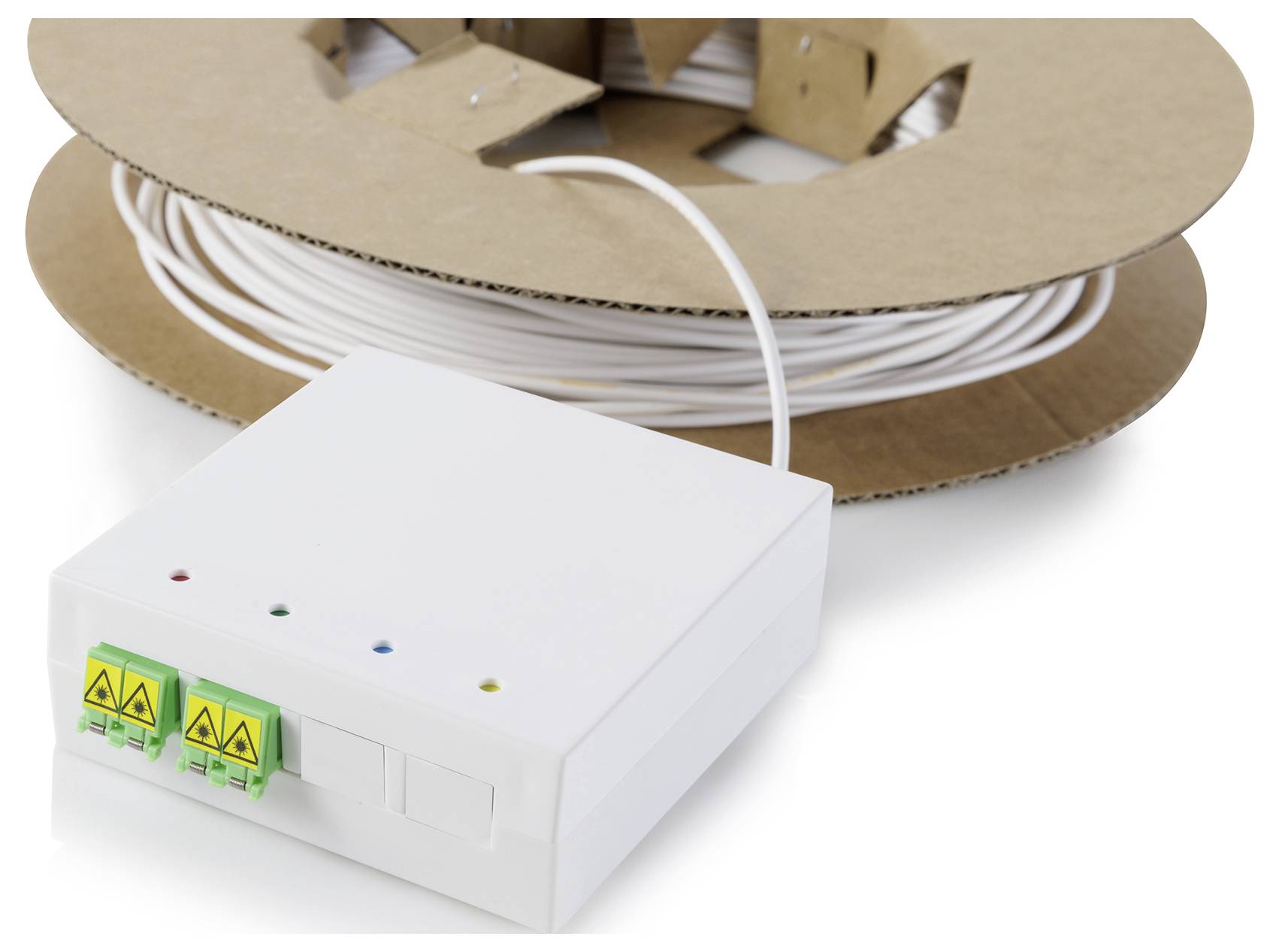

Fiber optic termination box with coiled white cable spool and green connector ports on a white background.

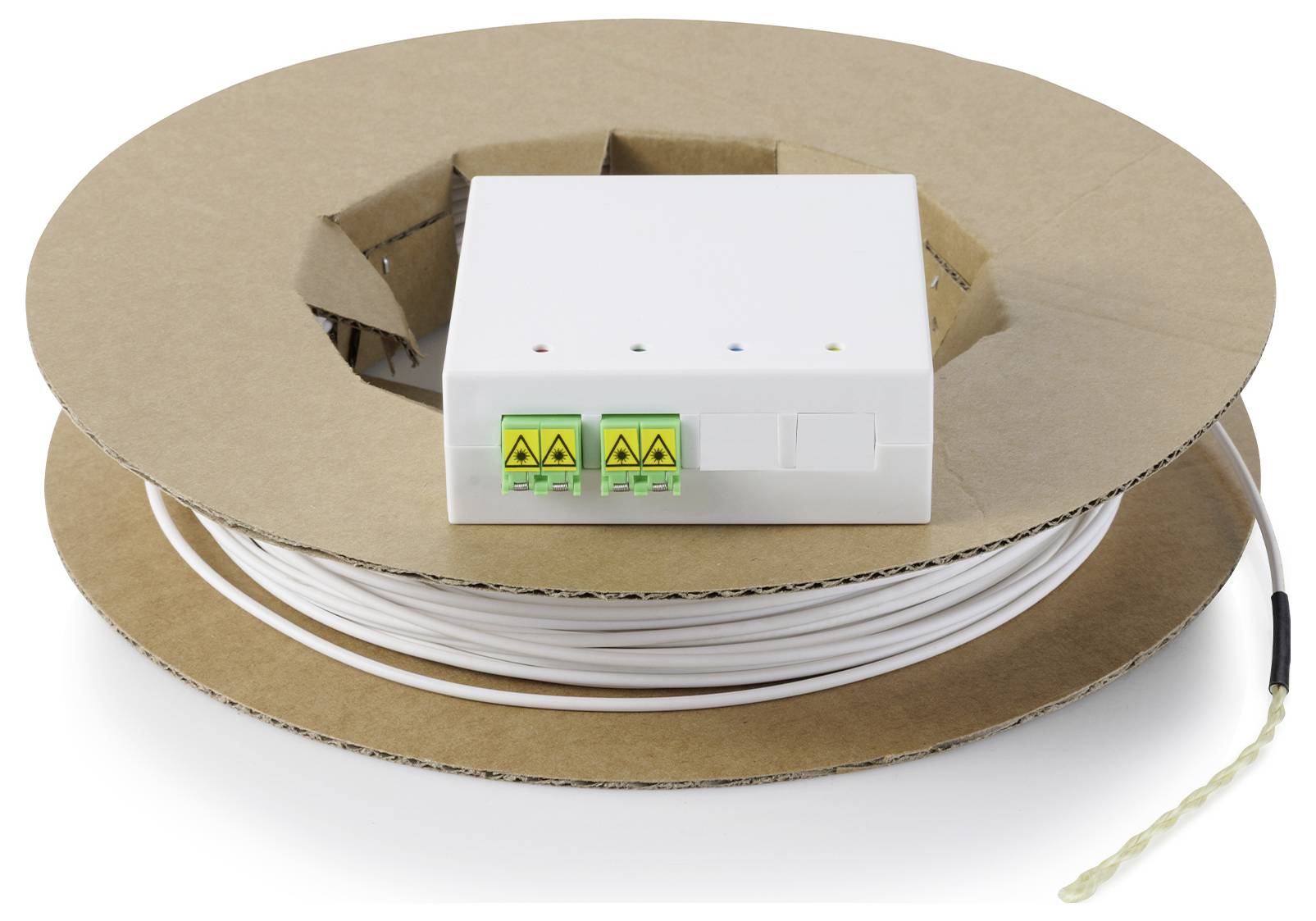

Fiber optic cable spool with a white junction box on top, showing multiple ports and a loose cable end extending outward.<br>

Coiled spool of white electrical cable with a wall outlet jack and exposed wires on a cardboard reel.

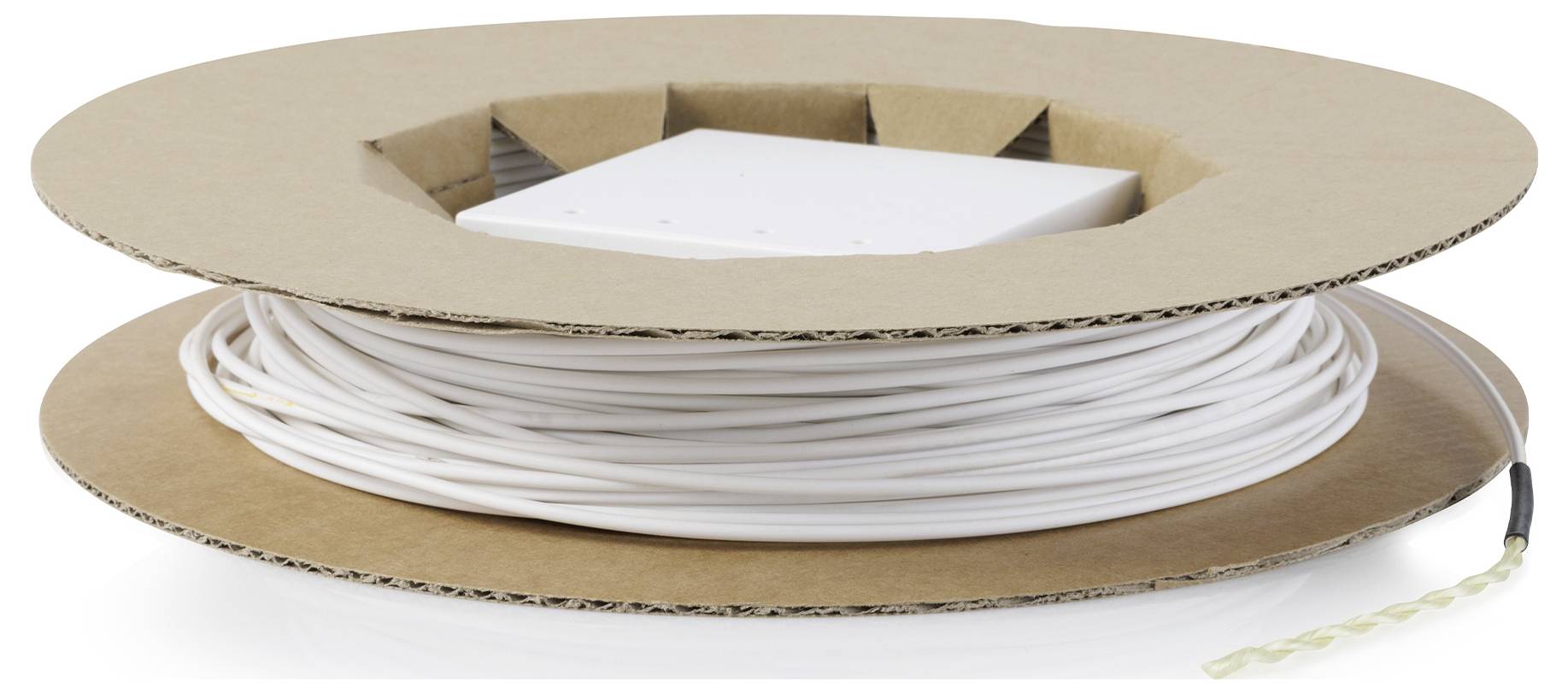

Spool of white cable wound on a cardboard reel with a loose stripped end visible.

Cardboard box with a pull cord threaded through a side hole, suggesting packaged delivery or a simple closure mechanism.

White electrical control box mounted on a metal DIN rail, with four small colored indicator lights on the front.<br>

White wall-mounted fiber optic network box with two yellow cables and four colored status lights underneath.

1/8

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Digitus FTTx Installation Kit, Preassembled, 4-fiber, LC/APC plug, length 30 m.

Short assembly time within the living unit
FTTH drop cables are already fitted with LC/APC plugs on one side
The open end can be easily drawn in or laid up to the in-house distributor

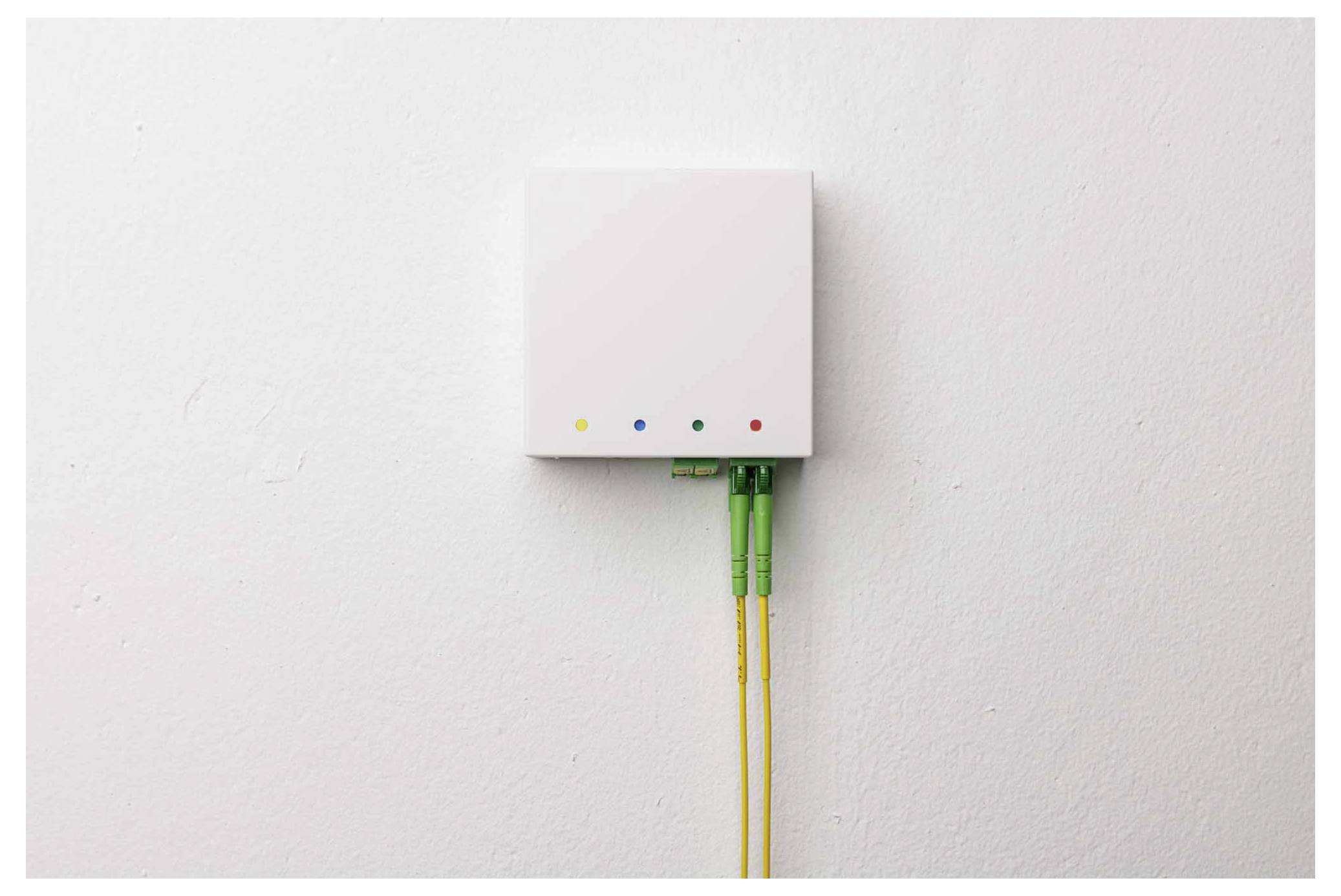

Wall mounting of the socket for optimized, secure installation of the patch cable
Integrated, undetachable laser protection at the LC APC couplings

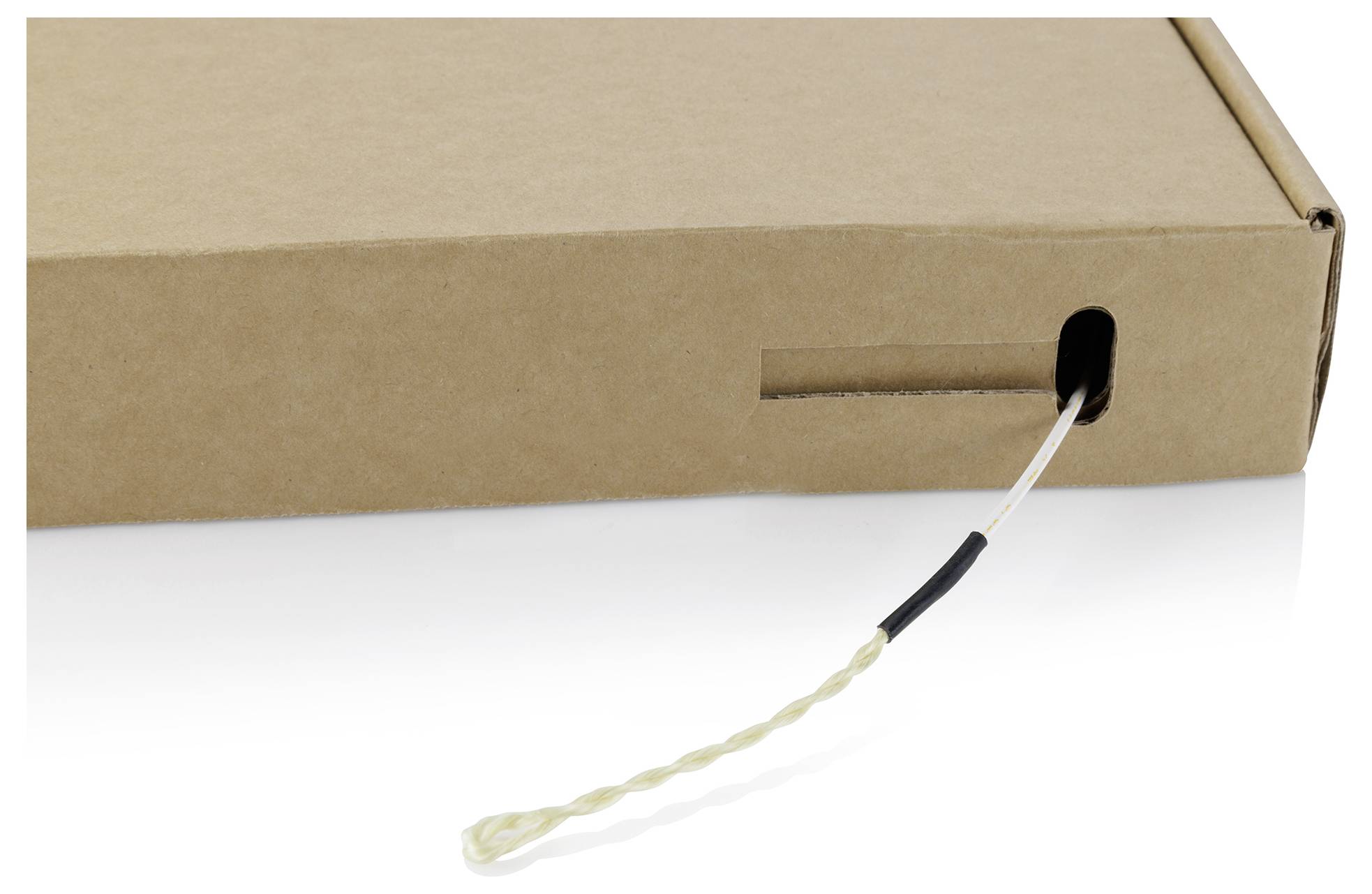

Sturdy pulling loop for pulling the cable into piping systems

Technical specifications

FTTH junction box:

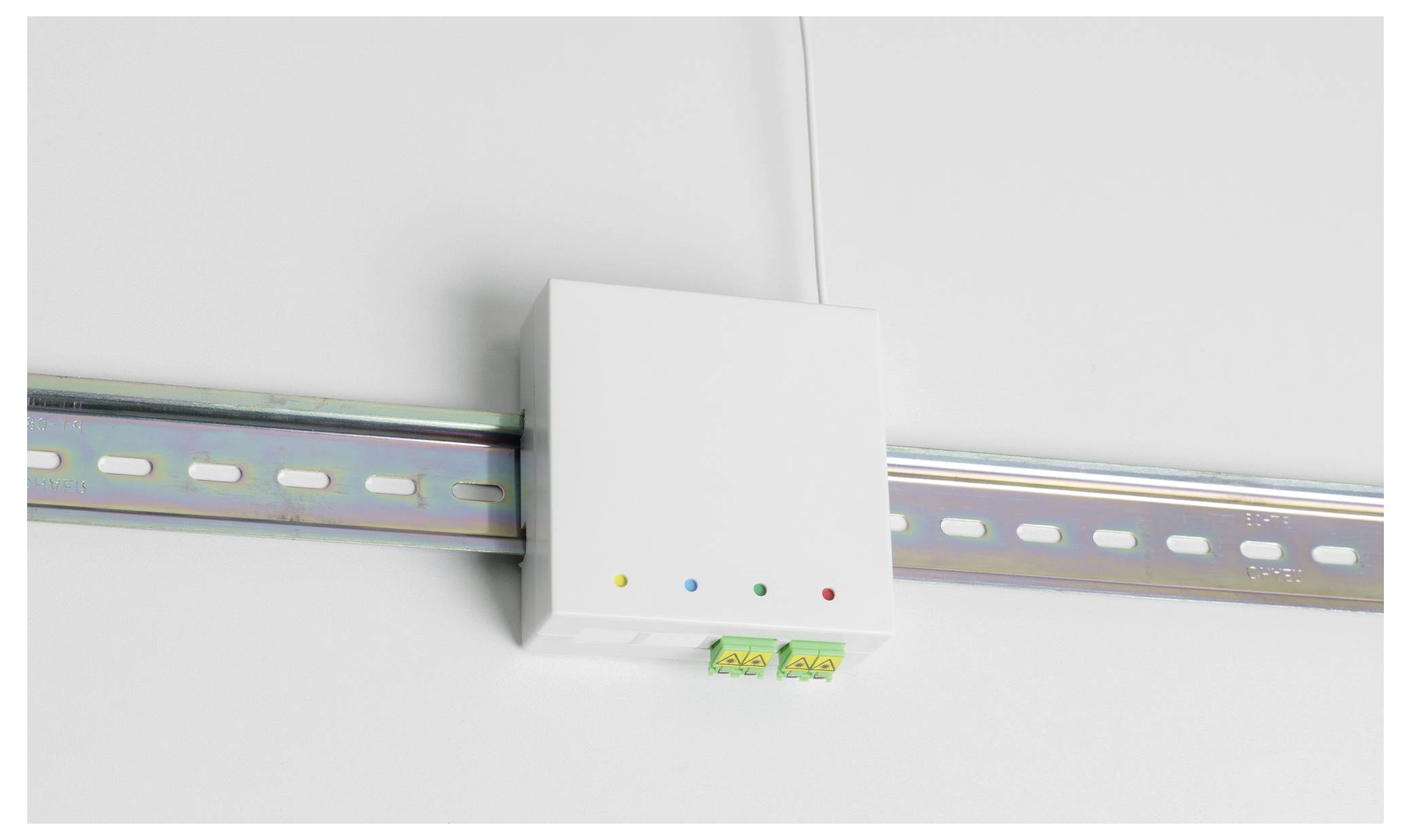

Suitable for wall and DIN rail mounting
2x LC-APC Duplex-glass fiber couplings with shutter
The shutter of the clutch protects against laser and dust
Adapter type : LC/APC Duplex
Number of ports: 4
Number of ports provided: 2

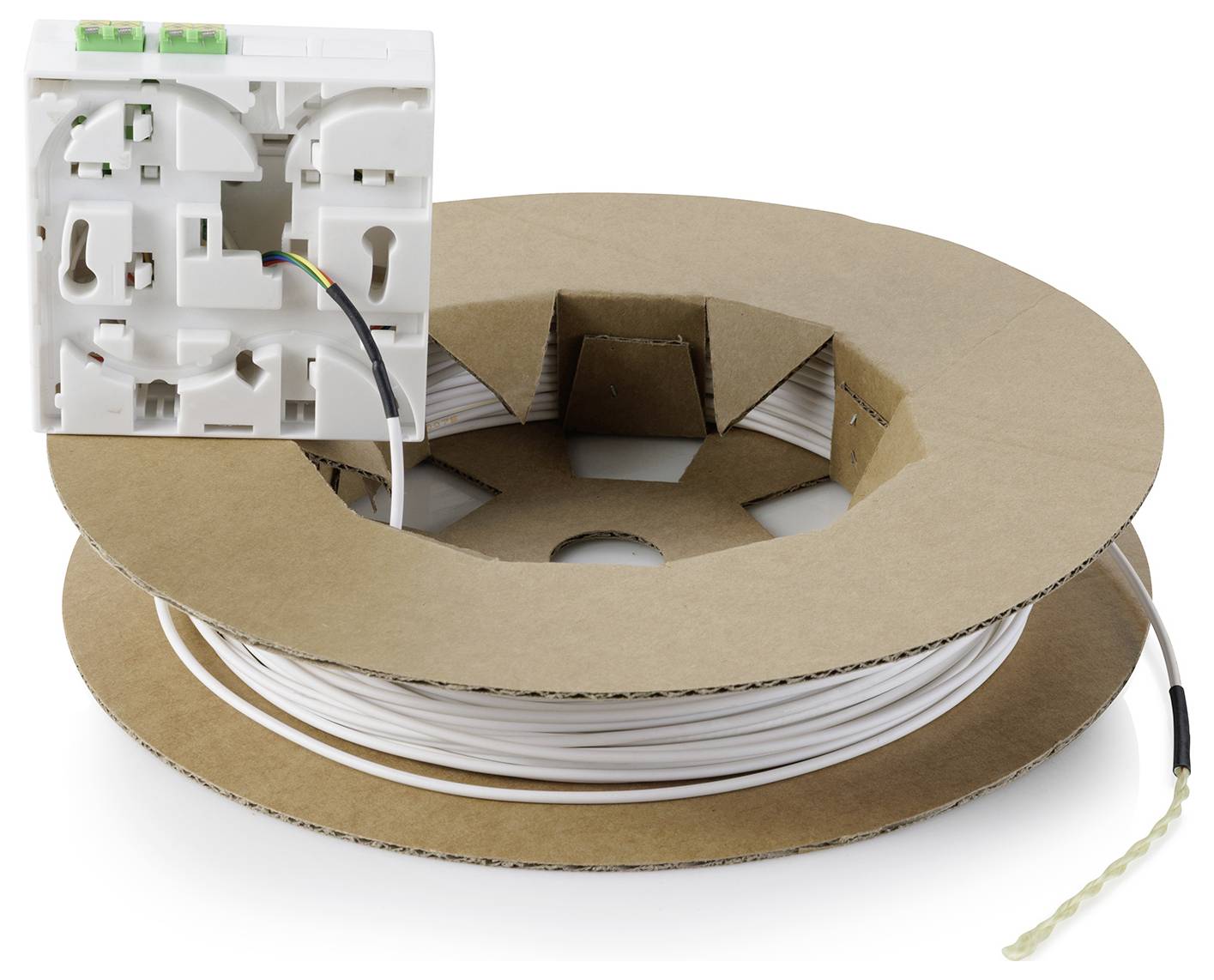

Integrated splice box
Frictionless rolling of the cable
Colour : White
Working temperature: -40 - + 65 C.
Housing material: ABS plastic.
FTTH Dropwire :
4 fibers 9/125µm G.657A2 flexi-optimized
Cable diameter: 2.0mm
900µm Buffer, easily removable
Aramid strain relief
LSOH-outer sheath, color white
CABLE SETUP I-V(ZN)H
CPR class : B2ca
Operating and storage temperature (℃ ) : -15 - +70
Installation Temperature range (℃ ) : -10 - +60

Product type: FTTH junction box set

Type A: LC APC plug
LC/APC 8° plug

Type B: LC APC socket
LC/APC 8° socket

: Duplex

Patch panel design: Equipped

: Singlemode OS2

Fibre type: 9/125 µ

Material: Acrylonitrile butadiene styrene

Factory colour: White

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3791059 Digitus DN-948030-2 FTTH junction box set White 1 pc(s)

Description

The growing demands on extending the fiber optic network to the home require products that allow easy and efficient installation of this network. The Digitus FTTH installation kit is a solution that allows an easy expansion and completion of the fiber optic network in the house. The simplicity of the installation results from the fact that the product is delivered with all the necessary components, thus eliminating the need to search for the components for the installation individually. The connection socket can be mounted at the desired place and the connection to the router is made easier, because the LC/APC-plugs are already included. The built-in fiber drop cable can then be pulled to connect to the home transfer point that will be mounted in the building as an entrance point for the fiber optic network. It provides additional connections and splicing capabilities to meet the requirements for scaling the number of fiber links.
