Digitus DN-95452 19 inch Server rack cabinet power strip 1 U IEC C13 10A, IEC C19 16A Fixed, incl. 2 steel brackets Suit
EAN:
Part number:
Item no:
Highlights & Details

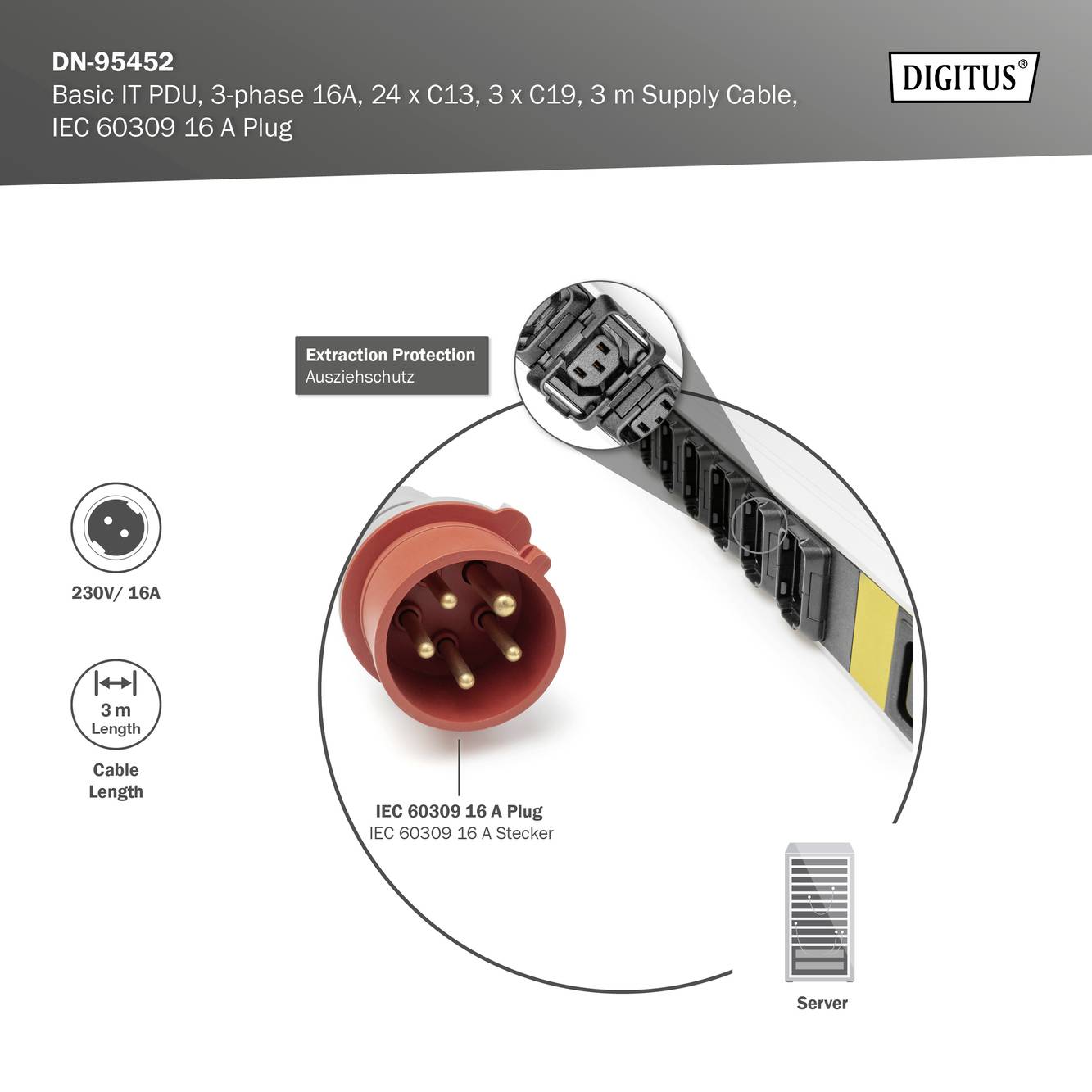

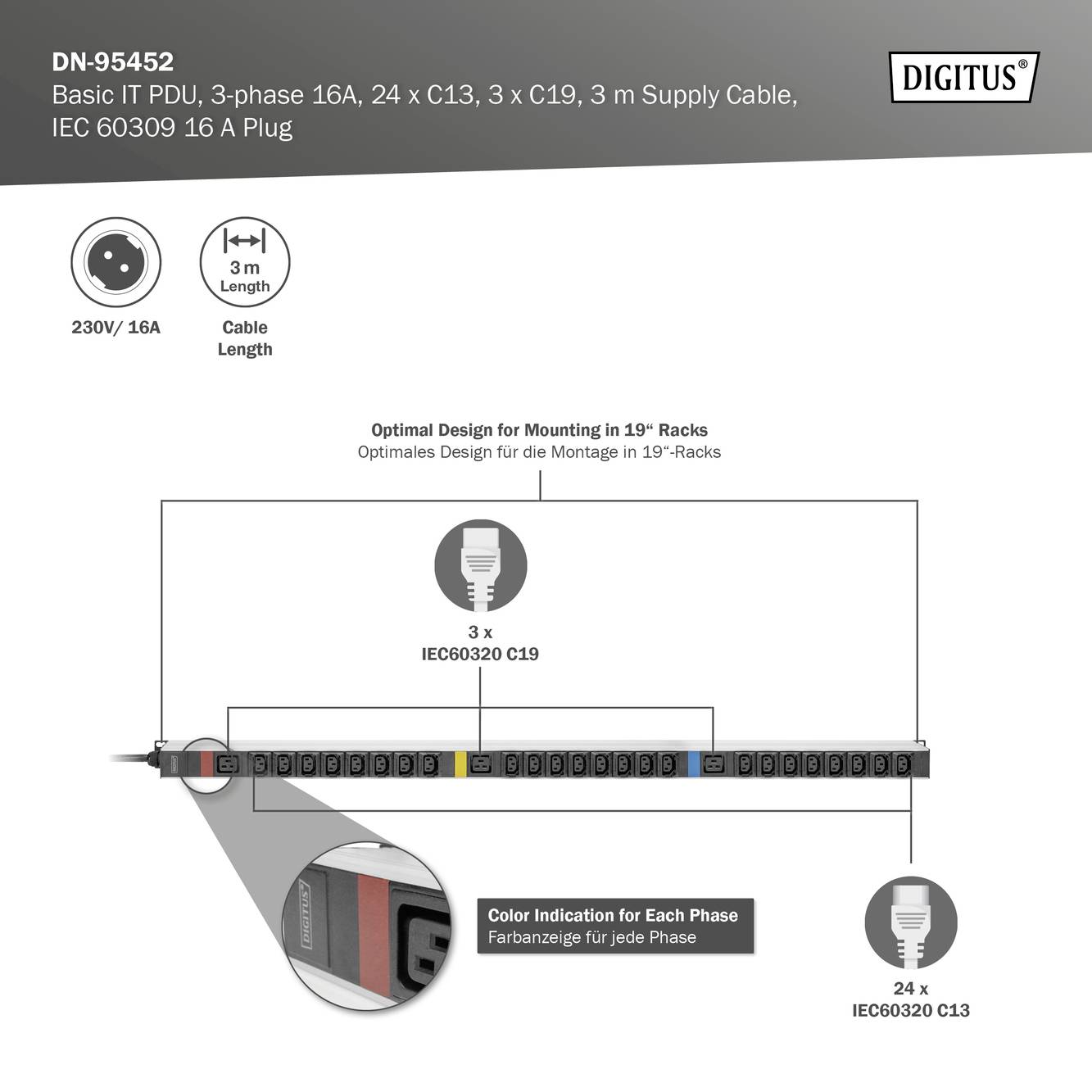

Digitus base IT PDU, 3-phase 16A, 24 x C13, 3 x C19, 3 m power lead, IEC 60309 16 A plug
- Optimum design for mounting in 19" racks
- Reliable current distribution
- Excellent space management of sockets
Technical specifications
- !USEHOSE protection at each output (for C13 and C19 standard cables)
- Vertical installation
- Housing: Aluminium profile
- Plastic components made of ABS UL-94V-0
- Mains supply IEC60309 3ph/N/PE 6h, 230V / 16A plug
- Input lead: 3 m
- Max. Load 4000 W / 250 V AC / 16 A (50 Hz)
- Sockets 24 x C13-socket, 3 x C19-socket
- OUTPUT CURRENT C13 (10A), C19 (16A)
- Dimensions (L x W x D) 1288.5 x 45 x 60 mm
- Colour, black
- OUTPUTS: IEC 60320 C13, IEC 60320 C19

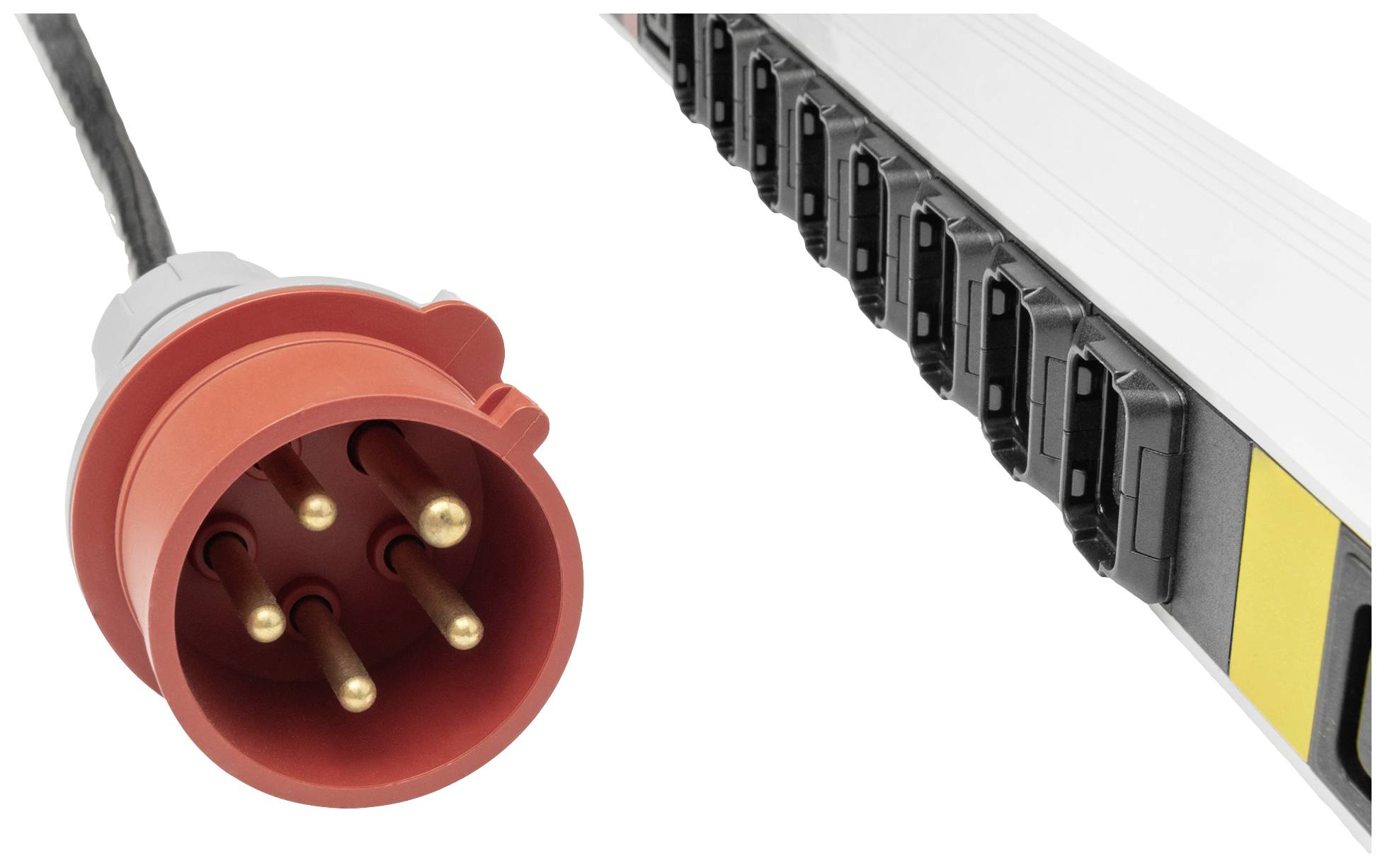

- Input plug:IEC 60309 16A 3ph/N/PE 6h
- Installation: Rack 0U
- Output 11 kVA
- Phase: 3ph
- Voltage 230 V/400 V.
- Current: 16 A
- Product type
Server rack cabinet power strip
- Features
Fixed
incl. 2 steel brackets
- Suitable for server rack cabinet (inch)
19 inch
- Rack unit
1 U
- Suitable for (cabinet depths)
> 400 mm
- Socket type
IEC C13 10A
IEC C19 16A
- Outlets
24
- Voltage (max.)
250 V
- Dim
(W x H x D) 1288.5 x 60 x 45 mm
- Amperage
16 A
4000 W
- Cable length
3 m
- Material
Aluminium rail
- Content
1 pc(s)
- Factory colour
Black
- Width
1288.5 mm
- Height
60 mm
- Depth
45 mm
- Rack size
483 mm (19")
- Weight
3.277
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2903263 Digitus DN-95452 19 inch Server rack cabinet power strip 1 U IEC C13 10A, IEC C19 16A Fixed, incl. 2 steel brackets Suit
Description
The Digitus® socket strips are the perfect solution for your network or server cabinet. In terms of power distribution, the PDU meets the requirements of many applications in IT, networking and laboratories. The individual C13 and C19 outputs are equipped with a pull-out protection. It is designed for vertical installation, this saves height units and offers more space for other devices. The power strip with 27 outputs has excellent physical characteristics and is designed for a power of up to 4,000 W (250VAC / 16A), where the best performance can be achieved with corresponding load.
This text is machine translated.
This text is machine translated.
Features

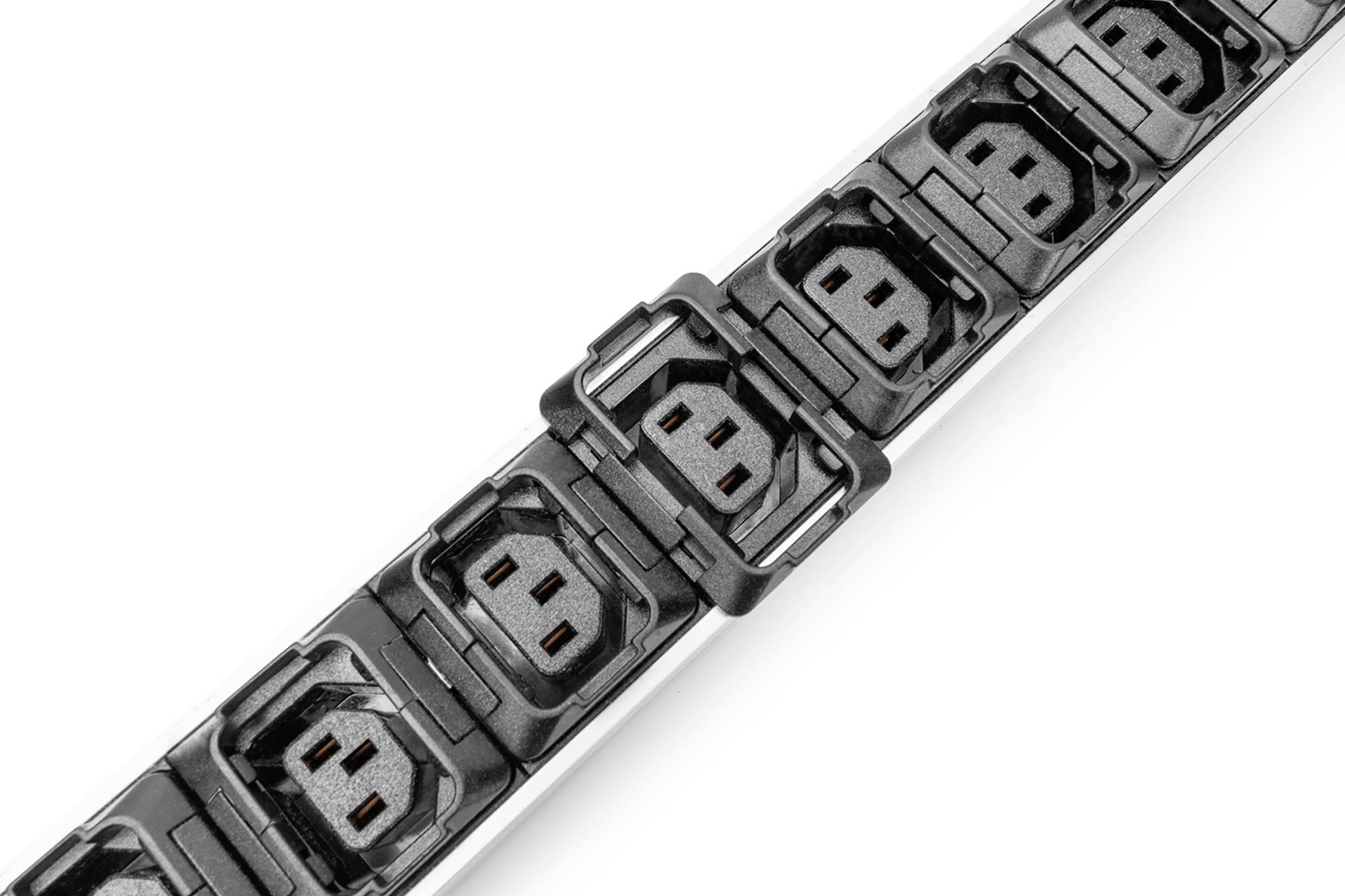

- Built-in pull protection at every output, protects C13 and C19 standard cables from accidental disconnection

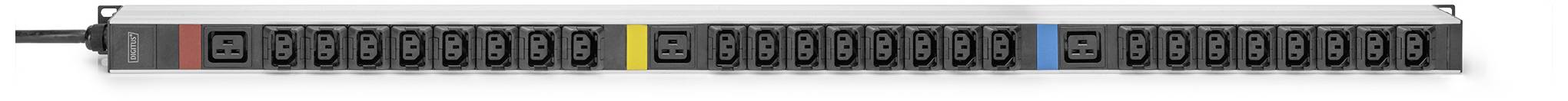

- Colour display for each phase
Scope of delivery
- 1 socket strip
- 1 Safety instructions
