Digitus DN-97665 19 inch Server rack cabinet shelf 1 U Retractable, Rail set Suitable for (cabinet depths): > 450 mm Bla
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
DIGITUS extendable shelf for tablets, notebooks, smartphones

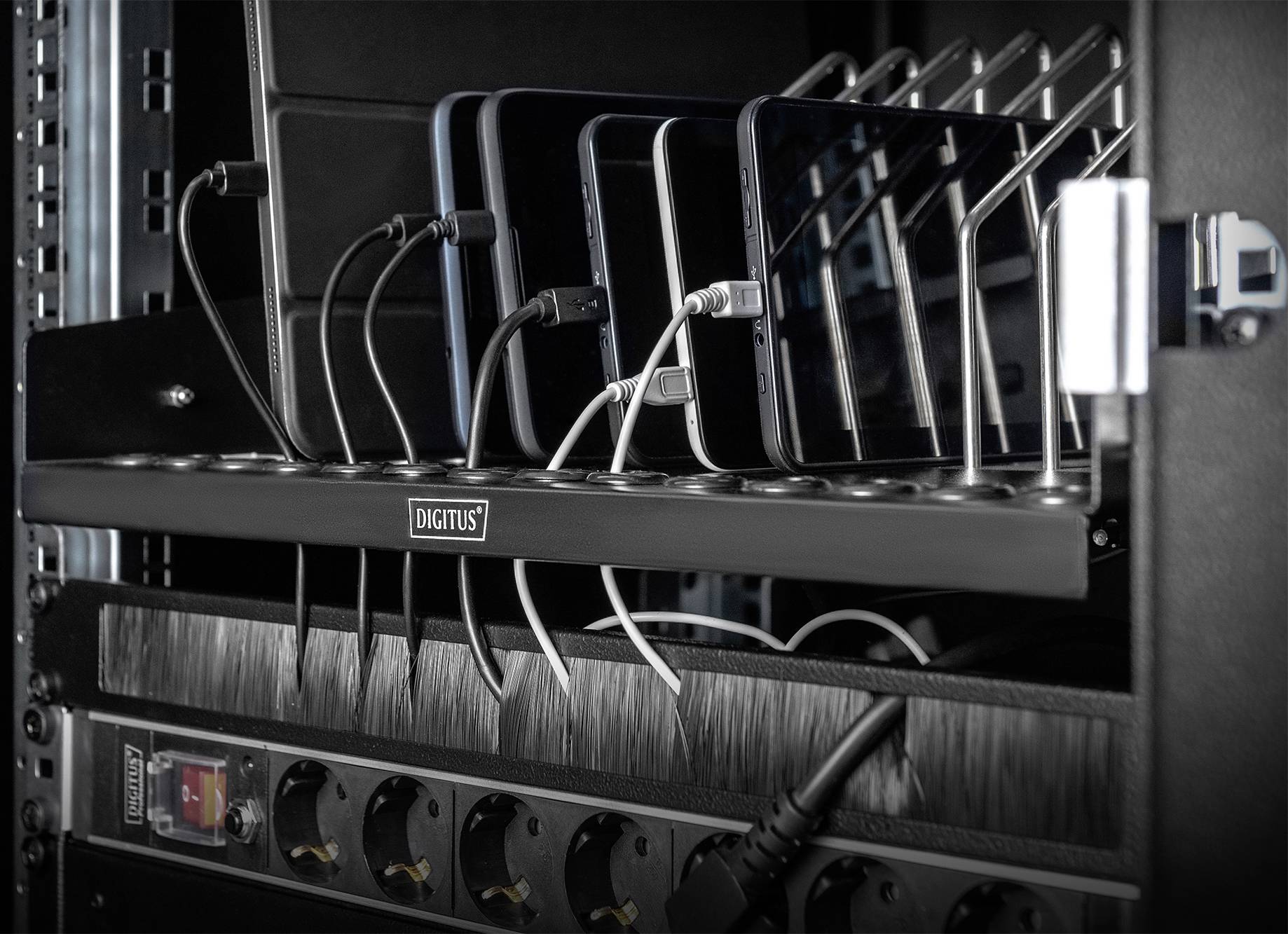

- This 19" shelf for network & server cabinets is used for safe operation Storage and as a central charging station of all tablets and laptops in Your business or IT environment

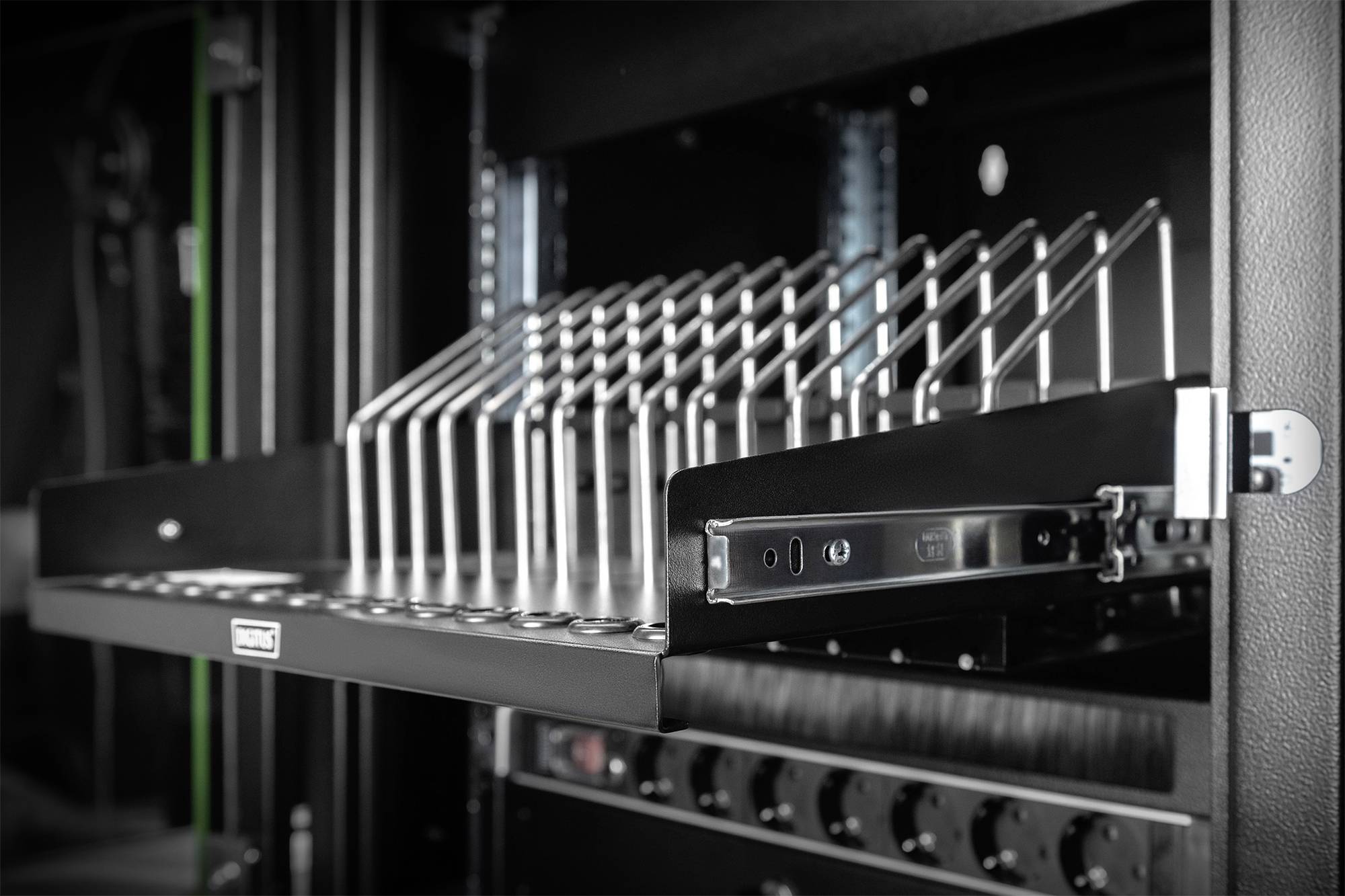

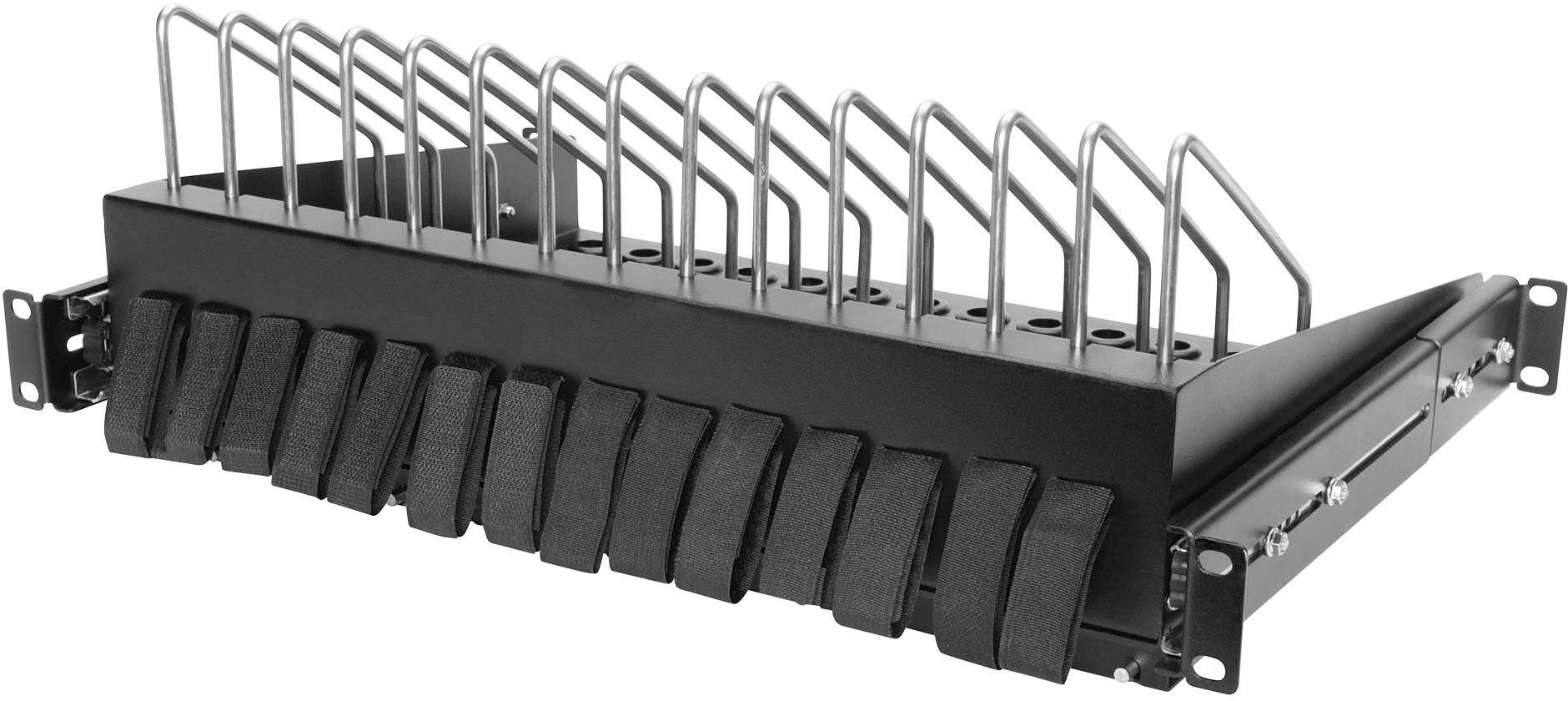

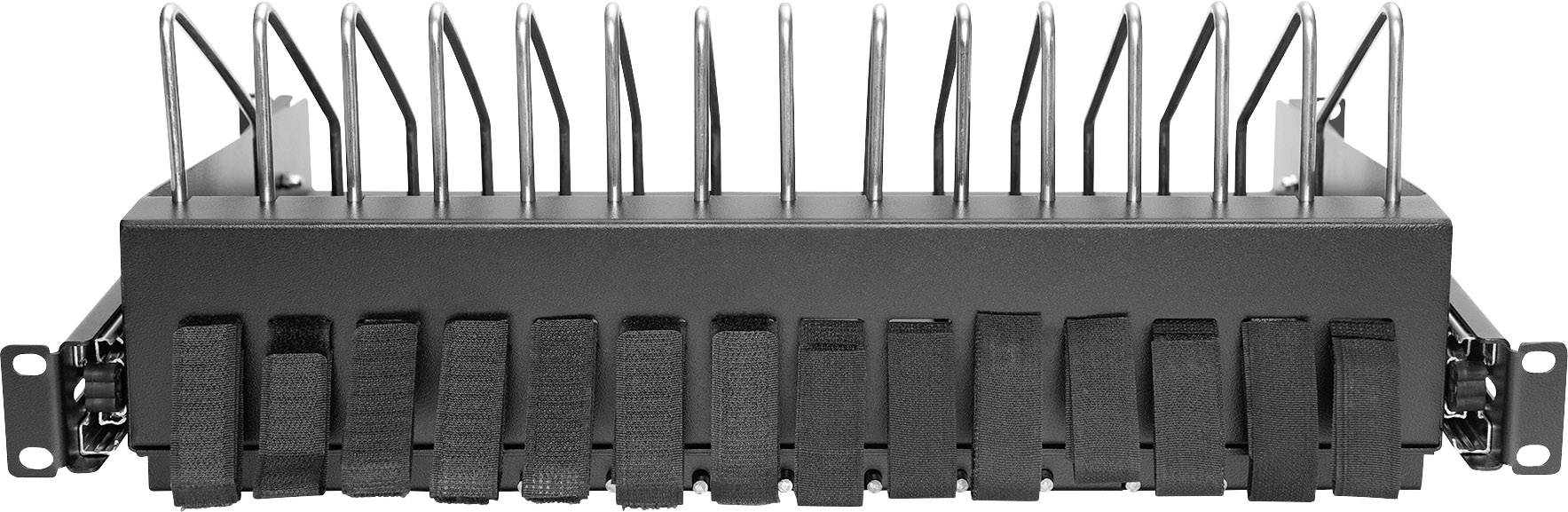

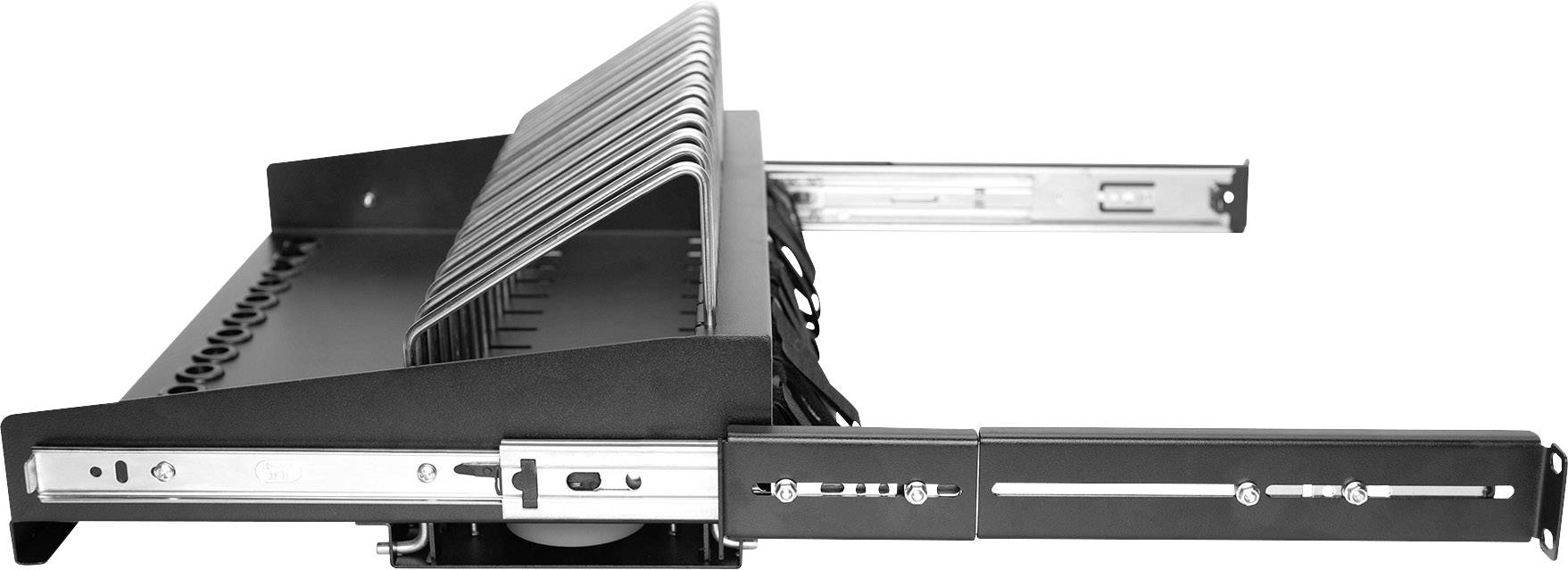

- If required, the shelf can be pulled out to better access the rear cable routing with Velcro tape and the storage compartment for cable overlengths accessible from below

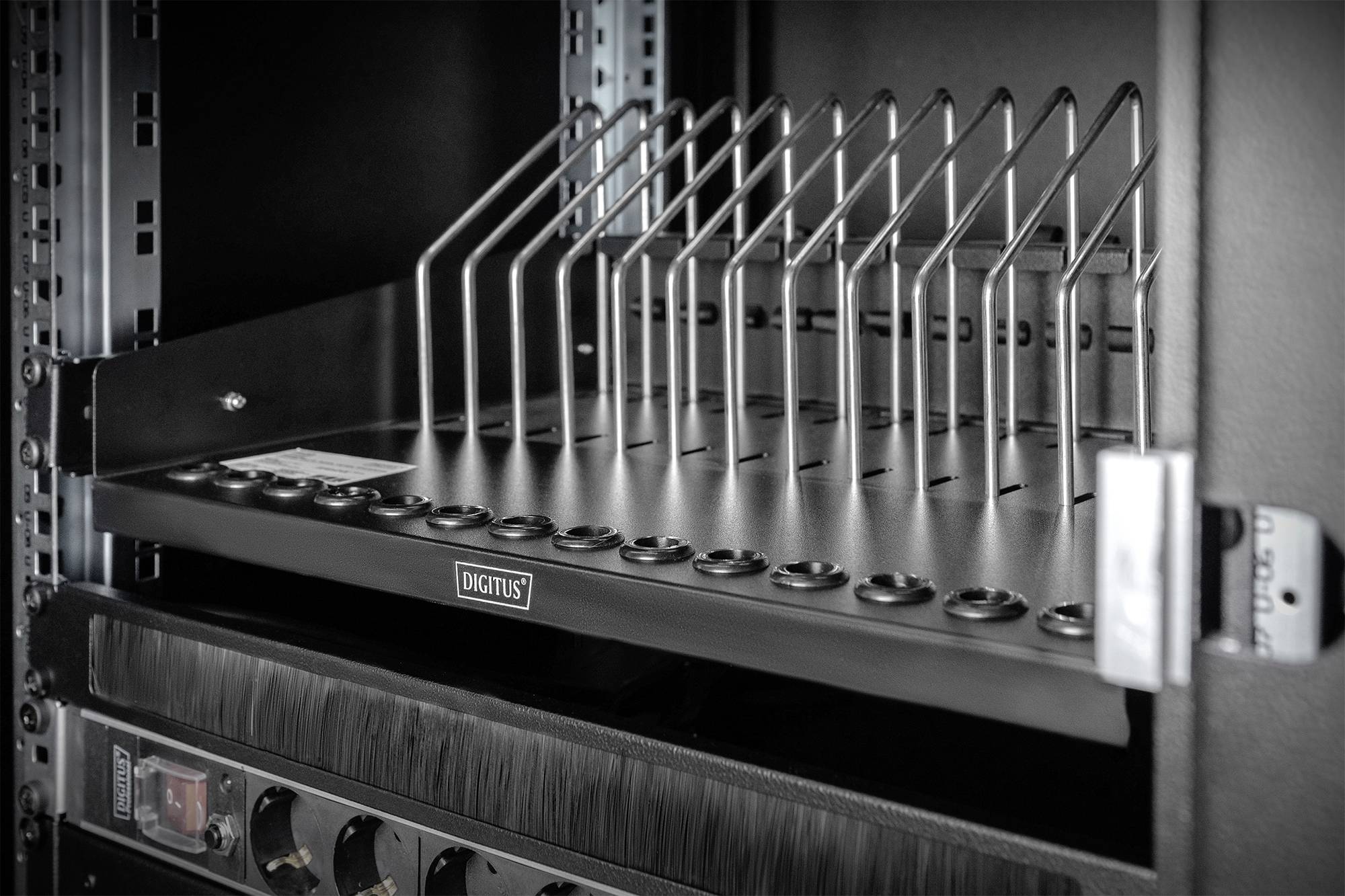

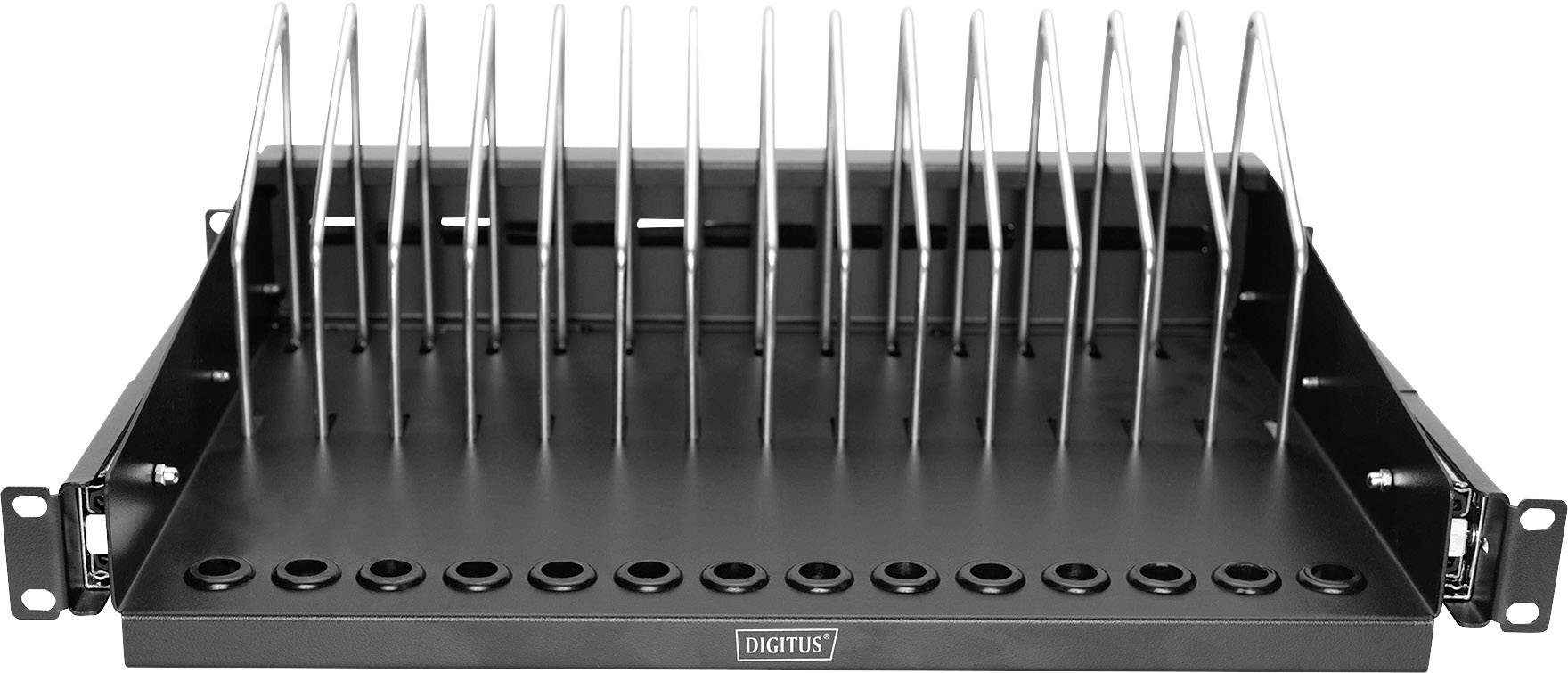

- For charging the individual devices, there is a cable feed-through in the front for each compartment, through which the charging cables of the individual devices can be carried out and easily assigned
Technical specifications
- Max. Usable depth for device shelf: 250 mm

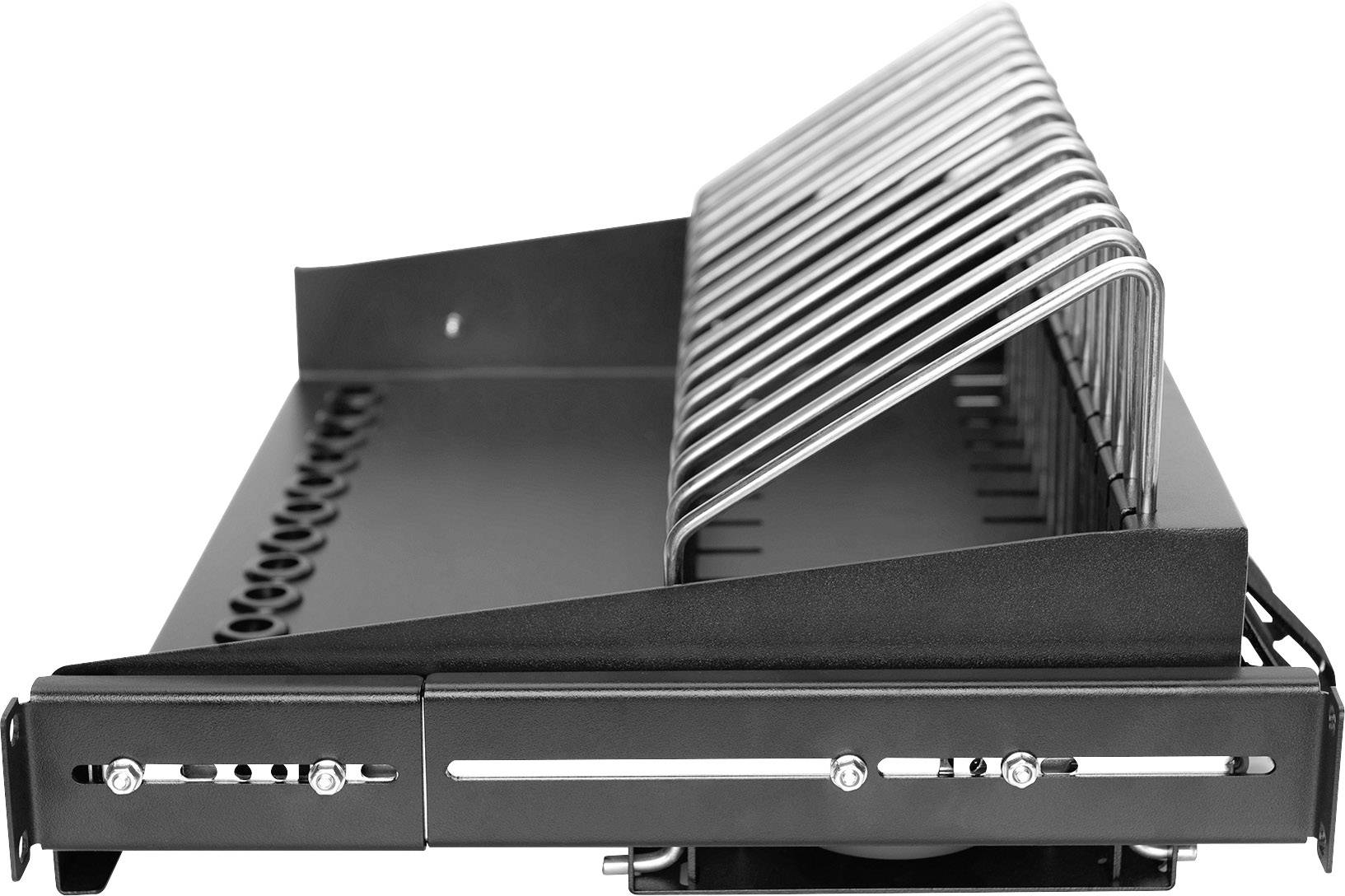

- Required depth between profile rails for 4-point mounting: 345 mm
- 2-point mounting possible (rear mounting bracket can be removed)
- Design: Shelf
- RAL number: 9005
- Product type
Server rack cabinet shelf
- Features
Retractable
Rail set
- Suitable for server rack cabinet (inch)
19 inch
- Rack unit
1 U
- Suitable for (cabinet depths)
> 450 mm
- Rail set length (min.)
340 mm
- Rail set length (max.)
620 mm
- Load capacity (max.)
50 kg
- Dim
(L x W x H) 175 x 483 x 340 mm
- Material
Steel plate
- Content
1 pc(s)
- Factory colour
Black
Black (RAL 9005)
- Width
483 mm
- Height
340 mm
- Depth
600 mm
- Length
175 mm
- Weight
5.60
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2298551 Digitus DN-97665 19 inch Server rack cabinet shelf 1 U Retractable, Rail set Suitable for (cabinet depths): > 450 mm Bla
User & Safety Instructions
User & Safety Instructions 2298551 Digitus DN-97665 19 inch Server rack cabinet shelf 1 U Retractable, Rail set Suitable for (cabinet depths): > 450 mm Bla
Description

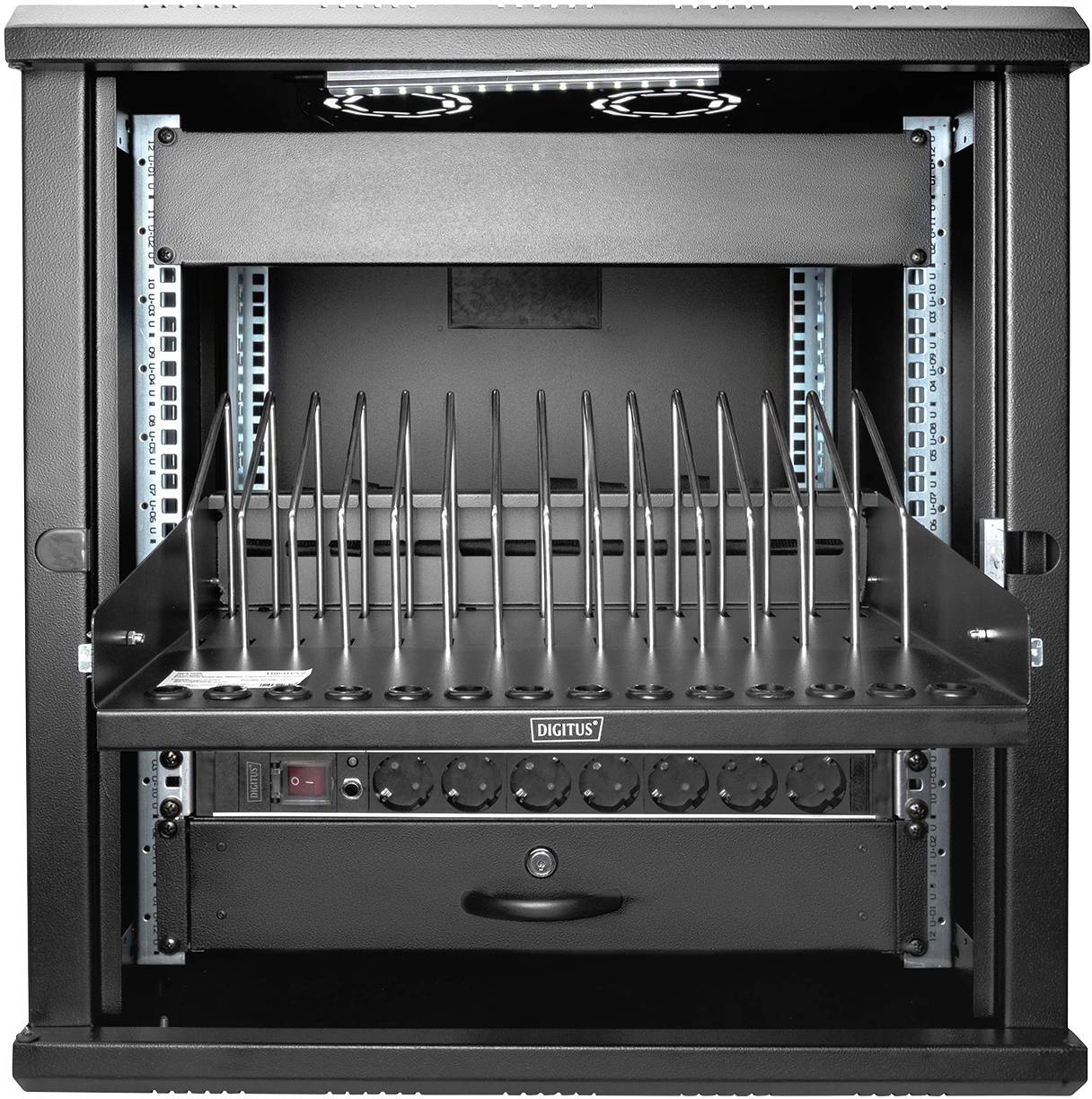

With this special shelf, you can use any standard 482.6 mm (19") cabinet to store your portable devices such as tablet PCs, notebooks or smartphones. The robust steel brackets offer space for up to 14 devices. There are cable inlets at the front so that the devices can be optimally wired, for example, to connect them to a power source for charging. The bottom is equipped with a storage for cable overlengths. For user-friendly operation, the shelf can be pulled out to the front in the installed condition, in order to get quickly and easily to the connected components. On the 482.6 mm (19") level, only one height unit (1HE) is required to secure the shelf. The complete height including the metal bracket is 175 mm.
This text is machine translated.
This text is machine translated.
Features
- 482.6 mm (19") Mounting on 1HE (4.5HE required for complete height)
- extendable (depth if max. pulled out: 620 mm)
- stable steel plate
- 2-point mounting possible (rear bracket angle can be removed)
Scope of delivery
- Retractable shelf
