Digitus DS-43302 8 ports HDMI splitter Steel casing, Ultra HD compatibility, Aluminium casing, LED display 1920 x 1200 p
EAN:
Part number:
Item no:
Highlights & Details
Digitus HDMI splitter 1x8 - Full HD metal housing
- HDMI connections 1 x input, 8 x output
- Video resolution: 1920x1200, 1080p
- HDCP support (HDCP 1.0/1.1/1.2)
- Supports compressed audio formats, such as DTS Digital, Dolby Digital (including DTS-HD and Dolby True HD).
Technical specifications
- Product type
HDMI splitter
- Supported monitors
8
- No. of inputs
1 x
- Interfaces (input)
HDMI™
- No. of outputs
8 x
- Interfaces (output)
HDMI™
- Resolution (max.)
1920 x 1200 p
- Power supply (LOV)
via DC in
- Distributor/switch features
Steel casing
Ultra HD compatibility
Aluminium casing
LED display
- Factory colour
Black
- Weight
730 g
- Width
258 mm
- Height
27 mm
- Depth
111 mm
- Dim
(W x H x D) 258 x 27 x 111 mm
- Port
8 ports
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1681772 Digitus DS-43302 8 ports HDMI splitter Steel casing, Ultra HD compatibility, Aluminium casing, LED display 1920 x 1200 p
Description

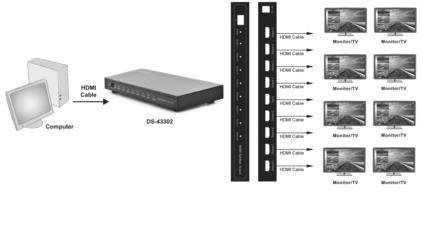

With the DIGITUS 8-Port HDMI Splitter can be a video signal to up to eight playback devices (TVs, displays, Moniotoe, projector, etc.). Supports a video resolution of up to 1080p Full HD. It offers the ideal solution for commercial uses, such as for video wall presentations or product presentations (office/business premises, exhibition stands, shop windows, waiting rooms, restaurants, etc. The Splitter is single-stage can be cascaded up to eight more HDMI Splitter (8-Port) can be connected, in order to distribute the signal to up to 64 playback devices.
This text is machine translated.
This text is machine translated.
Features
- Distributes a HDMI video signal to up to 8 playback devices
- Supports High Speed HDMI
- HDCP support (HDCP 1.0/1.1/1.2)
- Supports compressed audio formats, such as DTS Digital, Dolby Digital (including DTS-HD and Dolby True HD).
- Cascadable (1 level) to up to 64 HDMI ports (playback devices)
- Video resolution 1920 x 1080 pixels, suitable for 480i, 576i, 1080i, 480p, 576p, 720p, 1080p
- Supports all 3D formats, including 1080p @ 24Hz, 720p @ 60Hz/50Hz
- Bandwidth 225 MHz 2.25 Gbps per channel (6.75 Gbps when using all channels)
- Supports uncompressed audio formats, such as LPCM
- Supports Deep Color: 12 bit color depth per channel

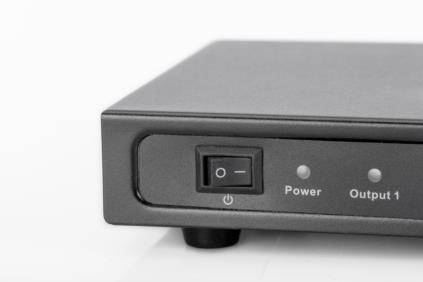

- Status LEDs (link indicator)
- External power supply (5V/3A)
Scope of delivery
- External power supply (5V/3A)
- User manual.
