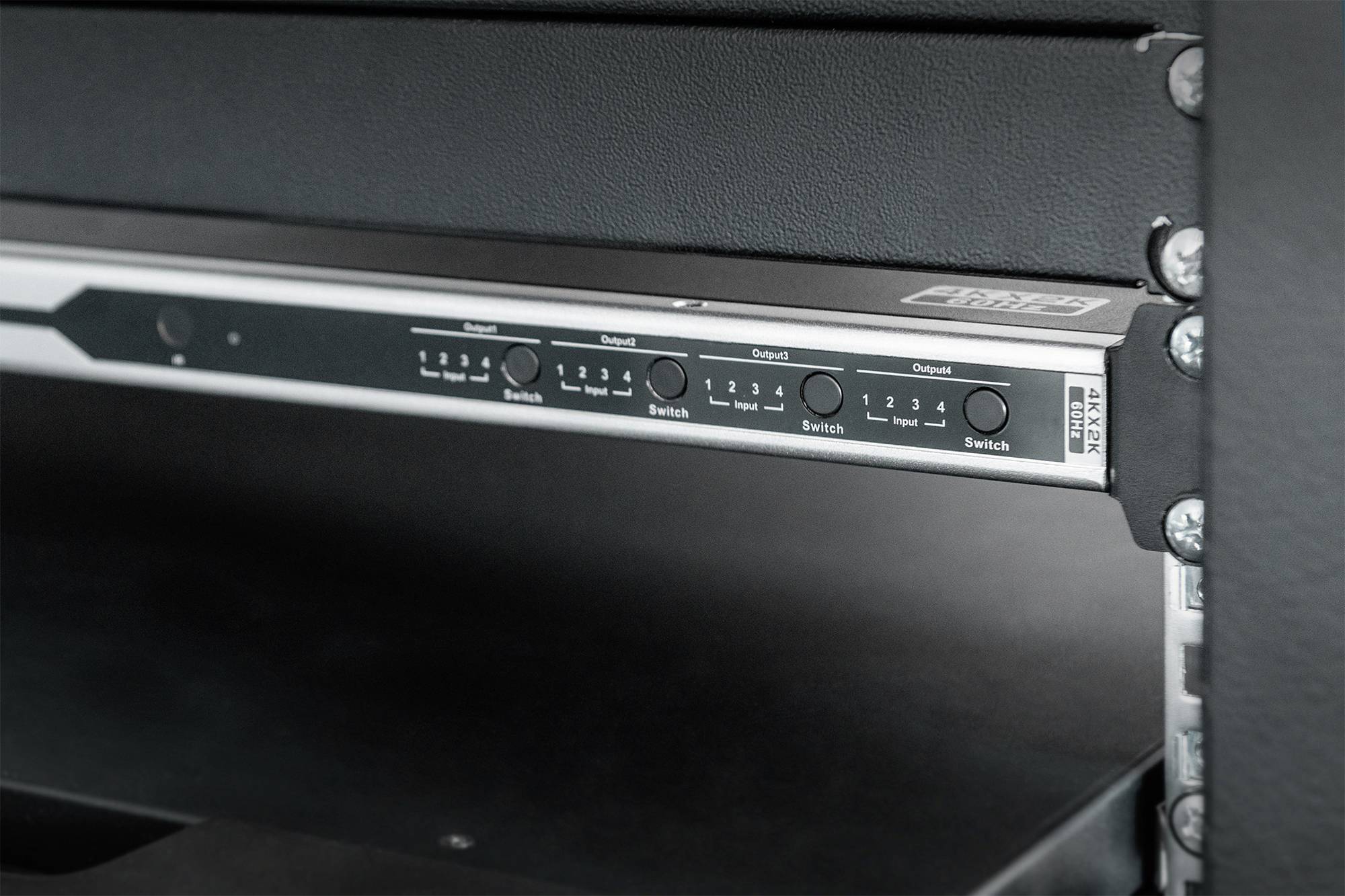

Digitus DS-43308 4 x 4 ports HDMI matrix switcher Ultra HD compatibility, individually connectable, + remote control 384
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
4x4 HDMI Matrix Switch, 19" 4K/60Hz, silver/black
- Supports UHD resolutions up to 4K / 60 Hz
- Installation in 19" racks / cabinets possible (1HE)
- Output up to 4 HDMI® signals to 4 HDMI® Displays can be displayed simultaneously or independantly of each other
- Each input can be switched to any output
- The inputs can be assigned to the outputs at will - also parallel
- Switching of all connections is possible comfortably via remote control, RS232 or on the device itself
- Configuration also possible via RS232 interface
- HDMI® bandwidth of 18 Gbps for smooth playback in the highest possible range Resolution
- Plug and Play - no software or driver installation necessary
Technical specifications
- Supports 3D applications in Full HD
- Installation options in 19" racks / cabinets, 1HE
- Product type
HDMI matrix switcher
- Interfaces (input)
HDMI™
- Interfaces (output)
HDMI™
- No. of inputs
4 x
- No. of outputs
4 x
- Switch function
Remote control
Hot key
Manual
Key
- Resolution (max.)
3840 x 2160 p
- Distributor/switch features
Ultra HD compatibility
individually connectable
+ remote control
- Factory colour
Black
- Power supply (LOV)
mains-powered
- Width
27.0 cm
- Height
48.8 cm
- Depth
10.7 cm
- Weight
2621 g
- Port
4 x 4 ports
- Supported audio file formats
DTS
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2356841 Digitus DS-43308 4 x 4 ports HDMI matrix switcher Ultra HD compatibility, individually connectable, + remote control 384
Description

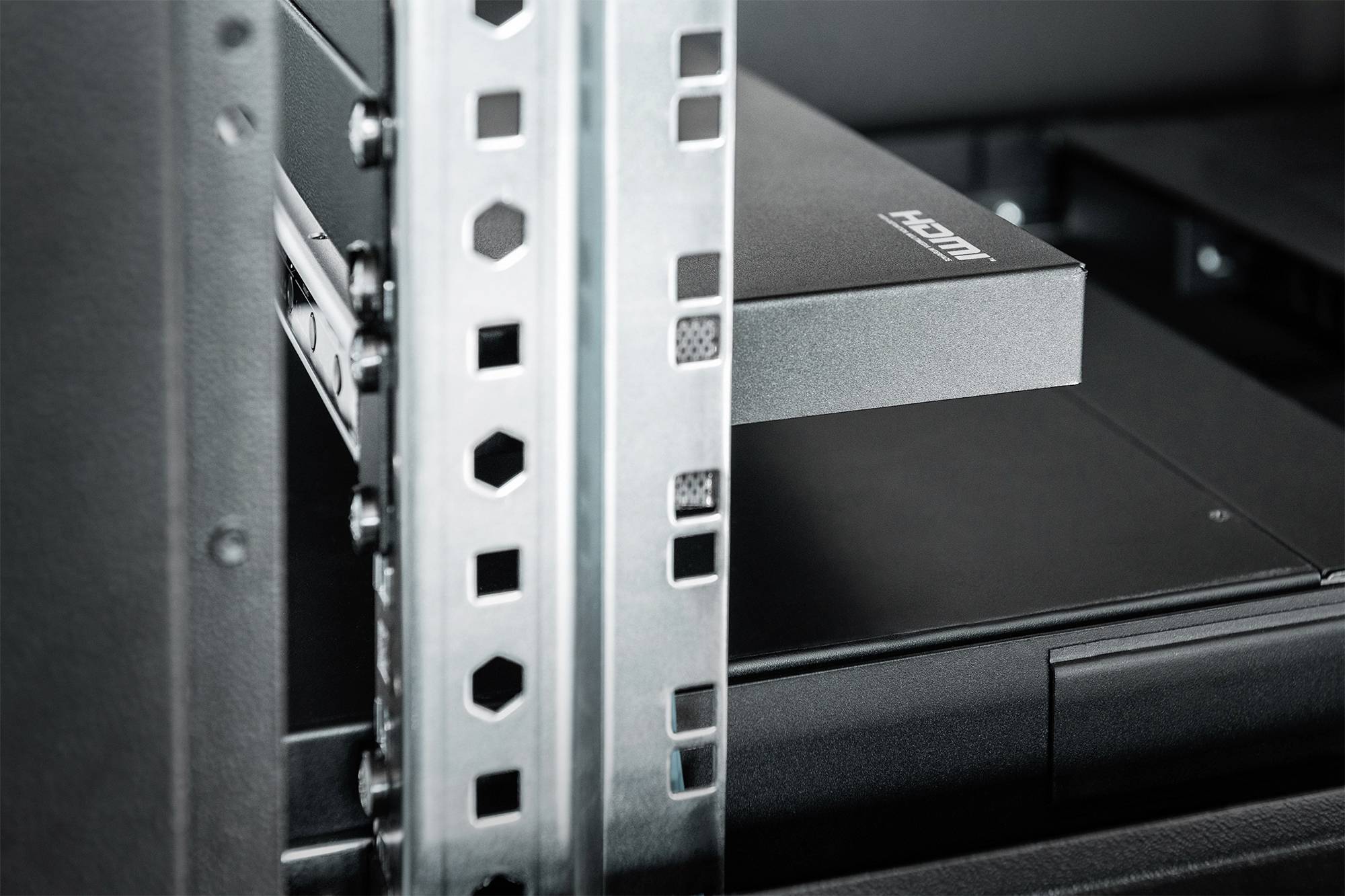

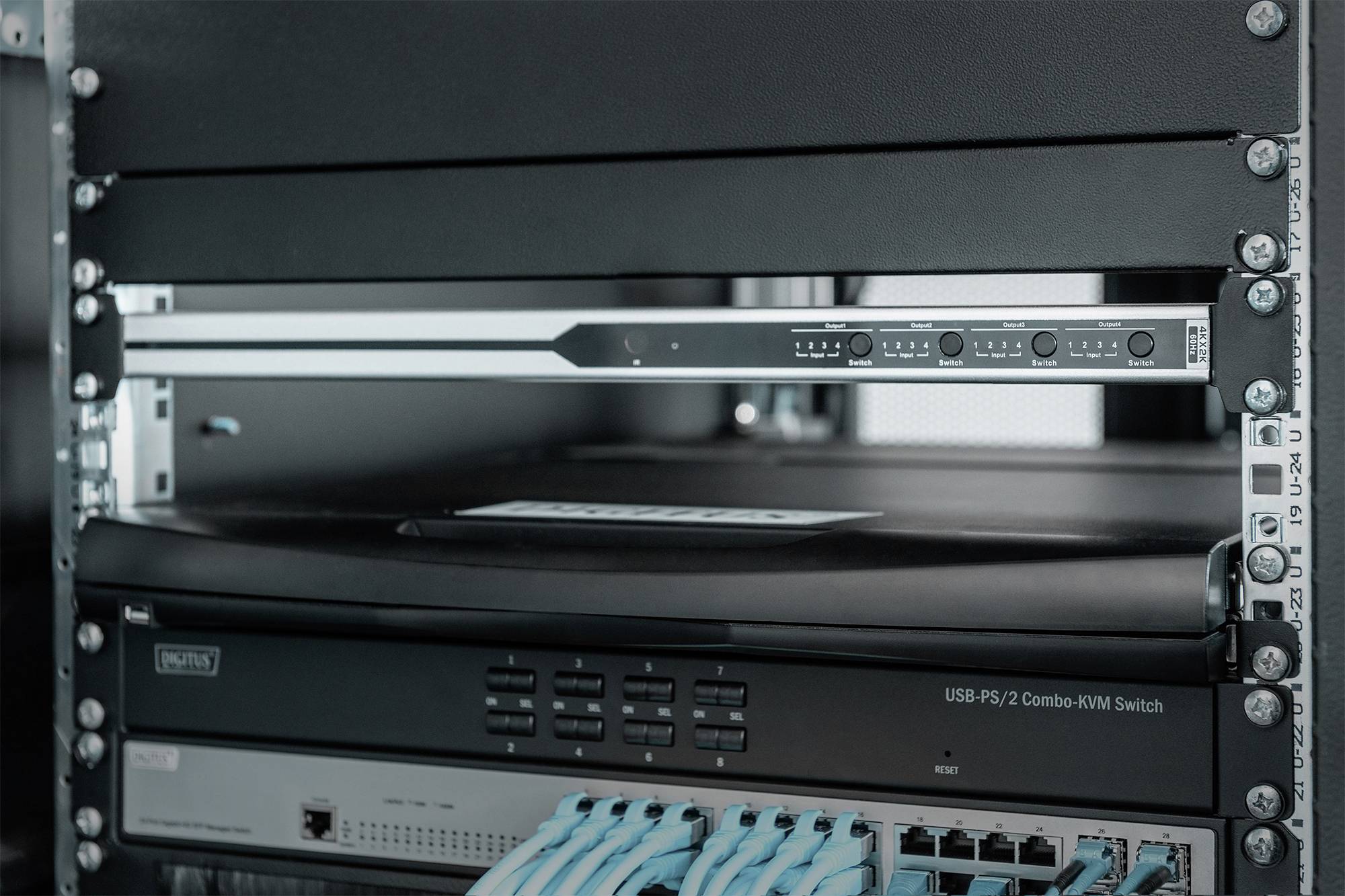

Digitus 4x4 HDMI Matrix Switch All inputs can be assigned to different or all outputs at will. Can be controlled comfortably via remote control, on the device or via the RS232-interface. It also supports a bandwidth of 18 Gbps for smooth playback of high-resolution 4K content at 60 Hz as well as full 3D. This matrix switch can be installed in 19" racks, server or wall cabinets using the 19" mounting brackets provided.
This text is machine translated.
This text is machine translated.
Features
- HDTV resolution max.: 3840 x 2160 pixels, 60Hz
- Video output: HDMI
- Number of inputs: 4
- Number of outputs: 4
- Signal input: HDMI
- Signal output: HDMI
- Resolution: 4K / 60 Hz
- Bandwidth: 18 Gbps (600 MHz)
- Color depth: 24 bits
- Subsampling: YUV: 4:4:4
- Display Data Channel (DCC): DDC 2B
- HDMI version 2.0
- HDCP version: 2.2
- other resolutions: 480i@60Hz,480p@60Hz,576i@50Hz,576p@50Hz,720p@50/60Hz,1080i@50/60Hz,n1080p@50/60Hz,4Kx2K@30/60Hz
- supported audio formats: DTS-HD/Dolby-true HD/LPCM7.1/DTS/Dolby-AC3/DSD
- RS232 interface: 3-pin terminal
- Power supply Power supply 100 - 240 VAC, 50/60 Hz
- Power supply unit: 12 V / 2 A (24 W)
- Current consumption device: 20 W max.
- Power supply cable length: ca . 1.5 m Operating temperature: 0 °C ~ 60°C
- Storage temperature -20°C ~ 60°C.
- Operating humidity: 0 ~ 90% RH (non-condensing)
- Material housing: Metal
- Dimensions: W 43 x D 17.1 x H 2.8 cm
- Weight: 1.65 kg Colour: Black / Silver
Scope of delivery
- 1 x 4K HDMI Matrix Switch, 4x4, 19"
- 1 x 12 V / 2 A power supply

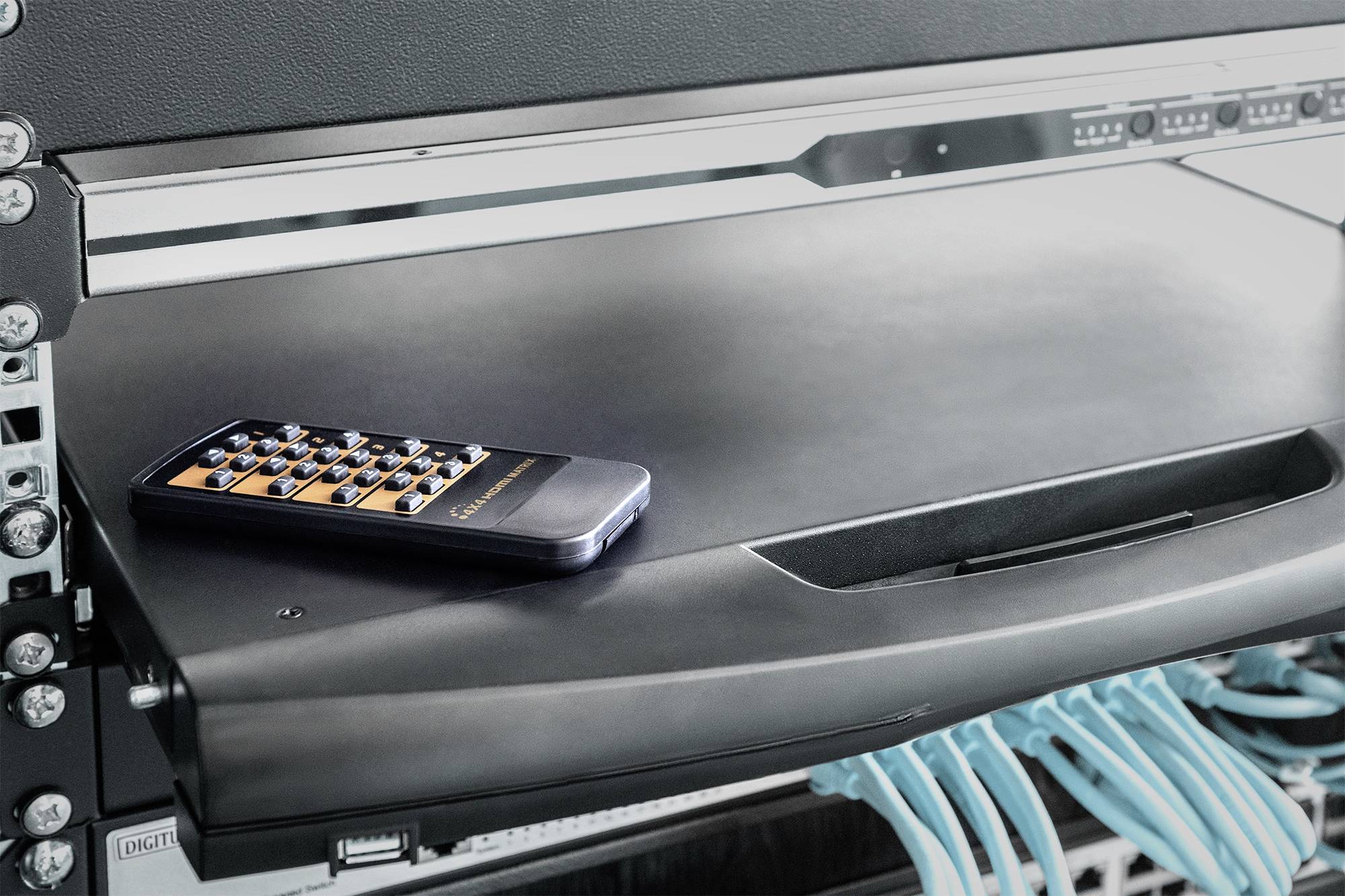

- 1x remote control
- 2 x angles for mounting in 19" racks
- 1x user manual
