Digitus DS-55122 HDMI™, Infrared Extension via RJ45 network cable 120 m
EAN:
Part number:
Item no:
Highlights & Details
Digitus DS-55122 HDMI™, Infrared Extension via RJ45 network cable 120 m
- Use additional receiver units (DS-55123) and your existing network infrastructure to display your video content on up to 253 screens (IP connection)
- Extends 4K video content up to 120 m (point-to-point connection) with a CAT-6 cable
- Extension of the signal (unlimited distance) via the existing local network infrastructure (IP connection)
- Supports 4K (30Hz), 3840x2160p resolution
- Supports CAT 5, CAT 5e and CAT 6 network cable
- HDMI bandwidth 10.2 Gbps (max.)
- Supports HDCP 1.4
Technical specifications
- Product type
Extension
- Transfer type
via RJ45 network cable
- Interfaces (input)
HDMI™
Infrared
- Interfaces (output)
HDMI™
Infrared
- Features
HDMI output (loop-through)
built-in amplifier
- Resolution (max.)
3840 x 2160 p
- Range (max.)
120 m
- Factory colour
Black
- Weight
400 g
- Length
110 mm
- Width
94 mm
- Height
24 mm
- Dim
(L x W x H) 110 x 94 x 24 mm
- Version
Cable
- Type A
HDMI plug
- Type B
HDMI plug
- Cable use
Networks
- Connection type
HDMI
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1881755 Digitus DS-55122 HDMI™, Infrared Extension via RJ45 network cable 120 m
Description
The 4K HDMI over IP Extender Set (DS-55122) is a high-performance video distribution system consisting of a transmitter/receiver unit. It extends 4K HDMI signals up to 120 m via a CAT6 network cable (point-to-point connection) In addition, you can distribute your video content via the existing network (IP connection) to up to 253 displays with a network switch and the individual receiver units (DS-55123). The additional integrated unidirectional IR interface enables remote control of the input source.
This text is machine translated.
This text is machine translated.
Features
- Use additional receiver units (DS-55123) and your existing network infrastructure to display your video content on up to 253 screens (IP connection)
- Extends 4K video content up to 120 m (point-to-point connection) with a CAT-6 cable
- Extension of the signal (unlimited distance) via the existing local network infrastructure (IP connection)
- Supports 4K (30Hz), 3840x2160p resolution
- Supports CAT 5, CAT 5e and CAT 6 network cable
- HDMI bandwidth 10.2 Gbps (max.)
- Supports HDCP 1.4
- Integrated bi-directional IR-interface - simple remote control of the input source
- Resolutions: 4K (30 Hz), 1080p, 1080i, 720p, 576p, 576i, 480p, 480i
- Supports HDTV
- Supports Deep Color (24bit)
- Supports uncompressed audio signals such as LPCM.
- Operating temperature 0 ° C - 60 ° C.
- Metal housing
- Compact size, easy handling and installation
- POWER SUPPLY: DC 5V/2A
- Dimensions (1x unit): L 11.0 x W 9.4 x H 2.4 cm
- Weight (1x unit): 0.4 kg
- Colour: Black

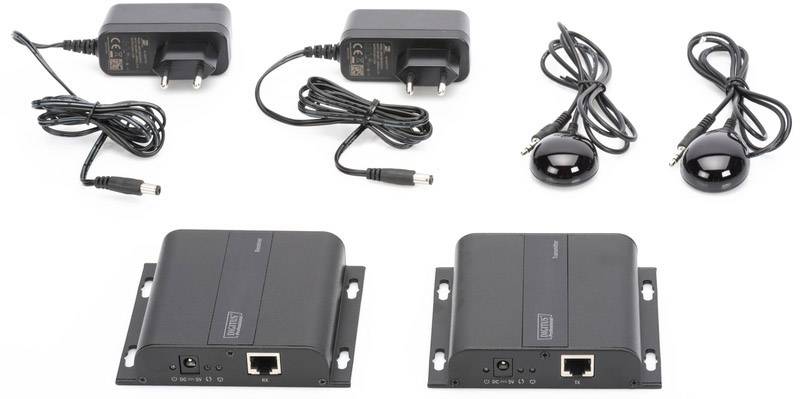

Scope of delivery

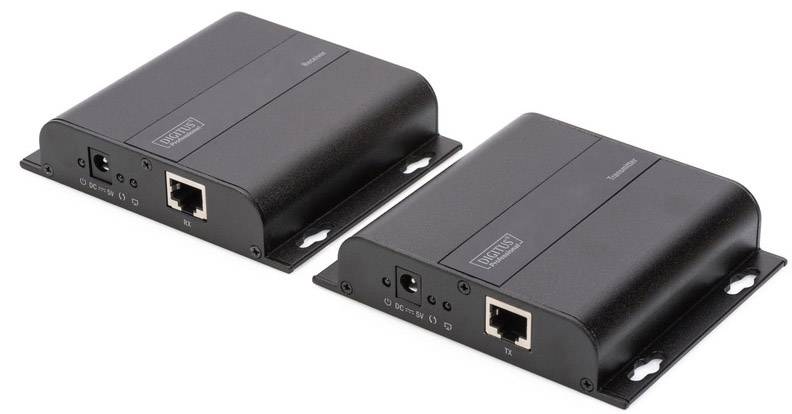

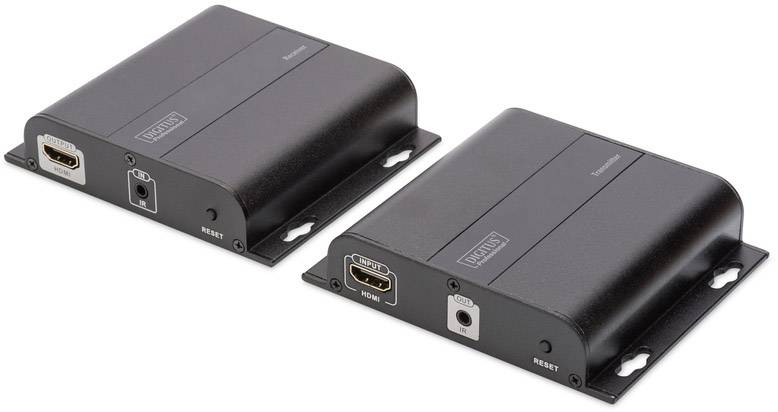

- 1x HDMI Extender transmitter unit
- 1x HDMI Extender receiver unit
- 2x power supply: DC 5V/2A
- 1x IR transmitter unit
- 1x IR receiver unit
