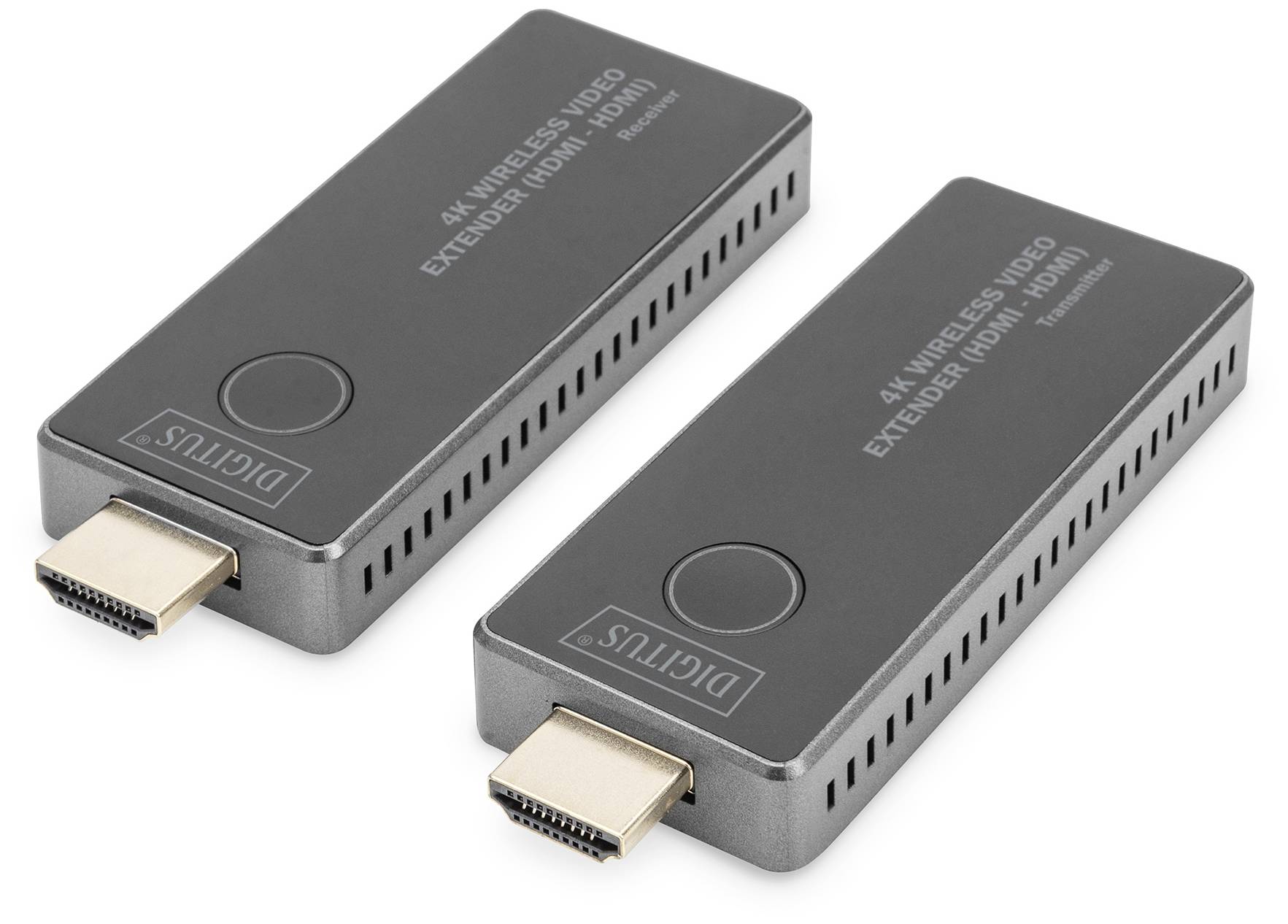

Digitus DS-55323 Wireless HDMI (set) 30 m 3840 x 2160 Pixel built-in LED display, mobile version
EAN:
Part number:
Item no:
Number
Total (€ 151.25 / piece)
€ 151.25
plus VAT.
Highlights & Details
Digitus DS-55323 4K wireless HDMI extender set, 30 m, HDMI - HDMI
- Wireless HDMI signal transmission up to 30 m (unrestricted view)
- Point-to-point connection - 1x transmitter (source) + 1x receiver (output device)
- Supports 4K UHD resolutions (2160p/30Hz)
- Thanks to Plug & Play, it is easy to use and use – plug in and start, no driver or software required
- Power supply via USB-C port
- AES 128 bit encryption
- WPA2 PROTOCOL, HDMI 2.0/1.4, HDCP 2.2/1.4
Technical specifications
- WPA2 (WPA2-PSK / WPA2-Enterprise) authentication protocol
- HDMI VERSION 2.0 (RX) / 1.4 (TX)
- HDCP VERSION 2.2 (RX) /1.4 (TX)
- Radio channel IEEE 802.11.b/g/n/ac
- Frequency band Dual band, 2.4/5G
- Ports per unit: 1x HDMI plug, 1x USB-C socket
- Connection button with LED status indicator
- Power supply: Transmitter - 5V/1A, receiver - 5V/0.6A
- Compression: H.265
- Latency: Approx. 5 100 ms
- PCM audio format
- Audio channel: 2 channels
- Supports signal sources (e.g. game consoles, Blu-Ray player, etc.) with HDMI output as well as PCs/notebooks with Windows, MacOS
- ABS-housing
- Power consumption: Transmitter approx. 3W, receiver approx. 4W
- Operating temperature 0 °C - 40 °C
- Weight: transmitter 31 g, receiver 28 g.
- Product type
Wireless HDMI (set)
- Interfaces (input)
HDMI™
- Interfaces (output)
HDMI™
- Video resolution
3840 x 2160 Pixel
- Features
built-in LED display
mobile version
- Range (max.)
30 m
- Factory colour
Black
Aluminium
- Weight
59 g
- Length
81 mm
- Width
34 mm
- Height
13 mm
- Dim
(L x W x H) 81 x 34 x 13 mm
- Power supply (LOV)
not required
via USB
via screen
- Cable length
30 m
- Version
Cable
- Type A
HDMI plug
- Type B
HDMI plug
- Cable use
PC
- Connection type
HDMI
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3132794 Digitus DS-55323 Wireless HDMI (set) 30 m 3840 x 2160 Pixel built-in LED display, mobile version
Description
Enjoy cable-free audio and video transmission in pin-sharp UHD 4K/30Hz with the 4K Wireless HDMI Extender. The set enables an easy setup without driver or software thanks to plug & play. With a range of up to 30 meters at an unobstructed line of sight, it guarantees reliable transmission. The AES 128-bit encryption and the WPA2-protocol ensure a secure data transfer. Compatible with HDMI 2.0/1.4 and HDCP 2.2/1.4. Ideal for home cinemas, conference rooms and training facilities. Discover the freedom of wireless entertainment!
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1x transmitter unit
- 1x receiver unit
- 2x USB A to USB C cable (100 cm)
- 2x HDMI extension cable (12.5 cm)
- 1x QIG
Hints
The transmission range for restricted visibility cannot be determined on a flat-rate basis and depends on the local conditions
Walls, glass, etc. reduce the signal cover or cause signal loss
