Digitus DS-55329 Wireless HDMI (receiver) 150 m 3840 x 2160 Pixel 4-way multi-viewer switch, Digital whiteboard function
EAN:
Part number:
Item no:
Number
Total (€ 126.04 / piece)
€
Highlights & Details

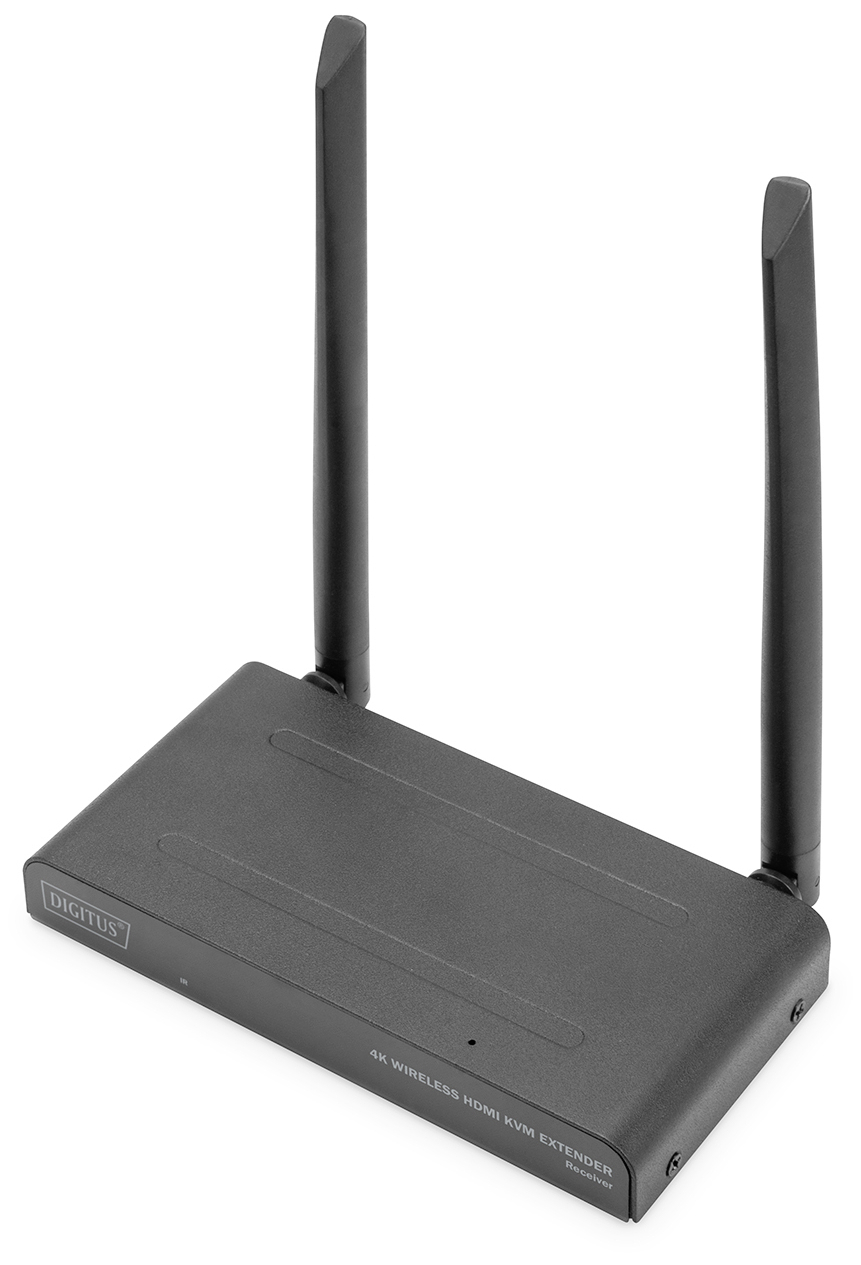

Digitus DS-55329 4K wireless HDMI receiver (RX) additional unit for DS-55328

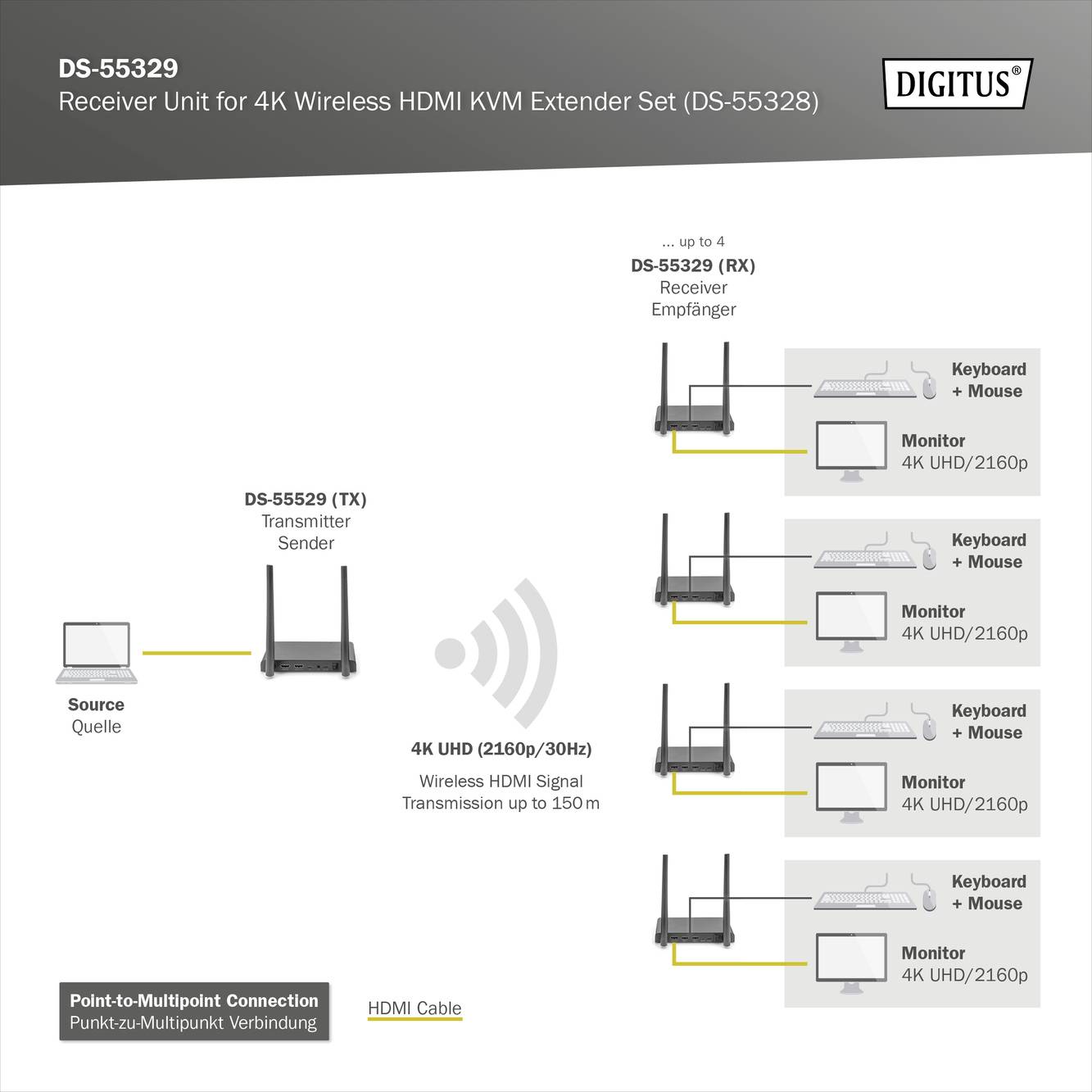

- Point-to-multipoint connection — 1x transmitter (source) + up to 4x receiver (output device)
- Supports wireless AV signal transmission with resolutions of up to 4K UHD (2160p/30Hz max) using a transmitter
- Touch screen back control - supports touch panels (via USB connection at the receiver)
- Radio channel IEEE 802.11.b/g/n/ac
- Frequency band Dual band, 2.4/5G
- Compression: H.265
- Latency: Approx. 5 100 ms
- AES 128 bit encryption
- WPA2 (WPA2-PSK / WPA2-Enterprise) authentication protocol
- HDMI version 2.0
Technical specifications
- Radio channel IEEE 802.11.b/g/n/ac
- Frequency band Dual band, 2.4/5G
- Compression: H.265
- Latency: Approx. 5 100 ms
- WPA2 (WPA2-PSK / WPA2-Enterprise) authentication protocol
- HDMI version 2.0

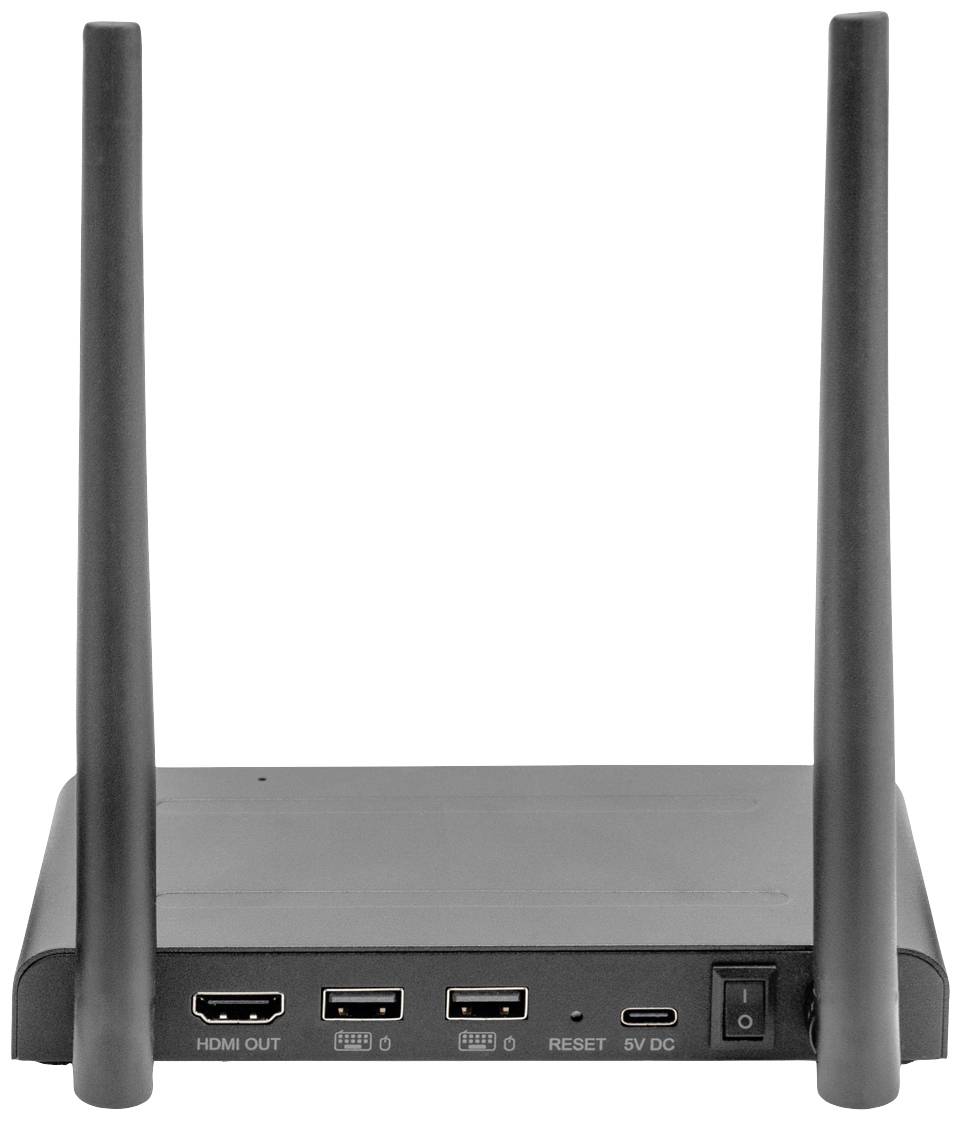

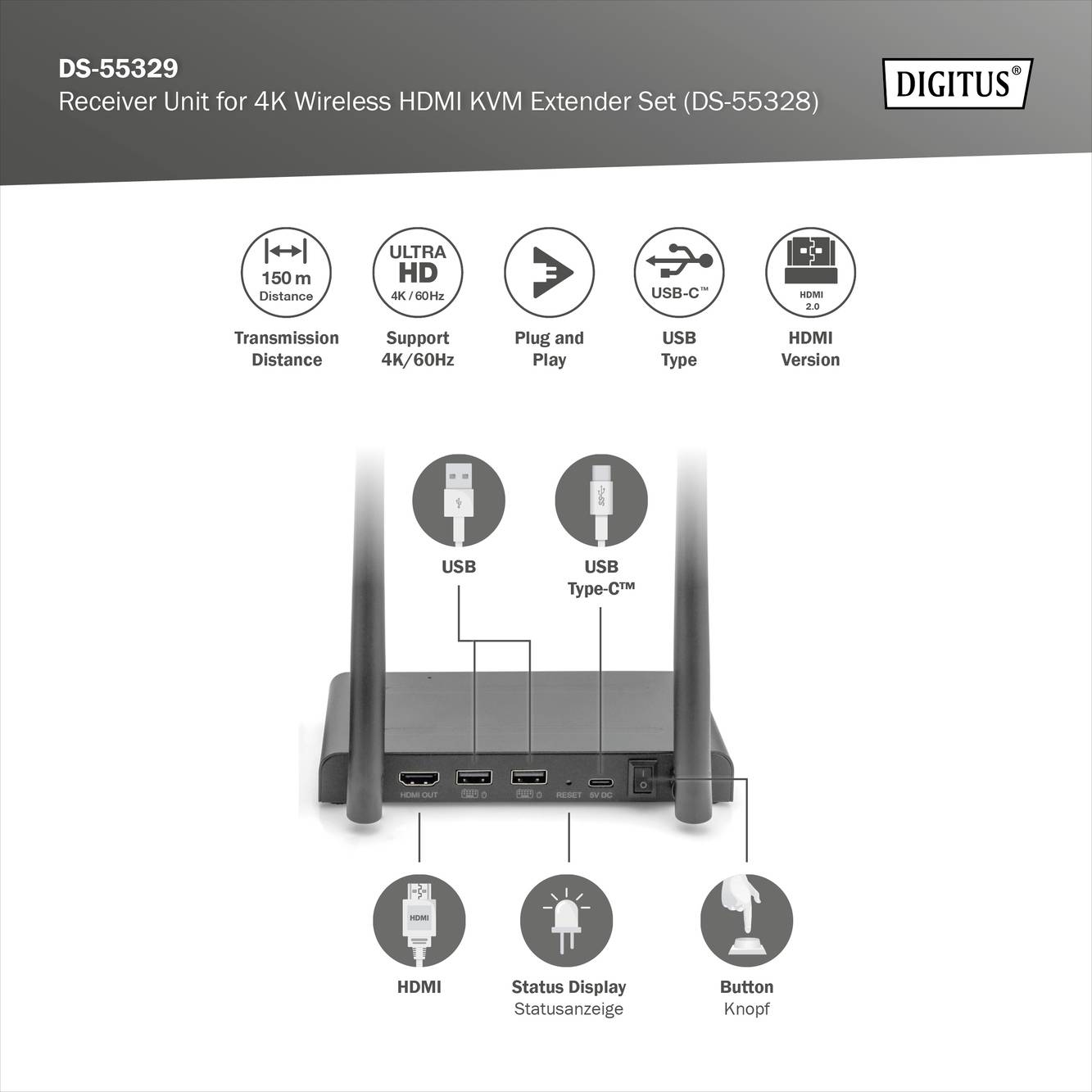

- Receiver unit connections: 1x HDMI output (output device, 4K/60Hz max.); 2x USB-A input (connection of mouse/keyboard/touch panel); 1x USB-C input - connection power supply unit (5V/2A); 1x reset button; 1x on/off switch
- Housing: metal
- Power consumption (1 unit): Approx. 5W
- Operating temperature 0 °C - 40 °C
- Product type
Wireless HDMI (receiver)
- Interfaces (output)
HDMI™
- Video resolution
3840 x 2160 Pixel
- Features
4-way multi-viewer switch
Digital whiteboard function
HDMI output (loop-through)
with loop function
built-in LED display
- Range (max.)
150 m
- Factory colour
Black
- Weight
330 g
- Length
79 mm
- Width
154 mm
- Height
22 mm
- Dim
(L x W x H) 79 x 154 x 22 mm
- Power supply (LOV)
mains-powered
via USB
- Version
Cable
- Cable use
PC
Description

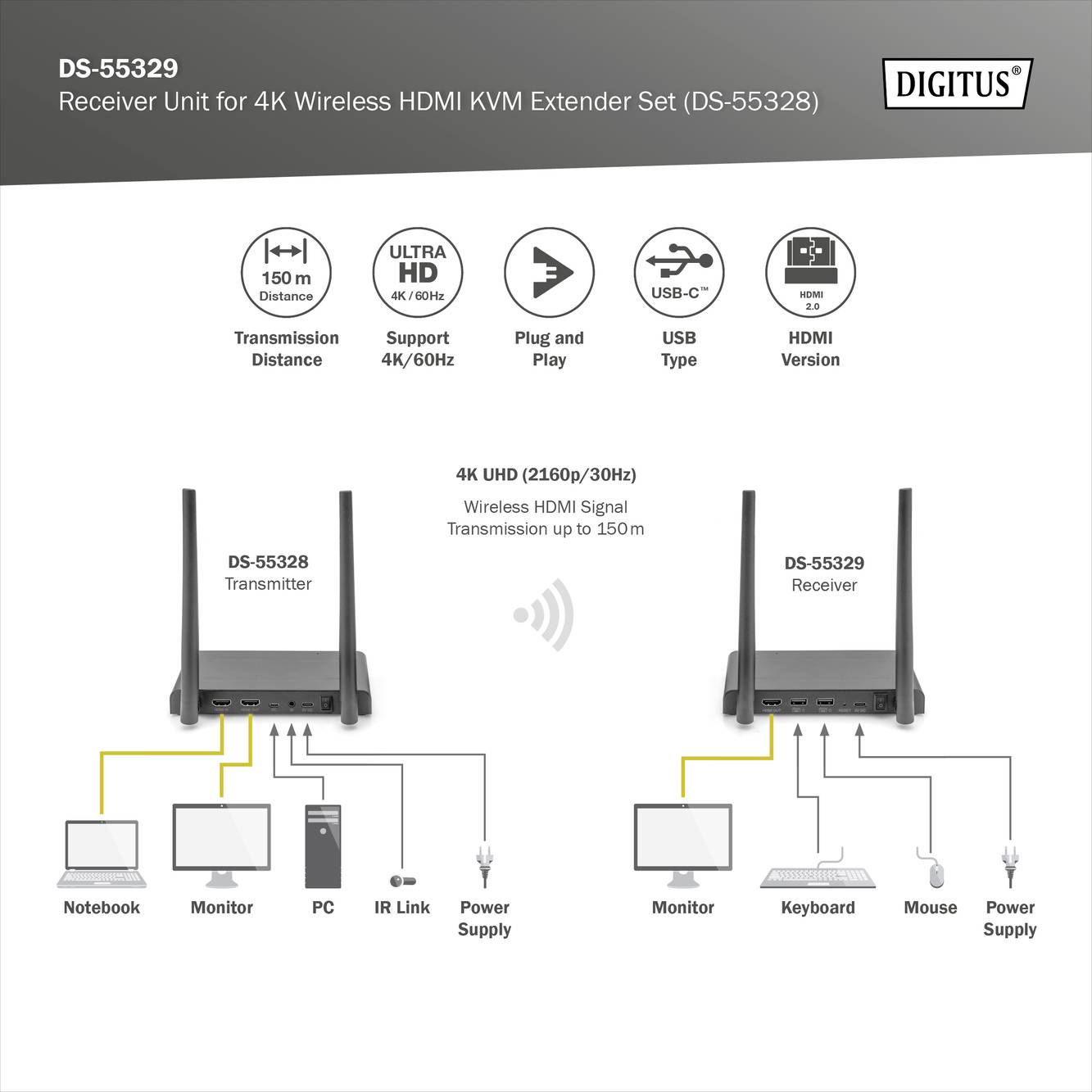

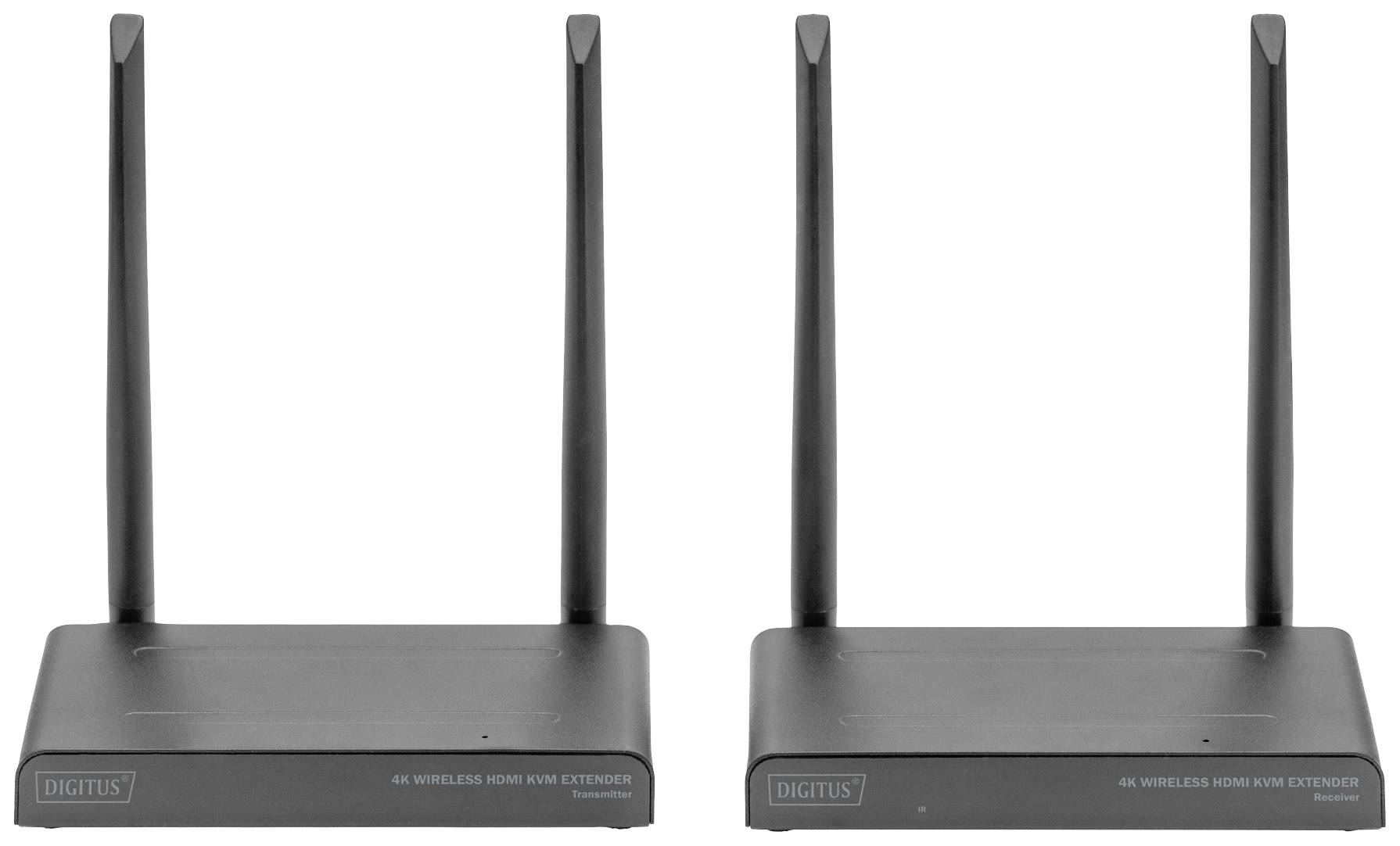

This additional receiver unit extends the 4K Wireless HDMI® KVM Extender Kit (DS-55328) to up to 4 receivers (output devices). Distribute your AV-signals wirelessly on up to 4 screens.
This text is machine translated.
This text is machine translated.

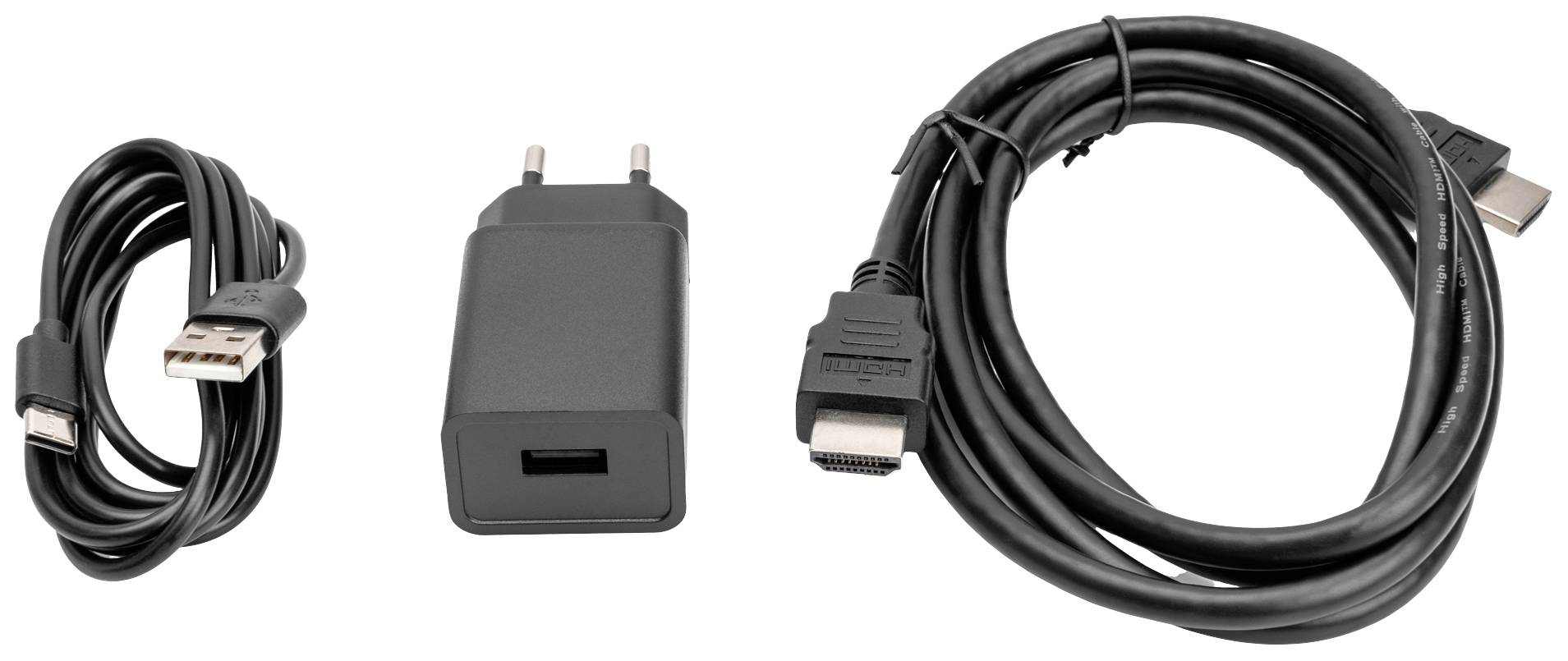

Scope of delivery
- 1x receiver unit
- 1x USB-power adapter (5V/2A)
- 1x USB-A to USB-C cable (1.5 m)
- 1x HDMI connection cable (1.5 m)
- 1x QIG
Hints
Caution! Only as an extension for DIGITUS article: DS-55328
The transmission range for restricted visibility cannot be determined on a flat-rate basis and depends on the local conditions
Walls, glass, etc. reduce the signal cover or cause signal loss
