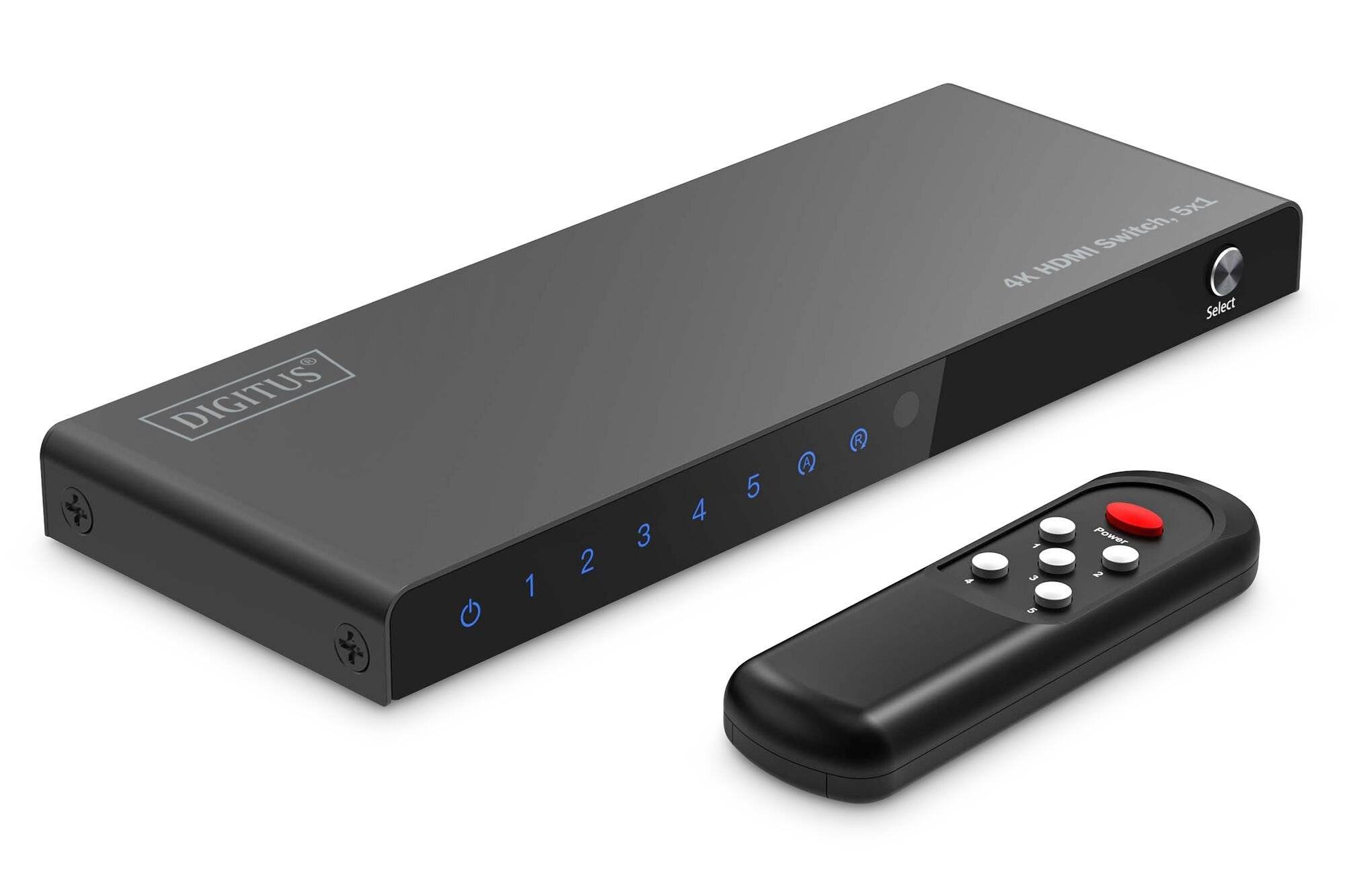

Digitus DS-55332 1+5 ports HDMI switch LED display, + remote control, Ultra HD compatibility, Steel casing, individually
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details

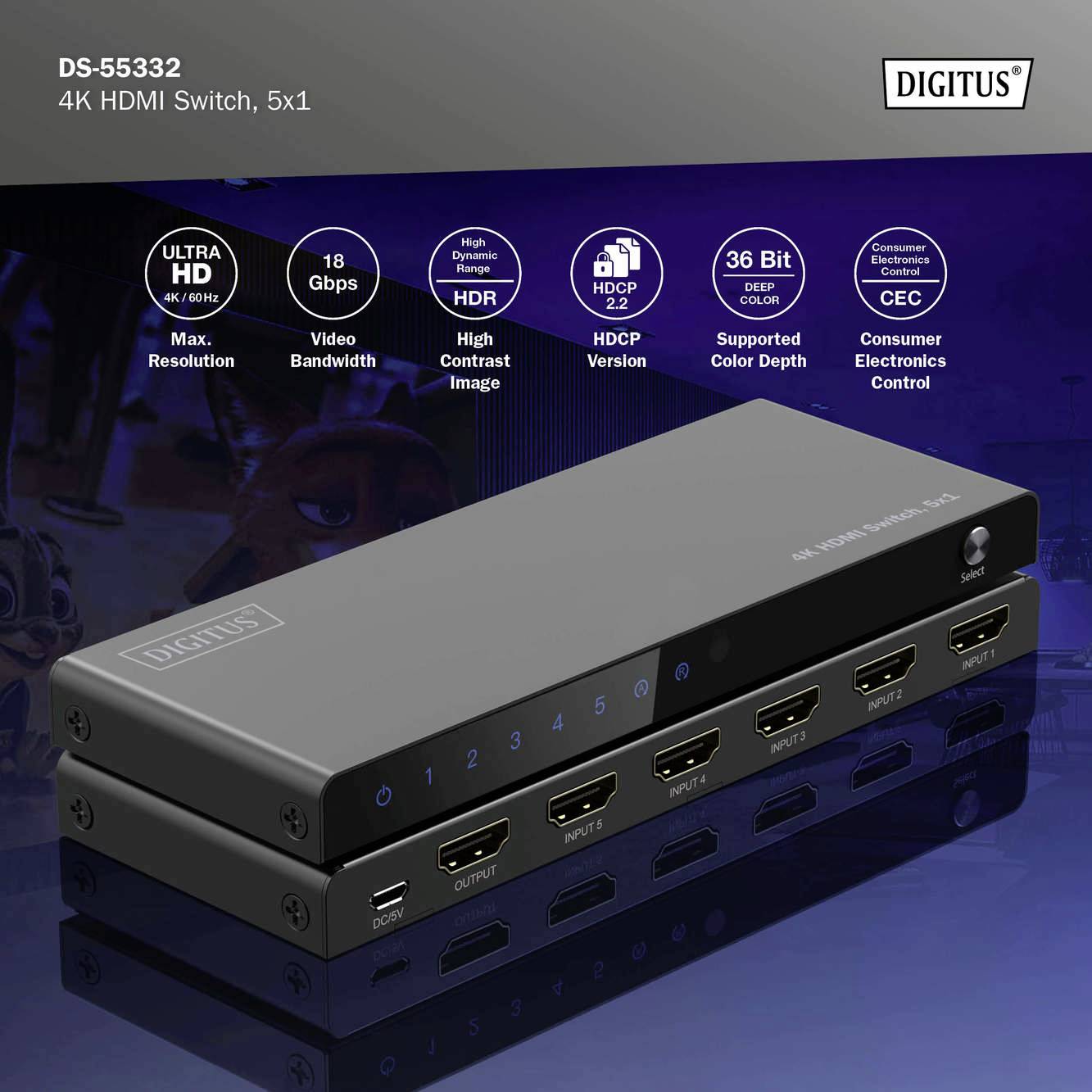

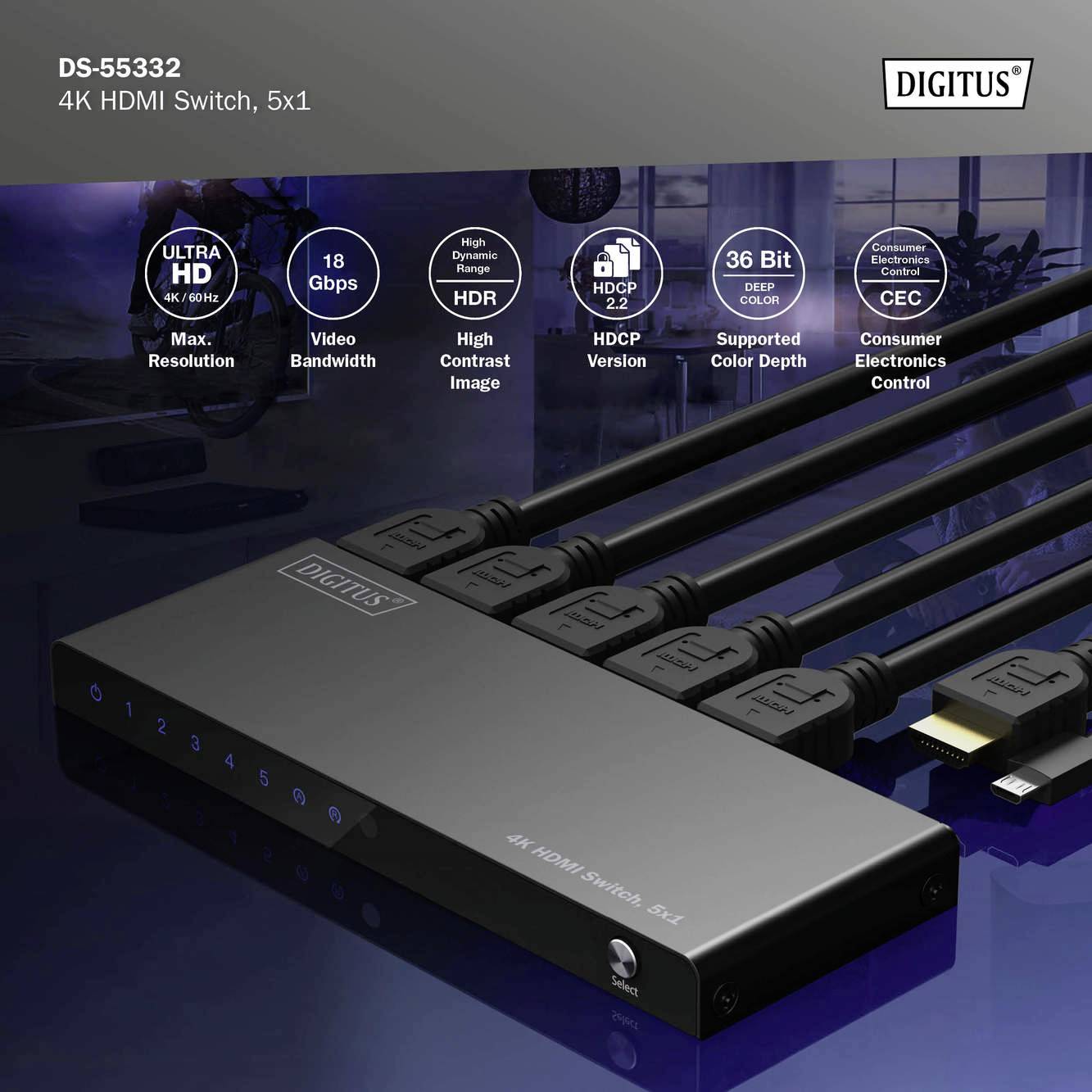

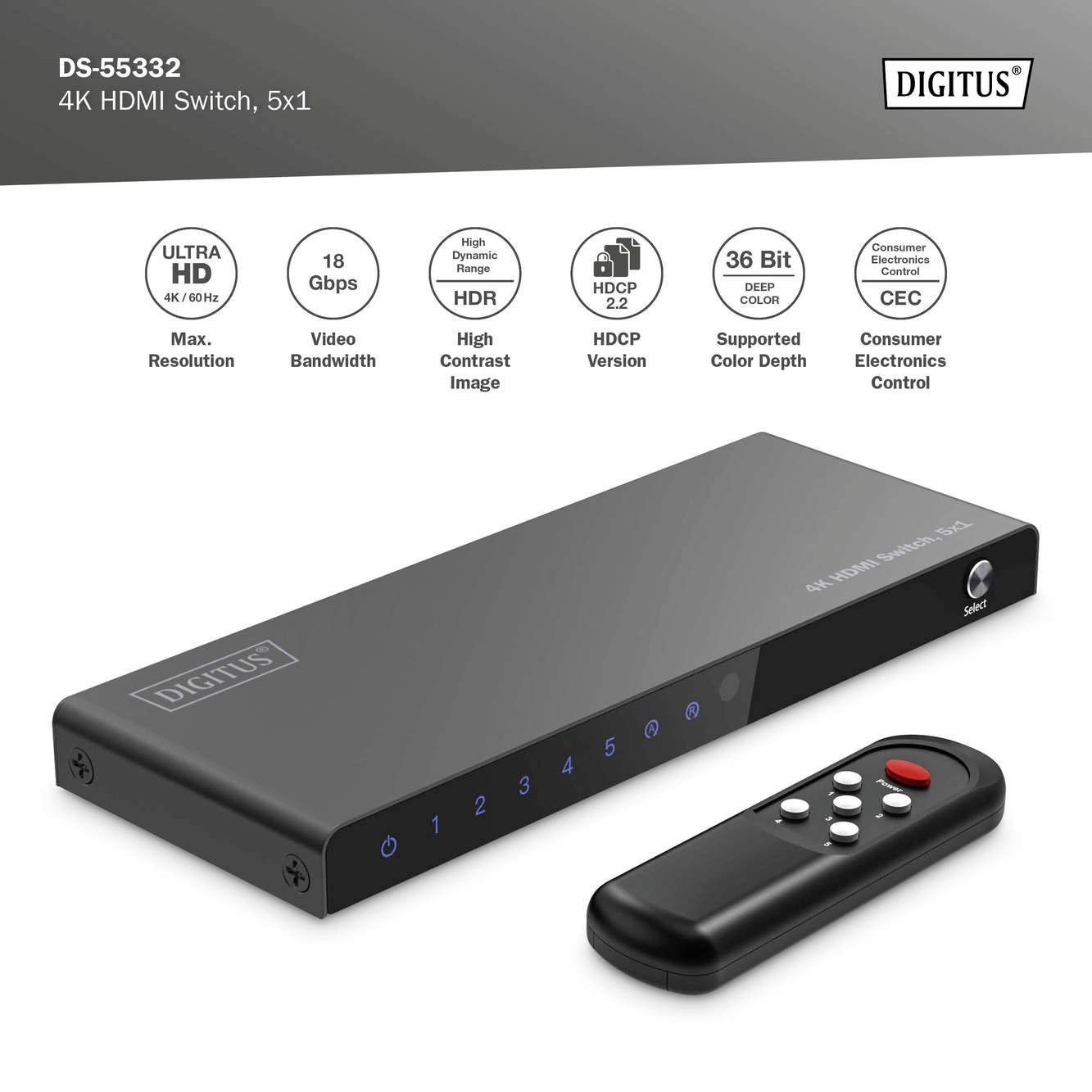

Digitus 4K HDMI switch, 5x1

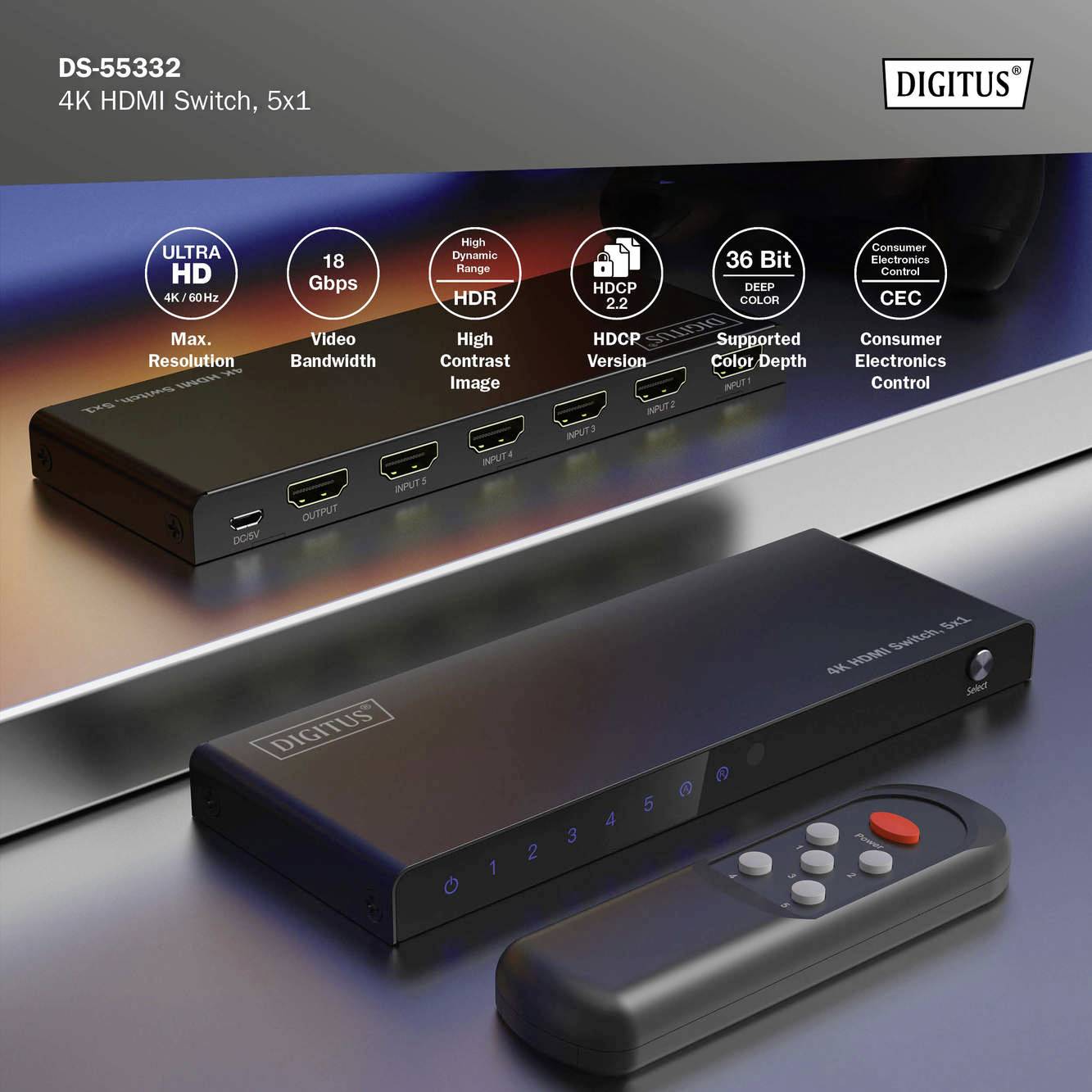

- Convenient switching between 5 signal sources via remote control, on the device itself or via automatic detection
- Additional HDMI-connections for your output device - 5 signal sources via only 1 HDMI connection/cable at the screen
- Power supply via micro USB cable (included)
- Max. 4K/60Hz resolution
- Video bandwidth 18 Gbps
- Supports high dynamic range (HDR)
- Supports HDCP 2.2
- Supports CEC (Consumer Electronics Control)
- Supports Deep Colour (36 bit)
- HDMI 2.0
Technical specifications
- Max. 4K/60Hz (3840 x 2160 pixels) resolution
- Video bandwidth 18 Gbps
- Operating temperature 0 -70°
- Power consumption: Approx. 5W
- Number of outputs 1
- Number of inputs: 5

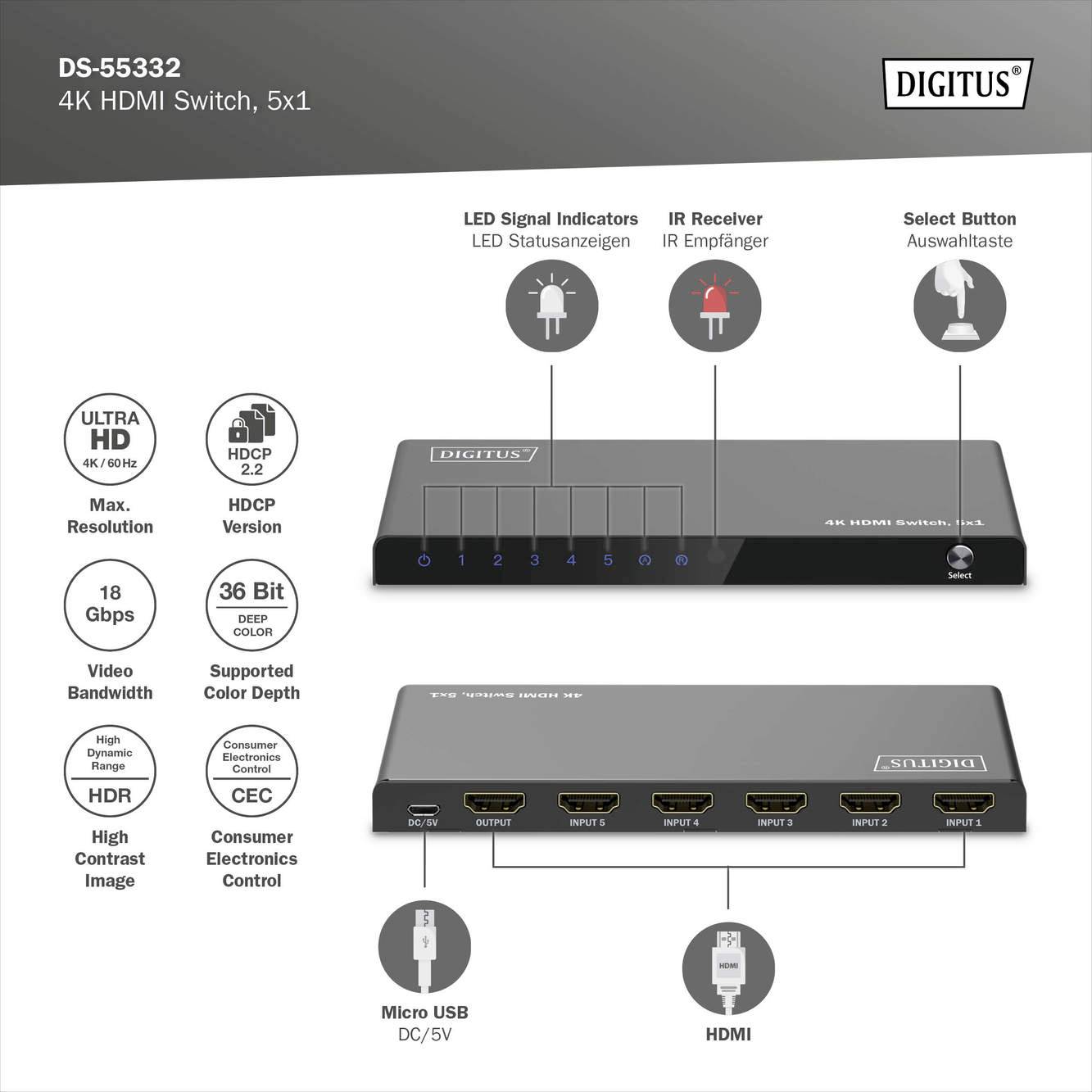

- Number of status LEDs: 8
- Product type
HDMI switch
- Supported monitors
5
- Interfaces (input)
HDMI™
HDMI® input
- Interfaces (output)
HDMI™
HDMI® output
- No. of inputs
5 x
- No. of outputs
1 x
- Switch function
Remote control
Automatic
Manual
- Resolution (max.)
3840 x 2160 p
- Distributor/switch features
LED display
+ remote control
Ultra HD compatibility
Steel casing
individually connectable
+ LED indicator lights
- Factory colour
Black
Black (metallic)
- Power supply (LOV)
via PSU
via USB
- Width
62 mm
- Height
14 mm
- Depth
160 mm
- Weight
205 g
- Resolutions (max.)
UHD 4K @ 60 Hz
- Port
1+5 ports
- Supported audio file formats
DTS
LPCM 2.0
LPCM 5.1
LPCM 7.1
Dolby-AC3
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3333876 Digitus DS-55332 1+5 ports HDMI switch LED display, + remote control, Ultra HD compatibility, Steel casing, individually
User & Safety Instructions
User & Safety Instructions 3333876 Digitus DS-55332 1+5 ports HDMI switch LED display, + remote control, Ultra HD compatibility, Steel casing, individually
Description

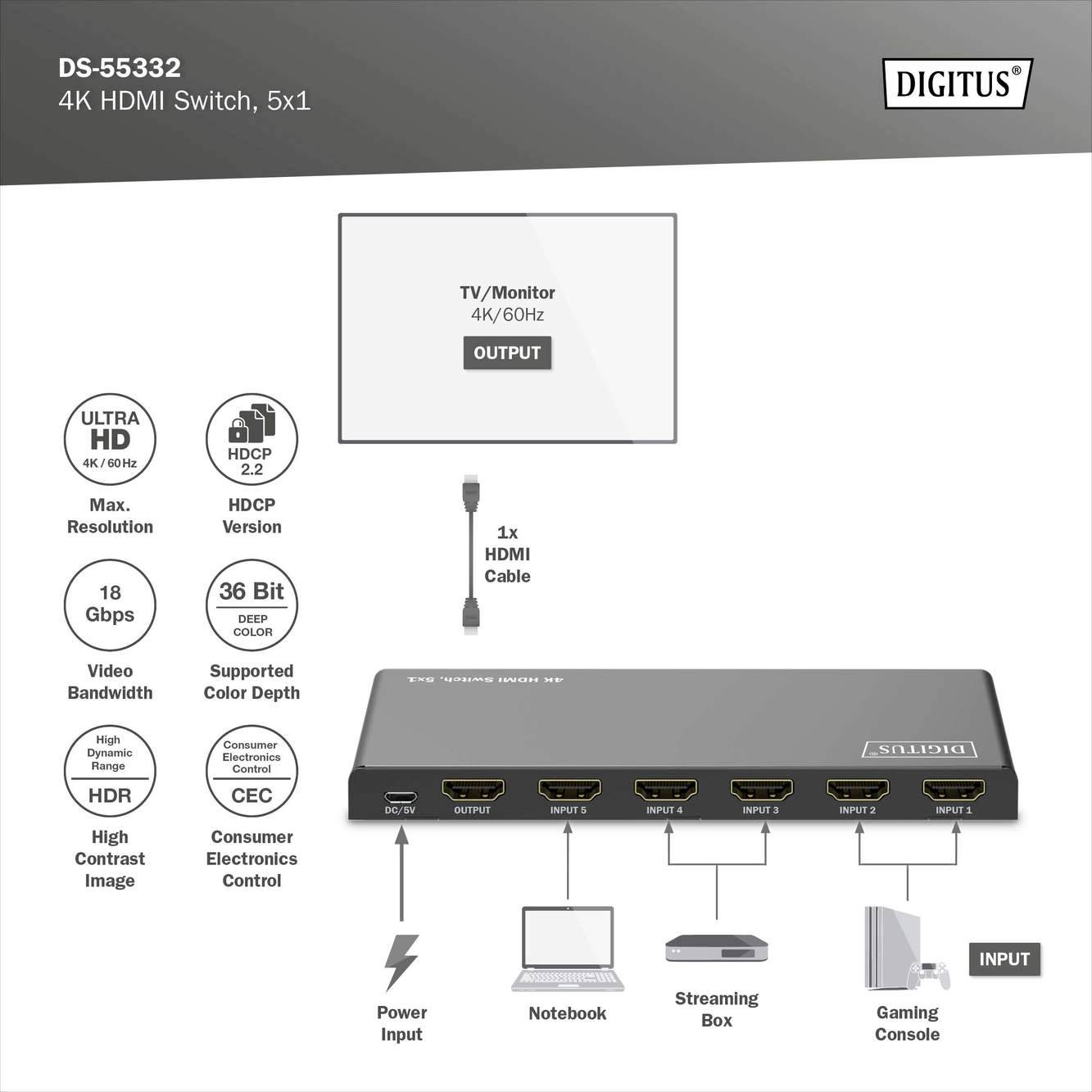

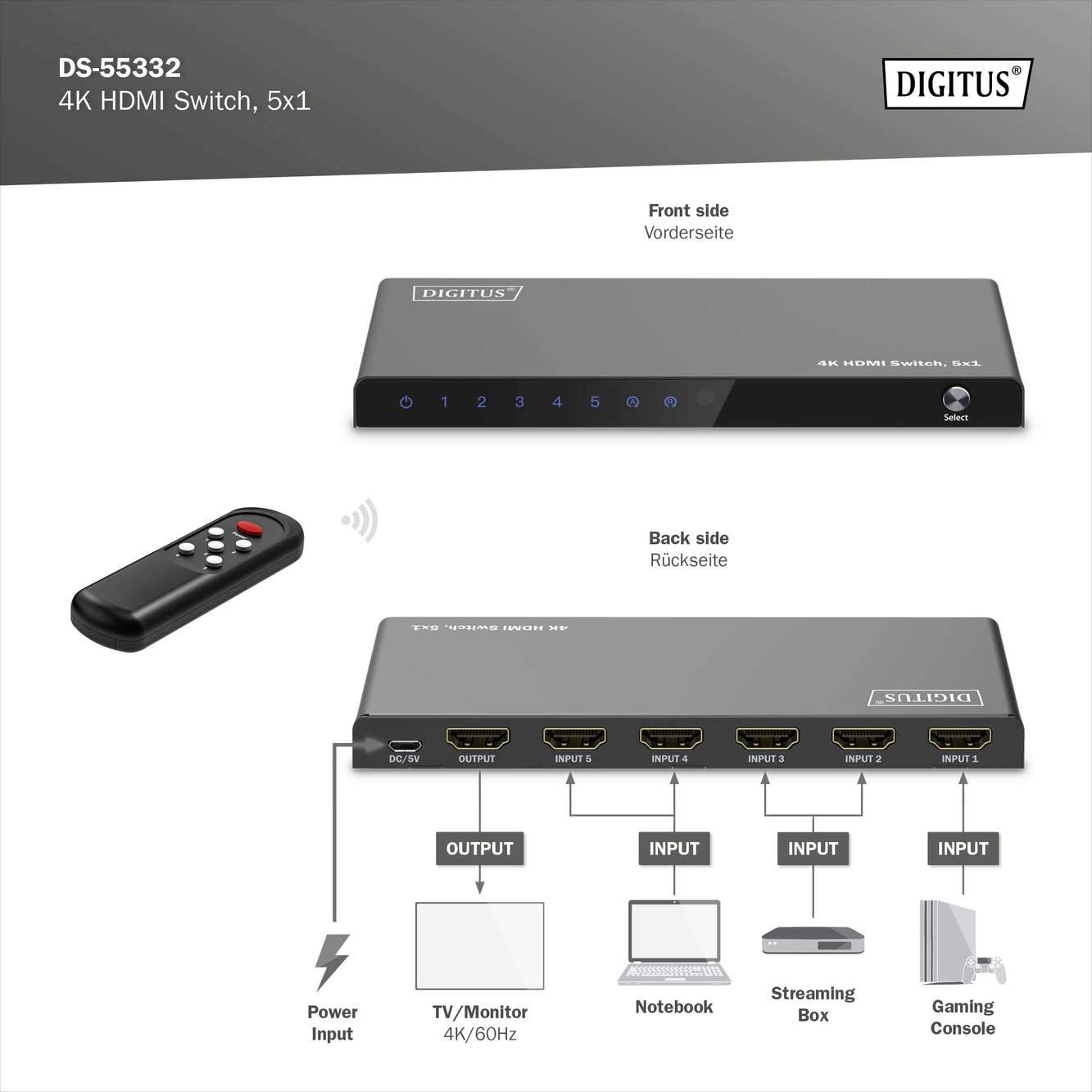

The Digitus® 4K HDMI switch, 5x1 offers additional HDMI connections for your output display - 5 signal sources can be connected to the screen via just 1 HDMI connection. The video change-over switch is powered by means of the micro USB cable, e.g. via the source device or a USB charging adapter. Conveniently switch between the signal sources via remote control, on the device itself or via automatic detection. Perfectly suitable in case of wall mounting of the TV - only one HDMI cable is necessary for connecting the sources.
This text is machine translated.
This text is machine translated.
Features
- Convenient changeover between 5 signal sources
- Additional HDMI-connections for your output device
- Power supply via micro USB cable (included)
- Supports high dynamic range (HDR)
- Supports HDCP 2.2
- Supports CEC (Consumer Electronics Control)
- Supports Deep Colour (36 bit)
- Supports compressed (e.g. DTS, Dolby Digital) and uncompressed audio formats (for example LPCM)
- HDMI 2.0
- Colour, black
- HDTV standard ultra HD 4K
- Signal output HDMI
- Signal input: HDMI
- HDMI video output
Scope of delivery

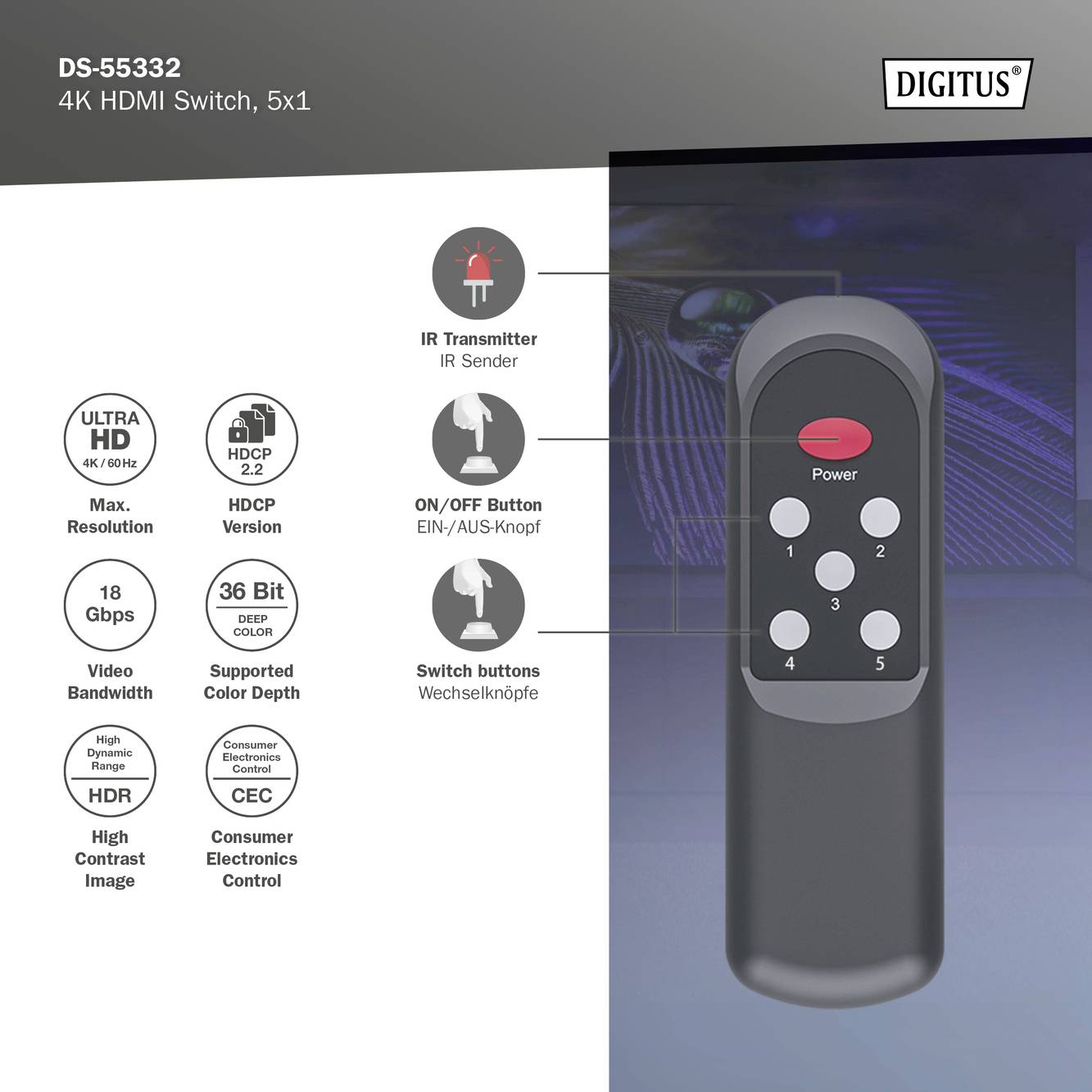

- 1x remote control (2x AAA battery, not included)
- 1x Micro USB cable (0.75 m)
- 1x QIG
