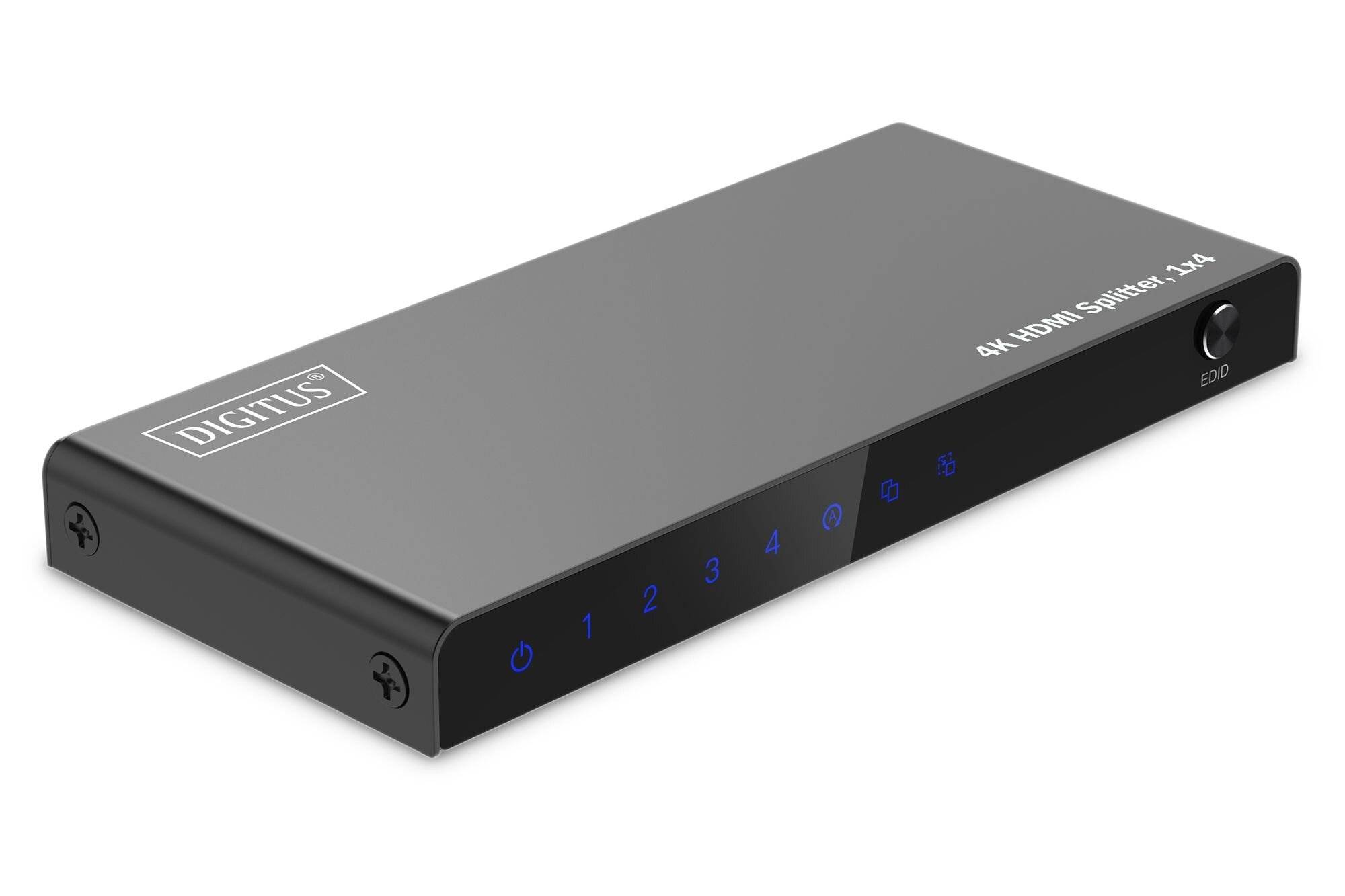

Digitus DS-55337 1+4 ports HDMI splitter LED display, + LED indicator lights, Steel casing, individually connectable, Ul
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details

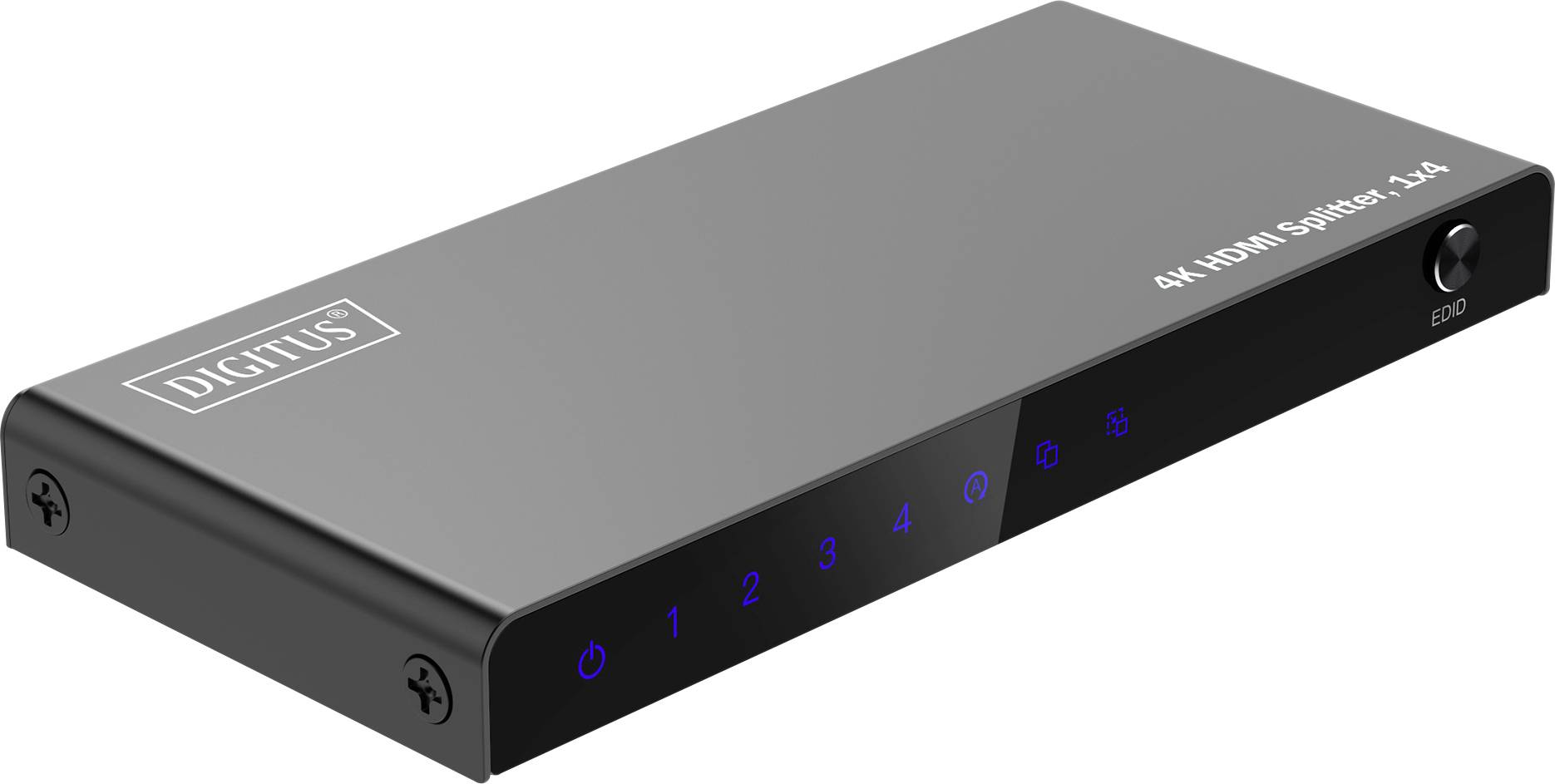

Digitus 4K HDMI splitter, 1x4
- Distributes a HDMI signal on 4 TVs/monitors/video projector
- EDID management: Automatic/copy/down scaler
- Power supply via micro USB cable (included)
- Max. Resolution: 4K/60Hz (4:4:4)
- Video bandwidth 18 Gbps
- Supports high dynamic range (HDR)
- Supports HDCP 2.2
- Supports Deep Colour (36 bit)
- HDMI 2.0
Technical specifications
- Max. Resolution: 4K/60Hz (4:4:4)
- Video bandwidth 18 Gbps
- Operating temperature 0 -70°
- Power consumption: Approx. 5W
- Number of ports: 4
- HDTV resolution max. 3840 x 2160 Pixel, 60Hz

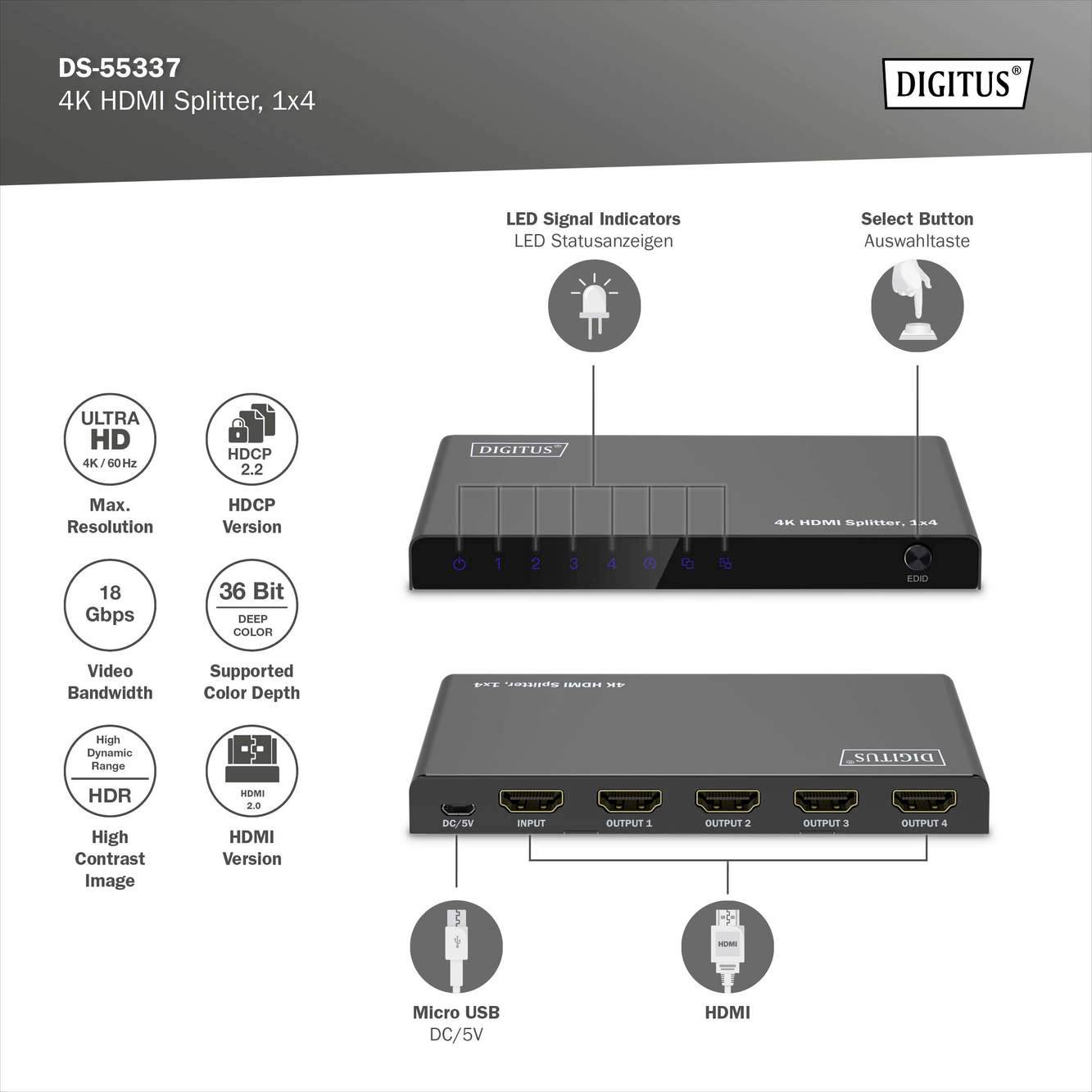

- Number of status LEDs: 8
- Product type
HDMI splitter
- Supported monitors
4
- No. of inputs
1 x
- Interfaces (input)
HDMI™
- No. of outputs
4 x
- Interfaces (output)
HDMI™
- Resolution (max.)
3840 x 2160 p
- Switch function
Key
- Power supply (LOV)
via mains outlet
- Distributor/switch features
LED display
+ LED indicator lights
Steel casing
individually connectable
Ultra HD compatibility
- Factory colour
Black
- Weight
182 g
- Width
61 mm
- Height
14 mm
- Depth
136 mm
- Dim
(W x H x D) 61 x 14 x 136 mm
- Port
1+4 ports
- Supported audio file formats
Dolby-AC3
DTS
LPCM 2.0
LPCM 5.1
LPCM 7.1
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3333873 Digitus DS-55337 1+4 ports HDMI splitter LED display, + LED indicator lights, Steel casing, individually connectable, Ul
User & Safety Instructions
User & Safety Instructions 3333873 Digitus DS-55337 1+4 ports HDMI splitter LED display, + LED indicator lights, Steel casing, individually connectable, Ul
Description

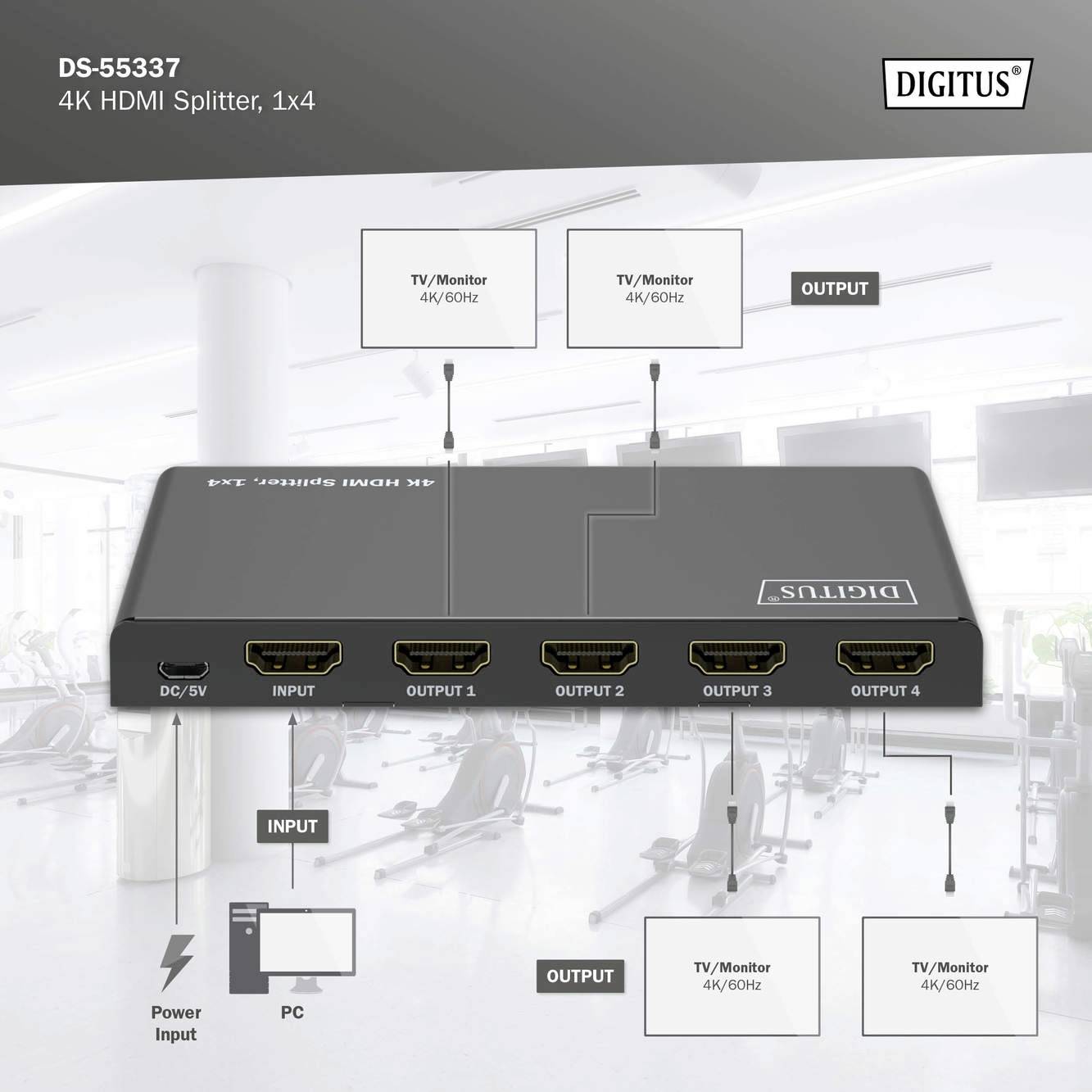

The HDMI splitter from Digitus® distributes audio and video signals from your HDMI device to 4 TVs, monitors or projectors at a resolution of UHD 4K/60Hz. With EDID management, you can select from 3 modes (Copy, Auto, Downscaler). Built-in downscaling allows 4K content to be displayed on Full HD displays, while 4K and Full HD displays can also be operated at the same time. Thanks to the Auto EDID function, the splitter automatically detects the connected displays - no manual settings are required. The video splitter is powered by a micro USB cable, e.g. via the source device or a USB charging adapter.
This text is machine translated.
This text is machine translated.
Features
- Distributes a HDMI signal 4 TVs/monitors/projector
- EDID management: Automatic/copy/down scaler
- Supports high dynamic range (HDR)
- Supports HDCP 2.2
- Supports Deep Colour (36 bit)
- Supports compressed (e.g. DTS, Dolby Digital, etc.) and uncompressed audio formats (e.g. LPCM, etc.)
- HDMI 2.0
- Colour, black
- HDTV standard ultra HD 4K
- Signal output HDMI
- Signal input: HDMI
- HDMI video output
Scope of delivery
- 1x Micro USB cable (0.75 m)
- 1x QIG
