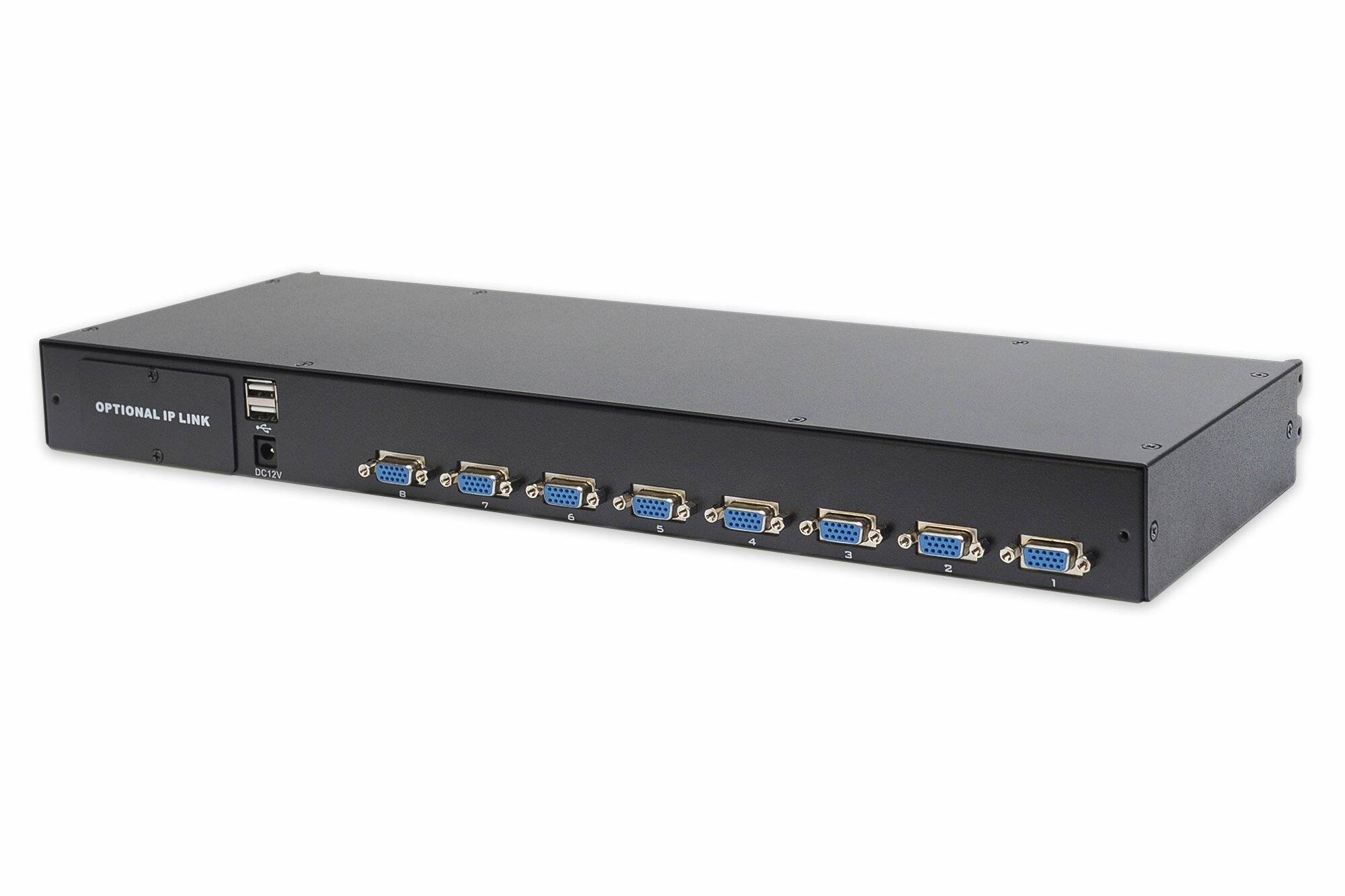

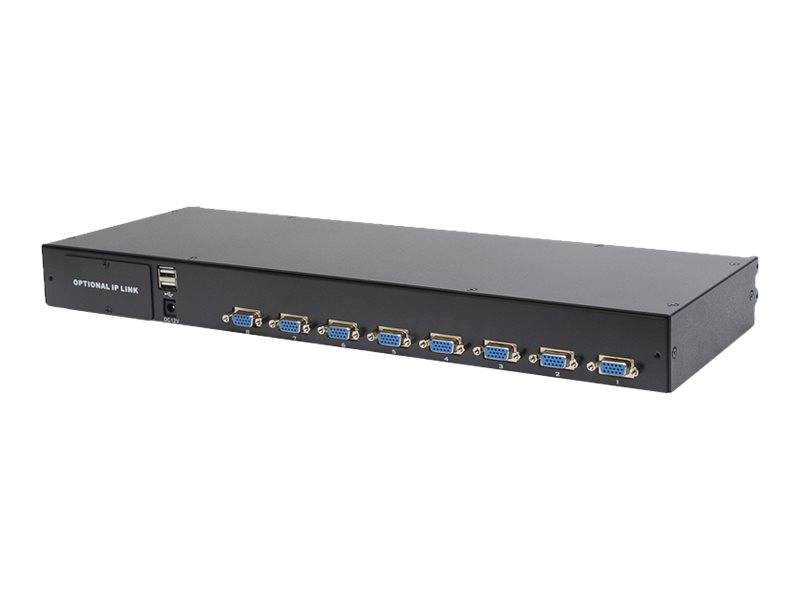

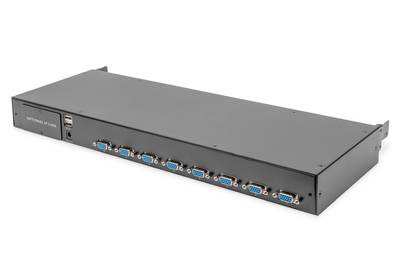

Digitus DS-72213 KVM changeover switch VGA
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Digitus DS-72213 KVM changeover switch
- Connections: 8-port VGA, PS/2, 2x USB (for mouse/keyboard)
- Cascading: Max. 128 devices with DIGITUS DS-23200-2 / DS-23300-2 (8-/16-port KVM switch)
- The modular KVM switches are interchangeable
- Full control under all operating systems, in BIOS settings, during booting or with blue screens
- Keyboard and mouse emulation for error-free booting of the computer without additional software
- Length of connection cable: 1.8 m (3m & 5m cable available separately: Digitus DS-19232 & DS-19233)
Technical specifications
- Product type
KVM changeover switch
- No. of switchable PCs
8
- Video via
VGA
- No. of USB 2.0 ports
2 x
- Stackable
Yes
- Rack mount option
Yes
- Distributor/switch features
meets industrial requirements
- Power supply (LOV)
via PSU
- Factory colour
Black
- Weight
3.32 kg
- Length
445 mm
- Width
148 mm
- Height
45 mm
- Dim
(L x W x H) 445 x 148 x 45 mm
- Depth
445 mm
- No. of VGA ports
8 x
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1881747 Digitus DS-72213 KVM changeover switch VGA
User & Safety Instructions
User & Safety Instructions 1881747 Digitus DS-72213 KVM changeover switch VGA
Description
The DIGITUS KVM Switch module offers a variety of individual configuration options, so that an adjustment can be tailored to the application area of the console. As a result, the console is cost-saving and can be upgraded or converted at any time with additional modules. Thanks to the flexible configuration, a high level of future-proofing of the console is thus guaranteed. The modular KVM switch offers the connection of a server via USB or PS/2 as well as VGA. The DIGITUS 17" or 19" modular console, keyboard and the corresponding wiring kit are required for operation. The high-quality KVM switch modules with IP function (optional) are ideal for use in small to medium-sized server rooms, in which administrator access must be ensured at any time from any location. They offer direct connection from a local console or with the optional IP module via an existing Internet connection with a browser. The accessories are available in a variety of different versions.
This text is machine translated.
This text is machine translated.
Features
- Modular KVM switch for connecting up to 8 servers
- Space-saving housing with 1HE height
- Suitable for modular KVM consoles DS-72210 and DS-72211
- Control of several PCs via the DIGITUS modular console in 17" or 19"
- Remote access via IP with the optional IP module DS-51000-1
- Full control under all operating systems, in BIOS settings, during booting or with blue screens
- No additional software necessary
- Remote”power wake-up” on the target computer
- Can be expanded by cascading
- Resolution depends on the console inserted
- Hot-plug support
- Keyboard and mouse emulation for error-free booting of the computer
- AutoScan (5 to 90 sec, selectable)
- Compatible with USB 2.0 specification
Scope of delivery
- Modular KVM switch, 8-port
- Quick start guide
- Fitting Material
- 8 x server connection cables
