Name: Digitus HDMI Cable HDMI-A plug 90 m Black AK-330126-900-S 8K UHD, 4K UHD HDMI cable
Brand: Digitus
SKU: 3763200

Two black HDMI cables with male connectors on a white background, one branded 'Digits'.

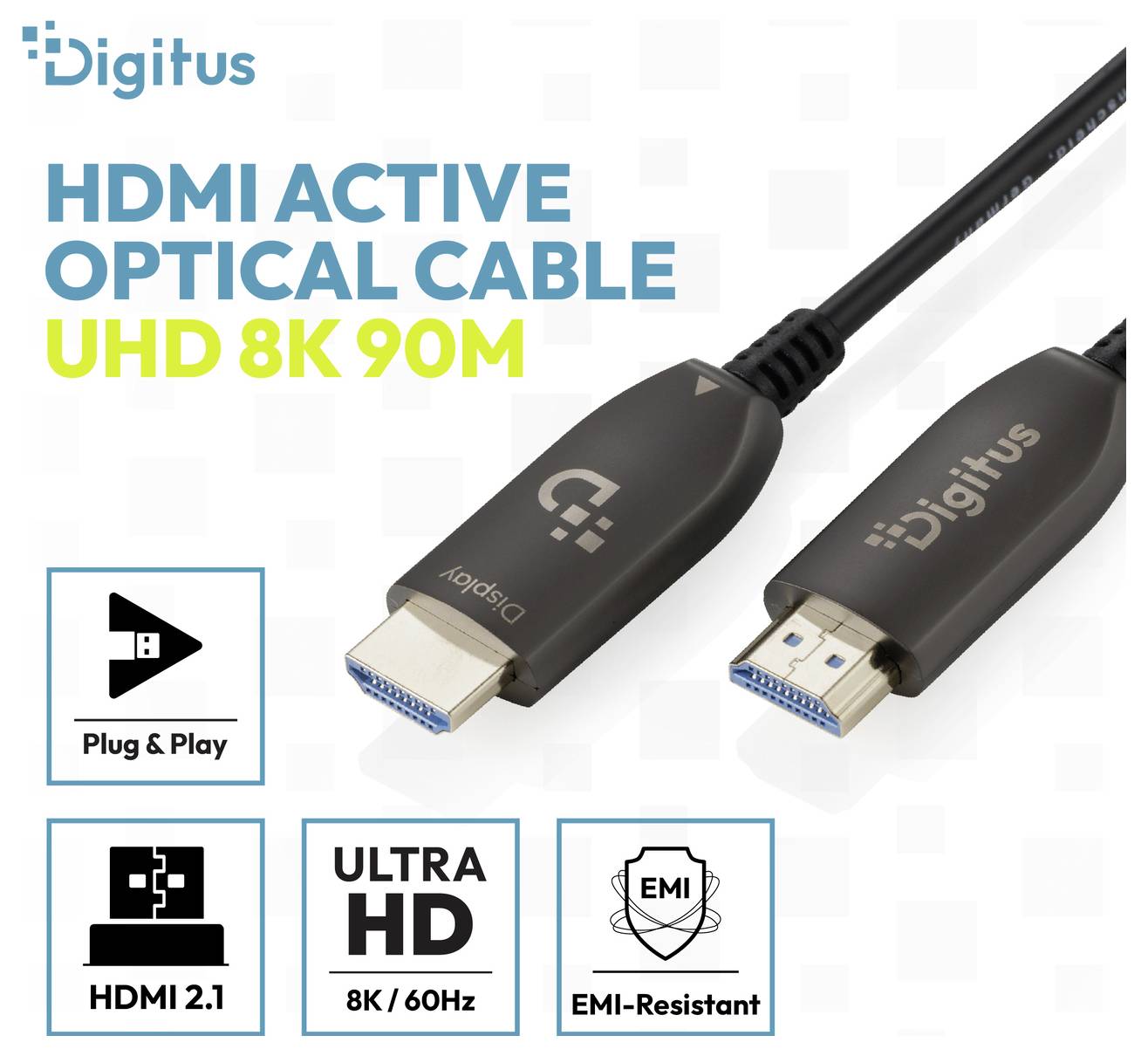

Digitus HDMI Active Optical Cable, UHD 8K 90m, with Plug & Play, HDMI 2.1, Ultra HD 8K/60Hz, and EMI-resistant features.

Digitus ad shows a gaming desk with monitor, headphones and speakers, emphasizing 'HIGH-BANDWIDTH ZERO-LATENCY' and comparing 60Hz vs 30Hz on screen.

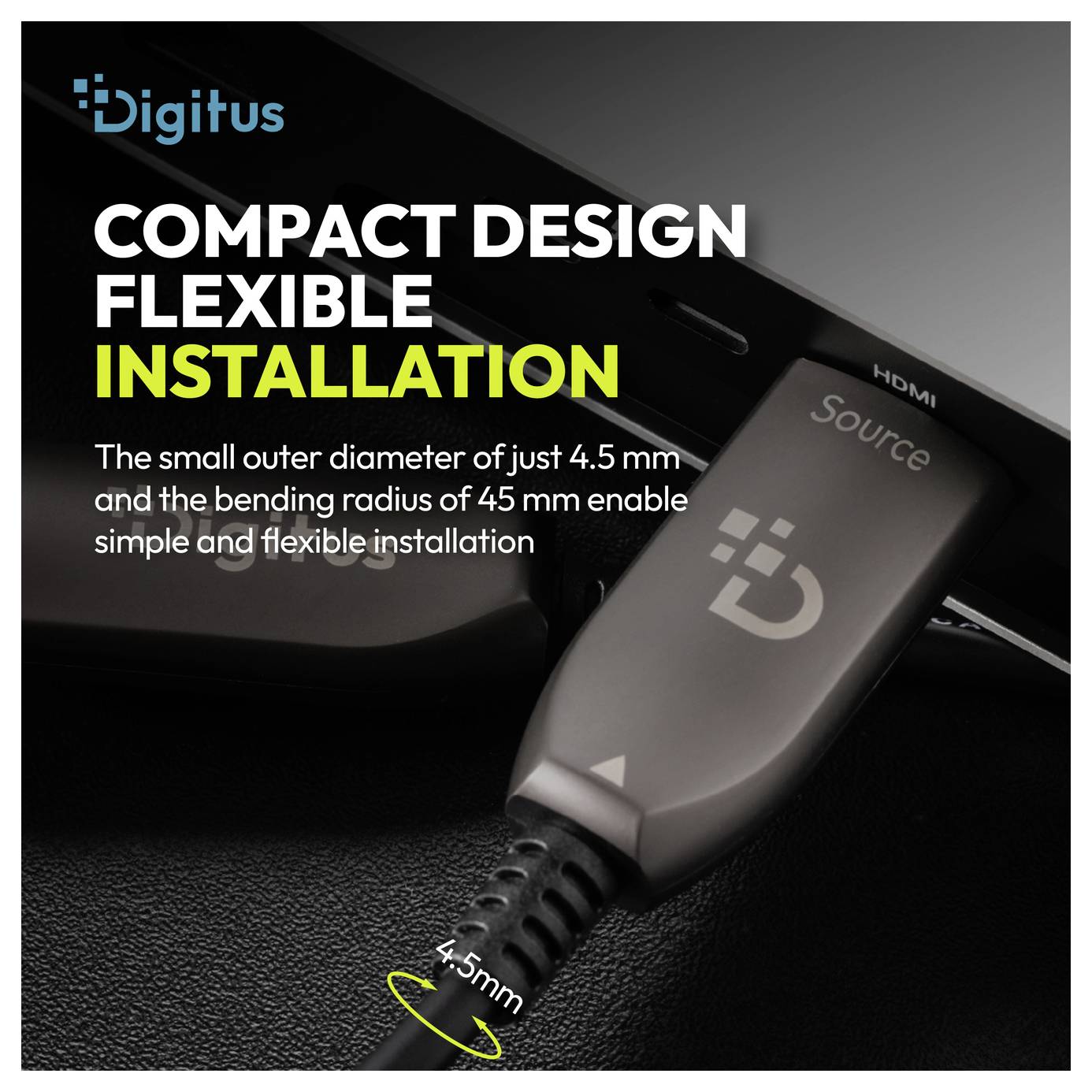

Digitus promotional image of a compact HDMI cable/adapter with text: 'COMPACT DESIGN FLEXIBLE INSTALLATION'; notes 4.5 mm outer diameter and 45 mm bending radius.<br>

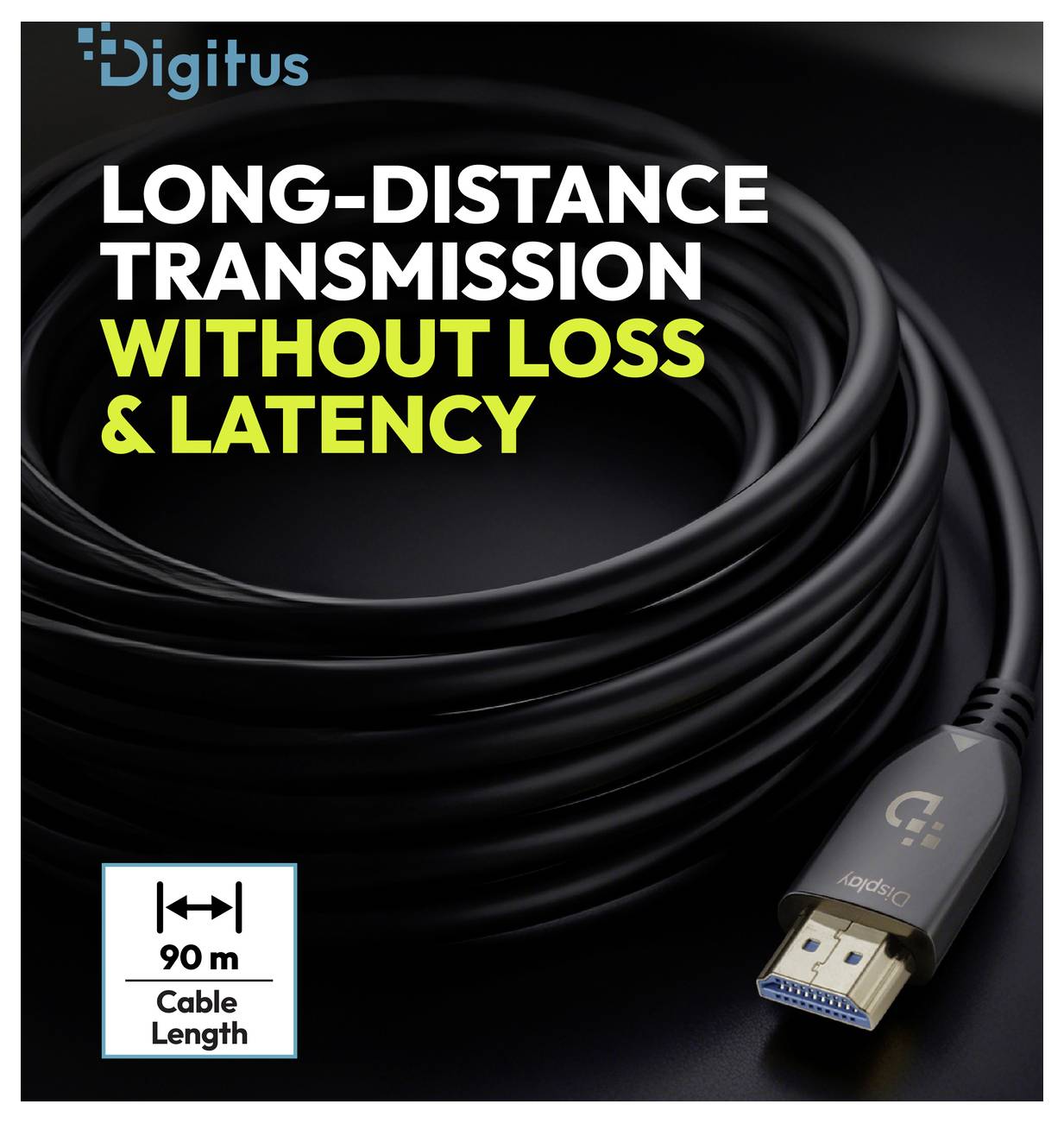

Digitus cable ad with coiled HDMI cable and connector, reading 'LONG-DISTANCE TRANSMISSION WITHOUT LOSS & LATENCY' and '90 m Cable Length'.

Digitus HDMI 2.1 cables with 'Stable 48 Gbps Transmission'; bar chart compares HDMI 1.4, 2.0, and 2.1 speeds, showing 48 Gbps for HDMI 2.1.<br>

Split-screen image showing a girl in a mountain landscape, comparing 'Without HDR' and 'With HDR' to demonstrate brighter, higher-contrast, more vivid colors.<br>

Digitus ad for a high-speed EMI-resistant hybrid cable, showing two cable connectors and text: 'Transmits uncompressed video and audio data in 8K 60Hz'.<br>

A USB-C cable plugged into a silver desktop device, with the other end showing a blue USB-A connector and 'bigius' branding.<br>

Packaging for Digitus HDMI active optical cable, labeled 8K and 90 m, with HDMI and USB connectors shown.

1/10

Product type

HDMI cable

Connection type

HDMI

Version

Cable

Connections

HDMI-A plug

Cable version

HDMI Ultra High Speed

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Digitus HDMI AOC hybrid fiber optic cable, UHD 8K, 90 m

Active glass fiber technology with up to 48 Gbps for lag-free transmission
Supports resolutions up to 8K @ 60 Hz (UHD-2)
Transmits uncompressed HDMI video and audio signals over 90 meters
Flexible to install (bending radius from 20 mm), on cable drum for a controlled, kink-free rolling
Compact small diameter (OD 4.8 mm) cable
Not susceptible to electromagnetic interference (EMI)
Supports HDR, HDCP 2.2, EDID, CEC and ARC
Hybrid design with fiber and copper wires
Loss-free and stable signal transmission with high transmission speeds

Technical specifications

Resolution up to 8K 7680 × 4320p @ 60 Hz (UHD-2)
8K 3D, 4K @ 60 Hz and Full HD (1080p) compatible
Signal transmission rate up to 48 Gbps - Zero frame delay
BT.2020 color space with 10, 12 and 16 bit color depth
YUV 4:4:4 color space subsampling
HDR
Colour depth up to 48 bit Deep Colour
21:9 Cinemascope support
Enhanced Audio Return Channel
Consumer Electronic Control (CEC)
Lip Sync function for audio/video synchronization
Multi Stream Audio/Video capability
32-channel audio
8-channel LPCM, 192 kHz, 24 bit
Dolby TrueHD and DTS-HD-Master audio-enabled
Super Audio CD (DSD) playback
Compatible with DVD Audio, Blu-ray Disc and HD-DVD
HDMI version 2.1
HDCP version 2.2
EDID 2.0 (automatic device recognition)
Supports DVI Version 1.0 (in connection with adapters)
Integrated Ethernet channel (HEC)
Hybrid structure with OM3 fiberglass and copper conductors
Bending radius: ≥ 20 mm
Latency: Zero-frame delay
Power consumption: 400 mW max.
Operating temperature: -10 to + 80°C.
Operating humidity 0 - 85% RH

Product type: HDMI cable

Connection type: HDMI

Version: Cable

Connections: HDMI-A plug

HDMI version: HDMI 2.1

Connector version: straight

Cable version: HDMI Ultra High Speed

Resolutions (max.): UHD 8K @ 60 Hz

Video resolution: 7680 x 4320 Pixel

Transfer rate (max.): 48 GBit/s

Cable length: 90 m

Factory colour: Black

Cable features: 8K UHD
4K UHD

Signal flow: Bidirectional (A↔B)

Cable use: TV/monitor
PC
Monitor
TV/receiver
VHS

Cable design: Round

: FO/Cu hybrid

UKCA: yes

Variants(All information is without VAT, plus shipping costs)

Cable features

Cable length

Connections

HDMI version

Digitus HDMI Cable HDMI-A plug 90 m Black AK-330126-900-S 8K UHD, 4K UHD HDMI cable

Item no:3763200

Unavailable

Conrad Electronic

This article

8K UHD

90 m

HDMI-A plug

HDMI 2.1

Piece(s)

Minimum order quantity: 1

Multiple: 1

Digitus HDMI Cable HDMI-A plug 100 m Black AK-330126-1000-S 8K UHD, 4K UHD HDMI cable

Item no:3763194

Unavailable

Conrad Electronic

8K UHD

100 m

HDMI-A plug

HDMI 2.1

Piece(s)

Minimum order quantity: 1

Multiple: 1

Digitus HDMI Cable HDMI-A plug 40 m Black AK-330126-400-S 8K UHD, 4K UHD HDMI cable

Item no:3763195

Unavailable

Conrad Electronic

8K UHD

40 m

HDMI-A plug

HDMI 2.1

Piece(s)

Minimum order quantity: 1

Multiple: 1

Digitus HDMI Cable HDMI-A plug 50 m Black AK-330126-500-S 8K UHD, 4K UHD HDMI cable

Item no:3763196

Unavailable

Conrad Electronic

8K UHD

50 m

HDMI-A plug

HDMI 2.1

Piece(s)

Minimum order quantity: 1

Multiple: 1

Digitus HDMI Cable HDMI-A plug 60 m Black AK-330126-600-S 8K UHD, 4K UHD HDMI cable

Item no:3763197

Unavailable

Conrad Electronic

8K UHD

60 m

HDMI-A plug

HDMI 2.1

Piece(s)

Minimum order quantity: 1

Multiple: 1

Digitus HDMI Cable HDMI-A plug 70 m Black AK-330126-700-S 8K UHD, 4K UHD HDMI cable

Item no:3763198

Unavailable

Conrad Electronic

8K UHD

70 m

HDMI-A plug

HDMI 2.1

Piece(s)

Minimum order quantity: 1

Multiple: 1

Digitus HDMI Cable HDMI-A plug 80 m Black AK-330126-800-S 8K UHD, 4K UHD HDMI cable

Item no:3763199

Unavailable

Conrad Electronic

8K UHD

80 m

HDMI-A plug

HDMI 2.1

Piece(s)

Minimum order quantity: 1

Multiple: 1

Digitus HDMI Cable HDMI-A plug, HDMI-A plug 10.00 m Black AK-330126-100-S 8K UHD, double shielding HDMI cable

Item no:2356849

Unavailable

Conrad Electronic

8K UHD

10.00 m

HDMI-A plug

Piece(s)

Minimum order quantity: 1

Multiple: 1

Digitus HDMI Cable HDMI-A plug, HDMI-A plug 15.00 m Black AK-330126-150-S 8K UHD, double shielding HDMI cable

Item no:2356822

Unavailable

Conrad Electronic

8K UHD

15.00 m

HDMI-A plug

Piece(s)

Minimum order quantity: 1

Multiple: 1

Digitus HDMI Cable HDMI-A plug, HDMI-A plug 20.00 m Black AK-330126-200-S 8K UHD, double shielding HDMI cable

Item no:2356823

Unavailable

Conrad Electronic

8K UHD

20.00 m

HDMI-A plug

Piece(s)

Minimum order quantity: 1

Multiple: 1

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3763200 Digitus HDMI Cable HDMI-A plug 90 m Black AK-330126-900-S 8K UHD, 4K UHD HDMI cable

Description

This active HDMI AOC hybrid fiber-optic cable transfers uncompressed video and audio data in 8K 60Hz with high bandwidth over longer distances without loss and without latency. Through the combination of glass fiber and copper conductors the cable offers highest signal quality at maximum noise immunity (EMI-resistant) and guarantees a stable transmission with up to 48 Gbps bandwidth. The low external diameter of only 4.8 mm and the bending radius of 20 mm enables a simple and flexible laying. Ideal for home theater, meeting rooms, conference technology, digital signage or fixed AV-installations. Thanks to Plug & Play, no additional driver installation is necessary - simply connect and immediately enjoy the highest picture quality. It supports all the latest HDMI-2.1 features such as HDR, HDCP 2.2, earc, CEC and EDID, as well as high-quality audio formats such as Dolby TrueHD and DTS-HD Master audio. The cable is therefore future-ready for high-resolution video and audio applications.
