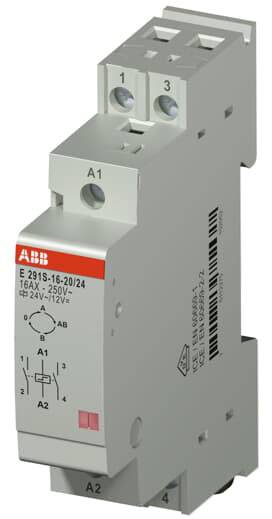

DIN rail ABB E291S-16-20/24 2 makers Piece 1 pc(s)
EAN:
Part number:
Item no:
Packaging type
Piece
Contact type
2 makers
Switching voltage (max.)
12 V AC
Mounting type
DIN rail
Type
E291S-16-20/24
Datasheet (PDF)
Technical specifications
- Packaging type
Piece
- Type
E291S-16-20/24
- Max. operating voltage
250 V
- Operating voltage
250 V (max)
- Permanent current (max.)
3200 A
- Contact type
2 makers
- Switching voltage (max.)
12 V AC
- Mounting type
DIN rail
- Depth
68 mm
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2317902 DIN rail ABB E291S-16-20/24 2 makers Piece 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2317902 DIN rail ABB E291S-16-20/24 2 makers Piece 1 pc(s)
Description
The E291-S series surge switch is equipped with two normally open contacts and allows a sequence to be switched (0 – A – OFF – B – 0). The specified switching sequence of the main contacts allows "programd" switching on and off of different light strands. The device has a clearly visible LED switch position display on the front.
