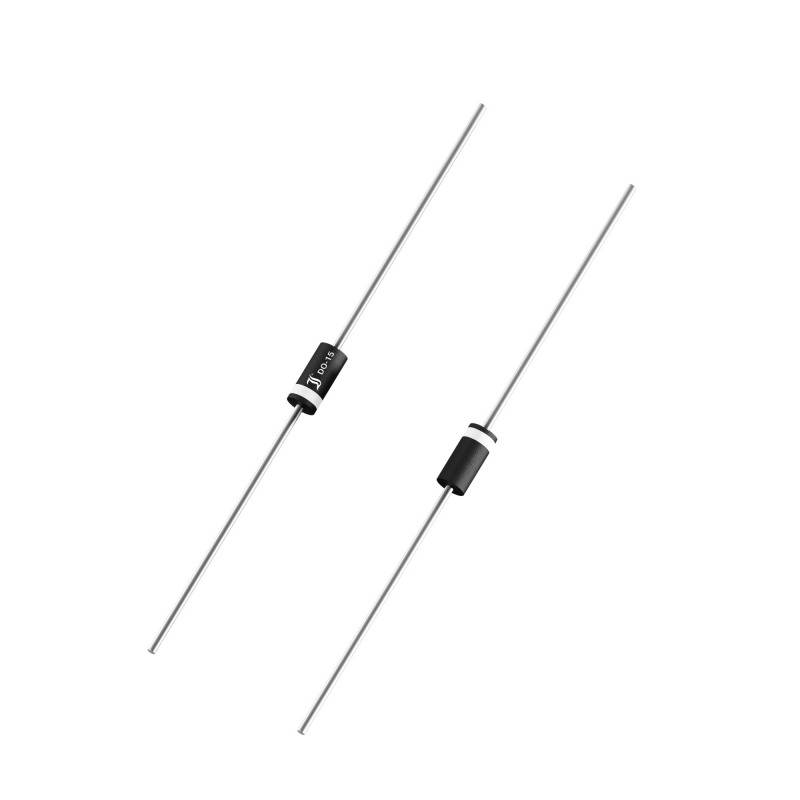

Two black diodes with silver-coloured connecting wires, arranged side by side on a white background.

Image similar

Two black diodes with silver-coloured connecting wires, arranged side by side on a white background.

Image similar

Enclosure

DO 15

Reverse voltage U(R)

15.3 V

Mounting type

Through-hole mounting

Product type

TVS diode

Type

BZW06-15B

Datasheet (PDF)

English

Diotec

3633 Piece(s)

Sales and shipping:

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Minimum order quantity: 15

Total (€ 0.18955 / piece)

€

Report legal concerns

Technical specifications

Type AxialDO-15 housingTermination of voltage - VBRmin 17.10 VVBRmax 18.90 VIt 1 mAPulse power loss - PPPM 600 WJunction temperature - Tjmax 175 °CReverse voltage - VWM 15.3 VMaximum reverse current ID @ VWM: 5,000 µAMaximum limit voltage - VC 25.20 VIPPM 24.00 ALock layer capacity - CJ: PFVR V

Type: BZW06-15B

Enclosure: DO 15

Manufacturer: Diotec

Reverse voltage U(R): 15.3 V

Breakdown voltage U(BR): 18.90 V

Mounting type: Through-hole mounting

RoHS-compliant: Yes

Product type: TVS diode

Documents & Downloads

Datasheet

English

Datasheet 2807519 Diotec TVS diode BZW06-15B DO 15 18.90 V
